This topic provides information on Auto Categorization Of Spend Transactions.

Scenario:

If a Spend transaction description contains keyword "Big Bazaar" then that transaction should get auto-categorized as follows:

Category → Shopping

Subcategory → Groceries

Maintenance steps:

1. Create a Category and a Subcategory as required after login as an Admin user.
2. Note the CATEGORY_ID column value of the newly created Category & Subcategory from the table DIGX_SP_SPEND_CATEGORY (Eg: 10 and 101 respectively).
3. Insert a row in table DIGX_RL_SPEND as below (Note the ID column value which is '10001' in this example).

   Sample script:

   insert into DIGX_RL_SPEND
           (ID, CREATED_BY, CREATION_DATE, LAST_UPDATED_BY, LAST_UPDATED_DATE,
           OBJECT_STATUS,   OBJECT_VERSION_NUMBER, NAME, DESCRIPTION, DETERMINANT_VALUE)
           values ('10001', '', sysdate , '', sysdate , '', 1,'SpendRule', 'SpendDTODesc', 'OBDX_BU');

4. Insert a row in table DIGX_RL_CONDITION as below:
   1. ID as any unique value
   2. RULE_ID as provided in the DIGX_RL_SPEND table above
   3. EXPRESSION_OBJECT value should contain the keyword as follows:

      utl_raw.cast_to_raw('{ "@class" : "
              com.ofss.digx.app.spendanalysis.dto.rule.SpendCategorizationExpressionFactValueDTO",
              "keyword" : "Big Bazaar" }')

   4. OUTCOME_OBJECT value should contain the corresponding Category & Subcategory ID as follows (Subcategory is NOT mandatory):

      utl_raw.cast_to_raw('{ "@class" : "
            com.ofss.digx.app.spendanalysis.dto.rule.SpendCategorizationOutcomeFactValueDTO",
            "category" : "10", "subCategory" : "101" }')

   5. OPERATOR value should be 'CONTAINS' (No other operators are supported out of the box

      Sample script:

      insert into
              DIGX_RL_CONDITION (ID, RULE_ID, OPERATOR, OUTCOME_OBJECT, EXPRESSION_OBJECT, CREATED_BY,
              CREATION_DATE, LAST_UPDATED_BY, LAST_UPDATED_DATE, OBJECT_STATUS, OBJECT_VERSION_NUMBER,
              DETERMINANT_VALUE)values ('103', '10001',
              'CONTAINS', utl_raw.cast_to_raw('{"@class" :
              "com.ofss.digx.app.spendanalysis.dto.rule.SpendCategorizationOutcomeFactValueDTO","category" :
              "10","subCategory" :
              "101"}'),
              utl_raw.cast_to_raw('{"@class" :
              "com.ofss.digx.app.spendanalysis.dto.rule.SpendCategorizationExpressionFactValueDTO","keyword" : "Big
              Bazaar"}'), '', null, '',
              null, '', 1, 'OBDX_BU');

5. Insert such rows in table DIGX_RL_CONDITION for each keyword & Category-Subcategory combination as required by the Bank.
6. Verify the following properties (select * from DIGX_CFG_CONFIG_ALL_B where prop_id like 'RuleConfig%';
   1. IS_RULE_EVALUATION_REQUIRED → Y
   2. SPEND_EVALUATOR → com.ofss.digx.app.spendanalysis.ruleengine.evaluator.SpendRuleEvaluator (out of the box Spend rule evaluator)
   3. SPEND_RULE_NAME → SpendRule (As per the value of NAME column in DIGX_RL_SPEND table)
   4. SPEND_DEFAULT_CATEGORY_ID → This property is used for maintaining default category, if no keyword is match from all maintained rules.

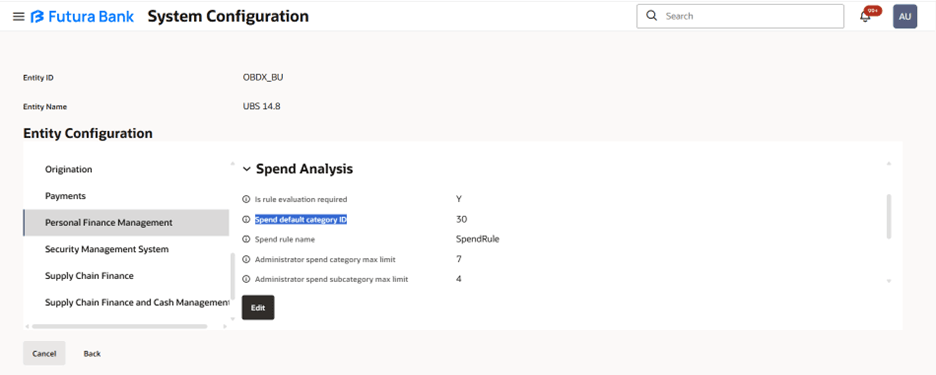

Below attached screenshot entry is required for setting default category. We need to update the entry from day one configuration screen. We have to maintain the Category ID in this configuration value.
