1.10 Setup for Push Notification in the application

This topic describes the systematic instruction to Setup for Push Notification in the application option.

  1. Push notification services are to be created using .p8
  2. For p8, bank needs to setup Key and update database with the details. All details are mentioned below:

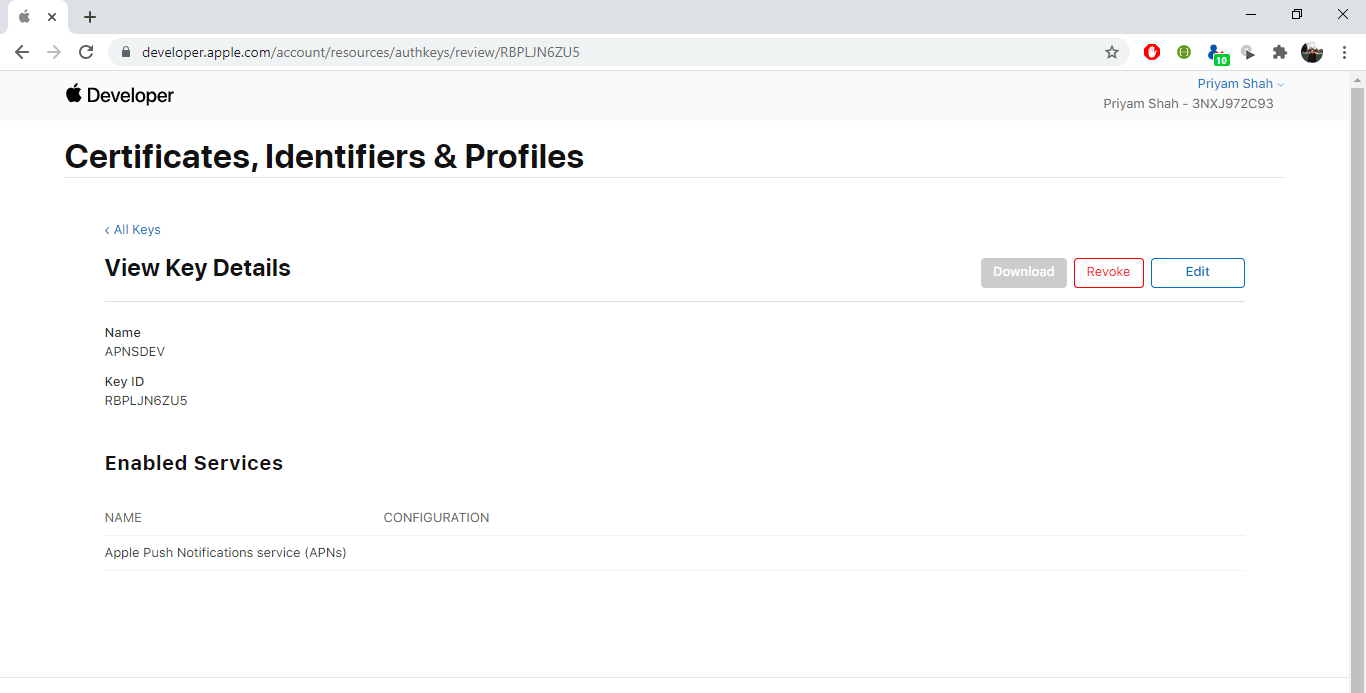

  3. Create APNS key from developer portal. Navigate to the “Keys” section and create APNS key.

    Note:

    APNS key and download the .p8 file. We need the contents of this file to update in database.

    Description of mnios8.png follows
    Description of the illustration mnios8.png

    Below are the configurations to be done at database level:

  1. For more information on fields, refer to the field description table.

    Table 1-11 Below are the configurations to be done at database level:

    SR NO Table PROP_ID CATEGORY_ID PROP_VALUE Purpose
    1 DIGX_FW_CONFIG_ALL_B APNSKeyStore DispatchDetails DATABASE Specifies whether to pick certificate password
    2 DIGX_FW_CONFIG_ALL_B APNSCertKeyStore DispatchDetails DATABASE
    3 DIGX_FW_CONFIG_ALL_B proxy DispatchDetails <protocol,proxy_address> Provides proxy address, if any, to be provided while connecting to APNS server. Delete row if proxy not required. Example: HTTP,148.50.60.8,80
    4 DIGX_FW_CONFIG_ALL_B CERT_TYPE DispatchDetails

    For dev push add a row with value ‘dev’

    Possible values for Dev:

    1. dev

    For Production:

    1. prod
    		 For prod push this row is not required as it takes prod by default
    5 DIGX_FW_CONFIG_VAR_B APNS_BUNDLE Eg. com.ofss.digx.obdx.zigbank

    Bundle Name

    (Update for all entities)
    6 DIGX_FW_CONFIG_VAR_B APNS_TEAMID Eg. 3NX1974C93

    Team ID of Apple developer account

    (Update for all entities)

    For more information on fields, refer to the field description table.

    Table 1-12 Below are the configurations to be done at database level:

    SR NO Table PROP_ID CATEGORY_ID PROP_VALUE Purpose
    1 DIGX_FW_CONFIG_VAR_B APNS DispatchDetails <Key ID> Provides key of .p8 certificate
    2 DIGX_FW_CONFIG_ALL_B CERT_TYPE DispatchDetails For dev push certs add row with value ‘dev’ For prod push certificates this row is not required
    3 DIGX_FW_CONFIG_VAR_B APNSCert

    Open the .p8 file and copy contents and convert it to base 64 and update the base 64 value to column

    Copy the entire string convert it to base64 string online and then update the base 64 value in the column

    Open the .p8 file and copy contents and convert it to base 64 and update the base 64 value to column

Parent topic: OBDX Servicing Application
