To enable ODA Chatbot services in the mobile app, the following changes needs to be made:

1. Copy ODAPlugin.java from workspace_installer/AppExtension/oda to workspace_installer/zigbank/platforms/android/app/src/main/java/com/ofss/digx/mobile/android/plugins/

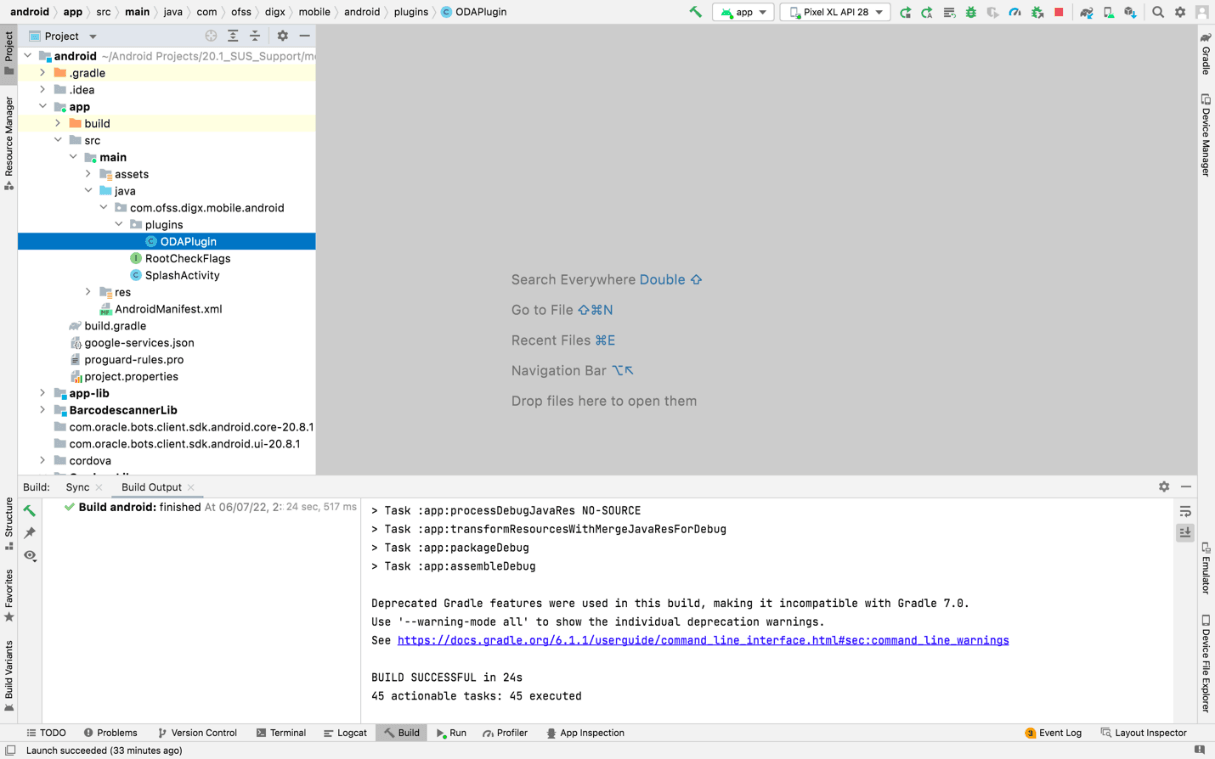

   Description of the illustration mnadrd62.png


2. Download ODA Android sdk from below link-https://www.oracle.com/downloads/cloud/amce-downloads.html
3. Add libs folder at zigbank\platforms\android\app and copy below files from downloaded sdk folder in it.
   1. com.oracle.bots.client.sdk.android.core-xx.aar
   2. com.oracle.bots.client.sdk.android.ui-xx.aar

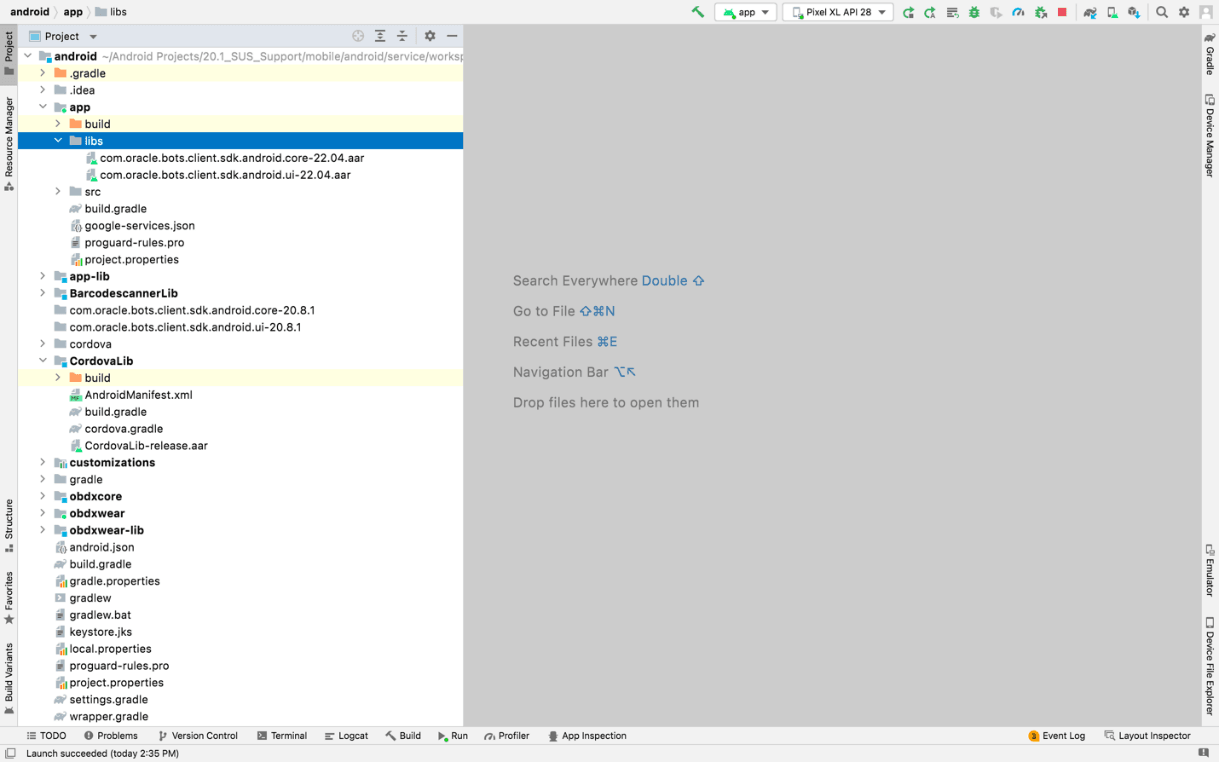

   Description of the illustration mnadrd63.png


4. In Android Studio follow below steps-

   File → Project Structure →Dependencies

5. Click on "+" icon and select JR/AAR Dependency and select app module and click Ok.

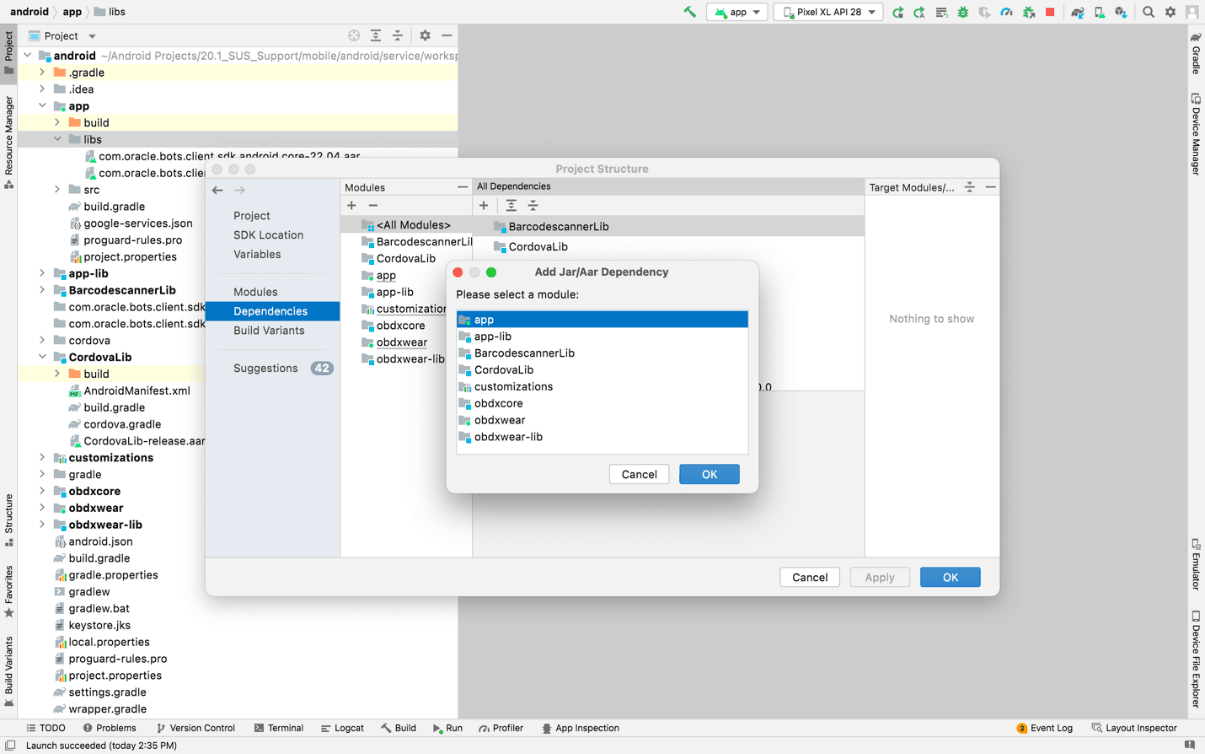

   Description of the illustration mnadrd64.png


6. Add both .aar file paths from step3. Then click Apply and Ok.

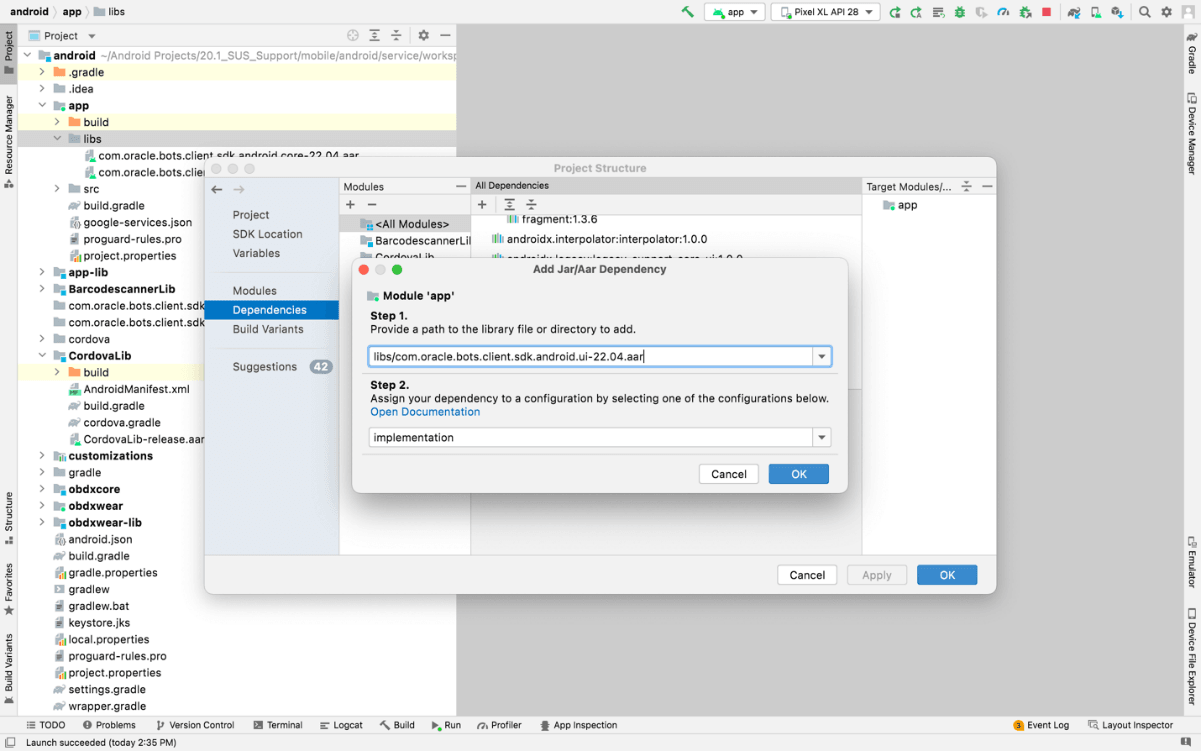

   Description of the illustration mnadrd65.png

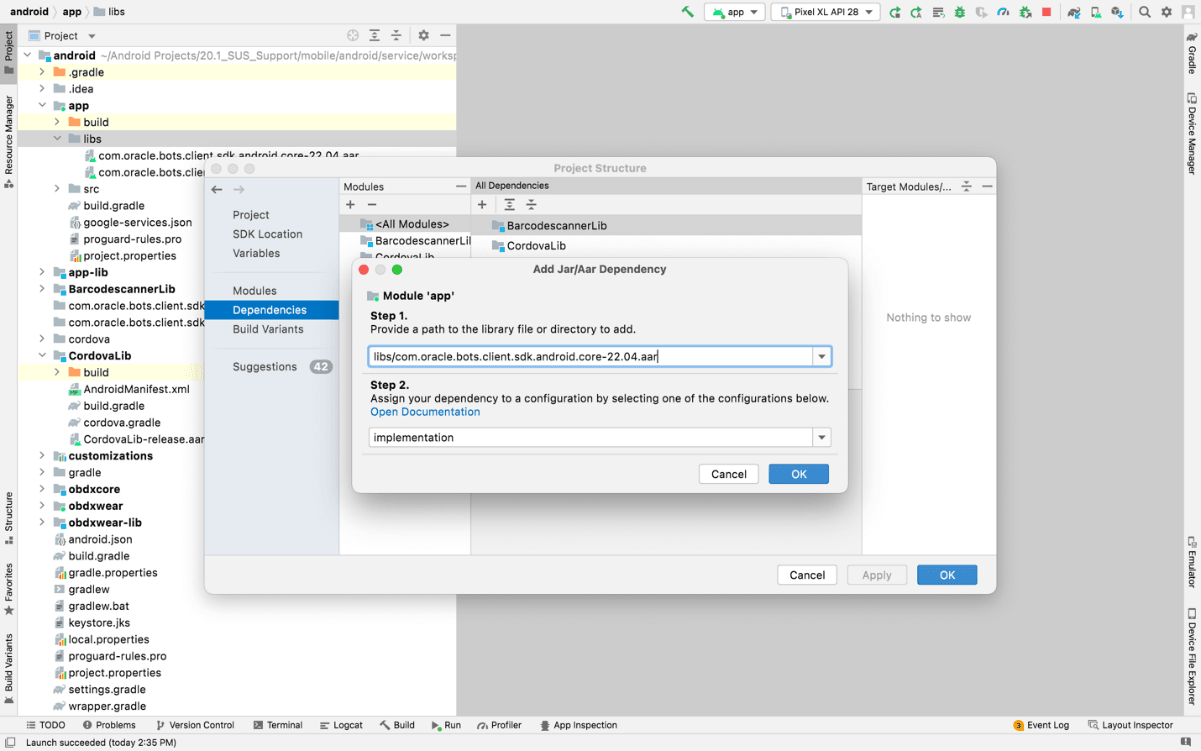

   Description of the illustration mnadrd66.png


7. Add Chatbot ID and Chatbot URL in app.properties.xml (zigbank\platforms\android\customizations\src\main\res\values)

   <string name="CHATBOT_ID">@@CHATBOT_ID</string>

   <string name="CHATBOT_URL">@@CHATBOT_URL</string>
