2.2 Creating NONXA Data Source

This topic describes the systematic instruction to Creating NONXA Data Source option.

  1. Navigate to Data Source → click New → Provide details and click Finish.

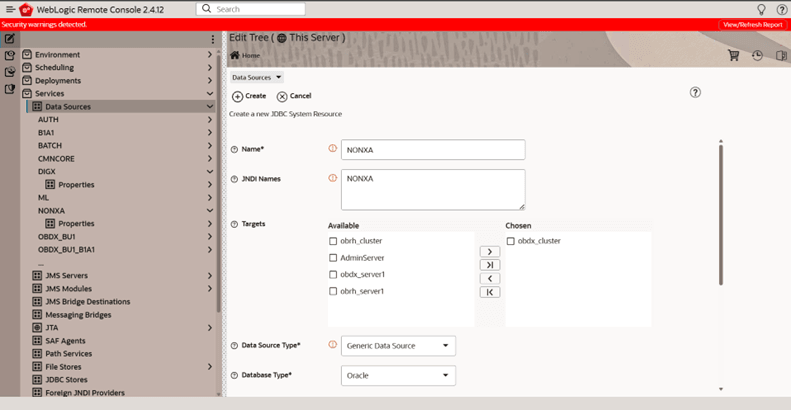

    Description of insta10.png follows
    Description of the illustration insta10.png

  2. Name : NONXA

    JNDI Name : NONXA

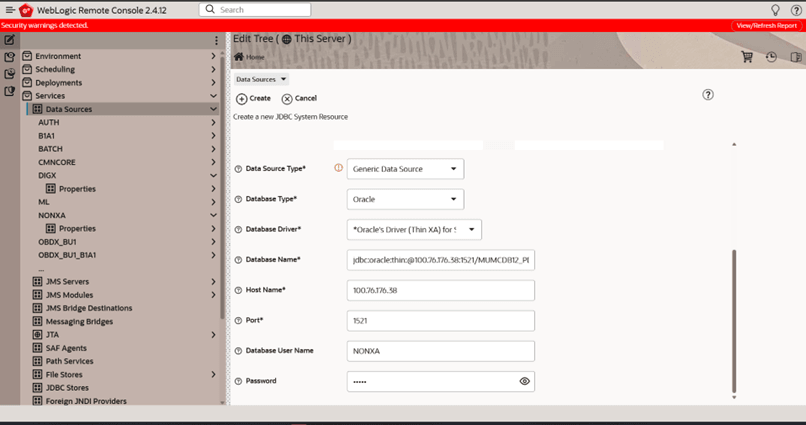

    Description of insta11.png follows
    Description of the illustration insta11.png

  3. Click Create.
  4. Provide

    Database Name: Database SID

    Host Name: Database hostname

    Port: Database port Number

    Database user Name: OBDX_${POST_FIX}

    Password: Database user password


    Description of insta14.png follows
    Description of the illustration insta14.png

  5. Test Configuration.

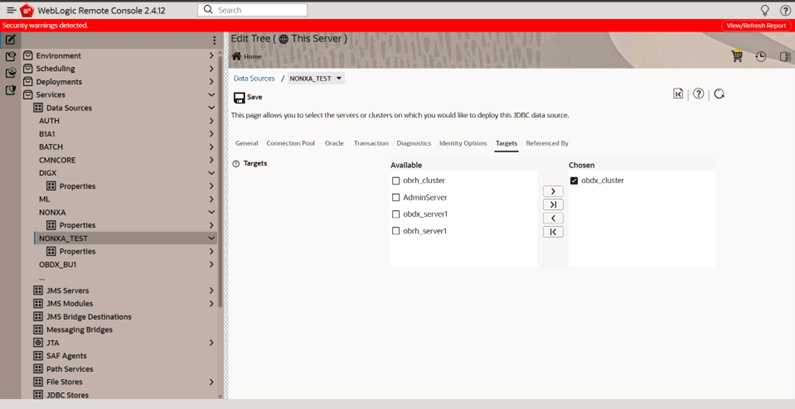

    Description of insta15.png follows
    Description of the illustration insta15.png

  6. Select target as cluster → Finish.

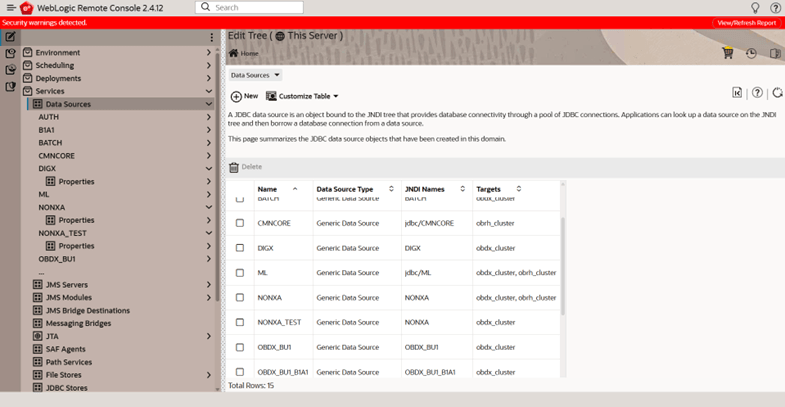

    Description of insta16.png follows
    Description of the illustration insta16.png
