10 Multi Entity
This topic provides information on Multi Entity.
To add entity to existing OBDX with supported host system follow below steps.
- Add entity through OBDX Web application, using
- User Manual Oracle Banking Digital Experience System Configuration
- In case of OBTFPM integration, following document should be referred.
- Oracle Banking Mid-Office Product Setup and Configuration Guide Running OBDX installer
Ensure that Managed server should be down and Admin server should be running state.
Ensure ORACLE_HOME, JAVA_HOME variable are set and their binaries are
available in PATH variable before proceeding.
Login with OS user which was used to perform OBDX software installation (or has ownership on Oracle Weblogic home directory)
Ensure OBDX installation details (OBDX DB; WLS etc) are maintained in installer.properties and user running the installer has read-write permissions.
From your terminal navigate to <OBDX INSTALLER DIR>

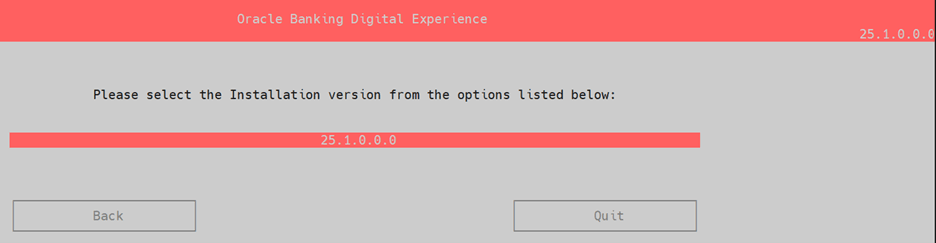

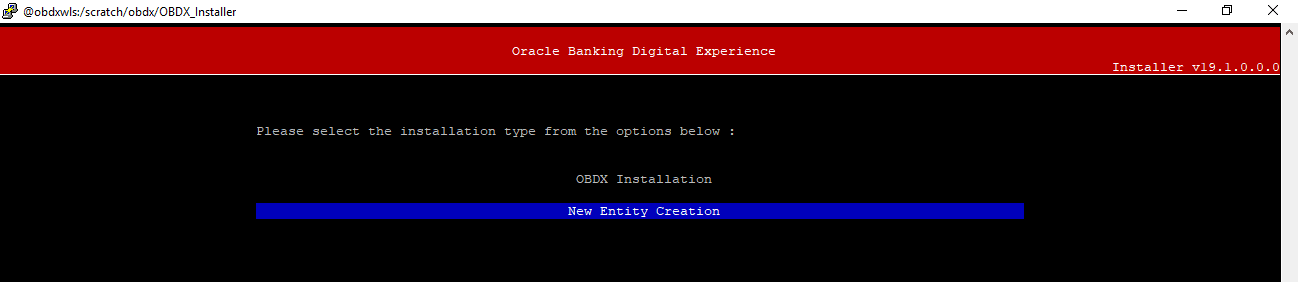

python3 runInstaller.py Select installation type as ‘New Entity Creation’.

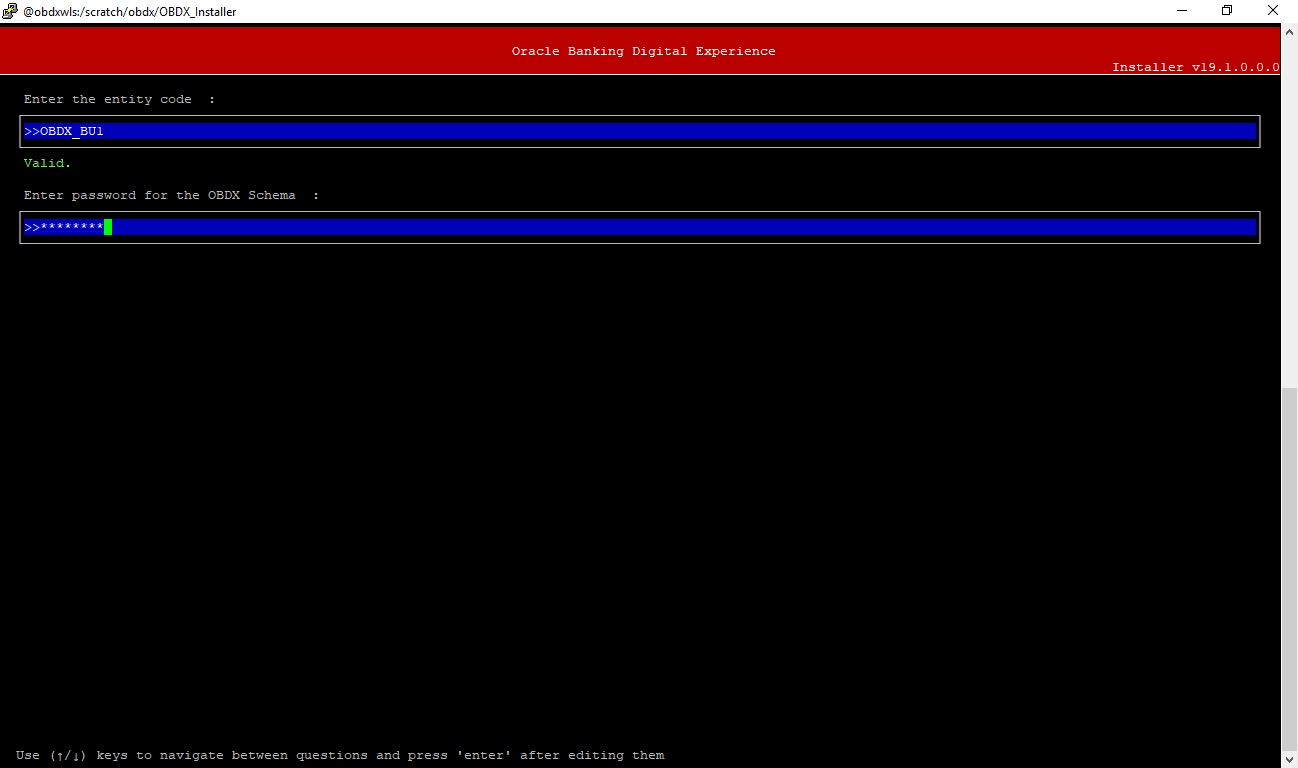

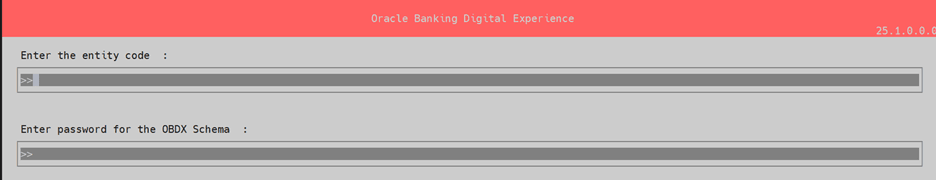

Below screen will appear after selecting add entity.
- Entity code which has been added from screen
- OBDX schema password

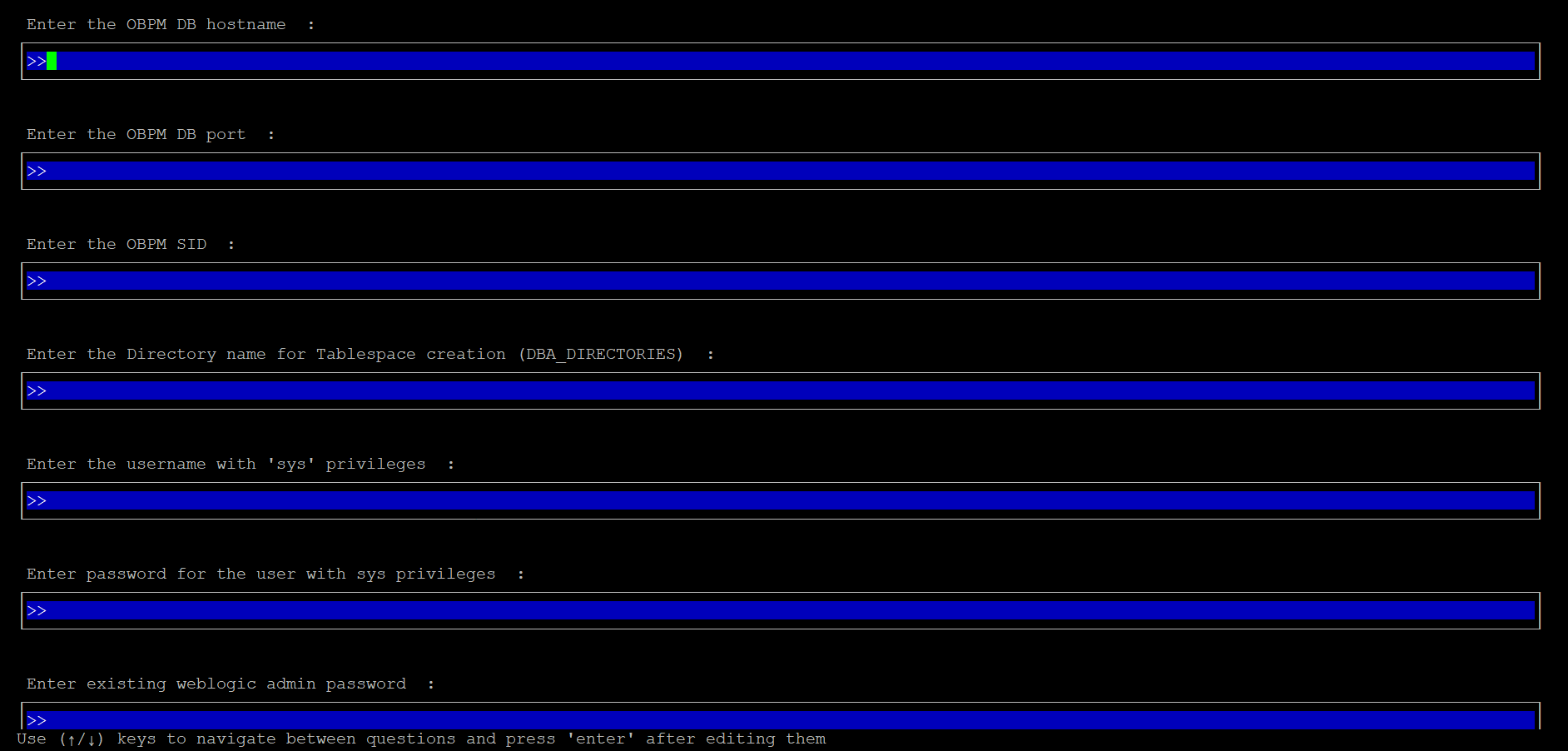

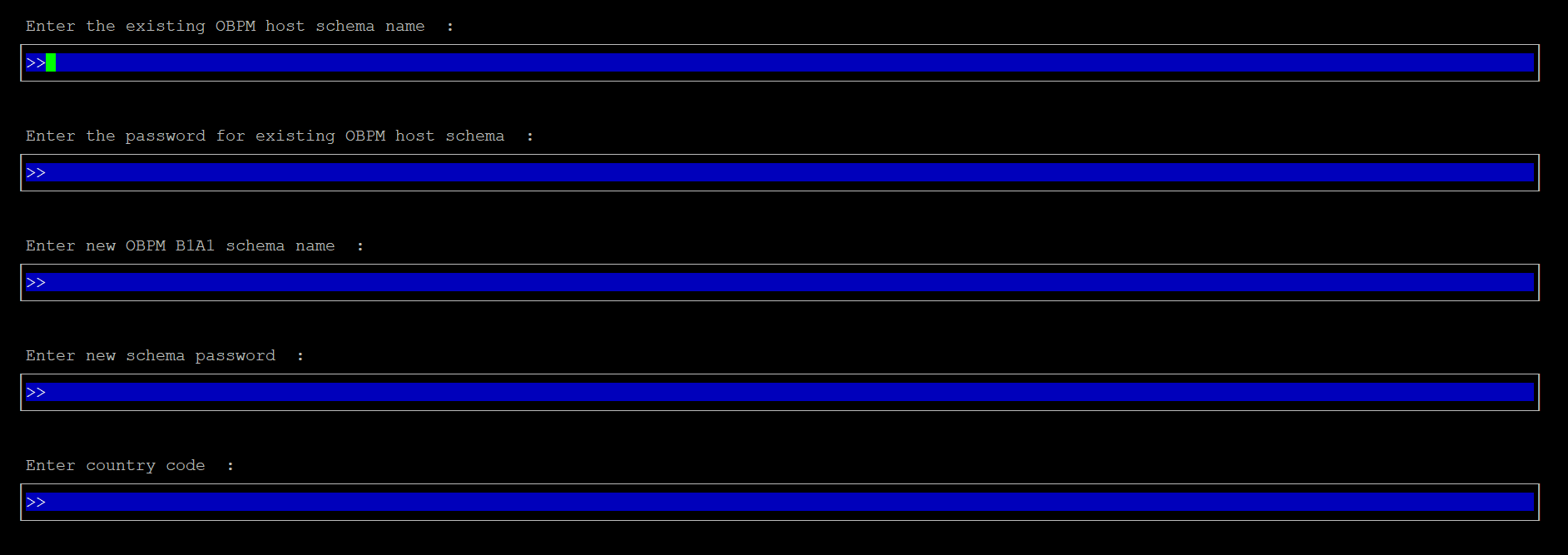

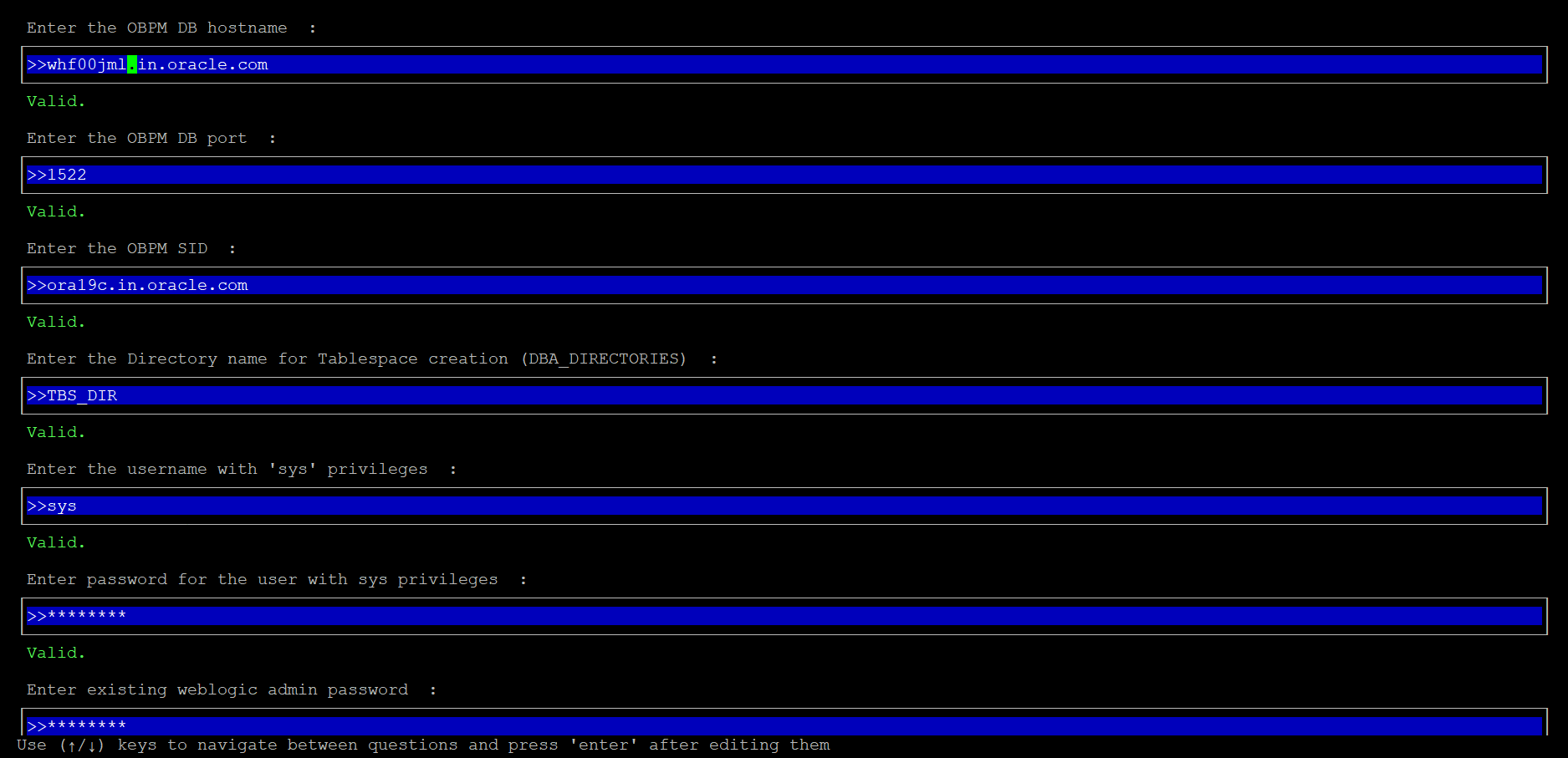

If an entity code belongs to UBS / OBPM host following screen (below screenshot are for OBPM ; for UBS same input are required) will appear:
- Hostname of the database host server
- Port of the database host server
- Host database Service Name
- Oracle directory name in which you want the database datafile (dbf) to be created. Enter only the name NOT the path.
- Username with 'sys' privileges
- SYS privilege user password where UBS schema would be created
- Weblogic console administrator user password
- EXISTING Host schema name
- Password for EXISTING schema
- Complete EHMS (HostInterface) schema name you want installer to create as new schema
- Password for New schema
- Country Code of entity branch
Installation Status in case of UBS / OBPM

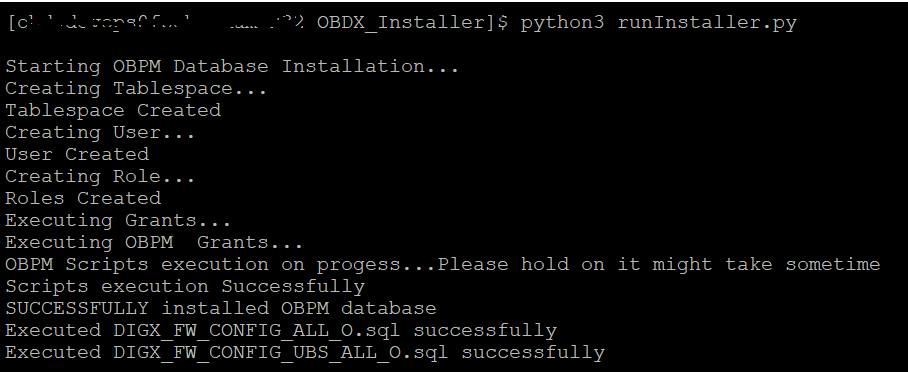

After entering all required details, the status is displayed (as shown below) on the terminal to indicate the progress of the installation.

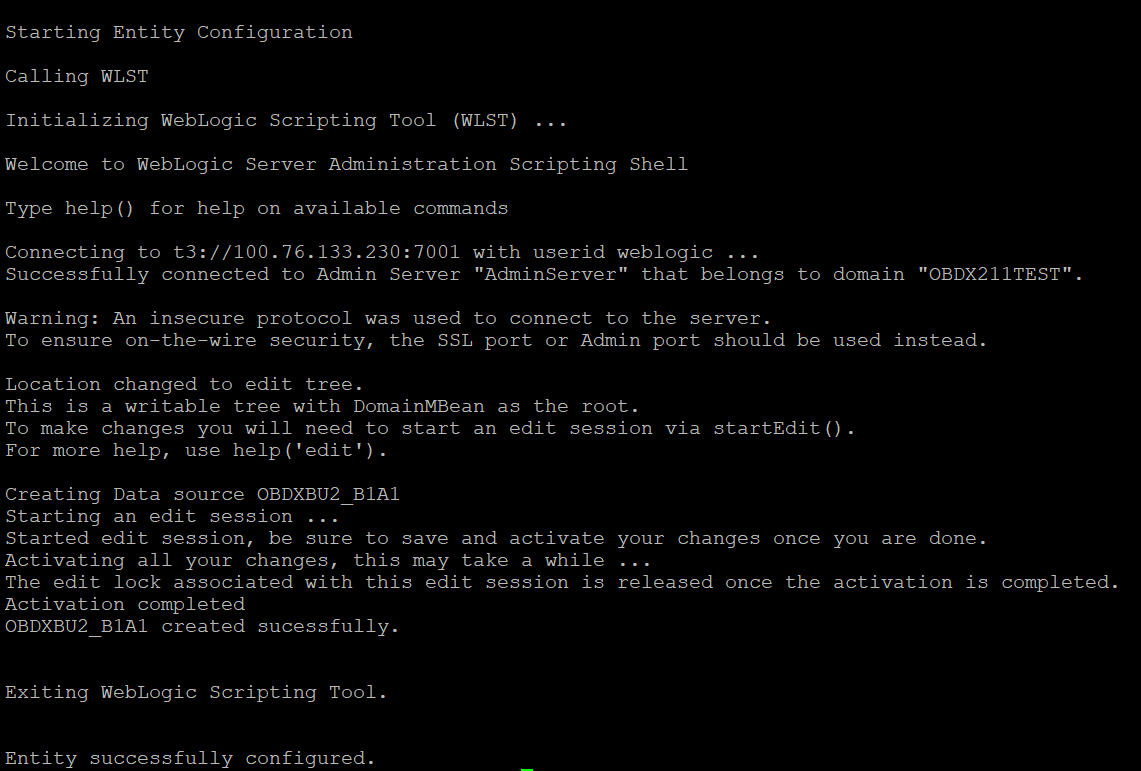

When the installation completes, the below message is displayed
Post successful installation refer to Section 8: Post Installation steps for manual steps to be performed for UBS additional entity (sub-section : Oracle FLEXCUBE Universal Banking (OBDX with UBS)).
No additional steps/ configuration are required.
