32 Product Mapping

This topic describes the information about Product Mapping feature. Product Mapping feature allows the System Administrator to map products to users from the channel.

System Administrator can map products maintained in the core banking system to different User type and all the users falling under that user type can open accounts for the mapped products only. This option is currently enabled for Term Deposit and Recurring Deposit module.

For example: A user can open a term deposit or a recurring deposit only under those products which are mapped to the User Type/ /Party Type/User Segment assigned to the user. Products which are not mapped, will not be available (for opening deposit accounts) to a channel user. This will be a part of Day 1 setup.

Note:

For User Type – Retail, & Business, product mapping can be done for User Type, Party Type and User Segment combination.
Pre-requisites
  • Transaction access is provided to System Administrator.
  • Approval rule is set up for System Administrator to perform the actions.
  • Necessary products are maintained in core banking application.

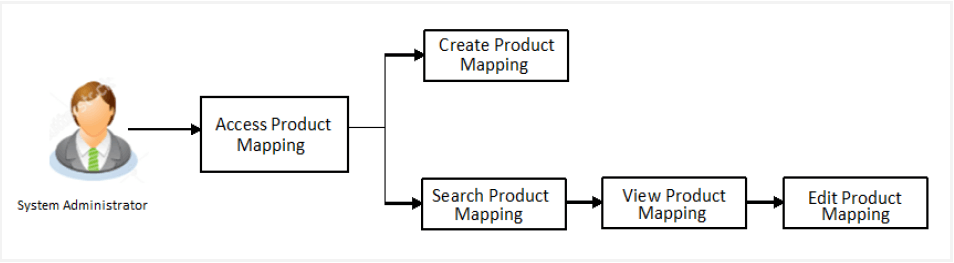

Workflow
Workflow

Features Supported In Application

The module supports following features:

Navigation Path: Perform anyone of the following navigation to access Product Mapping .

  • From System Administrator Dashboard, under Configuration widget, click Product Mapping .
  • From System/ Bank Administrator Dashboard, click Toggle Menu, then click Menu, and then click Configuration , Under Configuration , click Product Mapping .
  • Product Mapping - View
    This topic describes the systematic instruction to Product Mapping - View option. Using Product Mapping view option, System Administrators can view the list of products mapped to the product module.
  • Product Mapping - Edit
    This topic describes the systematic instruction to Product Mapping - Edit option. This function enables the System Administrator to edit the product mapping.
  • Product Mapping - Create
    This topic describes the systematic instruction to Product Mapping - Create option. This option enables the System Administrator to select the products and map it to the Product Module.
  • FAQ
