This topic explains systematic instructions to create the Connection Factory.

1. Under the Domain Structure left panel, navigate to the Services drop-down option, and click Messaging and then click JMS Modules.
   The Settings for JMS_Module screen displays.

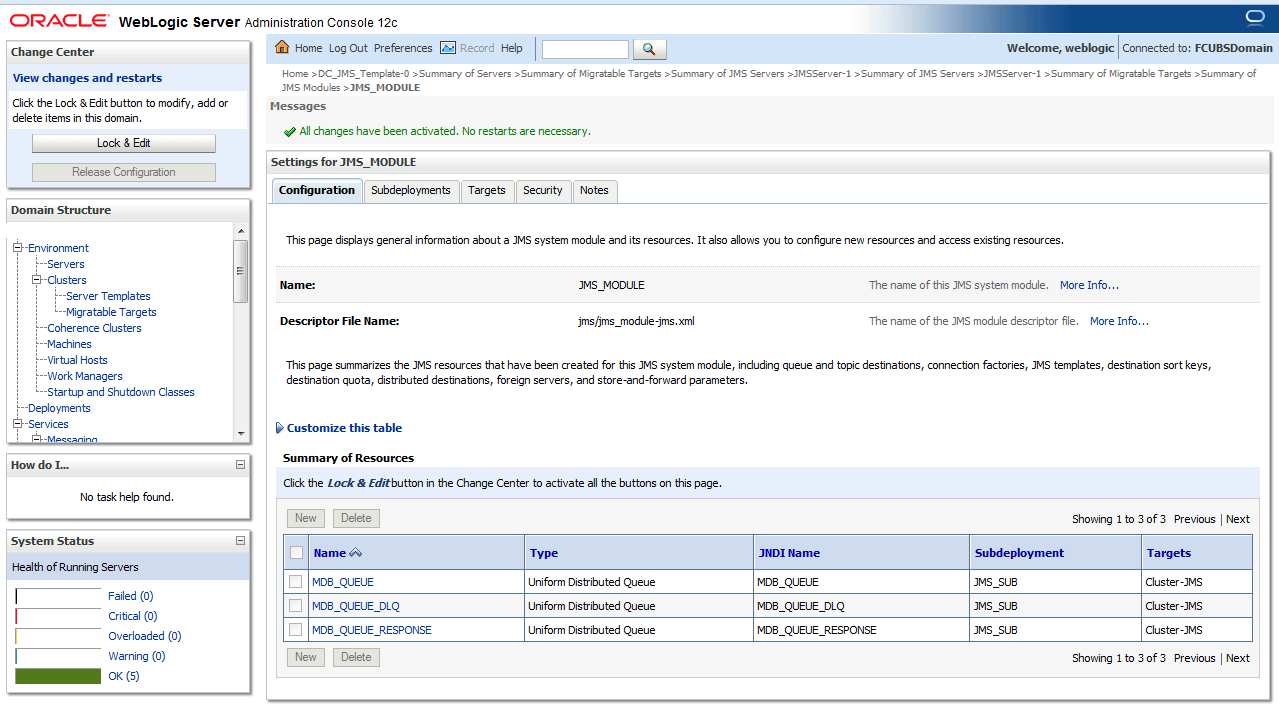

   Figure 4-17 Settings for JMS_Module





   Description of "Figure 4-17 Settings for JMS_Module"



2. Click the Configuration tab, and then click New.
   The Create a New JMS System Module Resource screen displays to choose the type of resource.

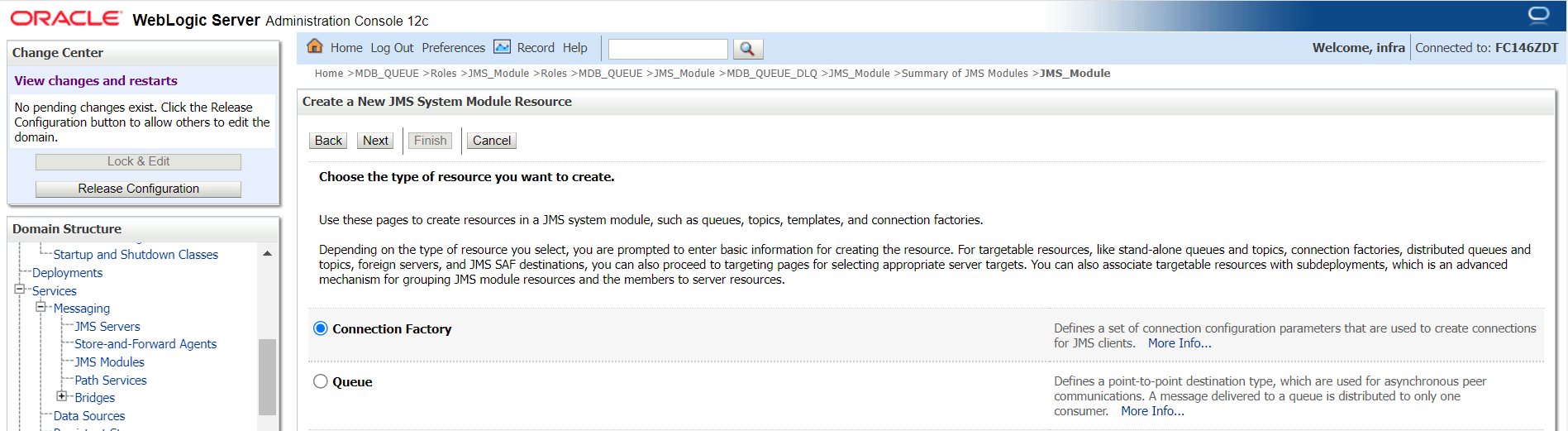

   Figure 4-18 Create a New JMS System Module Resources





   Description of "Figure 4-18 Create a New JMS System Module Resources"



3. Select the resource Connection Factory, and click Next.
   The Create a New JMS System Module Resource screen displays.

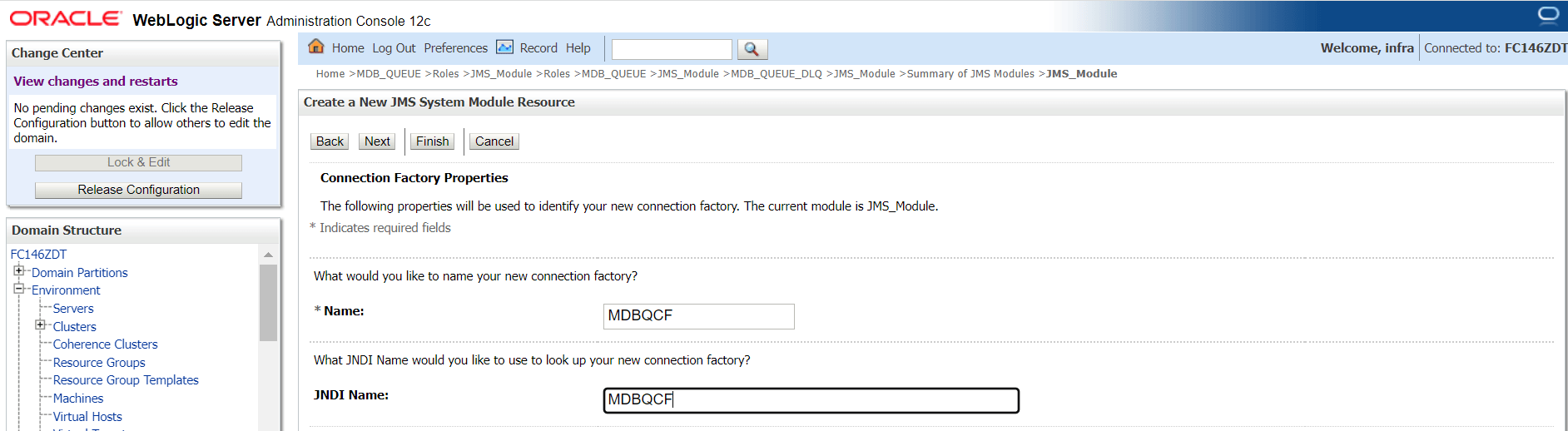

   Figure 4-19 Create a New JMS System Module Resources - Connection Factory Properties





   Description of "Figure 4-19 Create a New JMS System Module Resources - Connection Factory Properties"



4. Specify the Name for connection factory, and then click Next.
   The Create a New JMS System Module Resource - Targets screen displays.

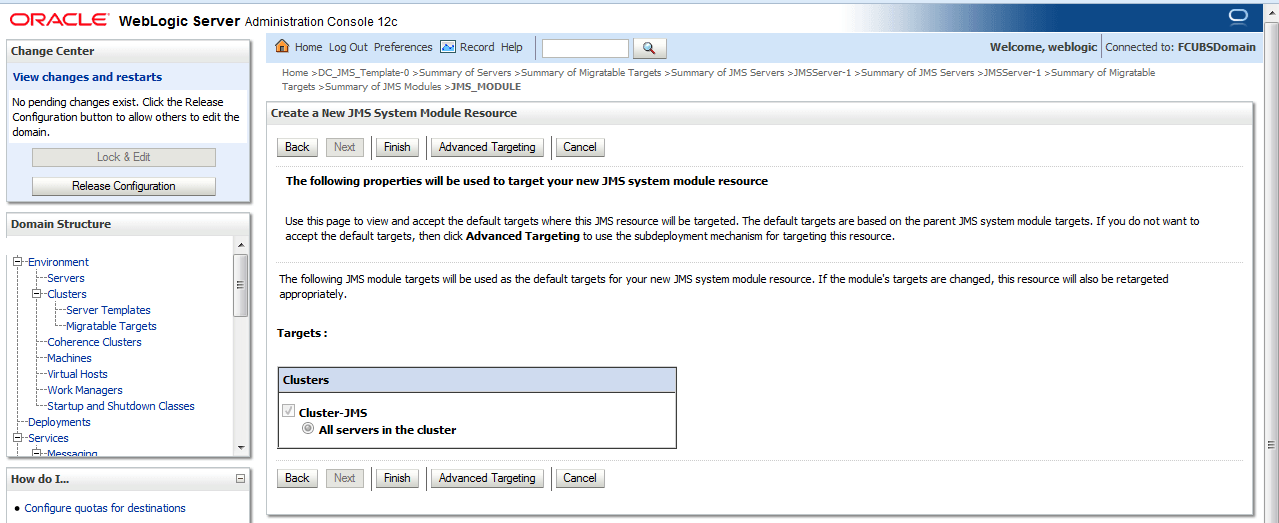

   Figure 4-20 Create a New JMS System Module Resources - Targets





   Description of "Figure 4-20 Create a New JMS System Module Resources - Targets"



5. Click Advanced Targeting.

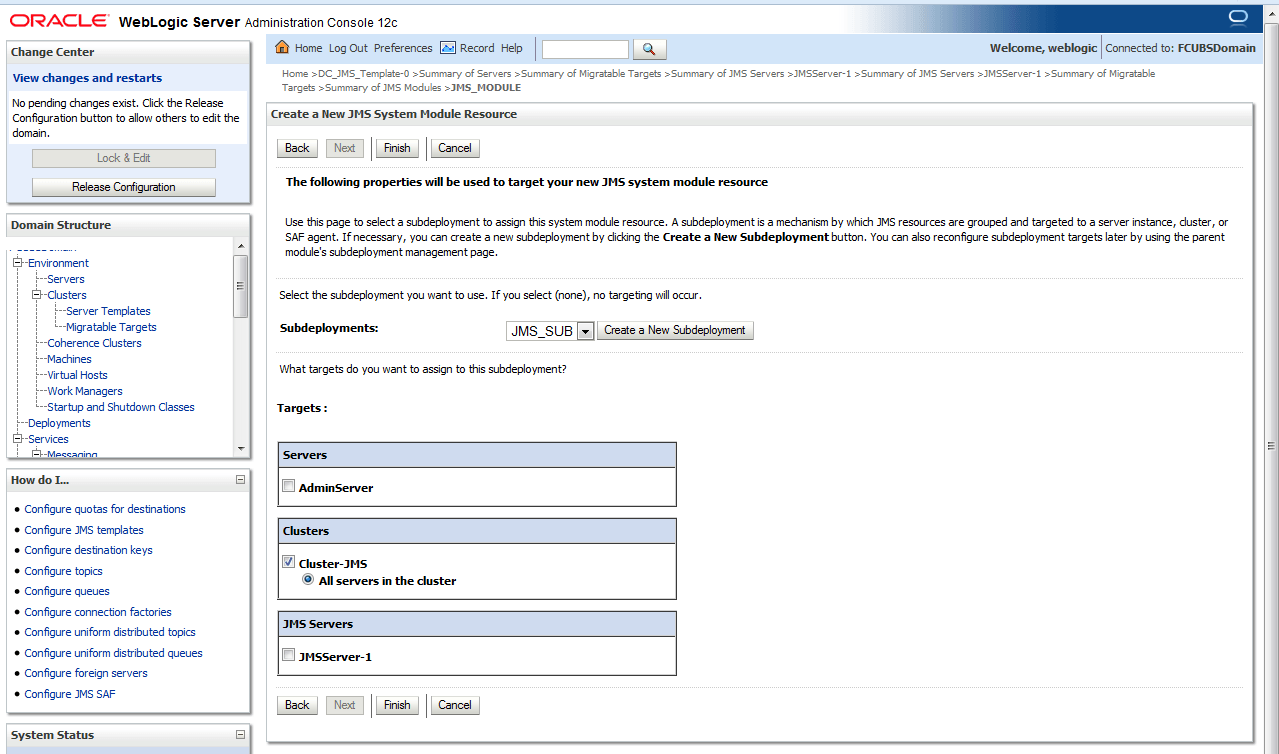

   Figure 4-21 Create a New JMS System Module Resources - Advance Targeting





   Description of "Figure 4-21 Create a New JMS System Module Resources - Advance Targeting"



6. Select JMS_SUB as Subdeployments, and then click Finish.
   The new Connection Factory is created, and displays under the Summary of Resources tab.

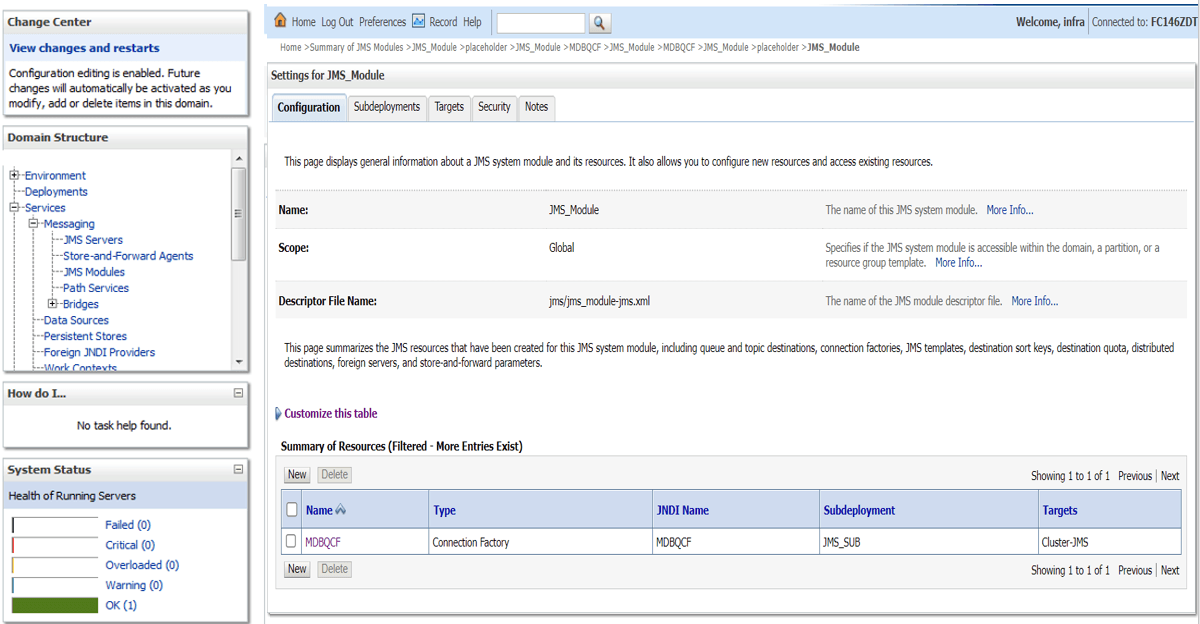

   Figure 4-22 Summary of Resources





   Description of "Figure 4-22 Summary of Resources"
