This topic explains the systematic instructions for the Order Changes in the View Changes Excel screen.

1. On the Development Workbench, under Tracking Changes, click on Change Report.
   The View Changes Excel screen displays.

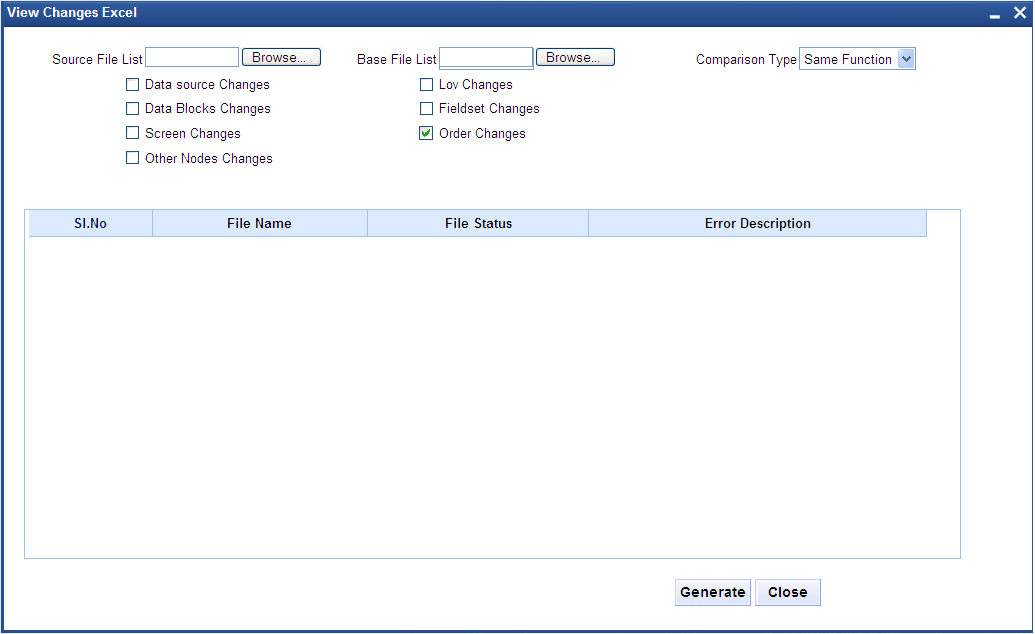

   Figure 2-14 View Changes Excel





   Description of "Figure 2-14 View Changes Excel"



2. On the View Changes Excel screen, input the Source File List, Base File List and check the Order Changes checkbox.
   On click of this order changes, the nodes are compared for the order maintained in the radxml of respective releases. The order changes will affect the following nodes:

   • FIELD_ORDER
   • FIELDSET_ORDER
   • TAB_ORDER
   • SEC_ORDER
   • DATA_BLK_ORDER
   • BLK_FIELD_ORDER
3. Click the Generate button.
   All the orders are compared between sources and base RADXML's and View Changes Excel report is generated.
4. On the Order Changes excel, the compared RADXML's changes are displayed.
5. Click on Fieldsets tab.
   The Order Changes for fieldsets is displayed.

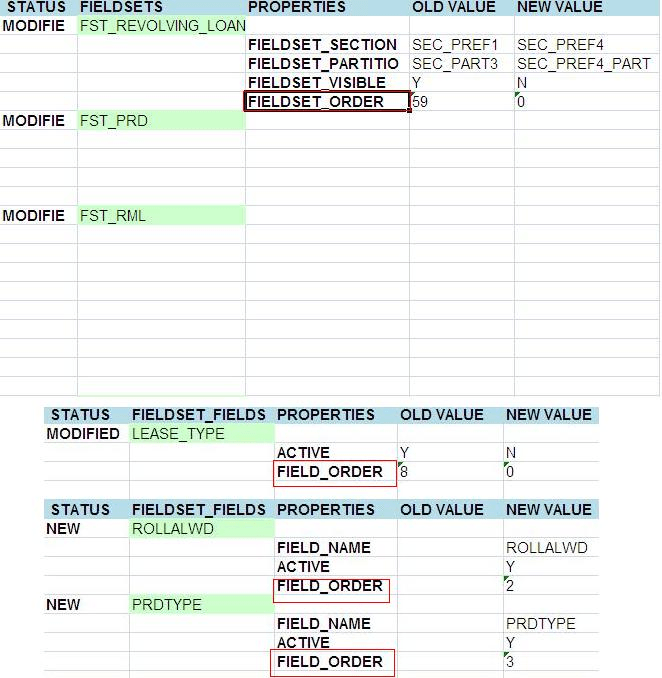

   Figure 2-15 Order Changes_Fieldsets





   Description of "Figure 2-15 Order Changes_Fieldsets"
