2.1 Pre-requisites

This topic provides the necessary pre-requisites information before deploying the application.

The below maintenance is required to use the deploy option. In the environment, the user has two options to copy files based on the operating system the FLEXCUBE application is running.
  • Windows: File Copy / FileManager
  • Unix: FileManager
File Manager Servlet needs to deploy in the application server where FLEXCUBE is running. Refer to the File manager topic in the Development Workbench – Administration guide to get more details about the file manager.
In environment creation, the below details are mandatory to use the deploy option.

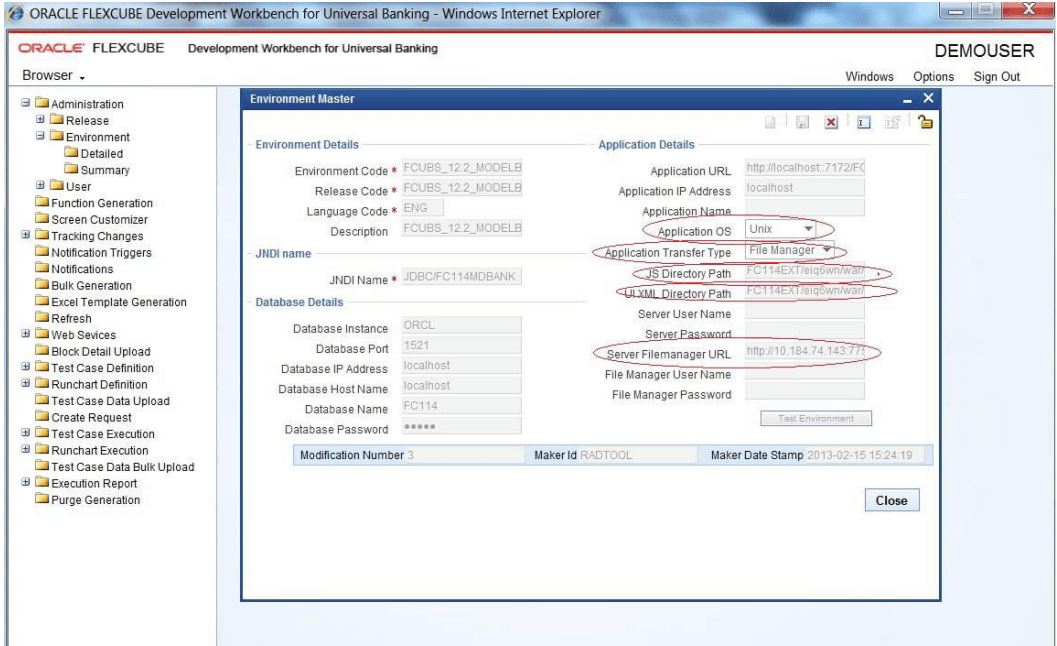

Figure 2-1 Environment Master


Description of Figure 2-1 follows
Description of "Figure 2-1 Environment Master"

Table 2-1 Environment Master

Field Description
Application Operating System Unix/Windows
Application Transfer Type
  • Windows: File Copy/FileManager
  • UNIX: FileManager
JS Directory Path Enter the shared path of JS files.
Uixml Directory Path Enter Shared path of Language XML files.

Note:

If the application server is Windows, the user can enter the absolute path.

Parent topic: Deployment
