2 Purge Entity Definition

This topic explains the systematic instructions about Purge Entity Definition.

  1. Specify the URL http://whf00iqw:8080/FCJRADTool142GA/.
    The Oracle FLEXCUBE Universal Banking Development Workbench login page is displayed.

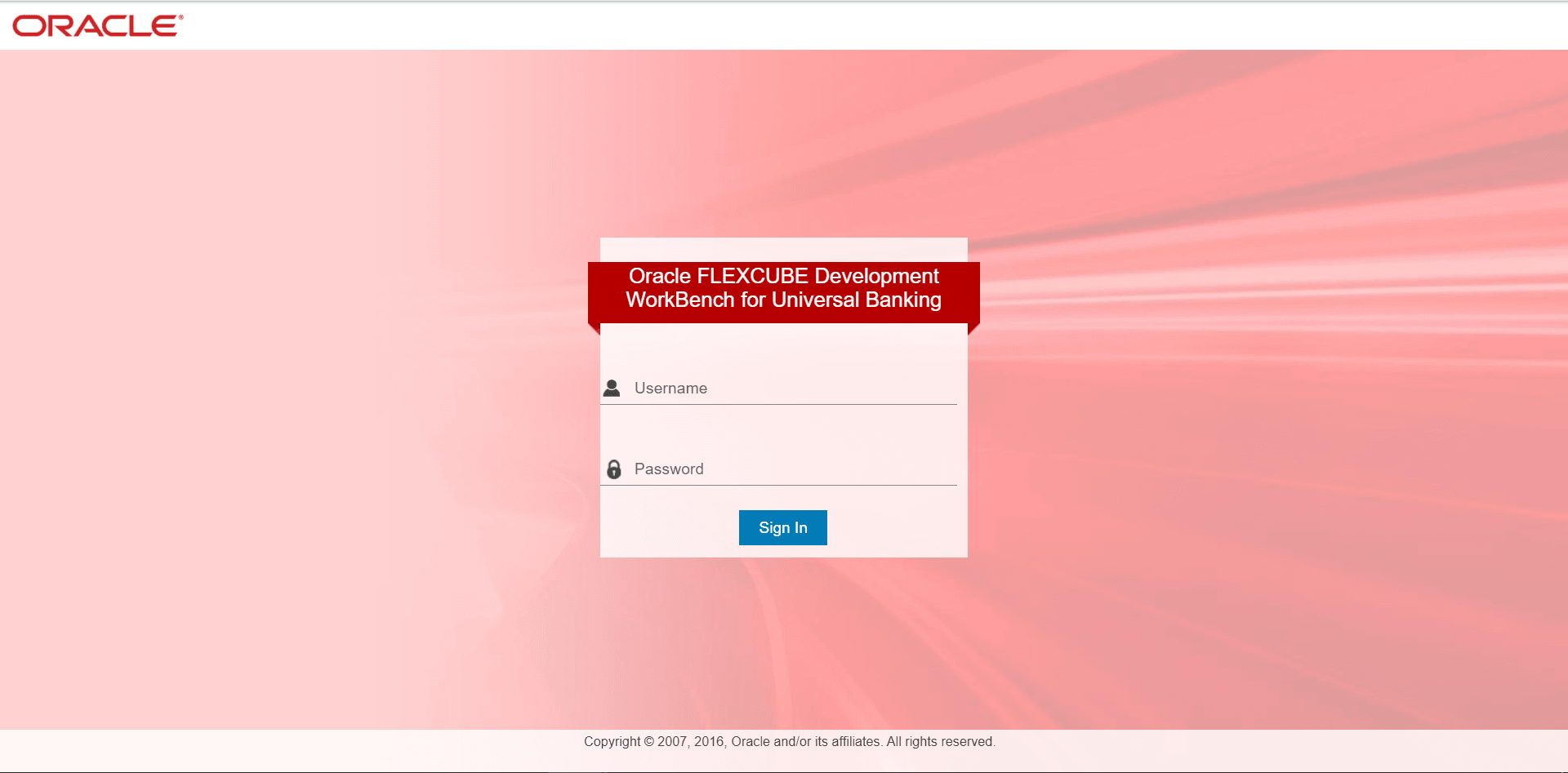

    Figure 2-1 Login


    Description of Figure 2-1 follows
    Description of "Figure 2-1 Login"

  2. On the Oracle FLEXCUBE Universal Banking Development Workbench login page, specify the Username, Password, and click Sign In.
    The Development Workbench_Home Page is displayed.

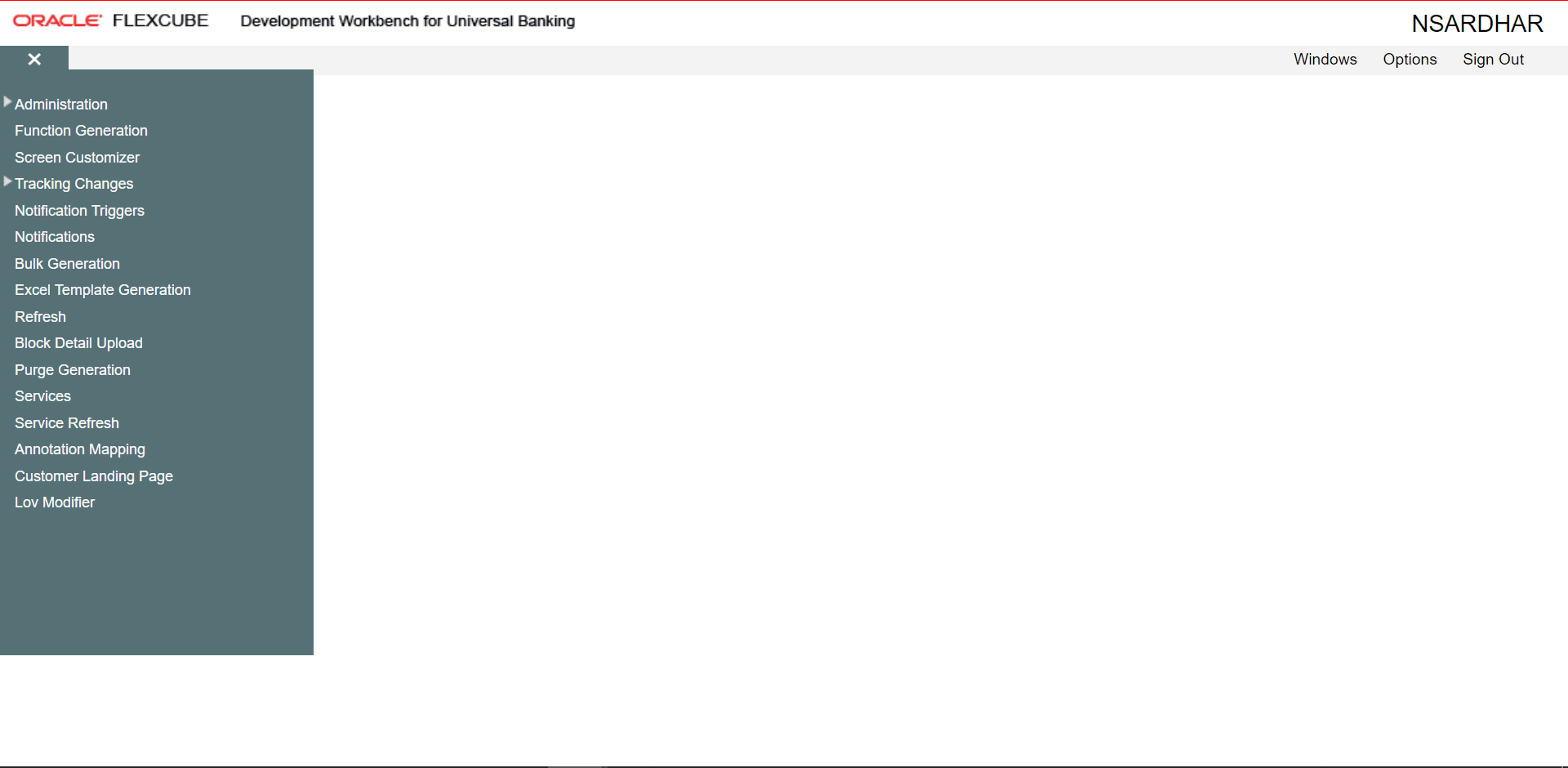

    Figure 2-2 Development Workbench_Home Page


    Description of Figure 2-2 follows
    Description of "Figure 2-2 Development Workbench_Home Page"

  3. On the Development Workbench_Home Page, click Purge Generation.
    The Purge Generation screen is displayed.

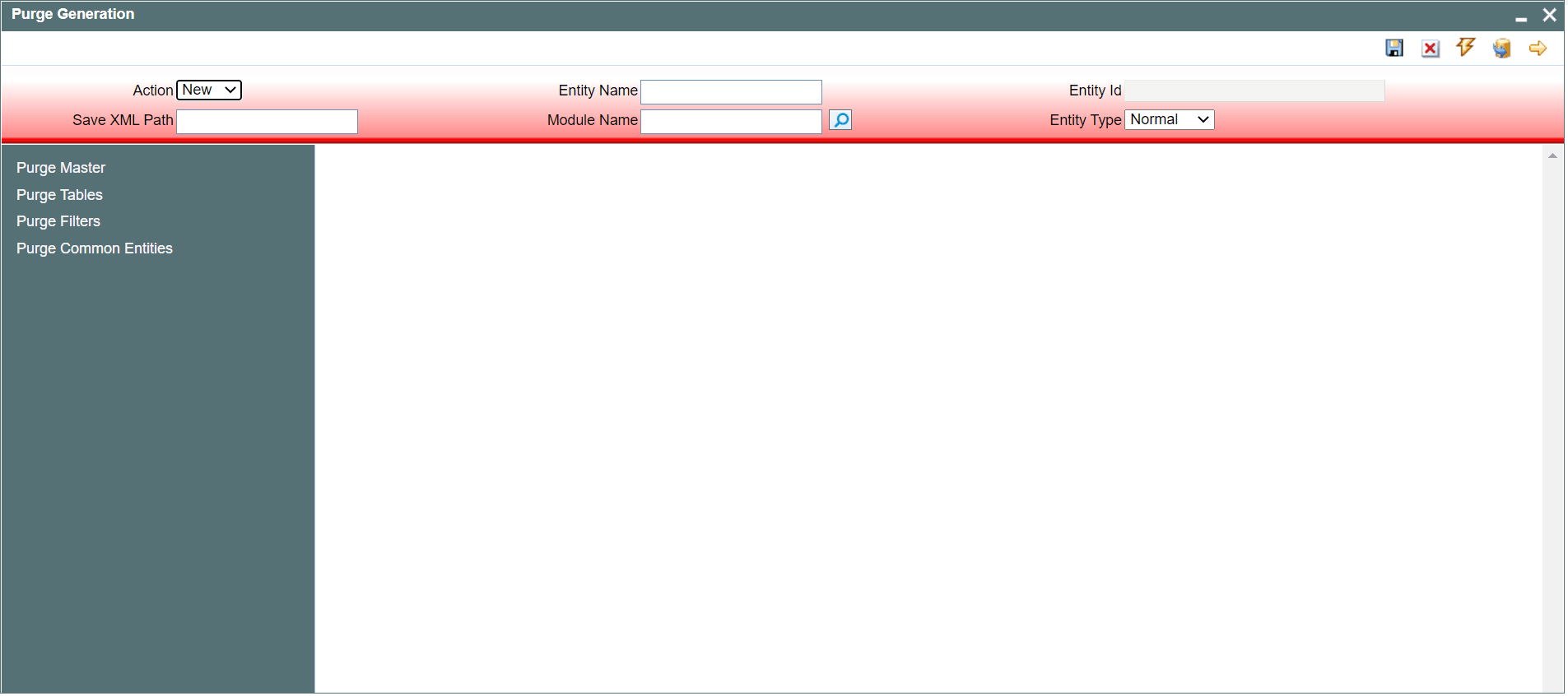

    Figure 2-3 Purge Generation


    Description of Figure 2-3 follows
    Description of "Figure 2-3 Purge Generation"

  4. On the Purge Generation screen, specify the fields.
    For more information on fields, refer to the field description table.

    Table 2-1 Purge Generation

    Field Description
    Action Select the Action from the drop-down list.
    • None
    • New
    • Load
    Entity Name Specify the name of the entity.
    Entity ID Open Development Tool defaults the entity ID. Entity ID name is derived as <Module_Name>P<Entityname>. For example, FTPCONTRACT
    Save XML Path Specify the location of the RAD XML file.
    Module Name Specify the Module Name to which the entity belongs or click the search icon to view the Module Code pop-up window. By default, this window lists the Module Codes present in the system. You can search for a specific Module Code by providing Module Code or Module Description and clicking on the Search button.
    Entity Type Specify the Entity Type from the drop-down list.
    • Normal
    • Common
  5. On the Purge Generation screen menu, you can find the following screen options:
  • Purge Master
    This topic explains the systematic instructions about Purge Master.
  • Purge Tables
    This topic explains systematic instructions about purge tables.
  • Purge Filters
    This topic explains systematic instructions about the purge filters.
