1.1 Generate Bulk Files

This topic provides the systematic instructions to generate both front-end and back-end units in bulk.

On the Development Workbench Login page, specify the User ID and Password, and log in to the Development Workbench Landing Page.
  1. On Expand Menu, click Bulk Generation node.
    The Bulk Generation screen is displayed.

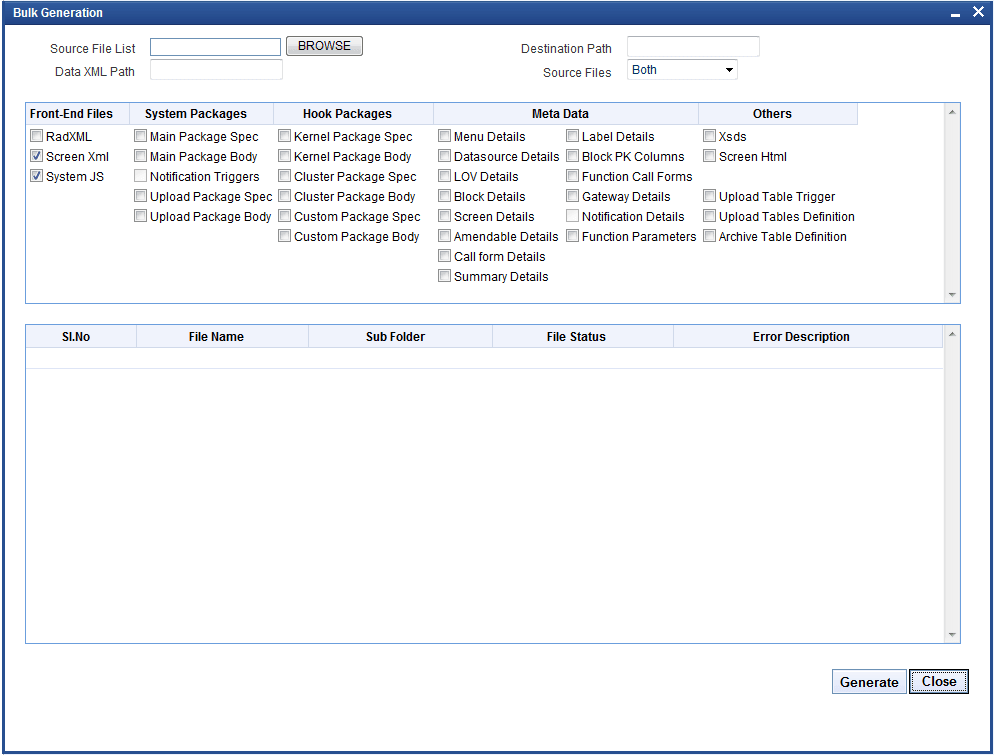

    Figure 1-1 Bulk Generation


    Description of Figure 1-1 follows
    Description of "Figure 1-1 Bulk Generation"

  2. On the Bulk Generation screen, specify the following fields.
    For more information on fields, refer to the field description table.

    Table 1-1 Bulk Generation - Field Description

    Field Description
    Source File List

    The user must create a text file containing the absolute path of the RADXML for which bulk generation has to be done.

    Refer to the Source File List topic for more information.

    Destination Path

    Enter the path where files will be generated. The Destination Path must be in the Client Machine if the Save Mode is Client, and it must refer to a path in Server if the Save Mode is Server.

    Note: The Zip mode is not supported for the Bulk generation activity.

    Sources Files Select the sources files from the drop-down list:
    • Extensible - On the selection of this option, only extensible files will be considered for a generation.
    • Non-Extensible - On the selection of this option, only non-extensible files will be considered for a generation.
    • Both - Both extensible and non-extensible files get generated.
    The Data XML Path field is defunct.

    The user has to select the required files to be generated for all RADXML’s.
  3. Workbench will generate the required files into respective folders.
    The workbench generates the required files into respective folders.

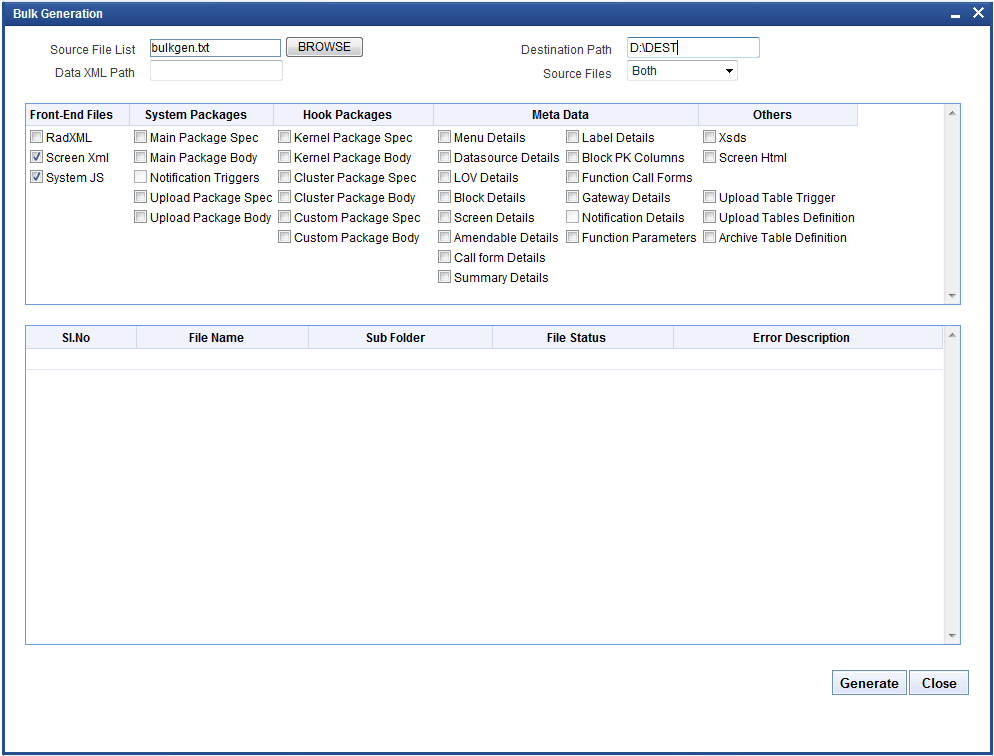

    Figure 1-2 Bulk Generation after Selection of Required Fields


    Description of Figure 1-2 follows
    Description of "Figure 1-2 Bulk Generation after Selection of Required Fields"

  4. On the Bulk Generation screen, click Generate.
    The Information window displays the generation status.

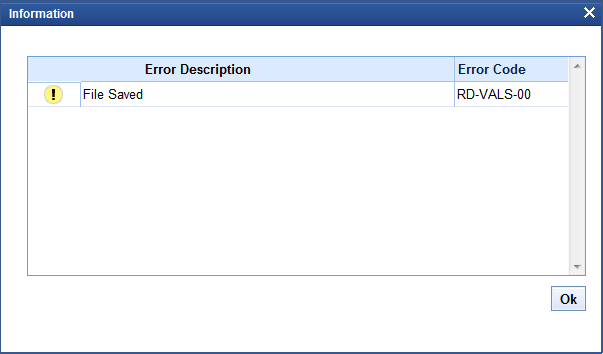

    Figure 1-3 Information Message on successful bulk generation


    Description of Figure 1-3 follows
    Description of "Figure 1-3 Information Message on successful bulk generation"

    On the successful generation of files, the file status displays as generated, and on failure, the file status displays as failed.

    Note:

    No front-end units will be generated for the notification and purge-entity RADXMLs.

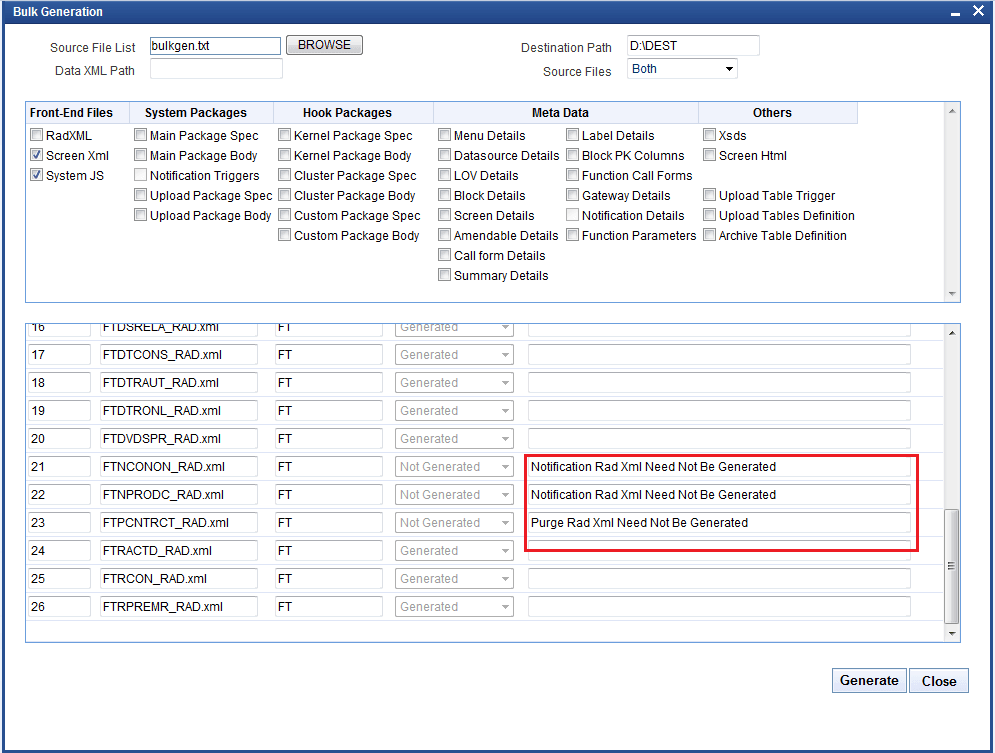

    Figure 1-4 Bulk Generation - Generation Message


    Description of Figure 1-4 follows
    Description of "Figure 1-4 Bulk Generation - Generation Message"

    The time taken for bulk generation of units depends on the number of files, the number of units to be generated for each file, the client, and server machine configuration, etc.,

  • Source File List
    This topic provides the systematic instructions on how to prepare a source file.

Parent topic: Bulk Generation
