This topic explains to configure multiple providers for multiple entities.

1. Login to the Adminserver.
2. Click Security Realms.
   The Oracle Weblogic Server screen displays.

   Figure 1-8 Oracle Weblogic Server





   Description of "Figure 1-8 Oracle Weblogic Server"



3. Click myrealms.
   The Summary of Security Realms screen displays.

   Figure 1-9 Summary of Security Realms





   Description of "Figure 1-9 Summary of Security Realms"



4. Click the Providers tab.
   The Settings for myrealms - Providers screen displays.

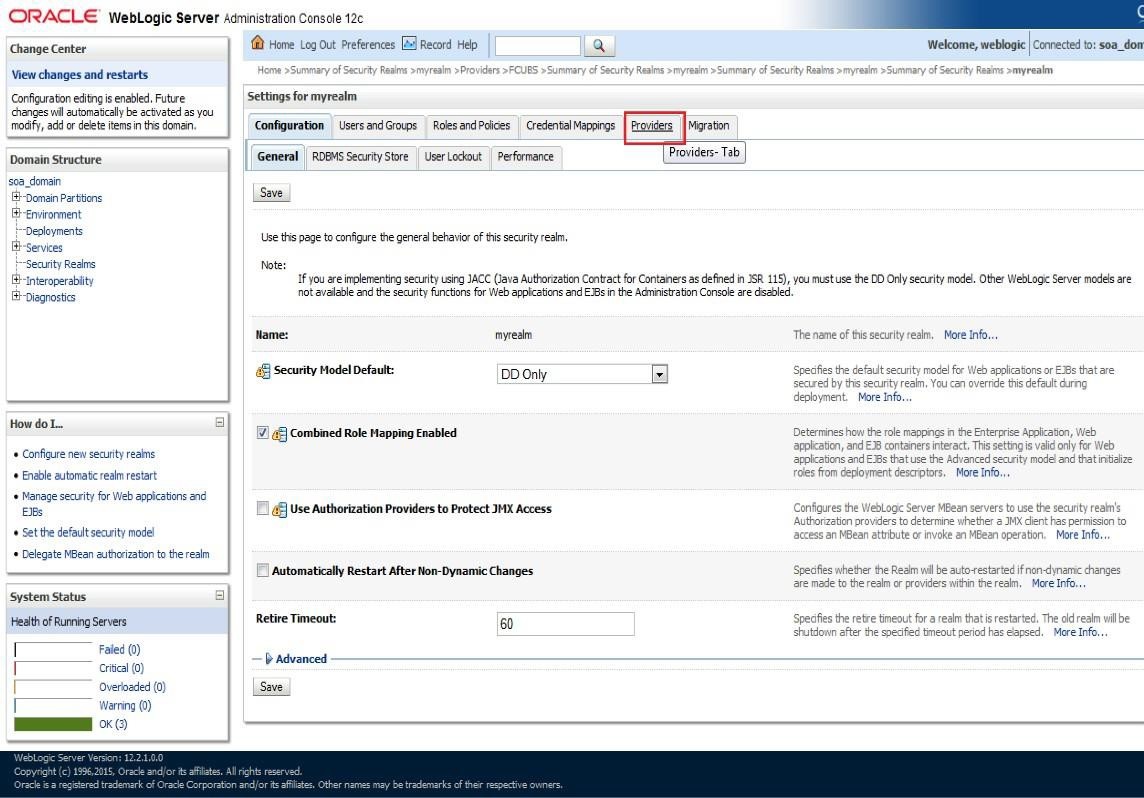

   Figure 1-10 Settings for myrealms - Providers





   Description of "Figure 1-10 Settings for myrealms - Providers"



5. Click New.

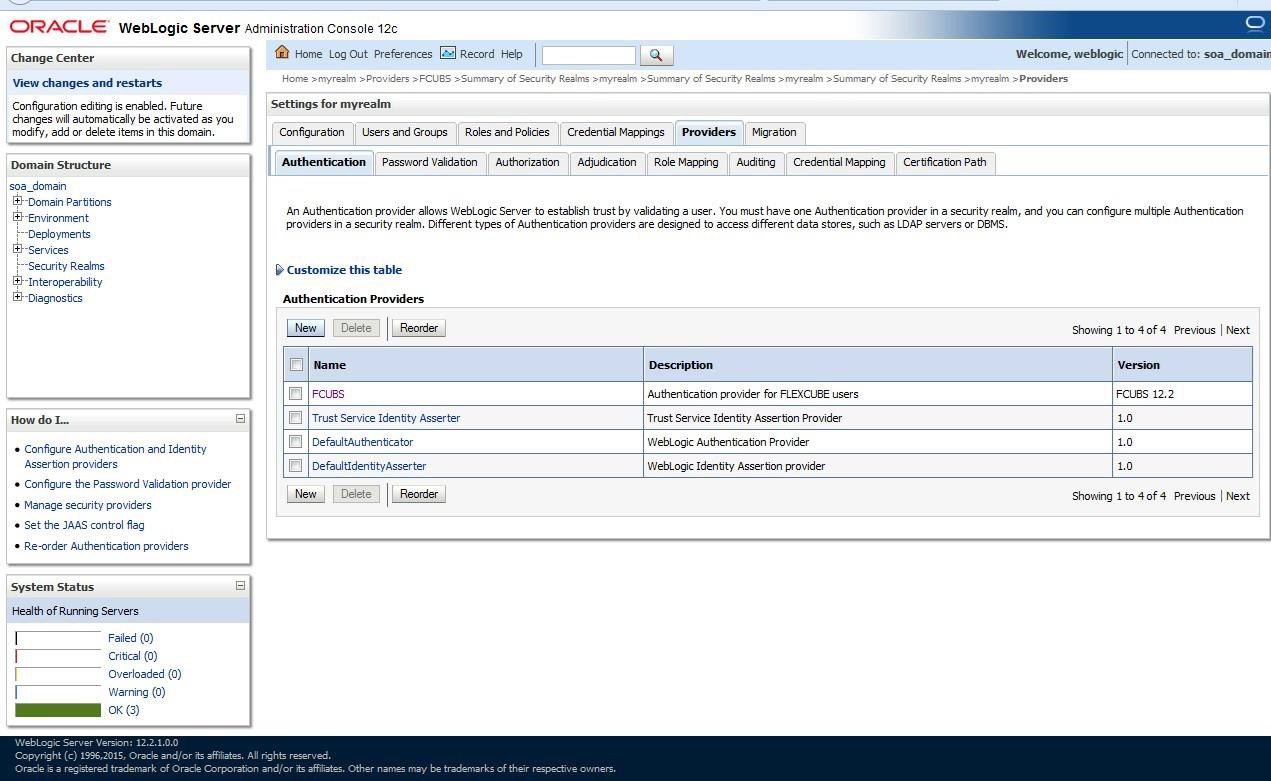

   Figure 1-11 Settings for myrealms - Authentication Providers





   Description of "Figure 1-11 Settings for myrealms - Authentication Providers"



6. Specify the Name with proper Entity Name (entity name you mapped in property file) and select the type as FCUBSUserAuthenticator and click OK.
   The Create a New Authentication Provider screen displays.

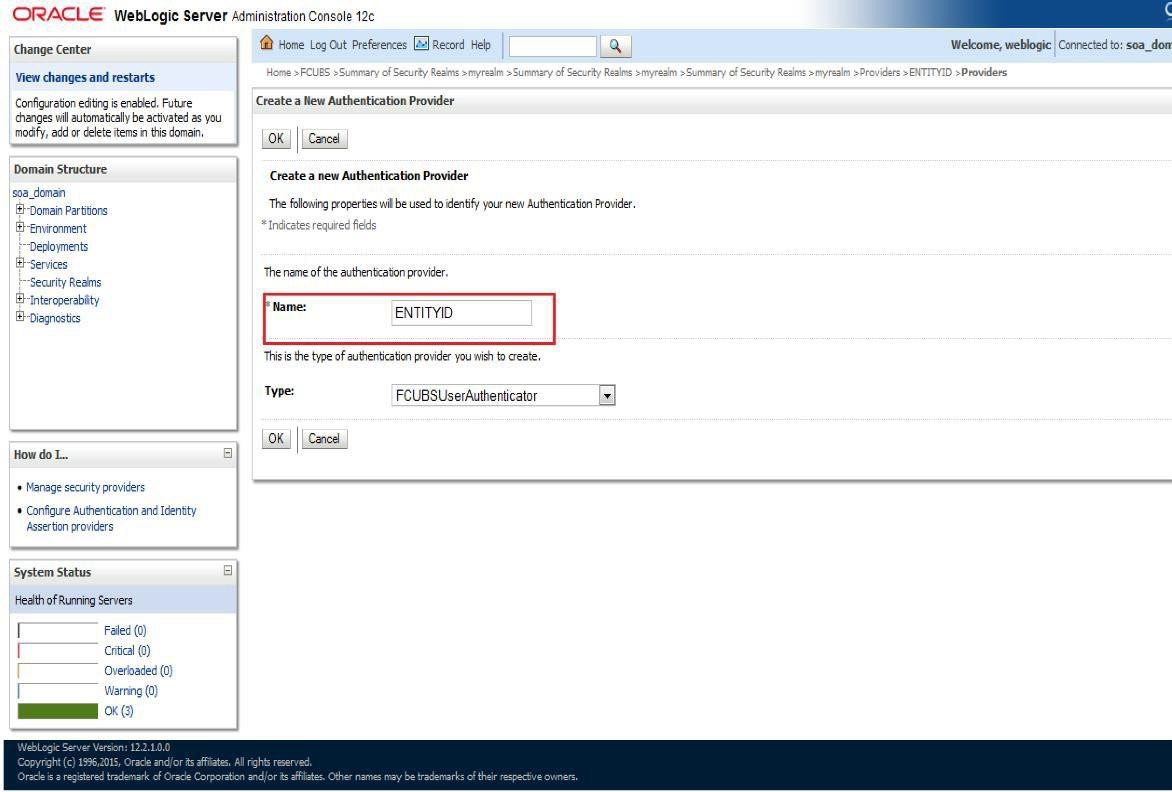

   Figure 1-12 Create a new authentication Provider





   Description of "Figure 1-12 Create a new authentication Provider"



7. Click Reorder. Bring the Authenticatiorprovider to the first in the order and click OK.
   The Reorder Authentication Providers screen displays.

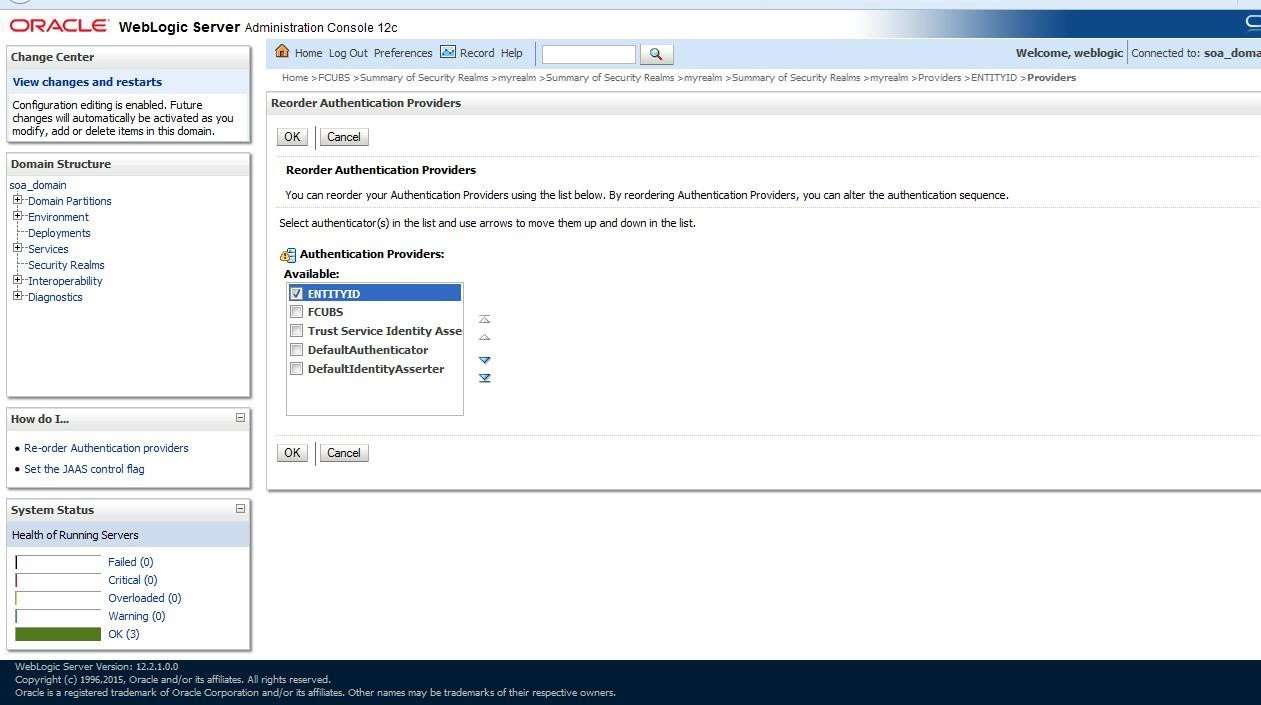

   Figure 1-13 Reorder Authentication Providers





   Description of "Figure 1-13 Reorder Authentication Providers"



8. Click the Provider that you have created.
   The Settings for myrealms - Providers - New Provider screen displays.

   Figure 1-14 Settings for myrealms - Providers - New Provider





   Description of "Figure 1-14 Settings for myrealms - Providers - New Provider"



9. In the Common tab, select the control flag as SUFFICIENT from the list and click Save.
   The Settings for ENTITYID - common tab screen displays.

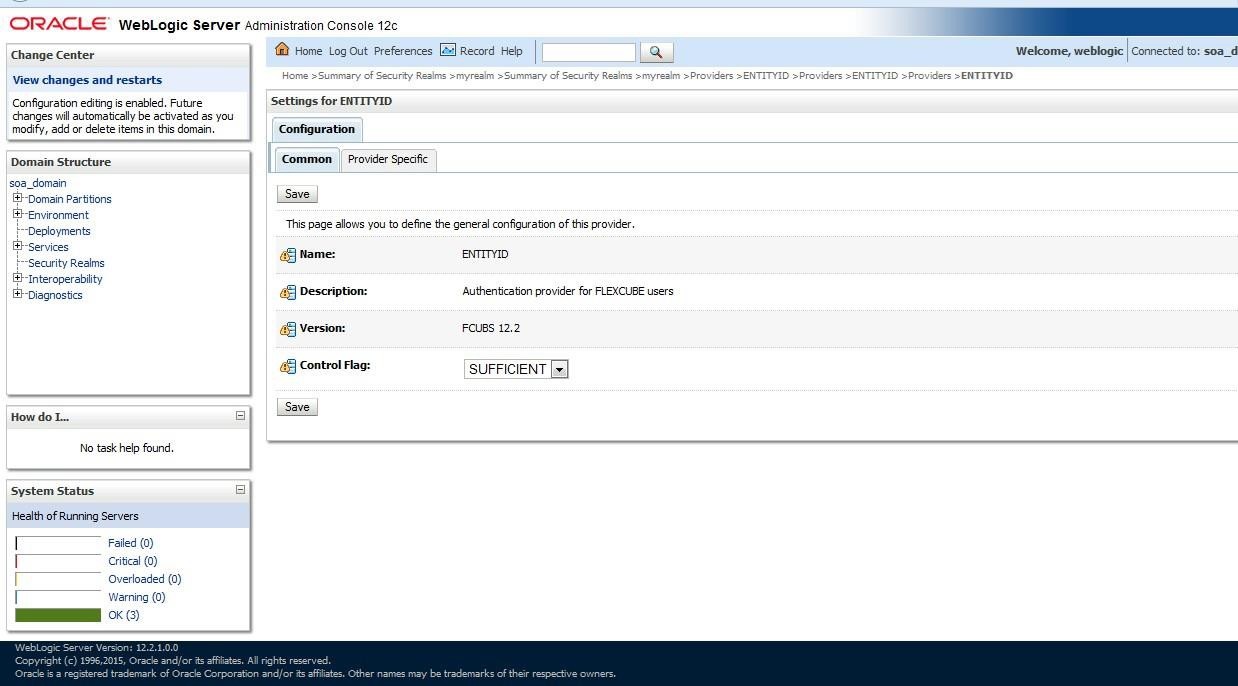

   Figure 1-15 Settings for ENTITY ID - Common





   Description of "Figure 1-15 Settings for ENTITY ID - Common"



10. Select the Provider Specific tab.
    The Settings for ENTITYID - Provider Specific screen displays.

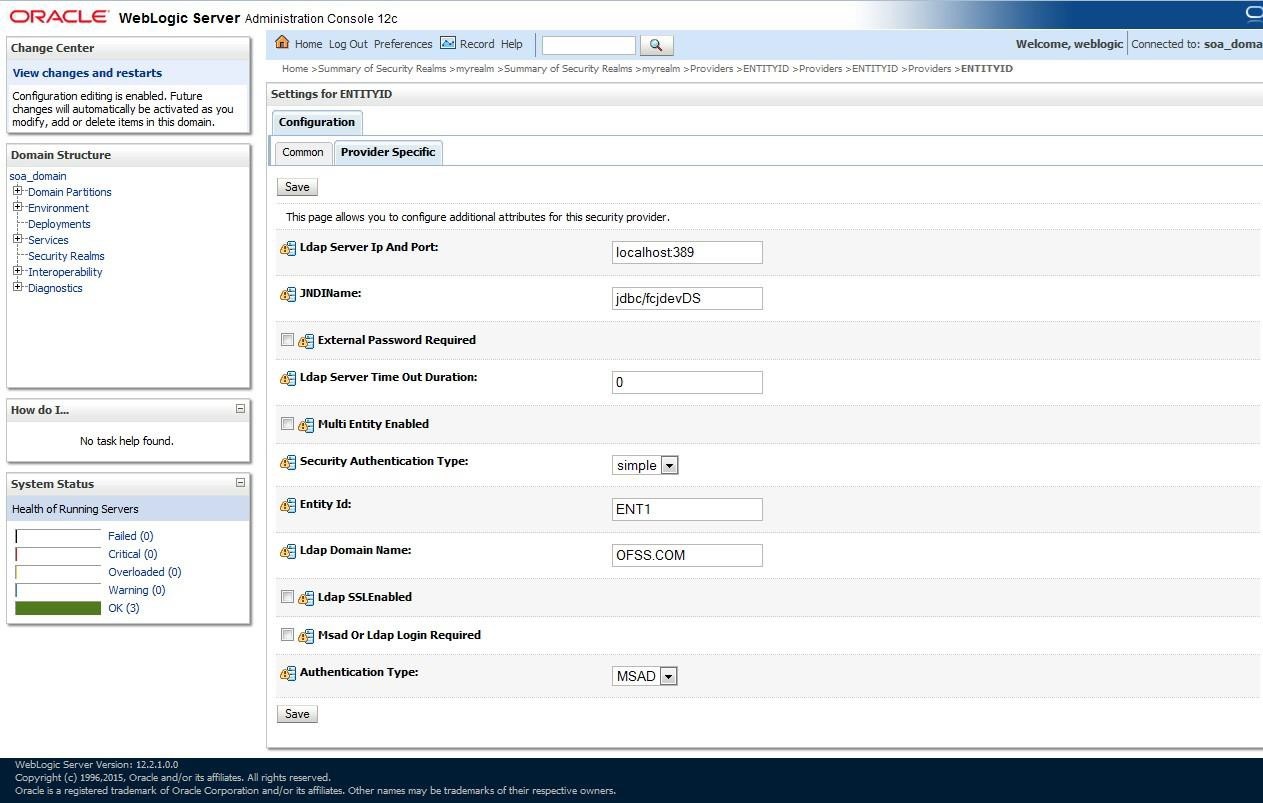

    Figure 1-16 Settings for ENTITYID - Product Specific





    Description of "Figure 1-16 Settings for ENTITYID - Product Specific"



11. Change the JNDIName to the Datasource JNDI name, which has mapped to the entity in the property file level, and select the Multi Entity enabled checkbox.

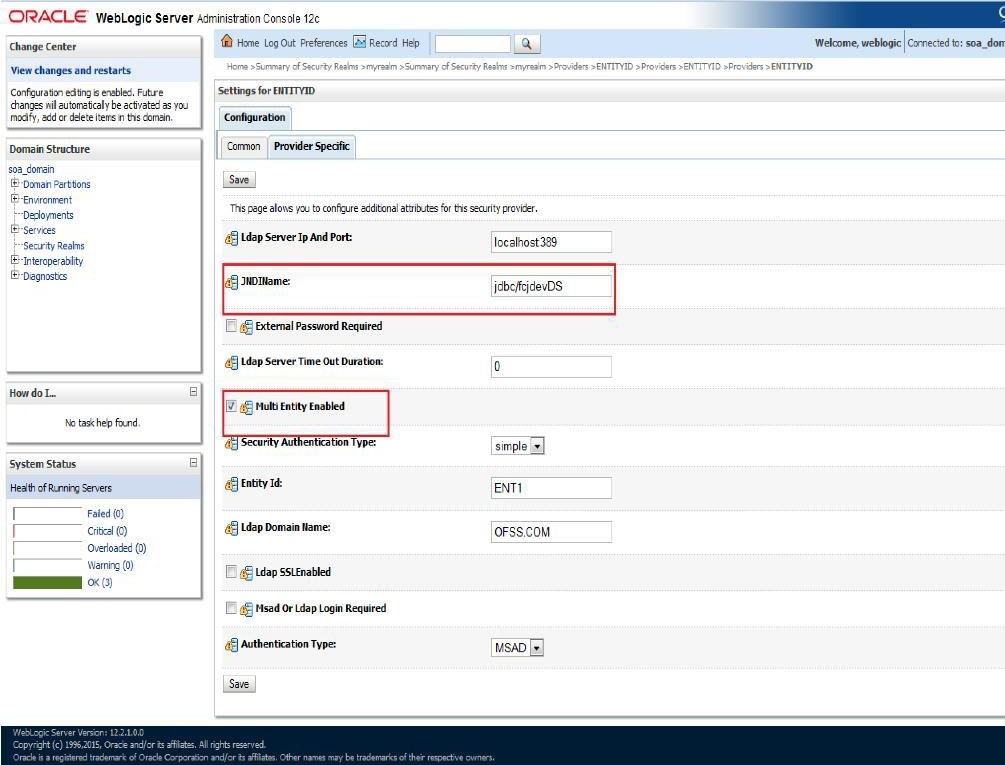

    Figure 1-17 Settings for ENTITYID - Provider Specific - Multi Entity





    Description of "Figure 1-17 Settings for ENTITYID - Provider Specific - Multi Entity"



12. Specify the Entity ID with the Entity name which you have created in the property file level and click Save.

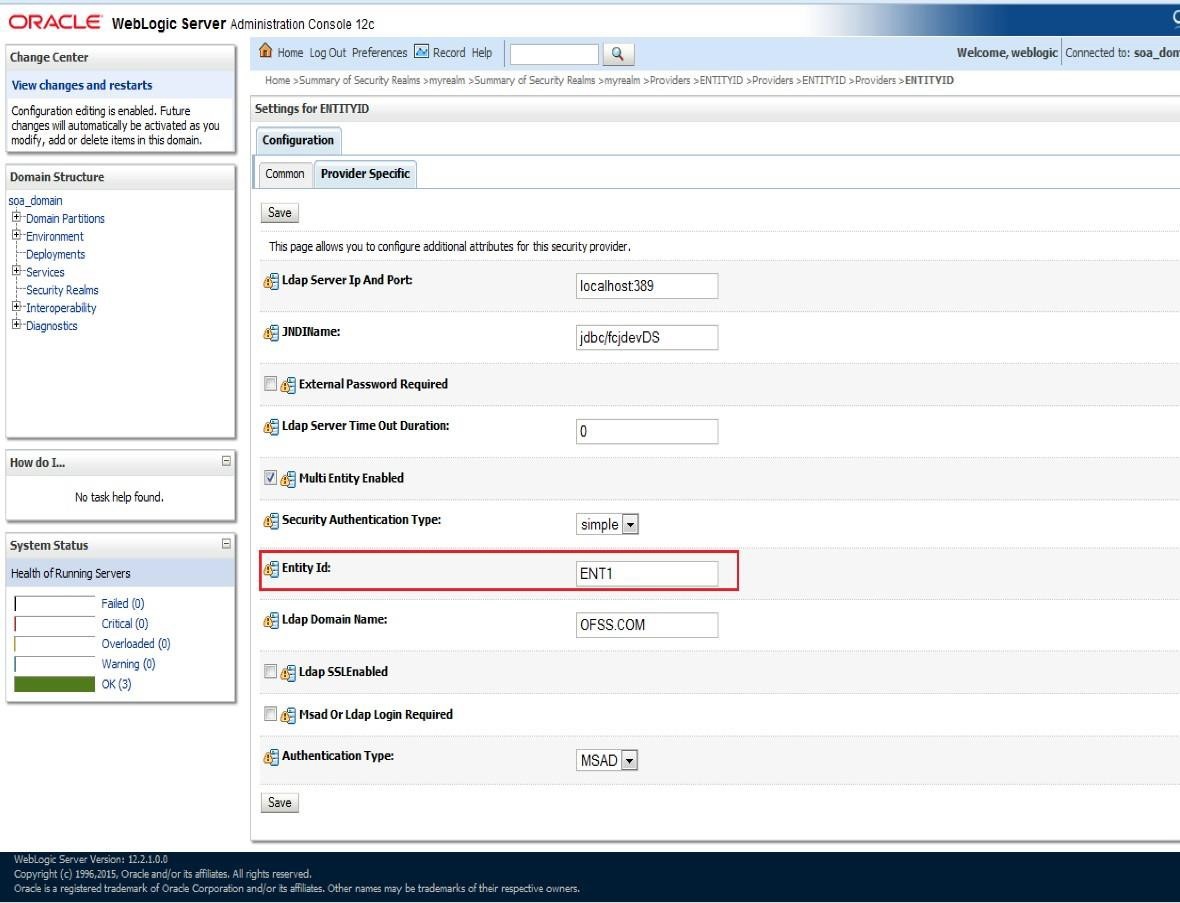

    Figure 1-18 Settings for ENTITYID - Provider Specific - Entity Id





    Description of "Figure 1-18 Settings for ENTITYID - Provider Specific - Entity Id"



13. Create the new datasource for each entity with the JNDI name, which you mapped in the property file.
14. Restart the Admin Server.
15. Continue step 1 to step 15 for each provider creation in a multi-entity scenario.
