This topic explains systematic instructions to save the property file after completing all the required settings.

1. After completing all the required settings explained above, save the property file.

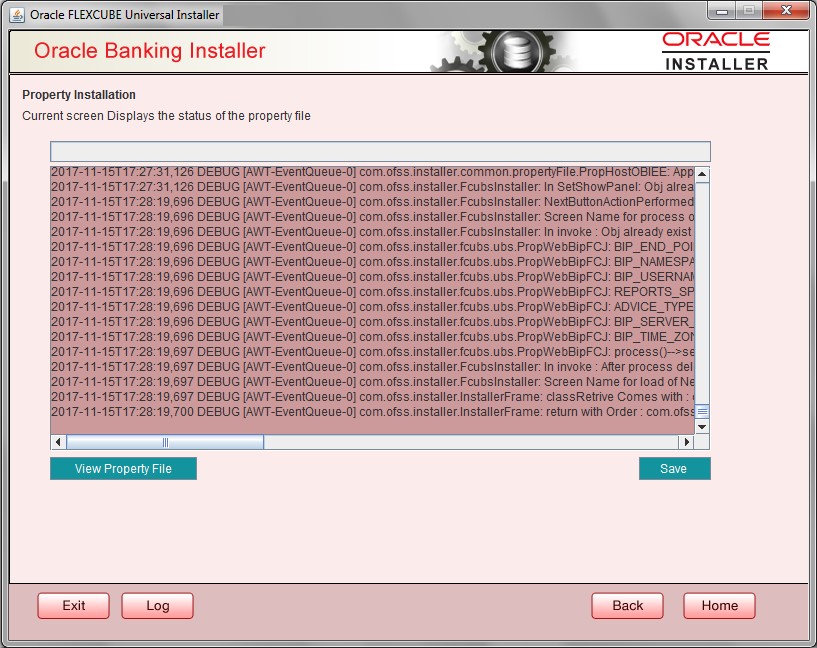

   Figure 1-13 Property Installation





   Description of "Figure 1-13 Property Installation"



2. View the status of property file creation on the above screen.
   Once the file is saved, the installer displays the pop-up message.

   Figure 1-14 Message





   Description of "Figure 1-14 Message"




   Two property files fcubs.properties and scheduler.properties are saved.

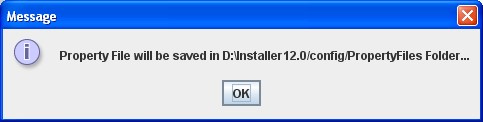

   If you do not use Save or Save As options, the installer saves the properties file in the <InstallerSources>\config\PropertyFiles folder. In that case, the following message displays.

   Figure 1-15 Message





   Description of "Figure 1-15 Message"




   This completes the properties file creation.
