This topic provides systematic instructions to configure the machine.

1. Log in to Administration Console and navigate to FCUBSDomain left panel.
2. Click the Environment drop-down option and then click the Machines.
   The Summary of Machines screen displays.

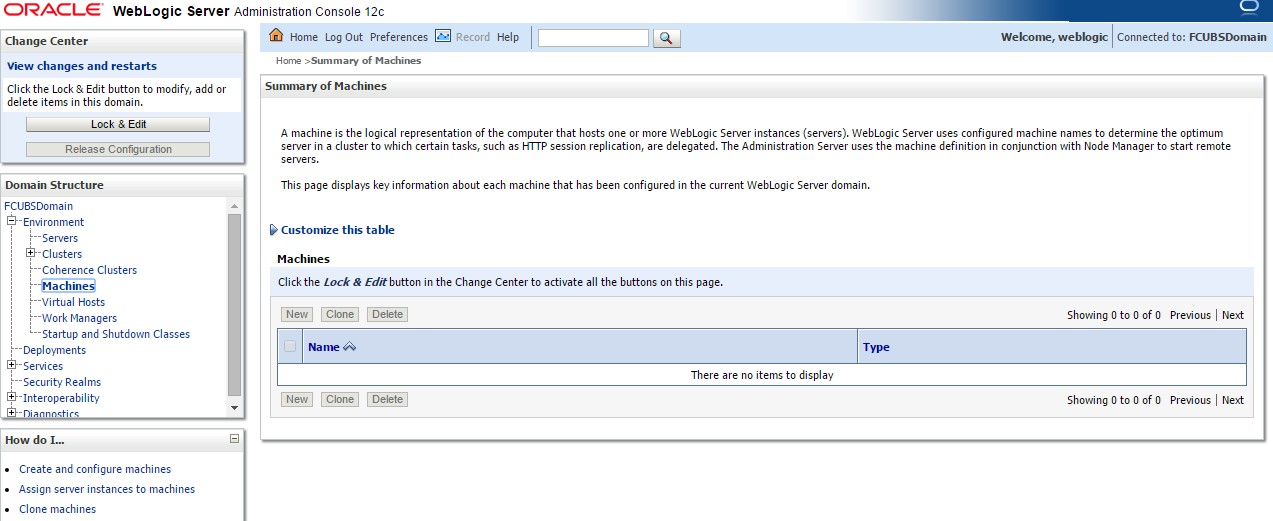

   Figure 3-1 Summary of Machines





   Description of "Figure 3-1 Summary of Machines"



3. Click the New button.
   The Create a New Machine - Machine Identity screen displays.

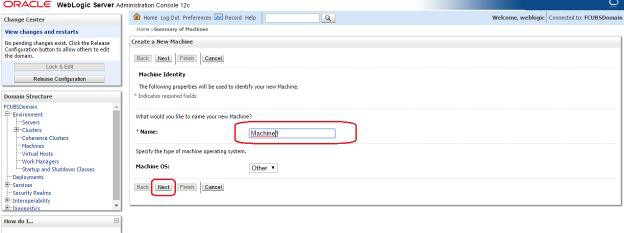

   Figure 3-2 Create a New Machine - Machine Identity





   Description of "Figure 3-2 Create a New Machine - Machine Identity"



4. Specify the Name field for the machine and click the Next button.
   The Create a New Machine - Node Manager Properties screen displays.

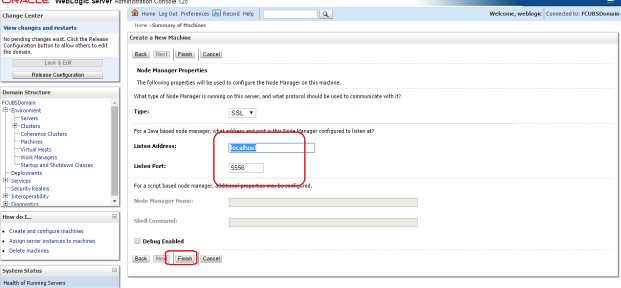

   Figure 3-3 Create a New Machine - Node Manager Properties





   Description of "Figure 3-3 Create a New Machine - Node Manager Properties"



5. Specify the Listen Address and Listen Port and click the Finish button.
   Listen Port is the port mentioned in nodemanager.properties file.
   The Machine is created in the Summary of Machines screen.

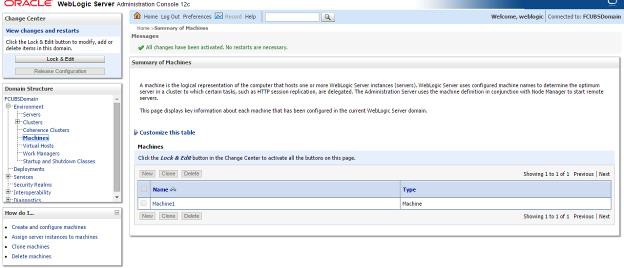

   Figure 3-4 Summary of Machines - Messages





   Description of "Figure 3-4 Summary of Machines - Messages"



6. Similarly, create a new machine entry for the other server.
7. Before starting the managed servers, make sure that the Node manager Status of all the machines is Reachable.
   1. In the Admin console, navigate through the Domain Structure left panel to Environment drop-down option and then click the Machines.
      The Summary of Machines screen displays.

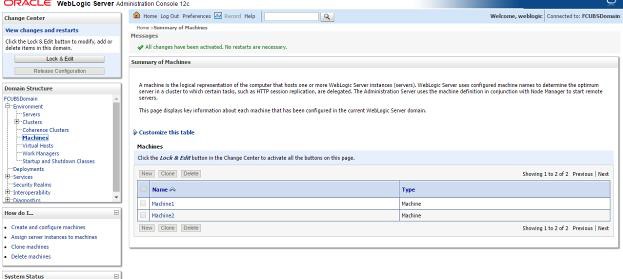

      Figure 3-5 Summary of Machines





      Description of "Figure 3-5 Summary of Machines"



   2. Click the newly created Machine1.
      The Settings for Machine1 screen displays.

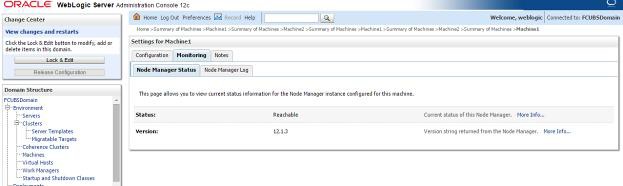

      Figure 3-6 Settings for Machine1





      Description of "Figure 3-6 Settings for Machine1"



   3. Click the Monitoring tab and then click the Node Manager Status.
      The Status of Machine1 displays and it should be Reachable.
