This topic explains systematic instructions to test the deployment.

1. Under the Domain Structure left panel, navigate to the Services drop-down option, and click Messaging and then click JMS Modules.
   The Summary of JMS Module screen displays.

   Figure 8-2 Summary of JMS Module





   Description of "Figure 8-2 Summary of JMS Module"



2. Navigate into JMS_MODULE and clickMDB_QUEUE.
   The Settings for MDB_QUEUE screen displays.
3. Click the MONITORING tab.
   The Settings for MDB_QUEUE screen displays with Destinations table.

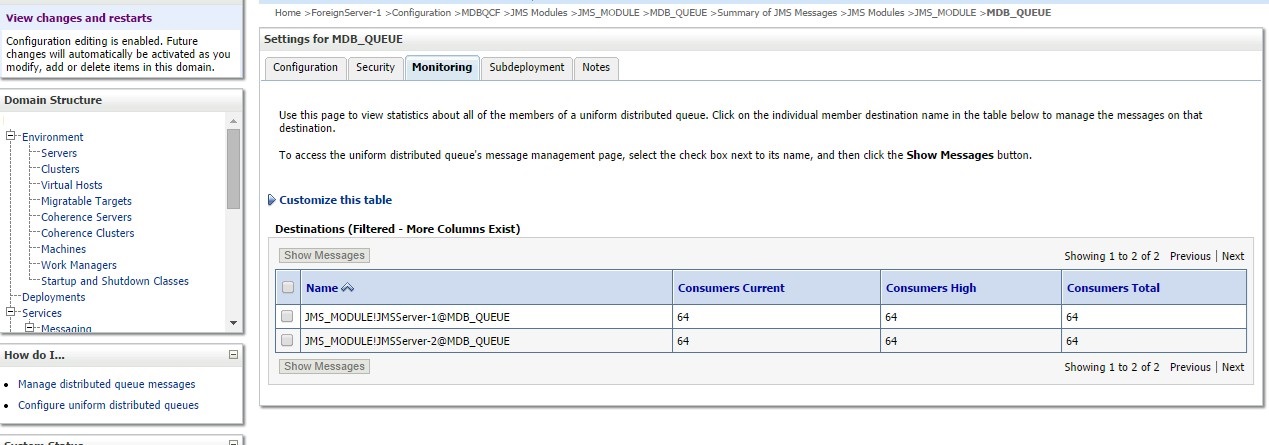

   Figure 8-3 Settings for MDB_QUEUE - Monitoring tab





   Description of "Figure 8-3 Settings for MDB_QUEUE - Monitoring tab"



4. Select any one server, and click Show Messages.
   The Summary of JMS Messages screen displays.

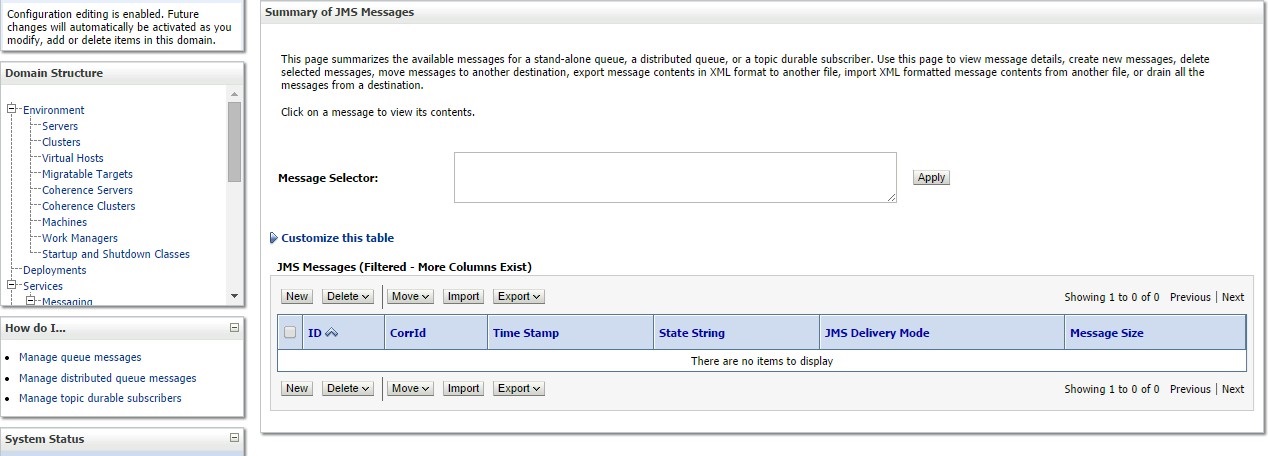

   Figure 8-4 Summary of JMS Messages





   Description of "Figure 8-4 Summary of JMS Messages"



5. Click New.
   The Produce JMS Message screen displays.

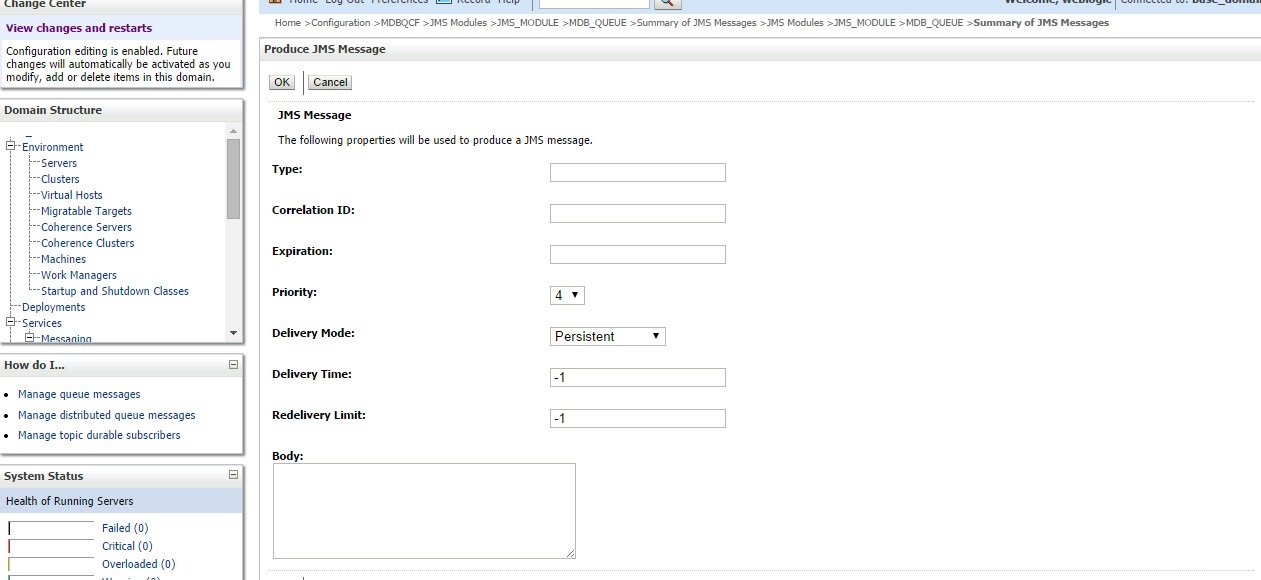

   Figure 8-5 Produce JMS Message





   Description of "Figure 8-5 Produce JMS Message"



6. Specify the message in the field of Body, and click OK.
   The message is sent, and displays under the JMS Messages table.

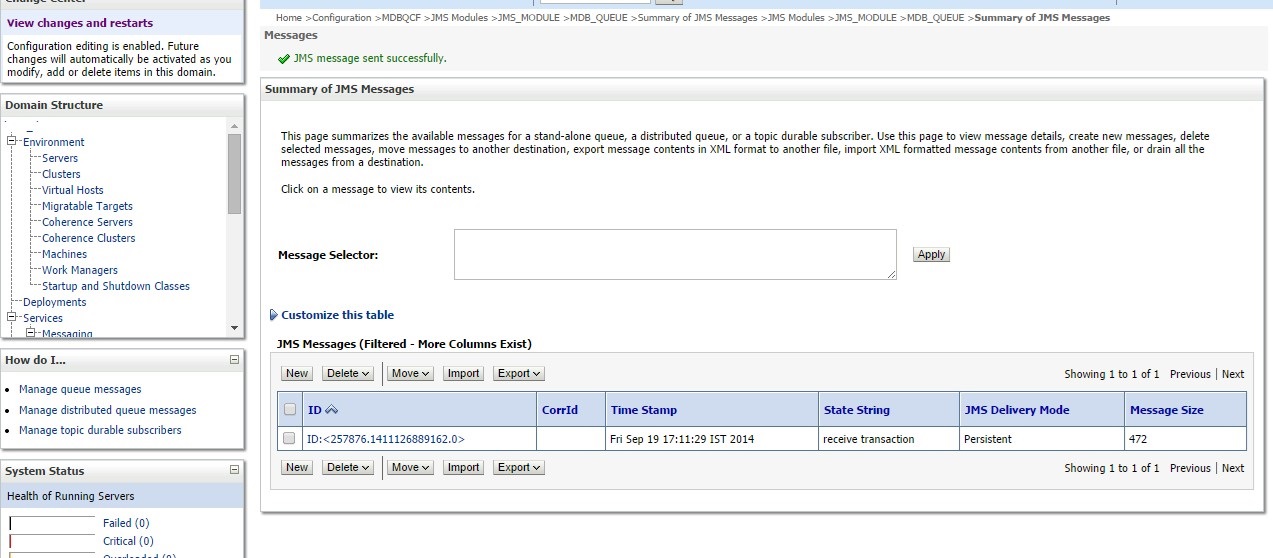

   Figure 8-6 Summary of JMS Messages





   Description of "Figure 8-6 Summary of JMS Messages "



7. Verify at the backend or in the MDB log if the message is processed successfully.
