This topic explains systematic instructions to restart the JMS servers.

1. Under the Domain Structure left panel, navigate to the Environment drop-down option.
2. Click Server.
   The Summary of Servers screen displays.

   Figure 5-1 Summary of Servers





   Description of "Figure 5-1 Summary of Servers"



3. Increase the heap size of both DC_JMS_1 and DC_JMS_2 clusters.
   The Summary of Server Templates screen displays.

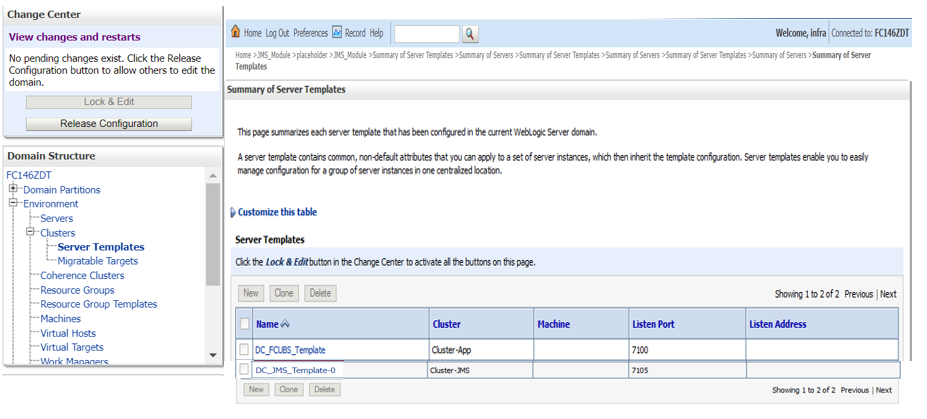

   Figure 5-2 Summary of Server Templates





   Description of "Figure 5-2 Summary of Server Templates"



4. Select the cluster DC_JMS_Template-0, and click the Server Start tab.
   The Settings for DC_JMS_Template-0 screen displays.

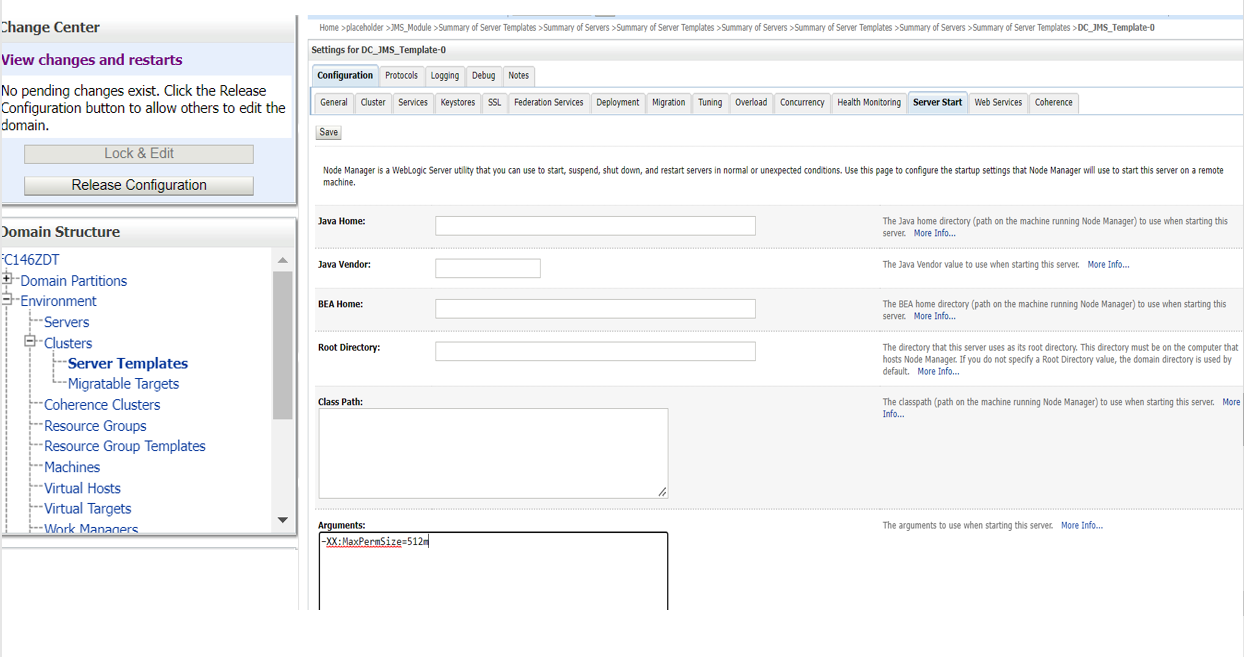

   Figure 5-3 Settings for DC_JMS_Template-0





   Description of "Figure 5-3 Settings for DC_JMS_Template-0"



5. Specify the –XX:MaxPermSize=512m in the Arguments section.
6. Restart the AdminServer and DC_JMS_1 and DC_JMS_2 managed servers.
