4.3.1 Create Queue

This topic explains systematic instructions to create the Queue.

  1. Under the Domain Structure left panel, navigate to the Services drop-down option.
  2. Click Messaging, and then click JMS Modules.
    The Settings for JMS_Module screen displays.

    Figure 4-10 Settings for JMS_Module


    Description of Figure 4-10 follows
    Description of "Figure 4-10 Settings for JMS_Module"

  3. Click the Configuration tab, and then click New.
    The Create a New JMS System Module Resources screen displays to choose the type of resources.

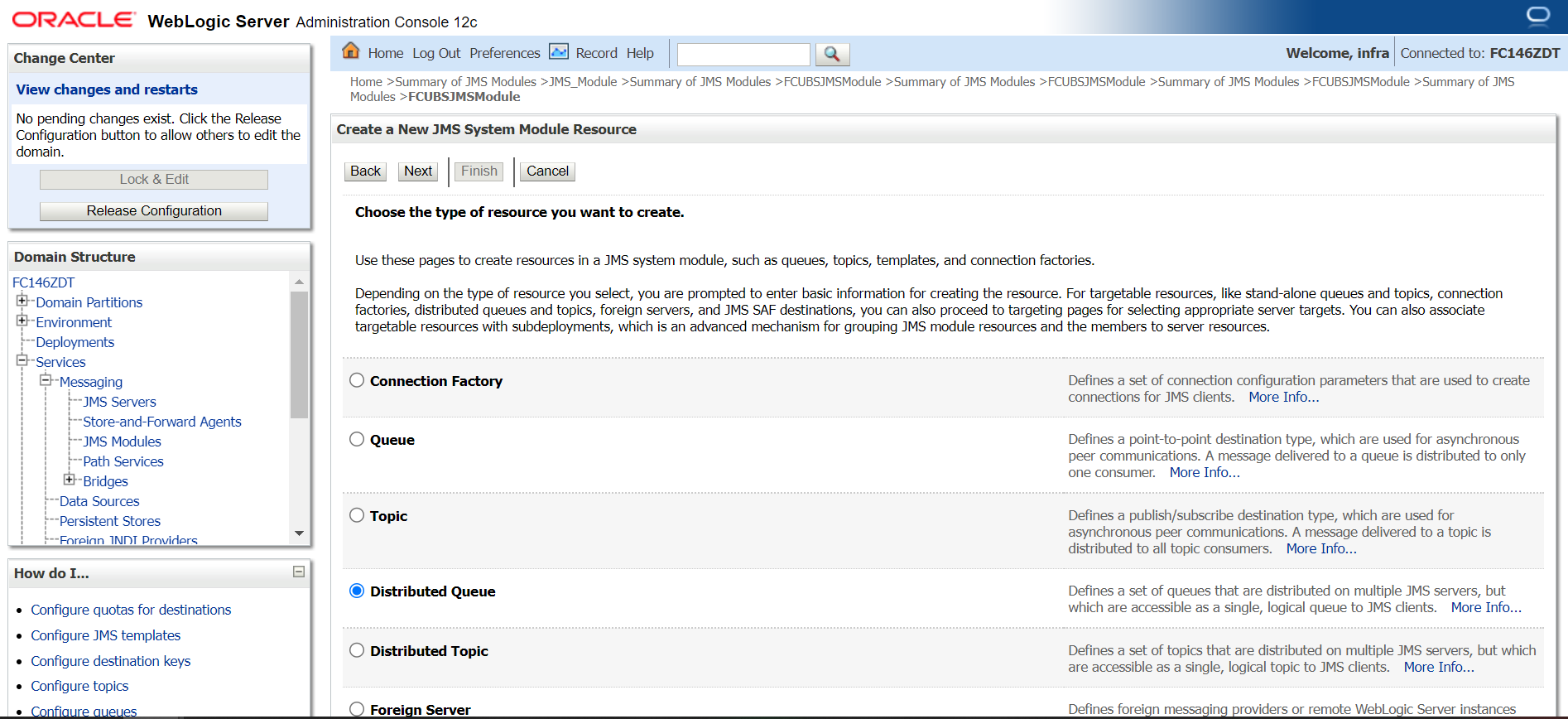

    Figure 4-11 Create a New JMS System Module Resources - Choose resources


    Description of Figure 4-11 follows
    Description of "Figure 4-11 Create a New JMS System Module Resources - Choose resources"

  4. Select the Distributed Queue, and then click Next.
    The Create a New JMS System Module Resources screen displays to enter the name of the resources.

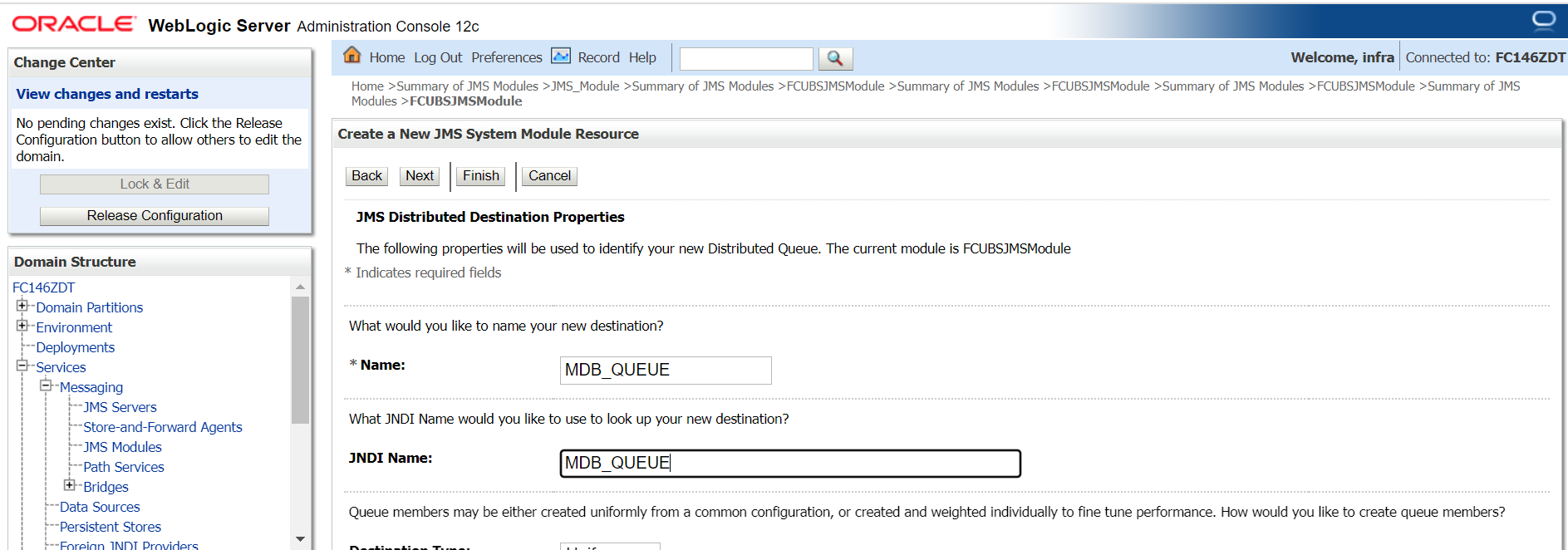

    Figure 4-12 Create a New JMS System Module Resources - JMS Distributed Destination Properties


    Description of Figure 4-12 follows
    Description of "Figure 4-12 Create a New JMS System Module Resources - JMS Distributed Destination Properties"

  5. Enter the Name as MDB_QUEUE, and Click Next.
    The Create a New JMS System Module Resources - Targets screen displays to enter the name of the resources.

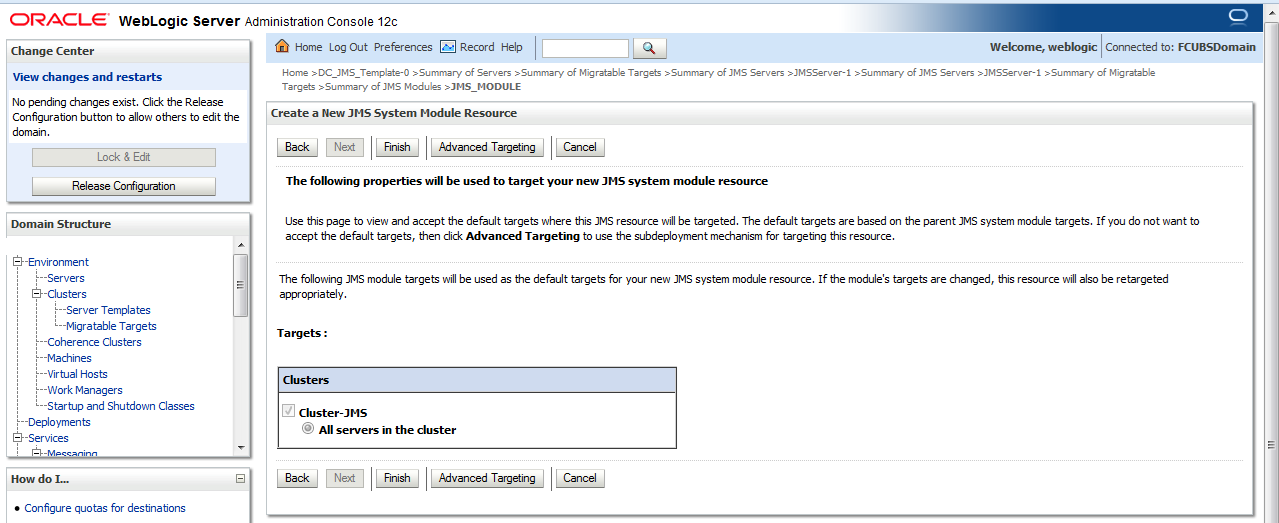

    Figure 4-13 Create a New JMS System Module Resources - Targets


    Description of Figure 4-13 follows
    Description of "Figure 4-13 Create a New JMS System Module Resources - Targets"

  6. Click the Advance Targeting tab.
    The Targets tab opens in Create a New JMS System Module Resources - Advance Targeting screen.

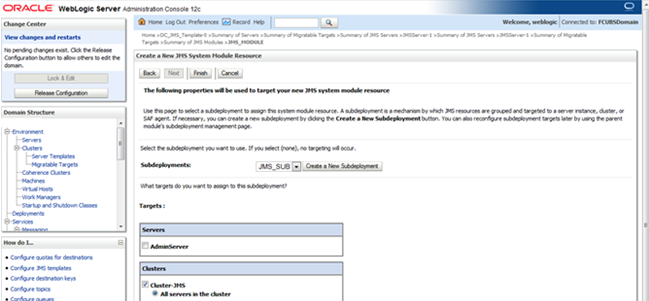

    Figure 4-14 Create a New JMS System Module Resources - Advance Targeting


    Description of Figure 4-14 follows
    Description of "Figure 4-14 Create a New JMS System Module Resources - Advance Targeting"

  7. Select Subdeployement as JMS_SUB, and then click Finish.
    The MDB-QUEUE is created. The MDB-QUEUE is reflected under Summary of Resources.

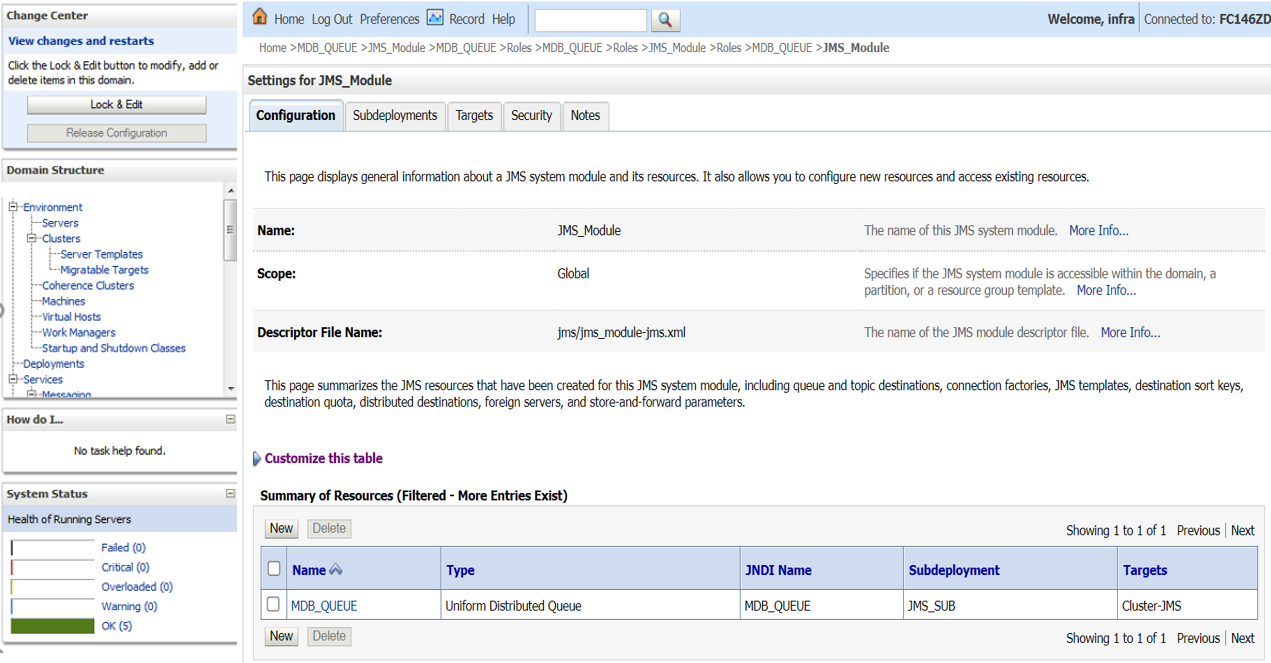

    Figure 4-15 Settings for JMS_Module - Message


    Description of Figure 4-15 follows
    Description of "Figure 4-15 Settings for JMS_Module - Message"

  8. Similarly create the MDB_QUEUE_RESPONSE and MDB_QUEUE_DLQ.
    The MDB_QUEUE_RESPONSE and MDB_QUEUE_DLQ displays under the Summary of Resources section.

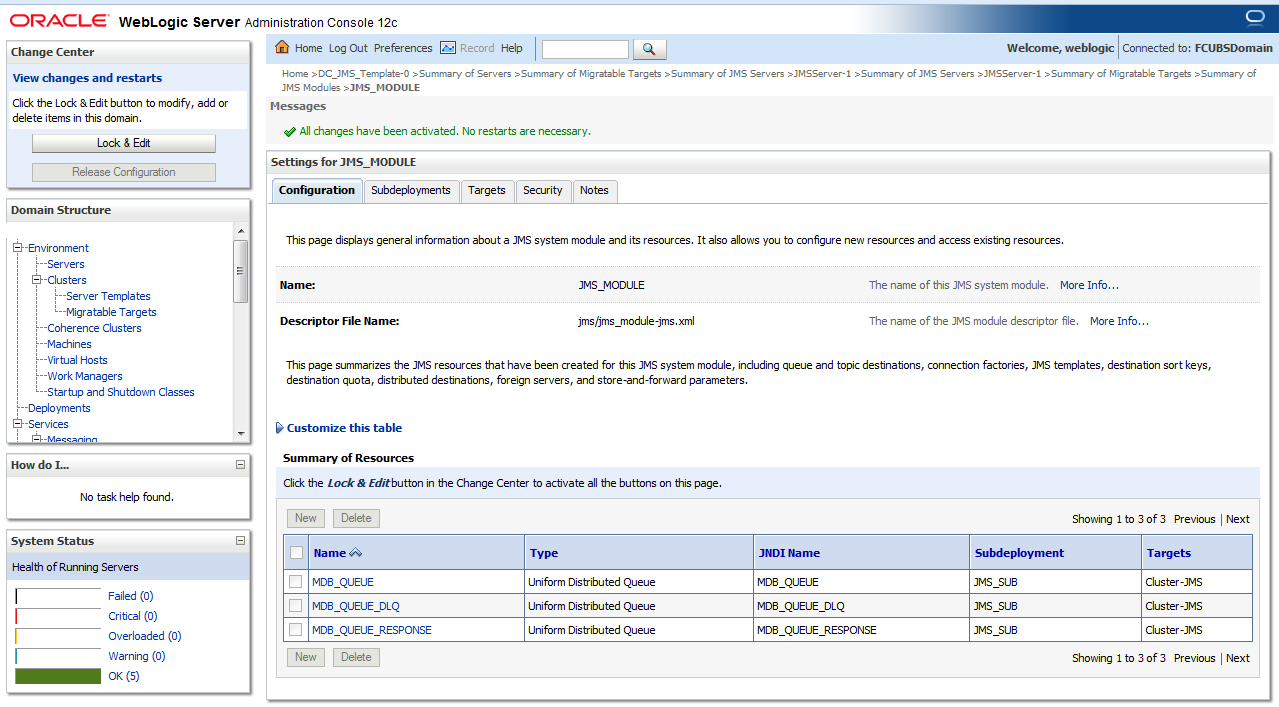

    Figure 4-16 Settings for JMS_Module - Summary of Resources


    Description of Figure 4-16 follows
    Description of "Figure 4-16 Settings for JMS_Module - Summary of Resources"

Parent topic: Create Resources
