6.2 Create Foreign Server

This topic provides systematic instructions to create the Foreign server.

  1. In the Summary of JMS Modules screen, click MDB_MODULE.
    The Settings for MDB_MODULE - Configuration screen displays.

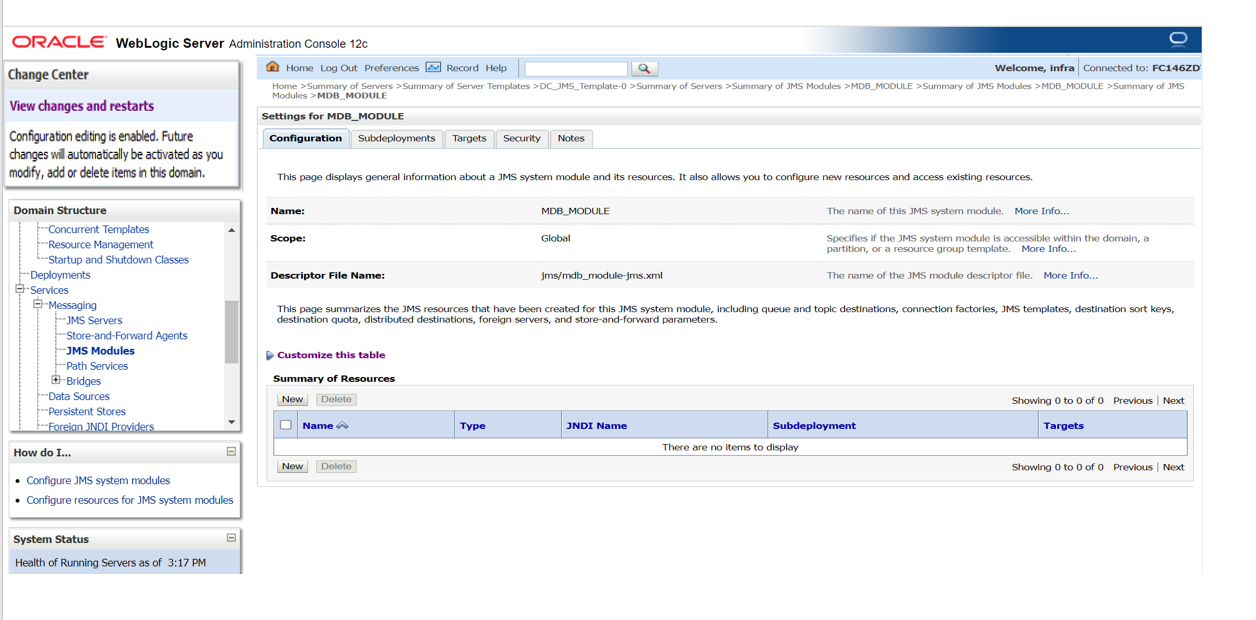

    Figure 6-6 Settings for MDB_MODULE


    Description of Figure 6-6 follows
    Description of "Figure 6-6 Settings for MDB_MODULE"

  2. Click New.
    The Create a New JMS System Module Resource screen displays.

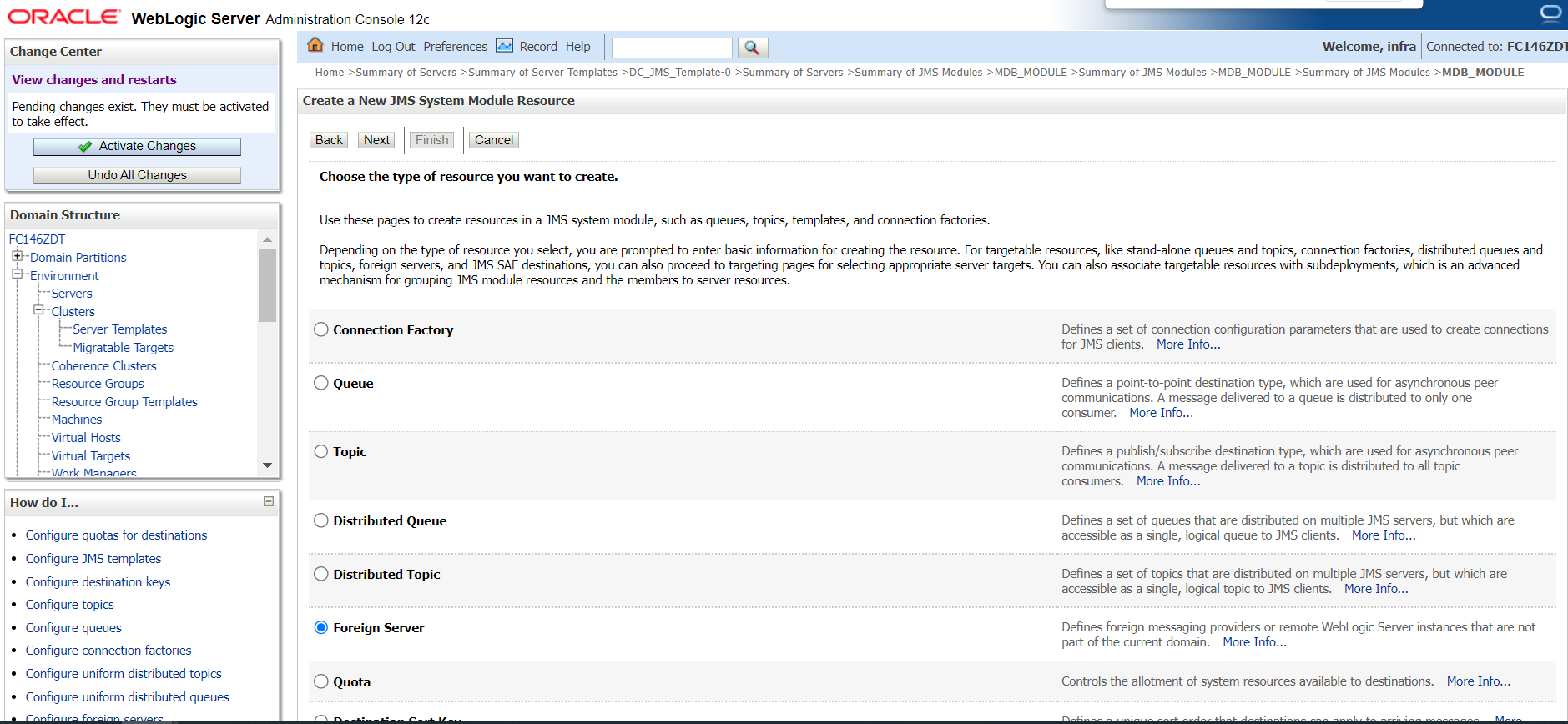

    Figure 6-7 Create a New JMS System Module Resource


    Description of Figure 6-7 follows
    Description of "Figure 6-7 Create a New JMS System Module Resource"

  3. Select the Foreign Server resource, and click Next.
    The Create a New JMS System Module Resource - Foreign Server Properties screen displays.

    Figure 6-8 Create a New JMS System Module Resource - Foreign Server Properties


    Description of Figure 6-8 follows
    Description of "Figure 6-8 Create a New JMS System Module Resource - Foreign Server Properties"

  4. Specify Name of the foreign server, and then click Next.
    The Create a New JMS System Module Resource - Targets screen displays.

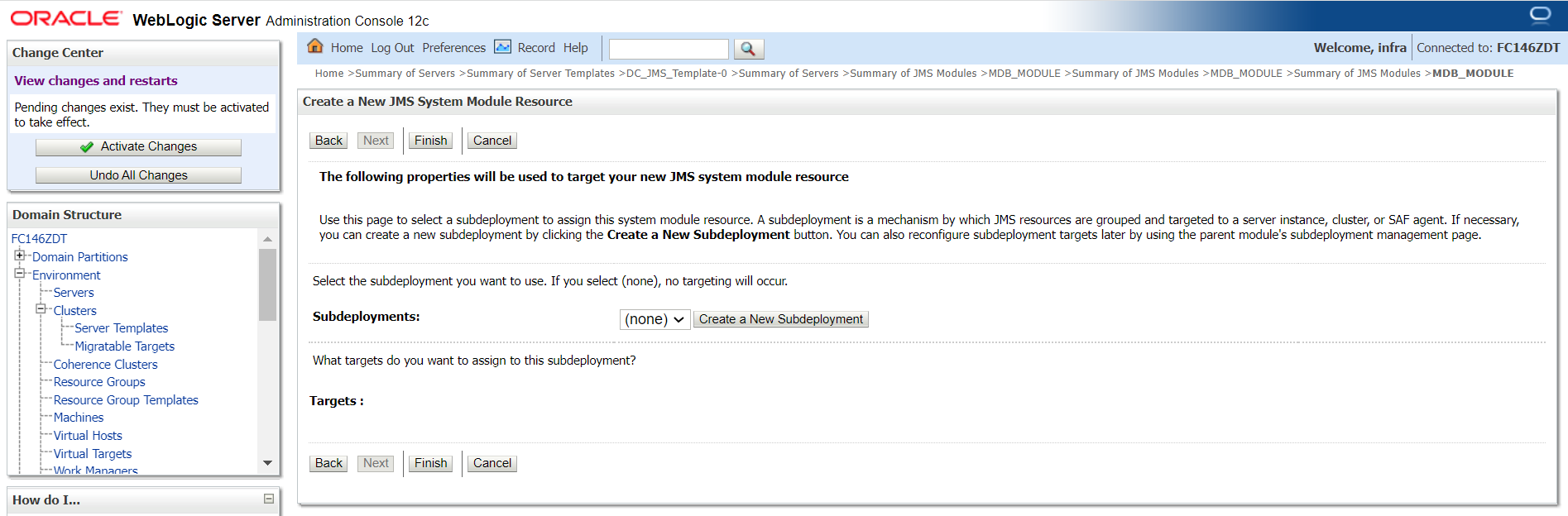

    Figure 6-9 Create a New JMS System Module Resource - Targets


    Description of Figure 6-9 follows
    Description of "Figure 6-9 Create a New JMS System Module Resource - Targets"

  5. Click Advanced Targeting.
    The Create a New JMS System Module Resource - Advanced Targeting screen displays.

    Figure 6-10 Create a New JMS System Module Resource - Advanced Targeting


    Description of Figure 6-10 follows
    Description of "Figure 6-10 Create a New JMS System Module Resource - Advanced Targeting"

  6. Click the Create a New Subdeployment button.
    The Create a New Subdeployment screen displays.

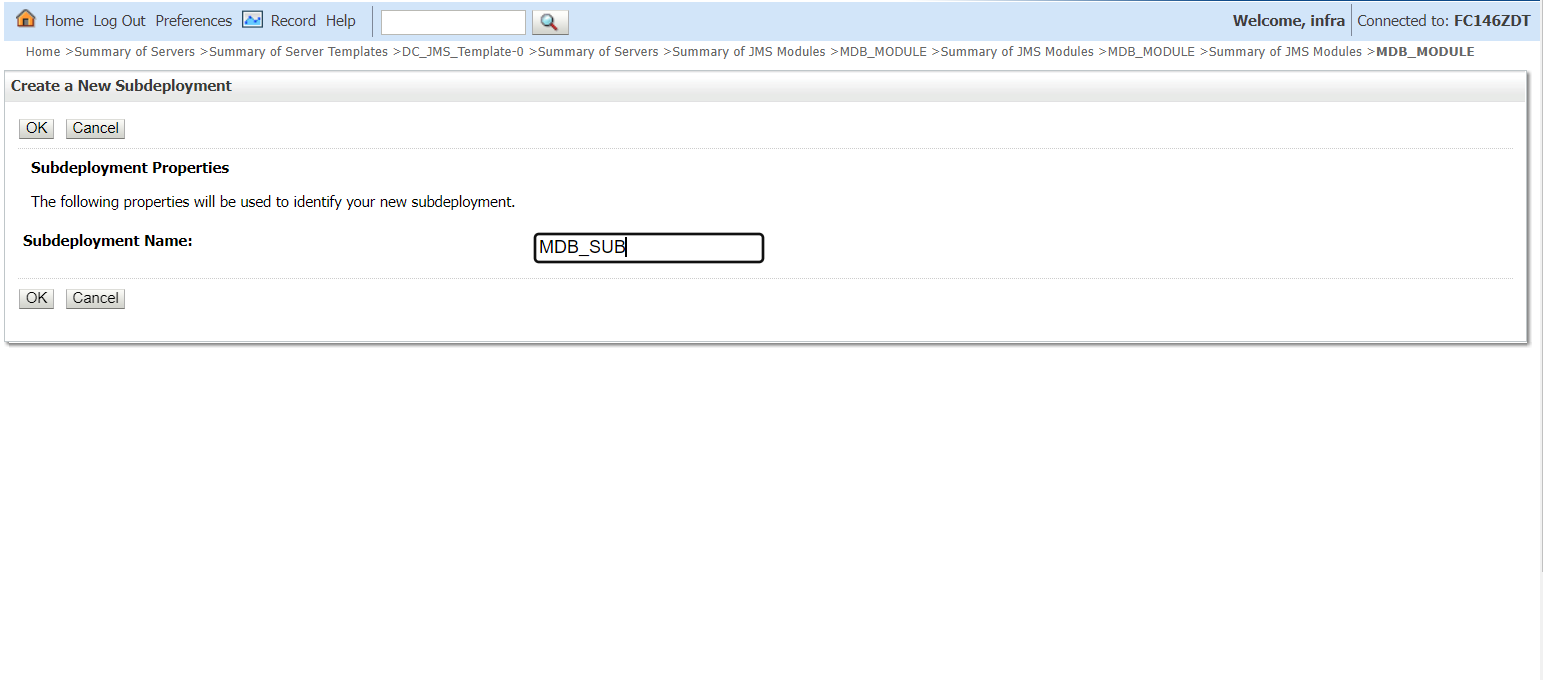

    Figure 6-11 Create a New Subdeployment


    Description of Figure 6-11 follows
    Description of "Figure 6-11 Create a New Subdeployment"

  7. Specify the Subdeployment Name as MDB_SUB, and click OK.
    The Create a New JMS System Module Resource screen displays to target MDB_SUB module.

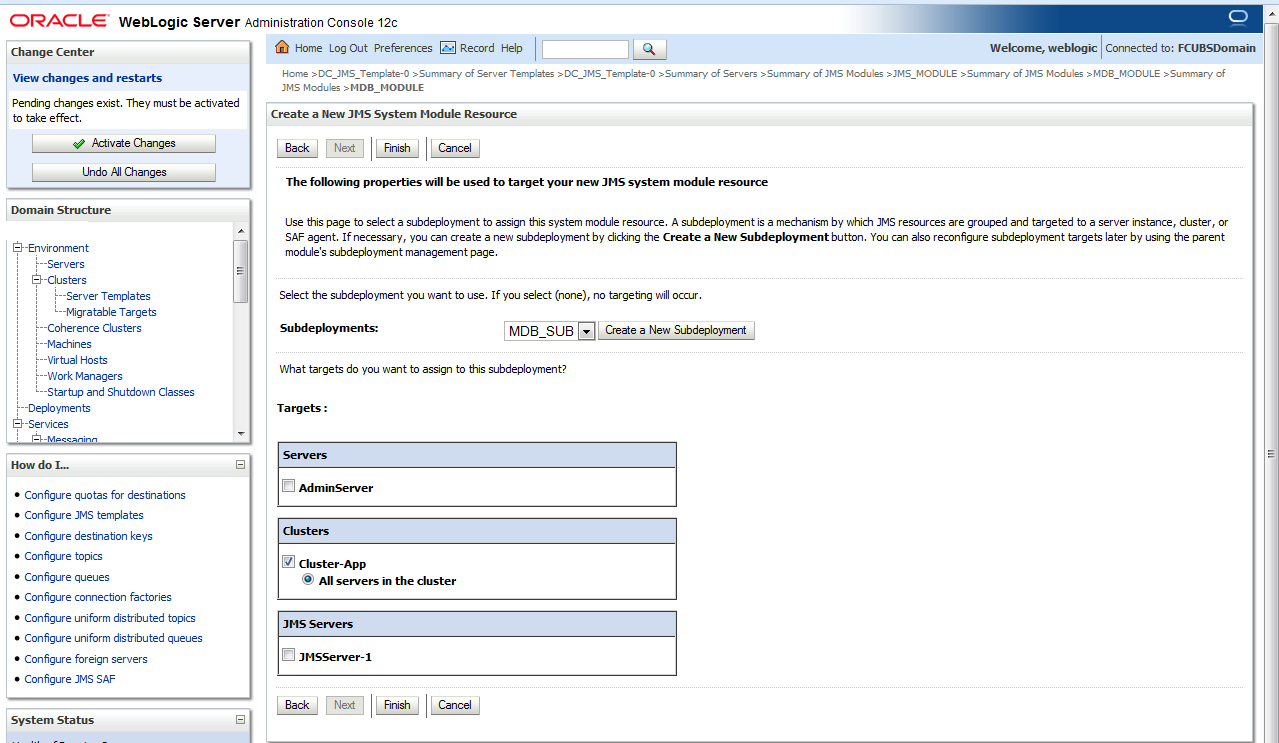

    Figure 6-12 Create a New JMS System Module Resource - Subdeployment target


    Description of Figure 6-12 follows
    Description of "Figure 6-12 Create a New JMS System Module Resource - Subdeployment target"

  8. Select Targets as a Cluster-App, and then click Finish.
    The foreign server is created.

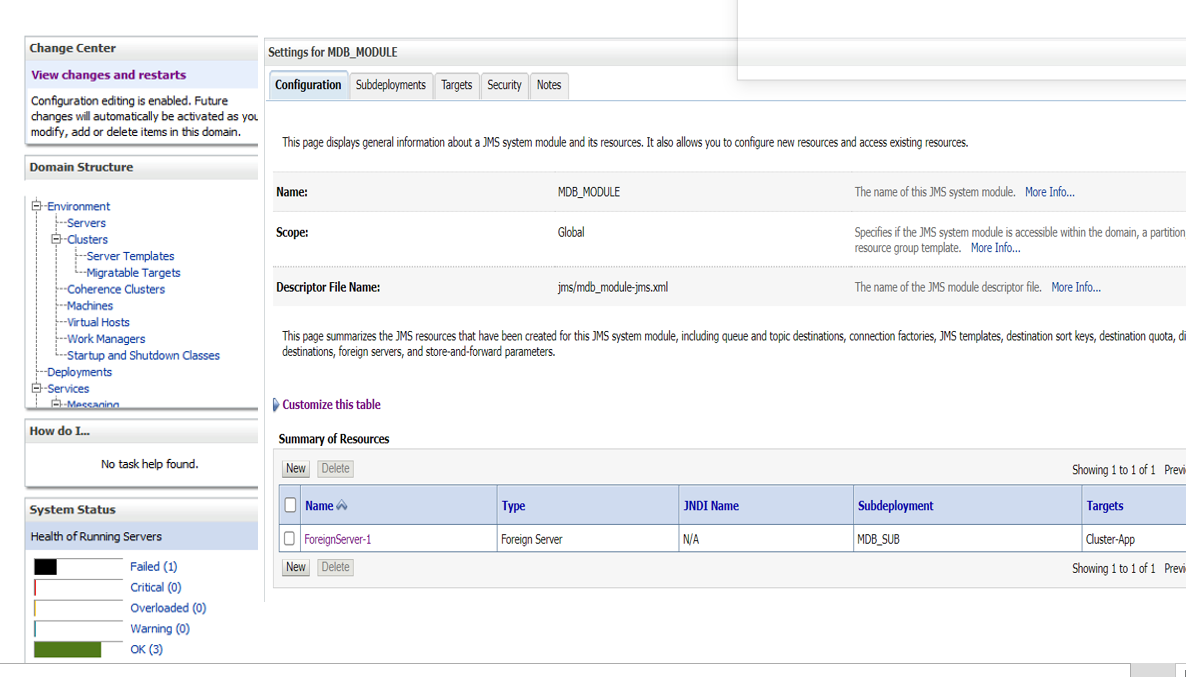

    Figure 6-13 Settings for MDB_Module - Message


    Description of Figure 6-13 follows
    Description of "Figure 6-13 Settings for MDB_Module - Message"
