This topic explains systematic instructions to create a new Wallet and import Certificate.

1. Go to the \Oracle_WT1\bin\launch.exe to launch wallet manager.
   The Oracle Wallet Manager- Home screen displays.

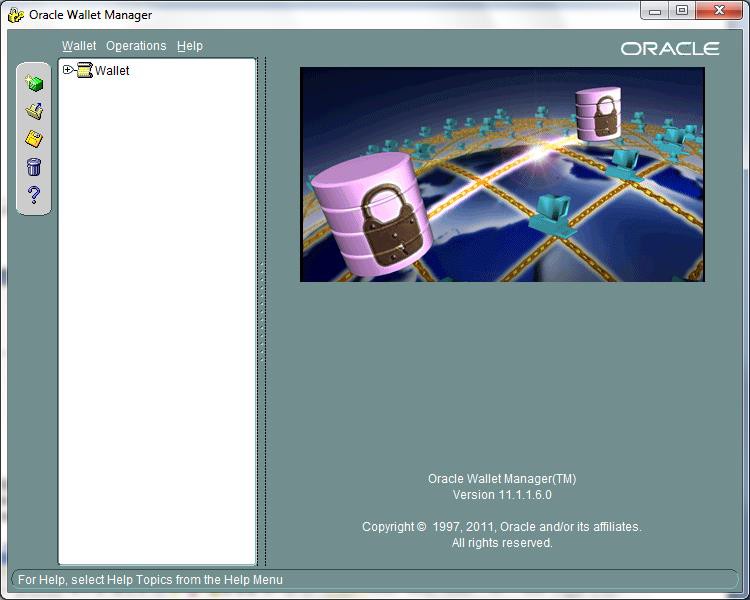

   Figure 6-1 Oracle Wallet Manager- Home





   Description of "Figure 6-1 Oracle Wallet Manager- Home"



2. Click Create New.
   A pop-up message displays on the Oracle Wallet Manager screen.

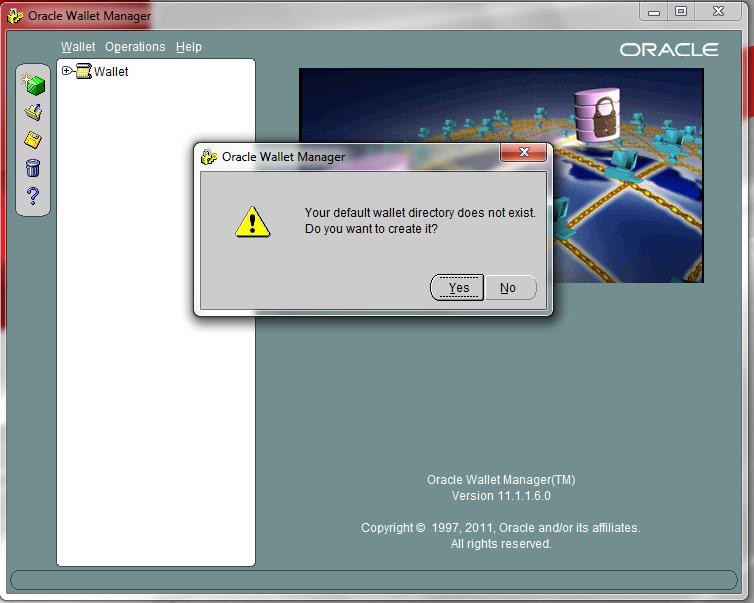

   Figure 6-2 Oracle Wallet Manager- Message





   Description of "Figure 6-2 Oracle Wallet Manager- Message"



3. Click Yes.
   The New Wallet window displays.

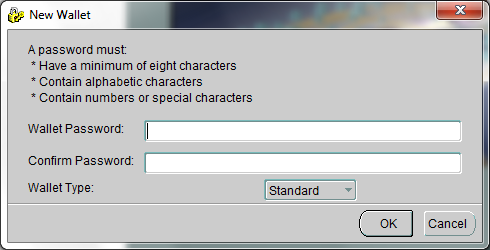

   Figure 6-3 Oracle Wallet Manager - Password





   Description of "Figure 6-3 Oracle Wallet Manager - Password"



4. Enter the Wallet Password and Confirm Password fields and then click OK.
   New Wallet will get created and it will ask for certificate request creation.
5. Click No to proceed.
   The Oracle Wallet Manager screen displays with Trusted Certificates.

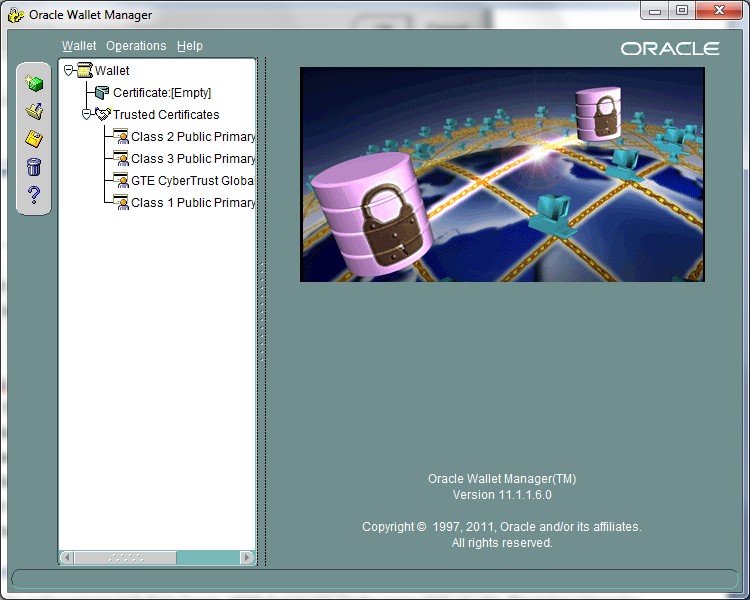

   Figure 6-4 Oracle Wallet Manager - Trusted Certificate





   Description of "Figure 6-4 Oracle Wallet Manager - Trusted Certificate"



6. Right-click on Trusted Certificates and click Import.
   The Import Trusted Certificate window displays.

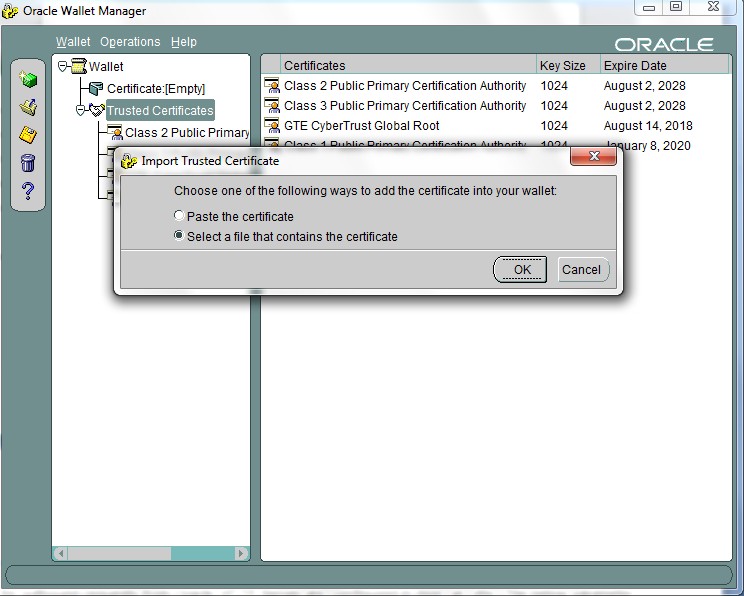

   Figure 6-5 Oracle Wallet Manager - Import Trusted certificate





   Description of "Figure 6-5 Oracle Wallet Manager - Import Trusted certificate"



7. Choose Select a file that contains the certificate option and click OK to import the trusted certificate.
   The Import Trusted Certificate window displays to choose certificate location.

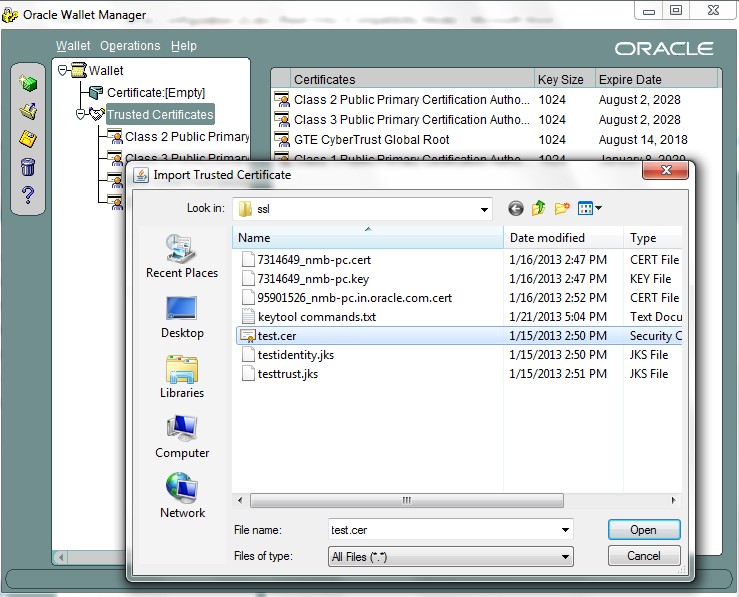

   Figure 6-6 Oracle Wallet Manager - Import Trusted certificate location





   Description of "Figure 6-6 Oracle Wallet Manager - Import Trusted certificate location"



8. Browse to the folder where the certificate is stored and then click Open.
9. Click Save Wallet on the left side navigation and save the wallet either to the default location (${ORACLE_INSTANCE}/config/OHS/${COMPONENT_NAME}/keystores/default) or to desired folder location.
10. Click Wallet tab and enable Auto Login.

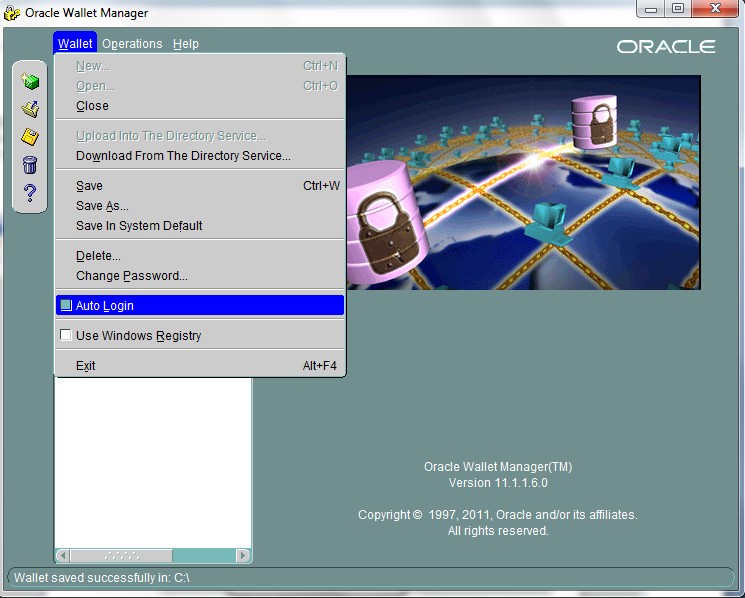

    Figure 6-7 Oracle Wallet Manager - Auto Login





    Description of "Figure 6-7 Oracle Wallet Manager - Auto Login"
