1.1.7 Inter system Bridge GL

To capture details of Inter system Bridge GL

Specify the User ID and Password, and login to Homepage.
  1. On the homepage, type OLDISBGL and click next arrow.
    The ISB GL Maintenance screen is displayed.

    Note:

    The fields which are marked in asterisk red are mandatory fields.

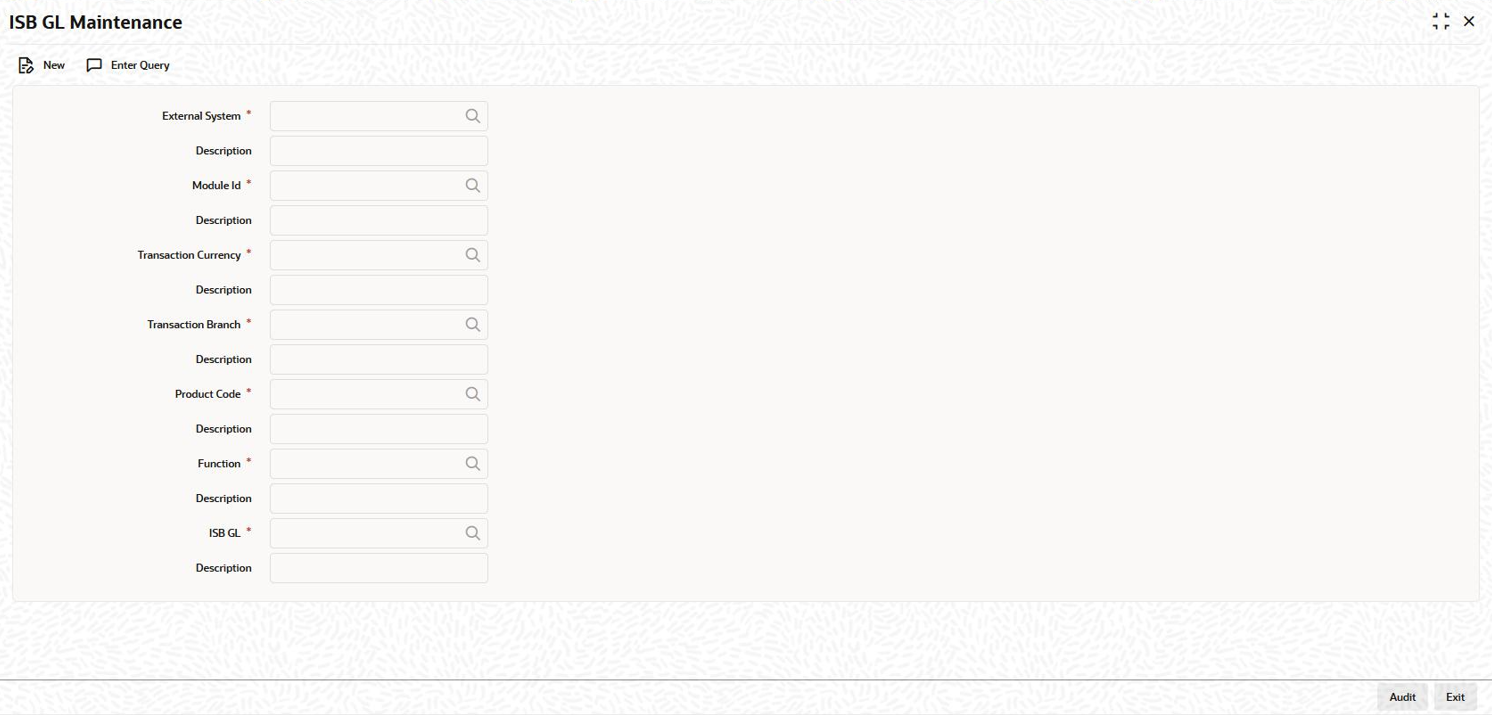

    Figure 1-5 ISB GL Maintenance


    ISB GL Maintenance

  2. You can enter below details in this tab. For information on fields, refer to the field description table.

    Note:

    Ensure you maintain an active record with all the required fields and External System as INTBANKING in Inter-system Bridge GL Maintenance screen.

    Table 1-4 Inter-system Bridge GL

    Field Description
    External System Specify the external system name as INTBANKING.
    Module Id Specify the module code as OL.
    Transaction Currency Specify the transaction currency as ALL or a specific currency.
    Transaction Branch Specify the transaction branch as ALL or a specific branch.
    Product Code Specify the product code as ALL or a specific product.
    Function Specify the transaction Function Id as ALL or a specific Function Id.
    ISB GL Specify an Inter System Bridge GL, where credit from OBCL for a loan disbursement is transferred. The same GL need to be maintained in OBPM for further processing.
