1.1.1 External System Maintenance

To capture details of external system maintenance

Specify the User ID and Password, and login to Homepage.

  1. On the homepage, type GWDETSYS and click next arrow.
    The External System Maintenance screen is displayed.

    Note:

    The fields which are marked in asterisk red are mandatory fields.

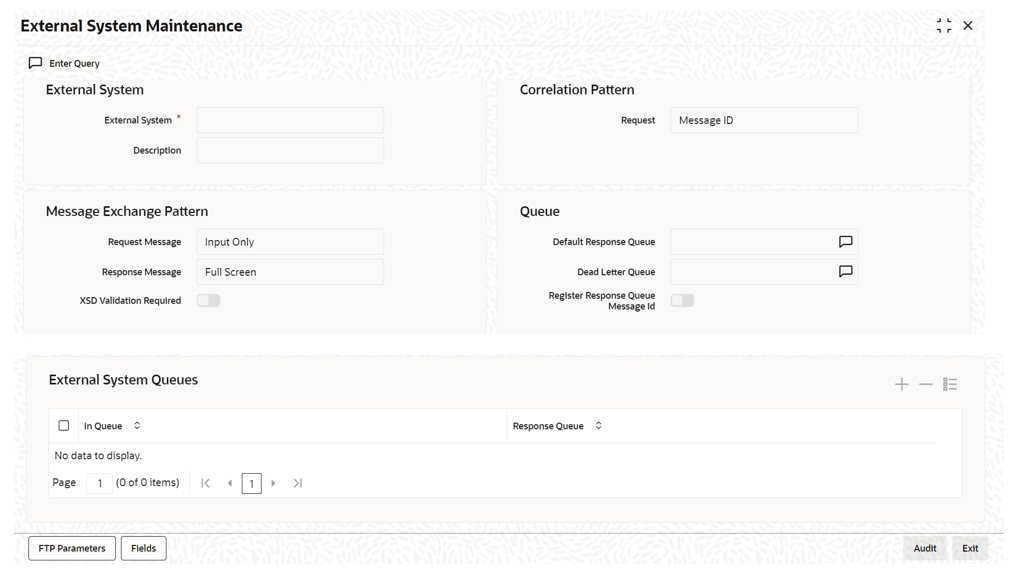

    Figure 1-1 External System Maintenance


    Description of Figure 1-1 follows
    Description of "Figure 1-1 External System Maintenance"

  2. You can enter below details in this tab. For information on fields, refer to the field description table.

    Table 1-1 External system maintenance

    Field Description
    Request Maintain it as Message ID.
    Request Message Maintain it as Full Screen.
    Response Message Maintain it as Full Screen.
    External System Queues Maintain the In & Response JMS queues. These are the queues, where OBCL posts the SPS request XML to OBPM.
    For more information external system maintenances, refer to Common Core - Gateway User Guide.
