Integration Parameters Maintenance

1.1.3 Integration Parameters Maintenance - OLDINPRM

To capture details of integration parameters maintenance screen

Specify the User ID and Password, and login to Homepage.

On the homepage, type OLDINPRM and click next arrow.
The Integration Parameters Maintenance screen is displayed.

Note:
The fields which are marked in asterisk red are mandatory fields.

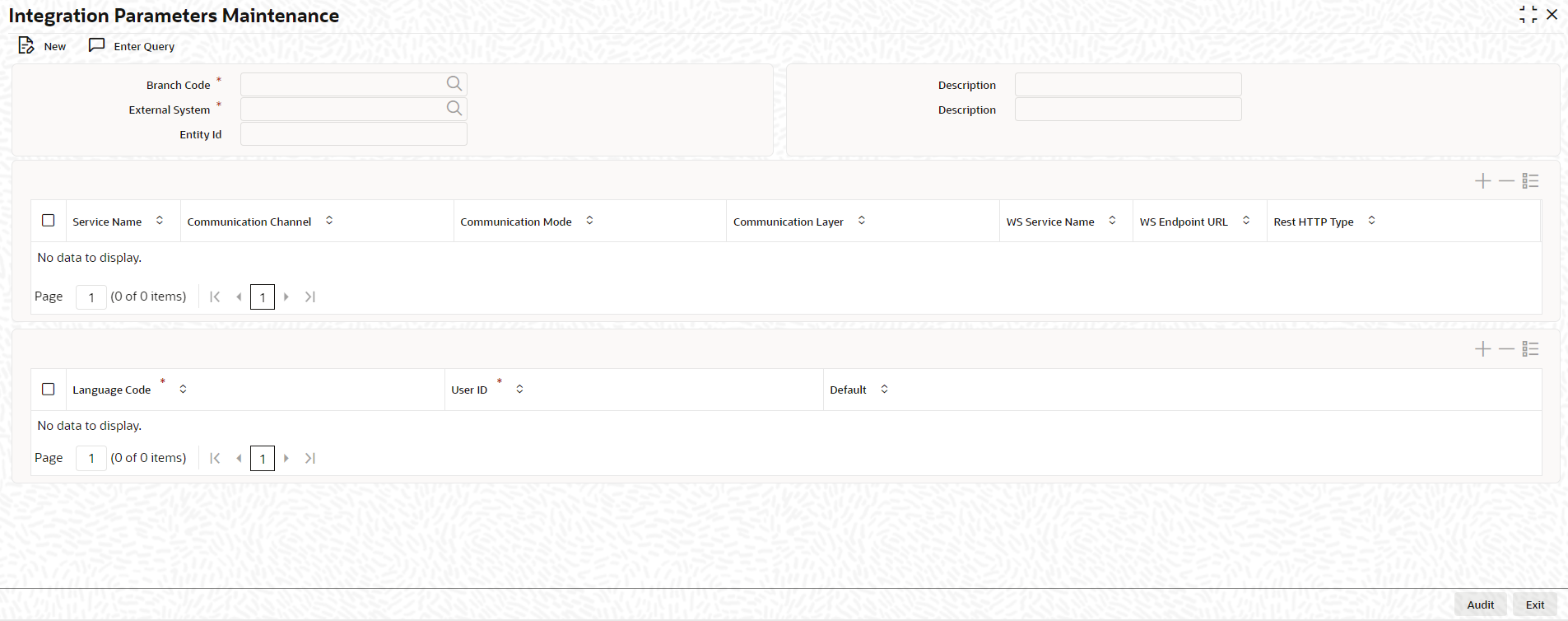

Figure 1-5 Integration Parameters Maintenance

Description of "Figure 1-5 Integration Parameters Maintenance"

For information on fields, refer to the field description table below

Table 1-4 Integration Parameters

Field	Description
Branch Code	Specify as ALL in case the integration parameters are common for all branches. Or Maintain for individual branches.
External System	Specify external system as INTBANKING.
External User	Specify the User ID to be passed on the External System.
Service name	Specify service name.
Communication Channel	Specify the communication channel as Web Service.
Communication Mode	Specify the communication mode as ASYNC.
Communication Layer	Specify the communication layer as Application.
WS Service Name	Specify the web service name.
WS Endpoint URL	Specify the WSDL of the services.
User ID	Maintain the user with access to all branches and auto authorize facility. For non-English language responses, user with the required language to be maintained.
Language Code	Specify the language of the user, the interface will communicate with the external system and get the response in this language.

Note:

Ensure you maintain an active record with all required fields and Service Name as PMSinglePaymentService in Integration Parameters Maintenance screen.

Parent topic: Common Core Maintenances
