This topic describes the systematic instruction to capture cash withdrawal details.

1. On Home screen, click Cash Management. Under Cash Management, click Collections.
2. Under Collections, click Cash Transaction. Under Cash Transaction, click Withdrawal Entry.
   The Withdrawal Entry screen displays.

   Figure 6-5 Withdrawal Entry





   Description of "Figure 6-5 Withdrawal Entry"



3. Specify the fields on Withdrawal Entry screen.

   Note:

   The fields marked as Required are mandatory.

   For more information on fields, refer to the field description table.

   Table 6-4 Withdrawal Entry - Field Description

   Field	Description
   Withdrawal Date	Displays the date of placing the withdrawal request.
   Lien Number	Displays the reference number of the lien placed on the requested amount.
   Lien Amount	Displays the amount that has been blocked, or the amount on which lien has been marked.
   Lien Date	Displays the date of placement of the lien.
   External Channel	Displays the channel through which the withdrawal request is received.
   External Reference Number	Click the search icon and select the reference number generated by the external system. Selecting the external reference number auto-populates the other fields in the screen and displays the card details such as Withdrawal Date, Lien Number, Lien Amount, Lien Date, and External Channel.
   Branch Name	Select the bank’s branch from where the cash is being withdrawn. This field displays values based on your access rights. This field cannot be modified once authorized.
   Corporate	Click the search icon and select the corporate for whom the cash withdrawal is being requested. This field cannot be modified once authorized.
   Debit Account Number	Click the search icon and select the corporate’s account number from where the cash is withdrawn.
   Cheque Date	Click the calendar icon and select the cheque date if the corporate needs to withdraw the amount through inward cheques. This field cannot be modified once authorized.
   Cheque Number	Specify the cheque number to be used for withdrawal. This field cannot be modified once authorized.
   Slip Number	Specify the slip number by using which the cash withdrawal is requested. This field cannot be modified once authorized.
   Corporate Reference Number	Specify the reference number provided by the corporate for the withdrawal. This field cannot be modified once authorized.
   Withdrawal Amount	Select the cash currency and enter total amount being withdrawn. Click the information icon () to view all currencies maintained for the branch.
   Exchange Rate	Displays the exchange rate between the withdrawal amount currency and the debit account currency.
   Debit Amount	Displays the debit amount after exchange rate conversion.

4. Click Personnel in the Recipient Details section, if the withdrawn cash is collected by the corporate.
   The Recipient Details - Personnel section displays.

   Figure 6-6 Recipient Details - Personnel





   Description of "Figure 6-6 Recipient Details - Personnel"



5. Specify the fields on Recipient Details - Personnel screen.

   Note:

   The fields marked as Required are mandatory.

   For more information on fields, refer to the field description table.

   Table 6-5 Personnel Recipient Details - Field Description

   Field	Description
   Recipient Name	Specify the name of the corporate.
   ID Proof Type	Select the identification proof displayed/submitted by the corporate.
   ID Proof Detail	Specify the unique identification number from the ID proof.
   Contact Number	Specify the corporate’s contact number.

6. Click Courier in the Recipient Details section, if the withdrawn cash is collected by the courier agency.
   The Recipient Details - Courier screen displays.

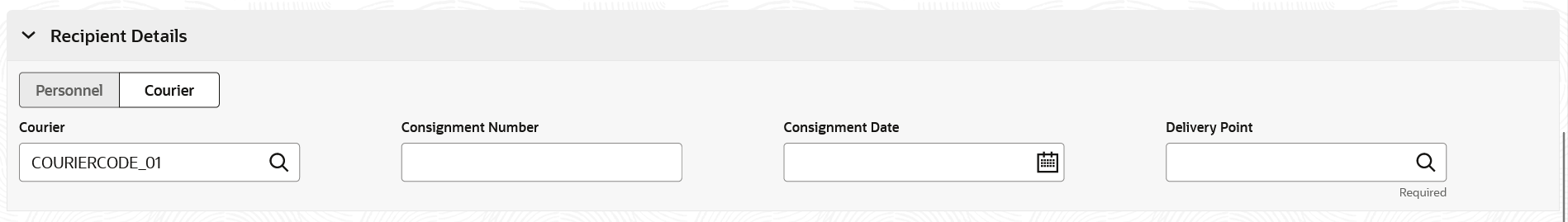

   Figure 6-7 Recipient Details - Courier





   Description of "Figure 6-7 Recipient Details - Courier"



7. Specify the fields on Recipient Details - Courier screen.

   Note:

   The fields marked as Required are mandatory.

   For more information on fields, refer to the field description table.

   Table 6-6 Courier Recipient Details - Field Description

   Field	Description
   Courier	Click the search icon and select the courier agency name.
   Consignment Number	Specify the unique consignment number assigned to the cash delivery transaction.
   Consignment Date	Click the calendar icon and select the date on which the consignment is assigned.
   Delivery Point	Click the search icon and select the delivery point form where the cash will be delivered to the corporate.

8. Click Add icon to add a row of denomination in the Denomination Details section.
   The Withdrawal Entry - Denomination Details screen displays.

   Figure 6-8 Withdrawal Entry - Denomination Details





   Description of "Figure 6-8 Withdrawal Entry - Denomination Details"



9. Specify the fields on Withdrawal Entry - Denomination Details screen.

   Note:

   The fields marked as Required are mandatory.

   For more information on fields, refer to the field description table.

   Table 6-7 Denomination Details - Field Description

   Field	Description
   Denomination Type	Select the denomination type as Note or Coin.
   Denomination Value	Specify the total value of the selected denomination.
   Count	Specify the count of the denomination.
   Denomination Amount	Displays the denomination amount as auto-calculated as the denomination value multiplied by the count.

10. In the Action column of the grid, click Edit icon to edit the denomination record, or click Delete icon to remove the denomination record.
11. In the Miscellaneous Details section, perform the following steps:
    1. In the No. of Miscellaneous Fields box, specify the number of fields required.
    2. In each Miscellaneous Field box, specify the name of the field.
12. Click Save to save the record and send it for authorization.
    The request to block/lien the withdrawal amount is sent to the core system.
