This topic explains how to set up the Consumer Services for Oracle Banking Liquidity Management.

1. Click on consumer OBLM.
2. Click on any consumer services (For example BALANCEQUERY).
   The Consumers Service List screen displays.

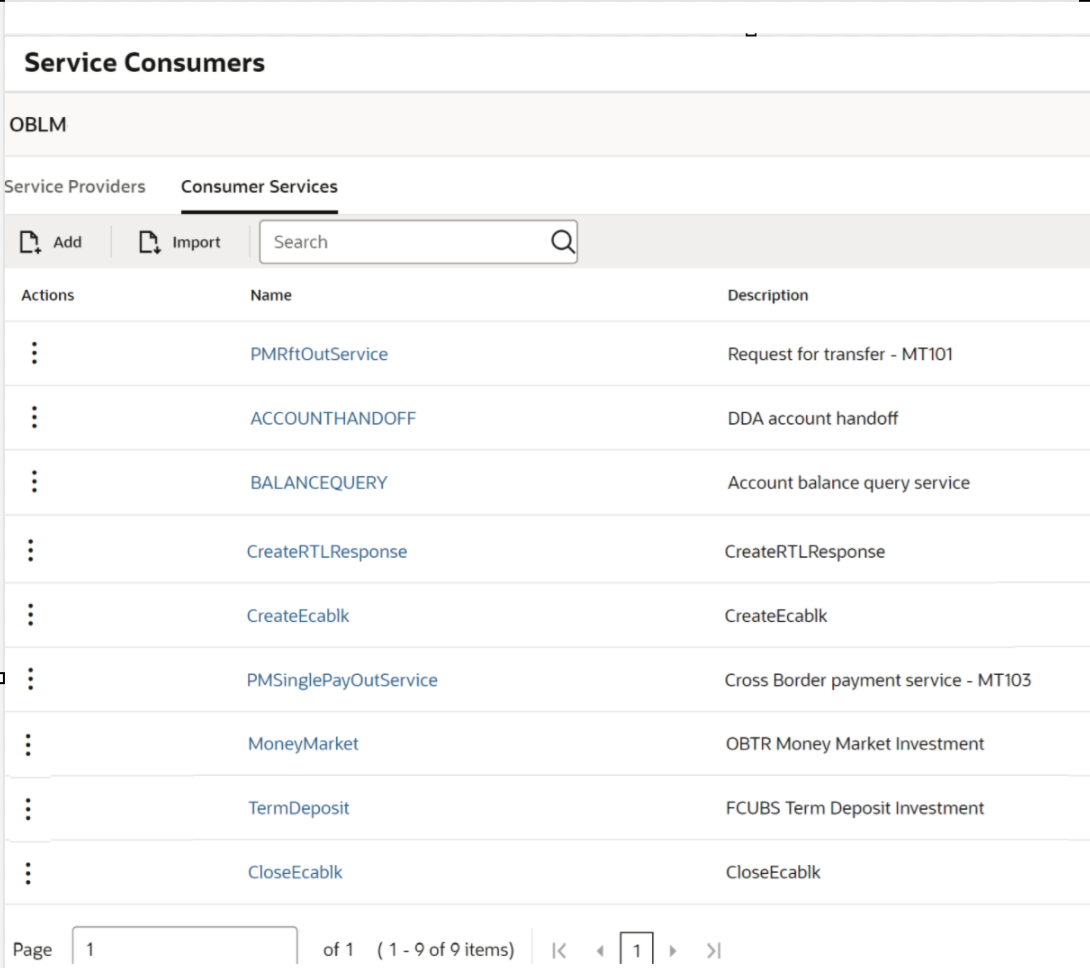

   Figure 1-7 Consumers Service List





   Description of "Figure 1-7 Consumers Service List"



3. In the Routing menu, click Action icon of BALANACEQUERY and then click Edit.
   The Routing Menu screen displays.

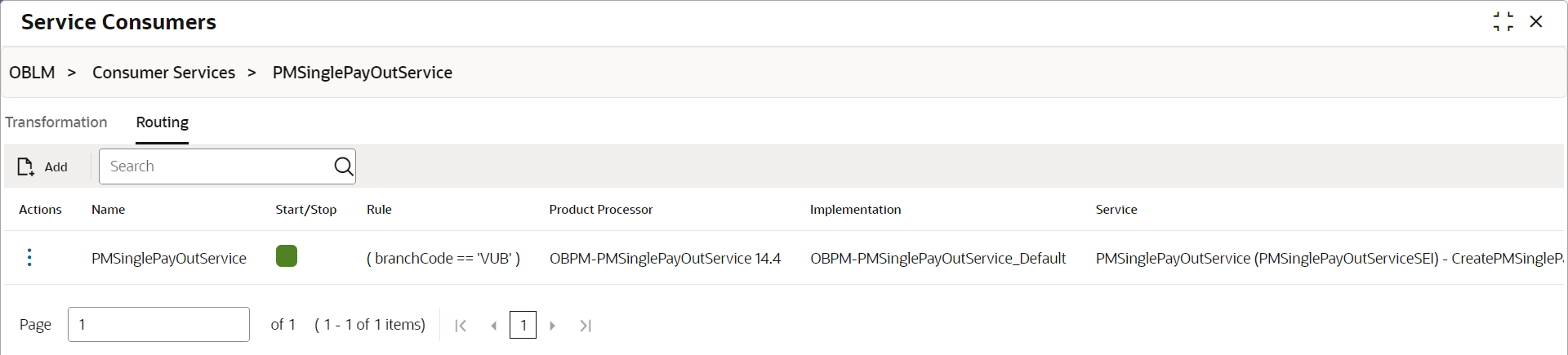

   Figure 1-8 Routing Menu





   Description of "Figure 1-8 Routing Menu"



4. Click the Action icon and then click Edit.
   The Edit Route screen displays.

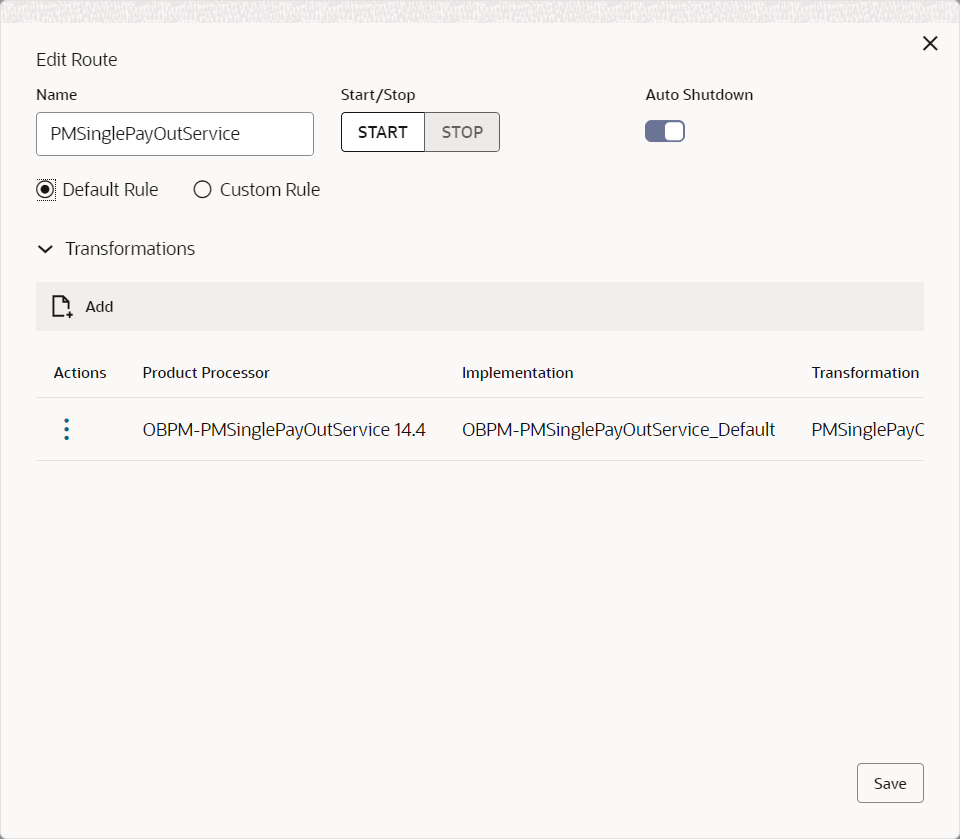

   Figure 1-9 Edit Route





   Description of "Figure 1-9 Edit Route"



5. Click Action icon and Click Edit to edit the transformation.
   The Edit Transformation screen displays.

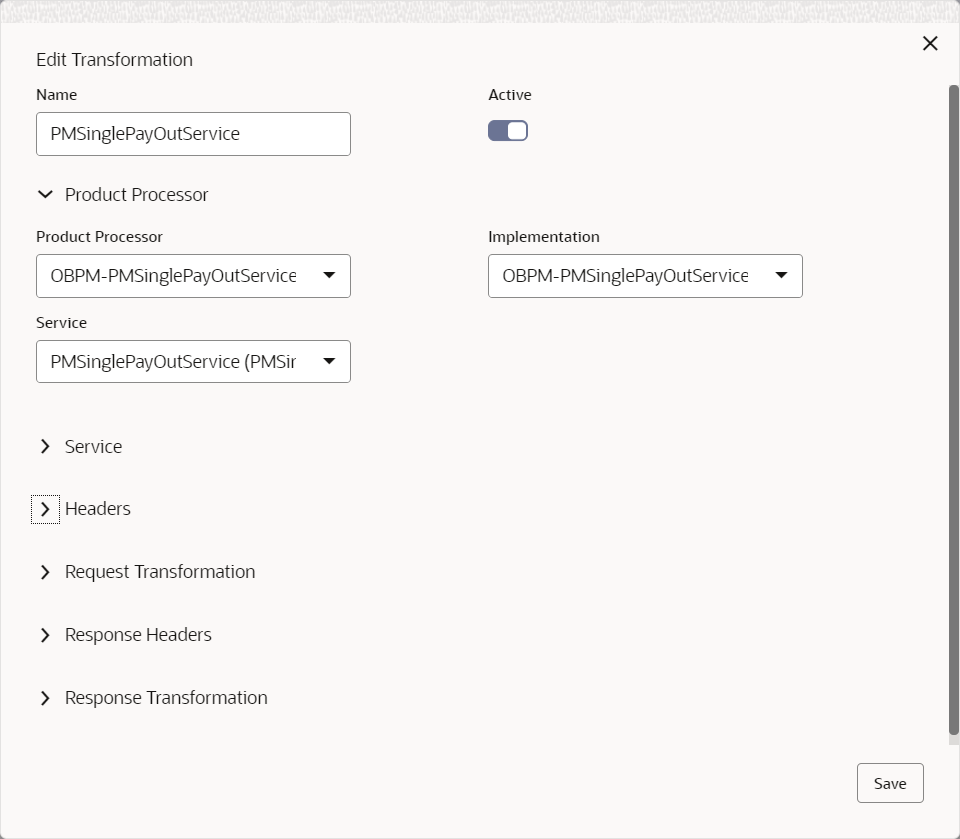

   Figure 1-10 Edit Transformation





   Description of "Figure 1-10 Edit Transformation"



6. Repeat the steps 2 to 4 to update the transformation for BALANCEQUERY.
