You need to deploy the archives as an application on the Oracle WebLogic Server.

1. Extract the zip file under the UI folder in the machine.
2. Perform the following steps in the Oracle WebLogic Server:
   1. On the Homepage, in the Domain Structure panel, click Deployments.

      The Summary of Deployments screen is displayed.

      Figure 12-1 Summary of Deployments





      Description of "Figure 12-1 Summary of Deployments"



   2. On the Summary of Deployments screen, click Install.

      The Install Application Assistant screen is displayed.

      Figure 12-2 Install Application Assistant





      Description of "Figure 12-2 Install Application Assistant"



   3. On the Install Application Assistant screen, specify the fields. For more information on fields, refer to the field description table.

      Table 12-1 Install Application Assistant - Field Description

      Field	Description
      Path	Specify the path to install and prepare for deployment. Note: You can also select the app_shell directory.
      Recently Used Paths	Displays the recently used paths for the installation.
      Current Location	Select the associated war file.

   4. Click Next.
      The Choose Installation type and scope segment is displayed.

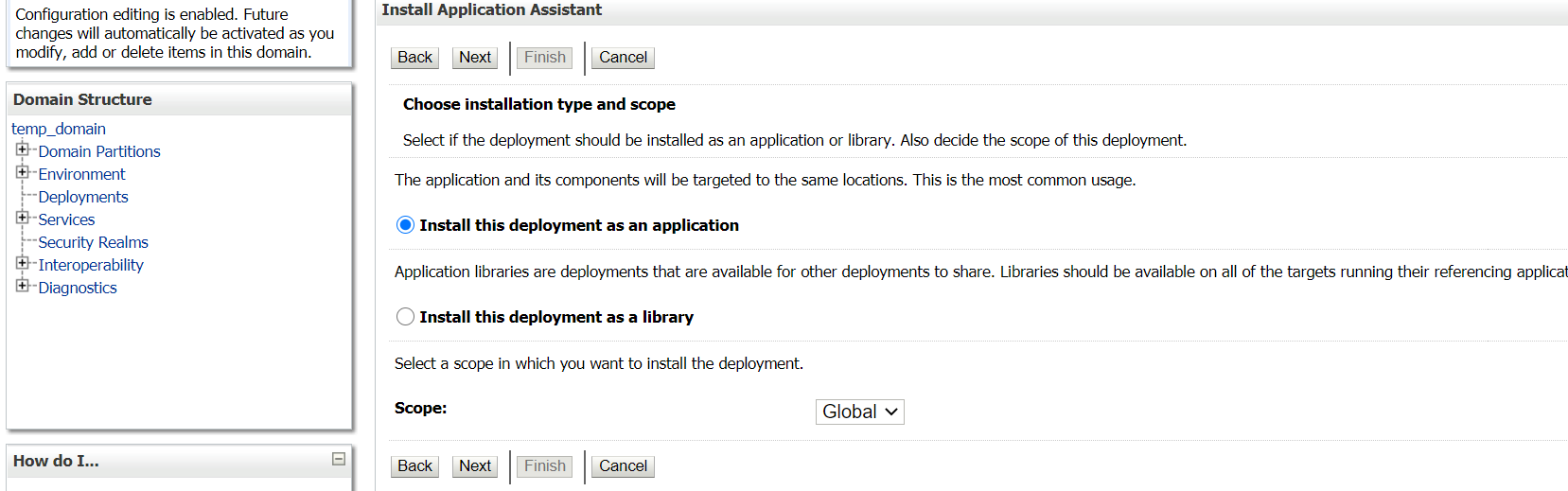

      Figure 12-3 Choose Installation Type and Scope





      Description of "Figure 12-3 Choose Installation Type and Scope"



   5. Select the Install this deployment as an application option, and click Next.
   6. Specify the name of the deployment as app_shell, and click Next.
      The Review your choices and click Finish segment is displayed.

      Figure 12-4 Review Your Choices





      Description of "Figure 12-4 Review Your Choices"



   7. Select the option Yes, take me to the deployment’s configuration screen, and click Finish.
      The deployment is completed for Oracle Banking Branch UI, and the Summary of Deployments screen is displayed.

      Figure 12-5 Verification of Deployments





      Description of "Figure 12-5 Verification of Deployments"



   8. On the Summary of Deployments screen, click on the Control tab.
   9. Click Start.
   10. Select Servicing all requests, and click Yes.
   11. Make sure that the state is Active. If the state is Active, open the URL in the below format.
       http://HostName:PortNo/app-shell/

       Note:

       To remove the options call from UI to service, the users need to deploy appshell and other UI components in the same managed server, where plato-api-gateway was deployed. This will reduce the unnecessary network calls to the backend. This step is optional.
