2.1 Deposits

This topic describes the systematic instructions for the deposits.

Configure Deposit Services, user can maintain the routing configuration of the Oracle Banking Routing Hub in the common core for Deposit Servicing transitions of the Oracle Banking Branch to create, update, and query the host system.
  1. On the Home screen, click Core Maintenance. Under Inter Connect, click Routing Hub, and then select Service Consumers or specify Service Consumers in the search icon bar and select the screen.
    The Service Consumers screen is displayed.

    Figure 2-1 Service Consumers


    Description of Figure 2-1 follows
    Description of "Figure 2-1 Service Consumers"

  2. Select New Service Consumer and create DSR_EXT_PROVIDER.

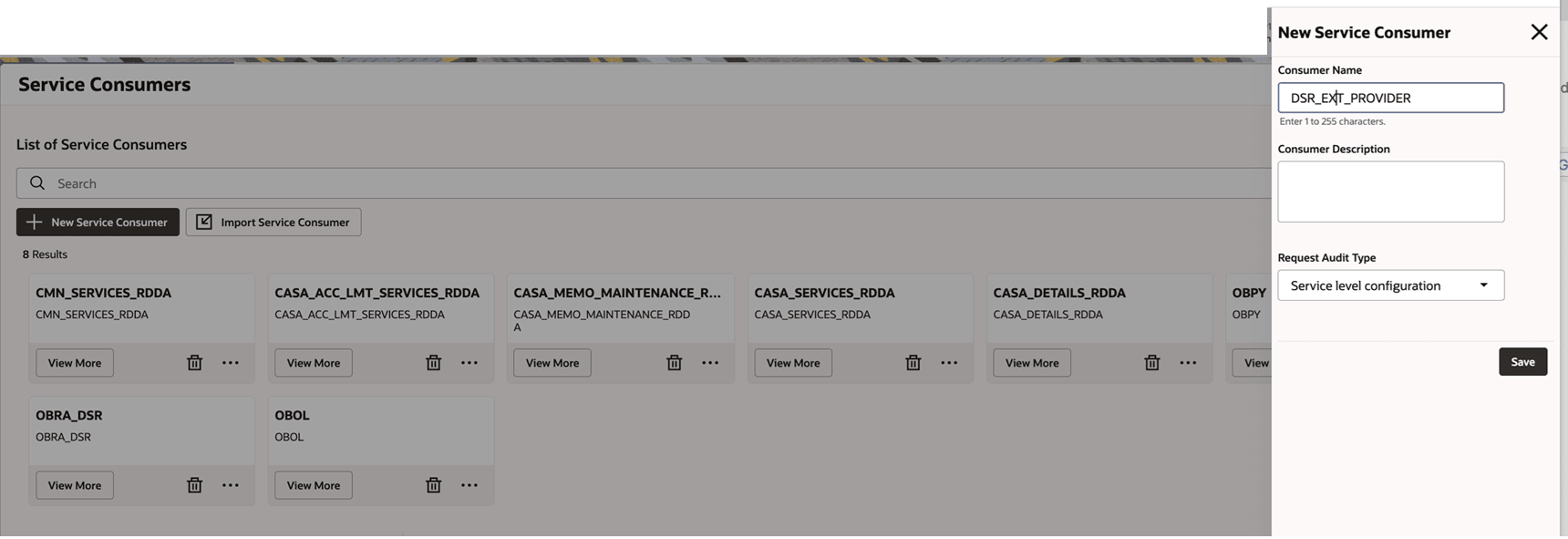

    Figure 2-2 New Service Consumer - DSR_EXT_PROVIDER


    Description of Figure 2-2 follows
    Description of "Figure 2-2 New Service Consumer - DSR_EXT_PROVIDER"

  3. Create all Consumer Services as mentioned below.
    • transactionReversal
    • validateIRAAccOpening
    • IRAAccountOpening
    • TDCloseAmountBlockValidate
    • TDCreateAmountBlockValidate
    • TDModifyAmountBlockValidate
    • RDCloseAmountBlockValidate
    • RDInquireAuditTrail
    • inquireDepositAccountDetails
    • simulateRDRedemption
    • simulateRDRedemption
    • RDInquireDSRDashBoard
    • RDCreateAmountBlockValidate
    • RDModifyAmountBlockValidate
    • TopUpTermDepositValidate
    • ModifyJointHolderMaint_TD
    • QueryJointHolderMaint_TD
    • GetParty_TD
    • NomineeDetailsFetch_TD
    • NomineeDetailsUpdate_TD
    • ValidateNominee_TD
    • validateTDRedemption
    • validateRDRedemption
    • inquireRDAccountDetails
    • InquireAuditTrail
    • inquireAccountDetails
    • TopUpTermDeposit
    • RDAccPaymt
    • RDAccOpenDetails
    • SimulateTopUpDetails
    • RolloverTermDeposit
    • SimulateRDDetails
    • RedemptionStiForDSRDashBoard
    • InquireBalancesDSRDashBoard
    • SimulateRolloverDetails
    • simulateRedemptionDetails
    • simulateRedemptionDetails
    • GetValueDate
    • TDAccOpeningPayin
    • validateTDRollover
    • validateTDPayin
    • simulateTDPayinDetails
    • SettlementHandOff
    • SettlementHandOffReversal
    • TDAccountModfnValidate
    • RDAccountModfnValidate
    • TDPayoutModfnValidate
    • RDPayoutModfnValidate
    • GetLOVManager
    • RDAccModfn
    • TDAccModfn
    • modifyRDPayoutDetails
    • modifyTDPayoutDetails
    • redemRD
    • TenorAndMatDate
    • ValidateAccountDetails
    • closeRDAmountBlock
    • modifyRDAmountBlock
    • createRDAmountBlock
    • CloseAmountBlock
    • ModifyAmountBlock
    • CreateAmountBlock
    • inquireTDAccountDetails
    • redemTermDeposit
    • inquiryCertificateDetails
    • InterestTransactions
    • TD_CusRelationMaint
    • topupReversal
    • DepAdhocStatement_DocRef
    • DepAdhocStatement_RefNum
    • DepAdhocStatement_Download
    • ModifyCusRelationMaint_TD
    • simulateIRATDAccOpening
    • Td_InitialFunding_Create
    • Td_InitialFunding_Simulate
    • Td_InitialFunding_Validate
    • validateTransactionReversal

    Note:

    Refer below RH User Manual for creation of Service Provider and configuring consumer services. Routing Hub Configuration User Guide

Parent topic: Integration with External Core Banking System
