This chapter describes how to run the OBAPI installer for add entity in silent mode.

Ensure that Managed server should be down and Admin server should be running.

Ensure ORACLE_HOME, JAVA_HOME variable are set and their binaries are available in PATH variable before proceeding.

Login with OS user which was used to perform OBAPI software installation (or has ownership on Oracle Weblogic home directory)

Steps for Silent-Mode Installation

1. Set the environment variables, as shown below.

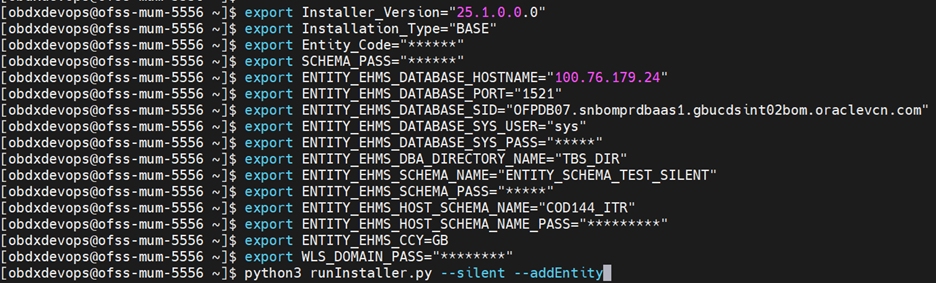

   Description of the illustration multyenty-silent1.png



   Below parameters should be set in environment variables

   Environment variables	Parameter	Description	Example
   Environment variables to set for flavor: FCORE UBS (14.6.0.0.0 release) OBPM (14.6.0.0.0 release)	Entity_Code	Entity code which has been entered from screen	export Entity_Code=OBDX_BU7
   	SCHEMA_PASS	Password for existing OBAPI schema	export SCHEMA_PASS=devops#obapi182
   	ENTITY_EHMS_DATABASE_HOSTNAME	Hostname of the EHMS HOST database host server	export ENTITY_EHMS_DATABASE_HOSTNAME=xx.xx.xx.xx
   	ENTITY_EHMS_DATABASE_PORT	Port of the EHMS HOST database host server	export ENTITY_EHMS_DATABASE_PORT=1521
   	ENTITY_EHMS_DATABASE_SID	EHMS Host database Service Name
   	ENTITY_EHMS_DBA_DIRECTORY_NAME	Oracle Directory name in which you want the EHMS (HostInterface) schema datafile (dbf). Enter only the name and NOT the path	export ENTITY_EHMS_DBA_DIRECTORY_NAME=TBS_DIR
   	ENTITY_EHMS_DATABASE_SYS_USER	Username with 'sys' privileges	export ENTITY_EHMS_DATABASE_SYS_USER=sys
   	ENTITY_EHMS_DATABASE_SYS_PASS	Password for EHMS sys user	export ENTITY_EHMS_DATABASE_SYS_PASS=devops@sys
   	ENTITY_EHMS_SCHEMA_NAME	Complete EHMS (HostInterface) schema name you want installer to create as new schema.	export ENTITY_EHMS_SCHEMA_NAME=OBAPIEHMS
   	ENTITY_EHMS_SCHEMA_PASS	Password for new EHMS schema on EHMS HOST database	export ENTITY_EHMS_SCHEMA_PASS=devops#ehms
   	ENTITY_EHMS_HOST_SCHEMA_NAME	EXISTING EHMS Host schema name	export ENTITY_EHMS_HOST_SCHEMA_NAME=EHMSHOST
   	ENTITY_EHMS_HOST_SCHEMA_NAME_PASS **This parameter is only required for UBS & OBPM Host	Password of existing HOST EHMS schema (Existing)	export ENTITY_EHMS_HOST_SCHEMA_NAME_PASS=ehmshst
   	WLS_DOMAIN_PASS	Password for Weblogic admin console	export WLS_DOMAIN_PASS=weblogic182
   	ENTITY_EHMS_CCY **This parameter is only required for UBS & OBPM Host	Country Code for new or additional entity home branch	export ENTITY_EHMS_CCY=GB
   	ENTITY_EHMS_FCORE_FCUBS_SCHEMA_NAME **This parameter is only required for FCORE	FCORE-FCUBS HOST schema name	export ENTITY_EHMS_FCORE_FCUBS_SCHEMA_NAME=FCRUBSHOST
   Environment variables to set for flavor: OBAPI (Third-party HOST)	Entity_Code	Entity code which has been entered from screen	export Entity_Code=OBDX_BU1
   	SCHEMA_PASS	Password for existing OBAPI schema	export SCHEMA_PASS=welcome1

2. Run the runInstaller.py file with ‘--silent ’ argument along with ‘--addEntity’.

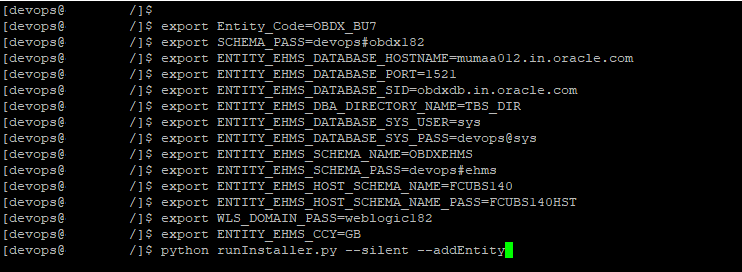

   Description of the illustration multyenty-silent2.png



   Installation Status in case of Oracle FLEXCUBE Core Banking, Oracle FLEXCUBE Universal Banking, Oracle FLEXCUBE Universal Banking with Oracle Banking Payments

   After entering all required details, the status is displayed (as shown below) on the terminal to indicate the progress of the installation.

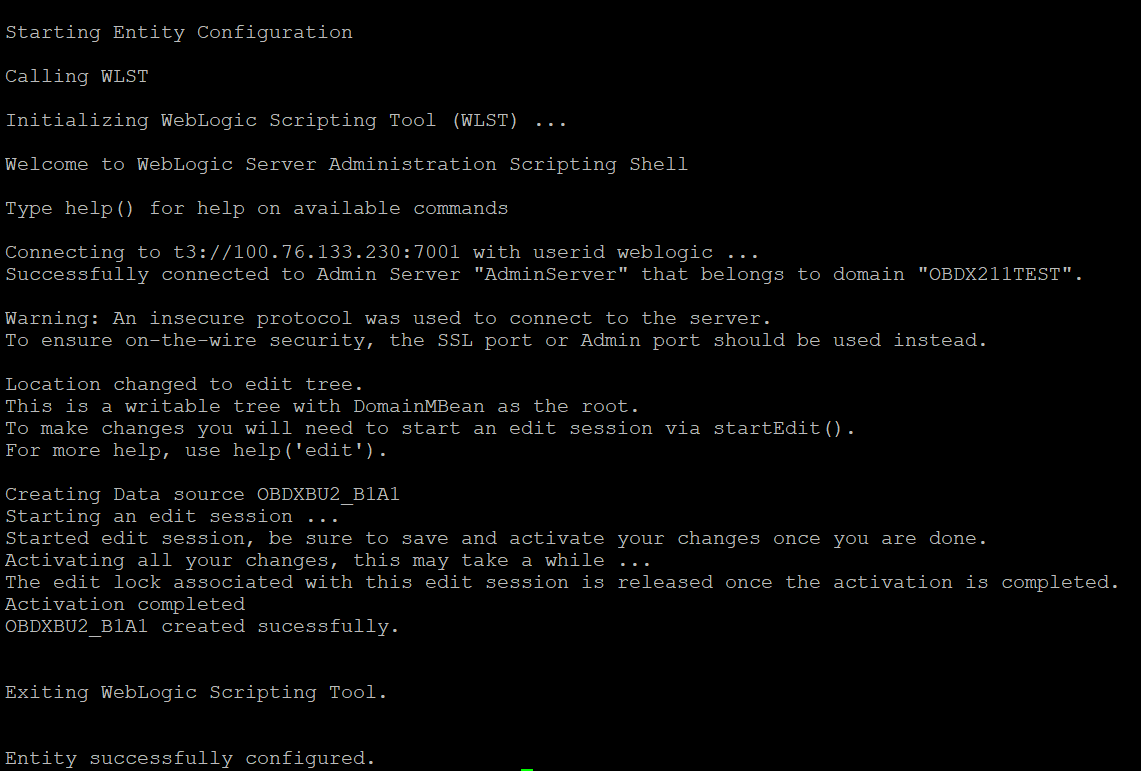

   When the installation completes, the below message is displayed




   Description of the illustration multyenty-silent3.png



   Post successful installation refer to section Post Installation steps for manual steps to be performed for

   • UBS additional entity (sub-section : Oracle FLEXCUBE Universal Banking Solution (OBAPI with UBS))
   • OBPM additional entity (sub-section: Oracle FLEXCUBE Universal Banking with Oracle Banking Payments (OBAPI with OBPM))
3. Installation Status in case of other hosts as Add Entity

   After entering all required details, the status is displayed (as shown below) on the terminal to indicate the progress of the installation.

   • THP(third party as entity)



   Description of the illustration multyenty-silent4.png
