The report generation system relies on the following metadata tables

1. DIGX_CM_TABLE_METADATA

   Stores information about each table.

   Table 9-1 Field Description

   Property	Description
   TABLE_CODE	Unique identifier for each table.
   SUPPORTED_DOWNLOAD_TYPES	Media types supported for download. Supported values are ‘pdf’ and ‘csv’.
   PAGINATION_TYPE	The type of pagination supported. Supported values are ‘S’ and ‘V’. Static (‘S’) refers to a one time fetching of all records. Virtual (‘V’) refers to virtual fetching of records.
   ACTION_COMPONENT	The path of the UI component present in channel folder for which gets loaded on click of a row.
   TABLE_HEADER	Comma Separated Values for Report and UI Screen Headers. Please note headings are NLS supported. The file name should be <TABLE_CODE>.properties and maintain at location “config/resources/nls/tablemetadata” with the keys and values. Example: BrandManagement, ManageBrand Here the BrandMangement header key will be used for reports and ManageBrand will be used for UI screen. Incase the second value is missing. The UI screen won’t show the header. Example: BrandManagement
   TABLE_HEADER	The heading to show on the table. Please note headings are NLS supported. The file name should be <TABLE_CODE>.properties and maintain at location “config/resources/nls/tablemetadata” with the keys and values.
   ROW_ID	Unique identifier for each record in a table.
   SERIAL_NUMBER_REQUIRED	Flag to enable serial numbers on the user interface. Supported values are ‘Y’ to enable and ‘N’ to disable.
   MAX_COLUMNS	Property to limit the number of columns a PDF can show. Default is 6 which can be changed by updating this property.

   Example

   Insert into DIGX_CM_TABLE_METADATA
           (TABLE_CODE,SUPPORTED_DOWNLOAD_TYPES,PAGINATION_TYPE,ACTION_COMPONENT,TABLE_HEADER,ROW_ID,
   SERIAL_NUMBER_REQUIRED,MAX_COLUMNS)
           values ('ManageBrandBrand','csv,pdf','S','theme-config/review-theme',
   'brand,brand','brandId',null,4);


   Description of the illustration consistent-ui-download3.png
2. DIGX_CM_COLUMN_METADATA

   Stores information about columns available for a given table.

   Table 9-2 Field Description

   Property	Description
   TABLE_METADATA_ID	Unique identifier for each table. Many to one relationship to DIGX_CM_TABLE_METADATA table and TABLE_CODE column.
   NAME	The name of the column with NLS support. Maintain the file with the name "<TABLE_CODE>.properties" at the location "config/resources/nls/tablemetadata" along with the corresponding keys and values. Avoid creating duplicate files, as this file already contains the TABLE_HEADER for the DIGX_CM_TABLE_METADATA table.
   COMPONENT_ID	Custom component created for user interface. Used to add custom formatting for specific columns. Default value is ‘null’.
   DATATYPE	The supported datatypes are String, Number, Date, Currency and Complex. Similar to COMPONENT_ID, which is purely use for UI rendering; Datatypes is for report generation.
   PATH	For value fetching, use the data path. The root path of a record is represented by the dot operator ('.'). Use the root path if the entire data object is required. Alternatively, use specific JSON paths when only specific values are required, example "Person.name", here we read name from the Person object.
   FIXED	To view column on some condition, Supported values are ‘Y’ to enable and ‘N’ to disable.
   SORTABLE	Flag to enable serial numbers on the user interface. Supported values are ‘Y’ to enable and ‘N’ to disable.
   DOWNLOADABLE	The column support for download. Supported values are ‘Y’ to enable and ‘N’ to disable.
   MIN_WIDTH	The minimum width of the column.
   MAX_WIDTH	The maximum width of the column.
   SEQUENCE_NO	The position of the column in the table.
   LENGTH	The width of the column. The sum of all column lengths for a table code should be 100 to avoid overflow and underflow of table content. If not mentioned framework will auto size the widths.

   Example

   Insert into DIGX_CM_TABLE_METADATA
           (ID,TABLE_METADATA_ID,NAME,COMPONENT_ID,DATATYPE,PATH,FIXED,SORTABLE,DOWNLOADABLE,SEQUENCE_NO,LENGTH)
           values
           ('ManageBrandBrandthemeName','ManageBrandBrand','themeName',null,'String','brandName','Y','Y','Y',1,null);Insert into DIGX_CM_TABLE_METADATA
           (ID,TABLE_METADATA_ID,NAME,COMPONENT_ID,DATATYPE,PATH,FIXED,SORTABLE,DOWNLOADABLE,SEQUENCE_NO,LENGTH)
           values
           ('ManageBrandBrandthemeDesc','ManageBrandBrand','themeDesc',null,'String','brandDescription','N','Y','Y',2,null);Insert into DIGX_CM_TABLE_METADATA
           (ID,TABLE_METADATA_ID,NAME,COMPONENT_ID,DATATYPE,PATH,FIXED,SORTABLE,DOWNLOADABLE,SEQUENCE_NO,LENGTH)
           values
           ('ManageBrandBranddateCreated','ManageBrandBrand','dateCreated','formattedDate','Date','creationDate','Y','Y','Y',3,40);Insert into DIGX_CM_TABLE_METADATA
           (ID,TABLE_METADATA_ID,NAME,COMPONENT_ID,DATATYPE,PATH,FIXED,SORTABLE,DOWNLOADABLE,SEQUENCE_NO,LENGTH)
           values
           ('ManageBrandBrandactions','ManageBrandBrand','actions','theme-config/theme-actions','String','brandId','N','Y','Y',4,null);

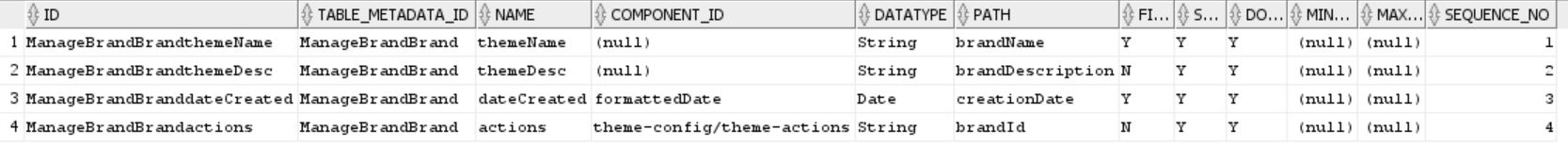

   Description of the illustration consistent-ui-download4.png
