This topic describes the systematic instruction to System Configuration – Dynamic Module – Other Module – View and Edit screen.

Using this option, the system administrator maintains the SMTP configurations. These details once defined can be viewed and edited using this transaction.

To view and edit the SMTP details:

1. Click on System Configuration option on the dashboard and navigate to the SMTP details tab.
   The default option is View.

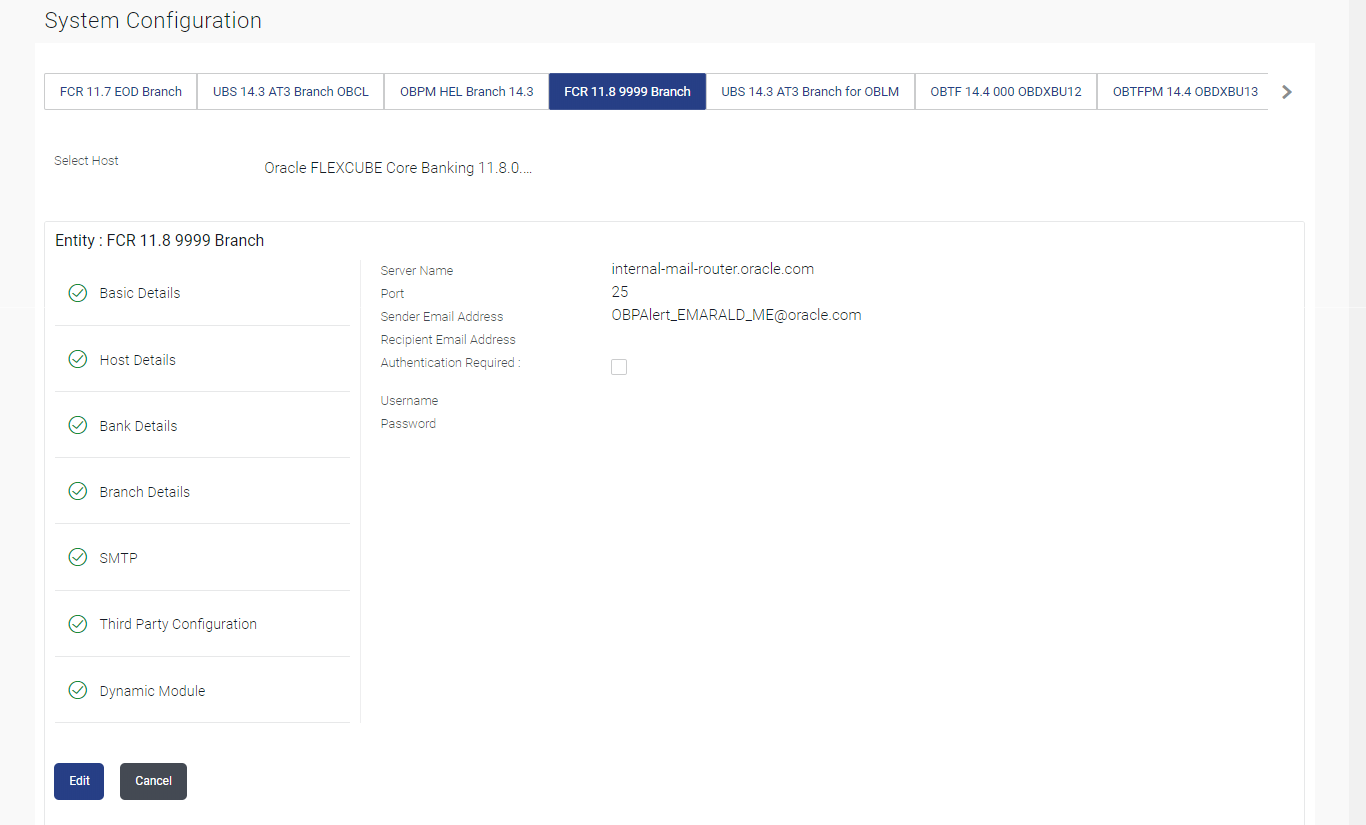

   Figure 4-24 System Configuration – SMTP - View





   Description of "Figure 4-24 System Configuration – SMTP - View"



2. Click Edit to edit the SMTP Details.
   The System Configuration - SMTP Details screen appears in editable form.

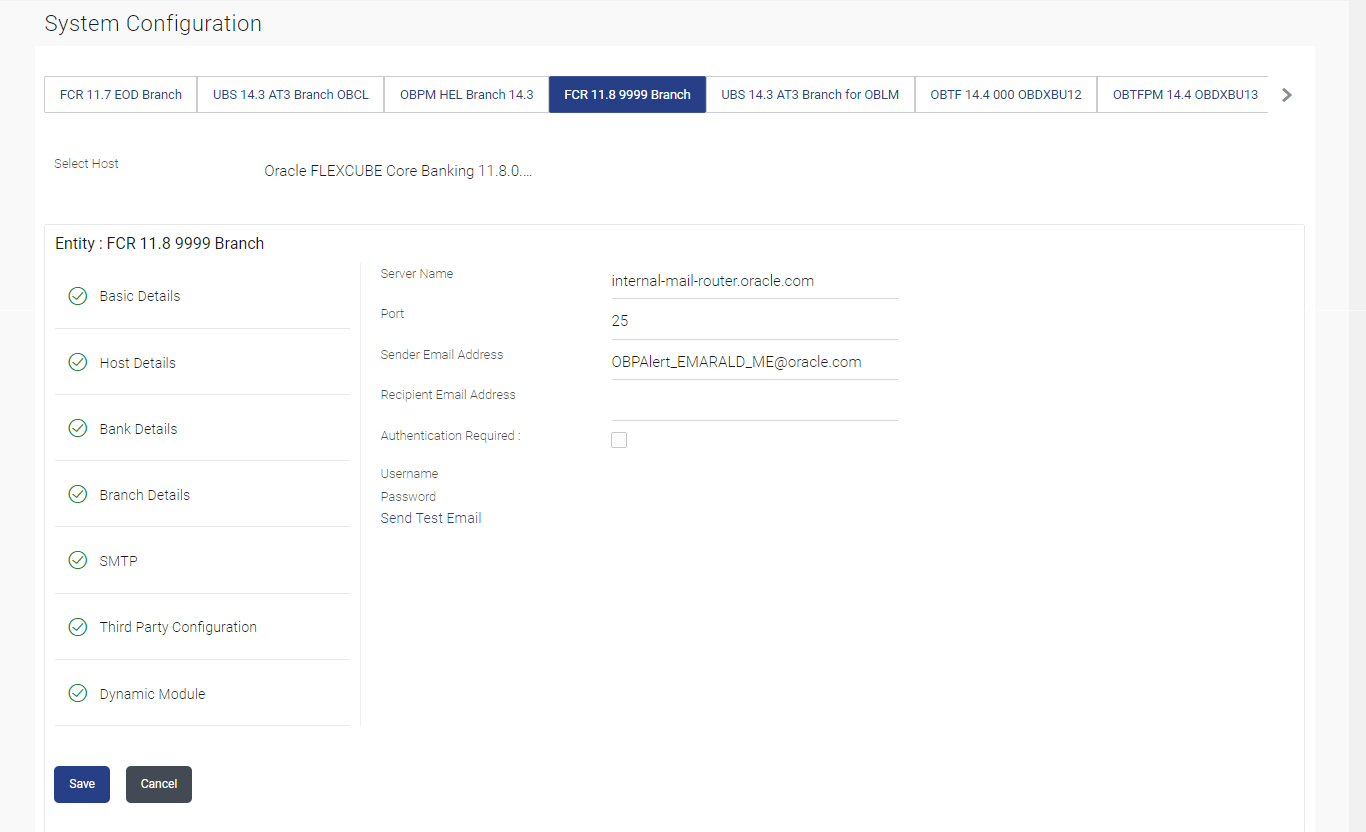

   Figure 4-25 System Configuration – SMTP Edit





   Description of "Figure 4-25 System Configuration – SMTP Edit"




   Note:

   The fields which are marked as Required are mandatory.

   For more information on fields, refer to the field description table.

   Table 4-19 System Configuration – SMTP Edit - Field Description

   Field Name	Description
   Server Name	Displays the name of the server and available for edit.
   Port	Displays the port number and available for edit.
   Sender Email Address	Displays the sender email address and available for edit
   Recipient Email Address	Displays the recipient email address and available for edit
   Authentication Required	Select the check box, if authentication is required.
   Username	Edit the user name, if required.
   Password	Edit the password if required.

3. In the Server Name field, edit the name of the mail server if required.
4. In the Port field, edit the port number if required.
5. In the Sender Email Address, edit the email address of the sender if required.
6. In the Recipient Email Address, edit the email address of the recipient if required.
7. In the Username, edit the user name if required.
8. In the Password field, edit the password if required.
9. Perform anyone of the following actions:
   • Click Save to save the changes.
   • Click Cancel to cancel the transaction.
10. Perform anyone of the following actions:
    • The System Configuration – SMTP - Review screen appears. Verify the details, and click Confirm.
    • Click Cancel to cancel the transaction.
    • Click the Basic Details, Host Details, Bank Details, Branch Details, Currency Payments, Third Party Configuration or Dynamic Module tabs to view and edit the respective details if required.

    The screen with success message along with the reference number and status appears.

11. Click OK to complete the transaction.
