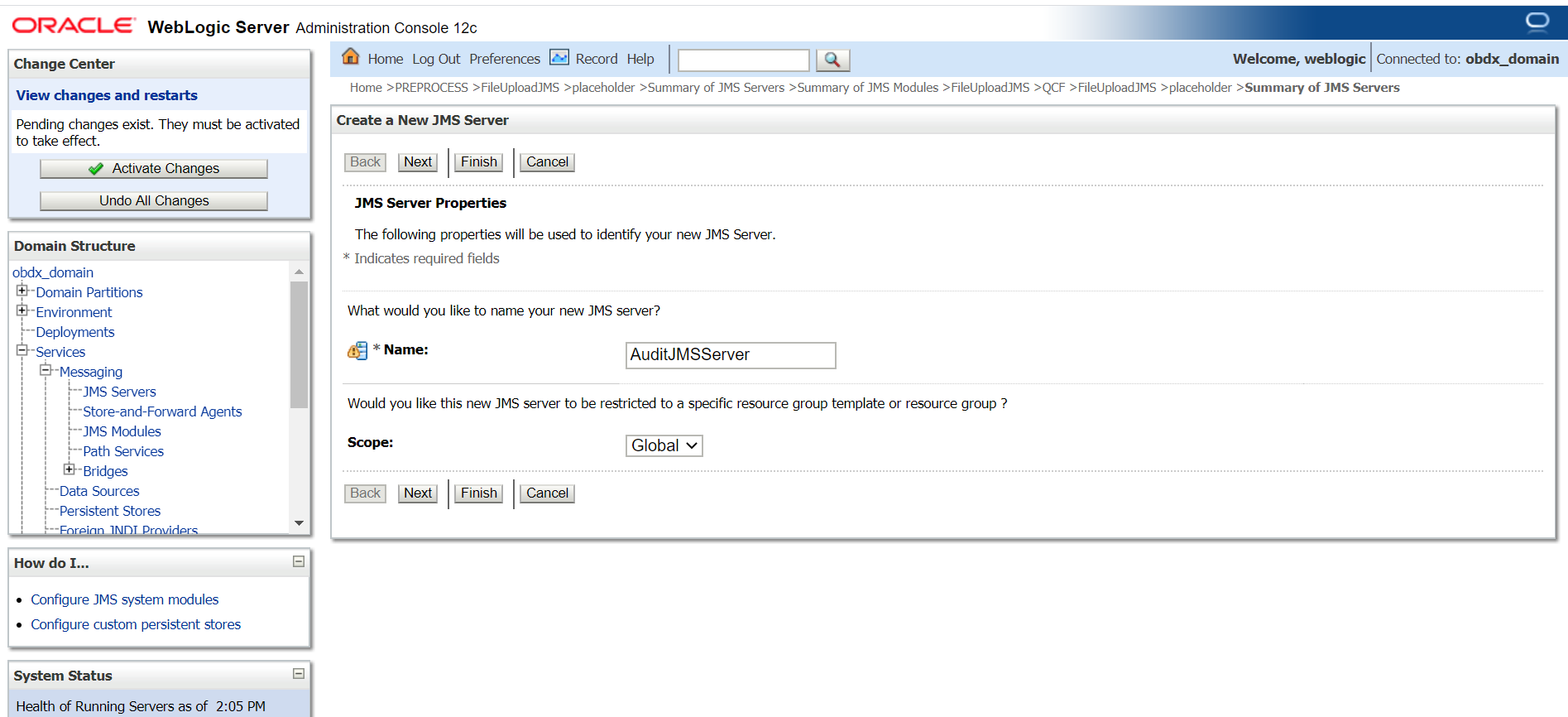

2.10 Creating WLS_JMS_REPORT_PS FileStore


  1. Description of insta66.png follows
    Description of the illustration insta66.png

  2. Click on JMS server and click New .
  3. Provide Name as AuditJMSServer , Scope as Global.

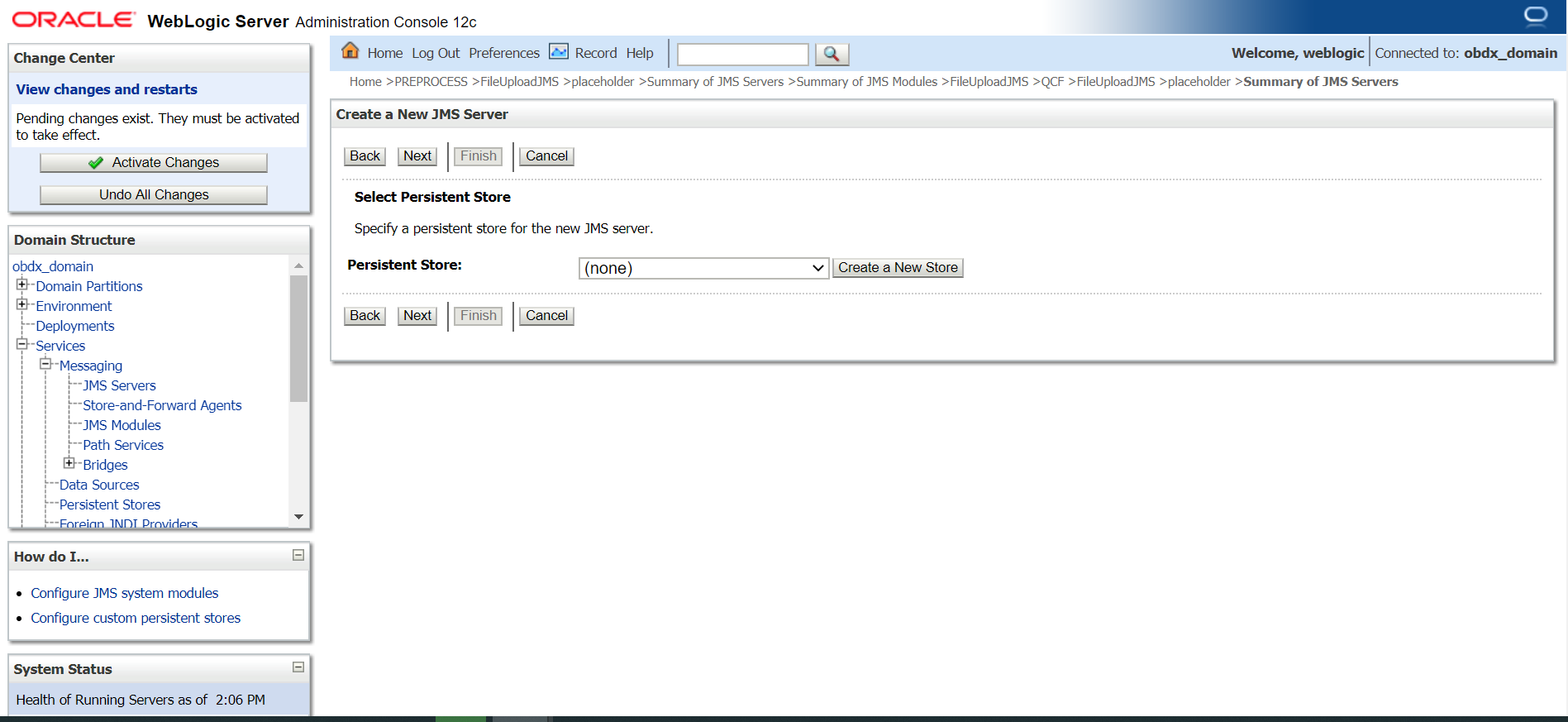

    Description of insta67.png follows
    Description of the illustration insta67.png

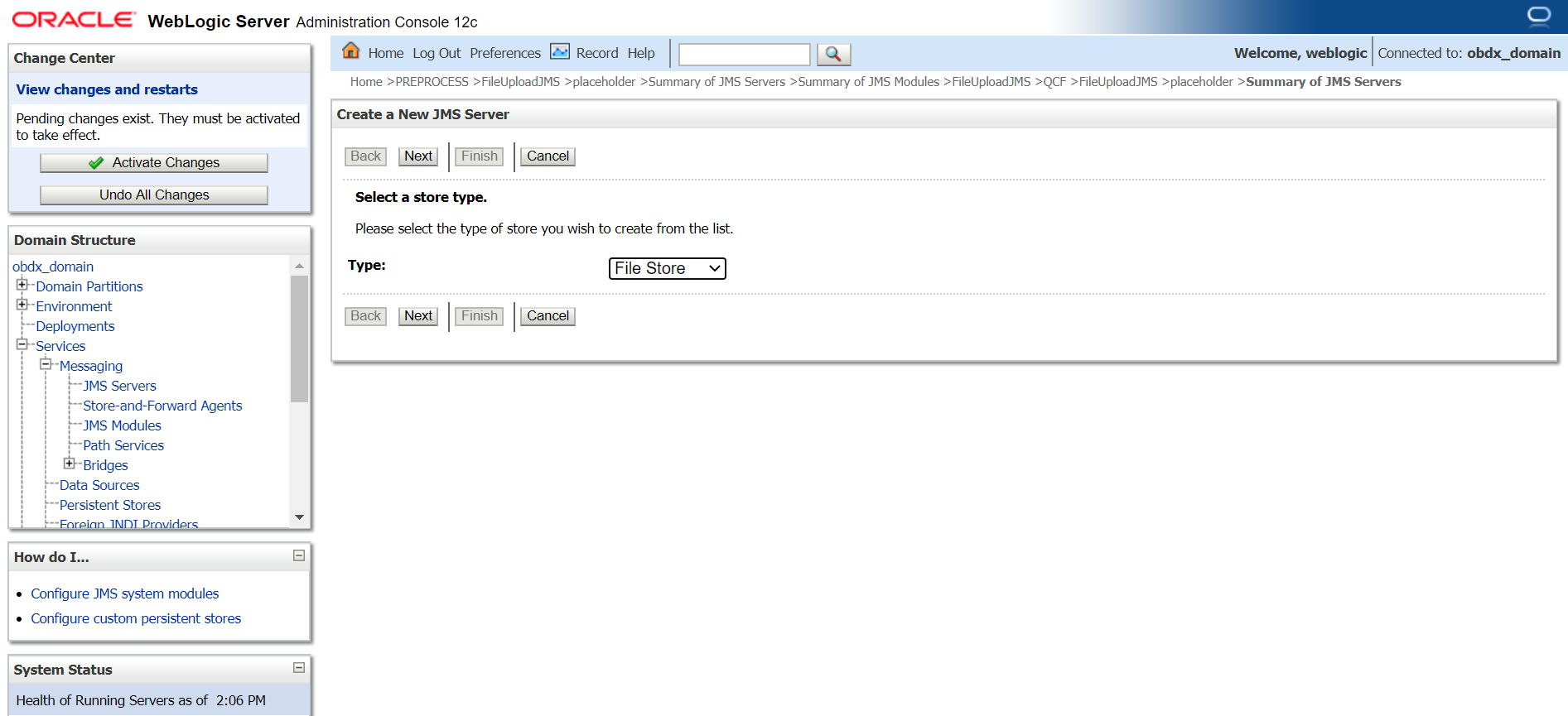

  4. Click on Create a New Store.
    Description of insta68.png follows
    Description of the illustration insta68.png

  5. Select File Store.

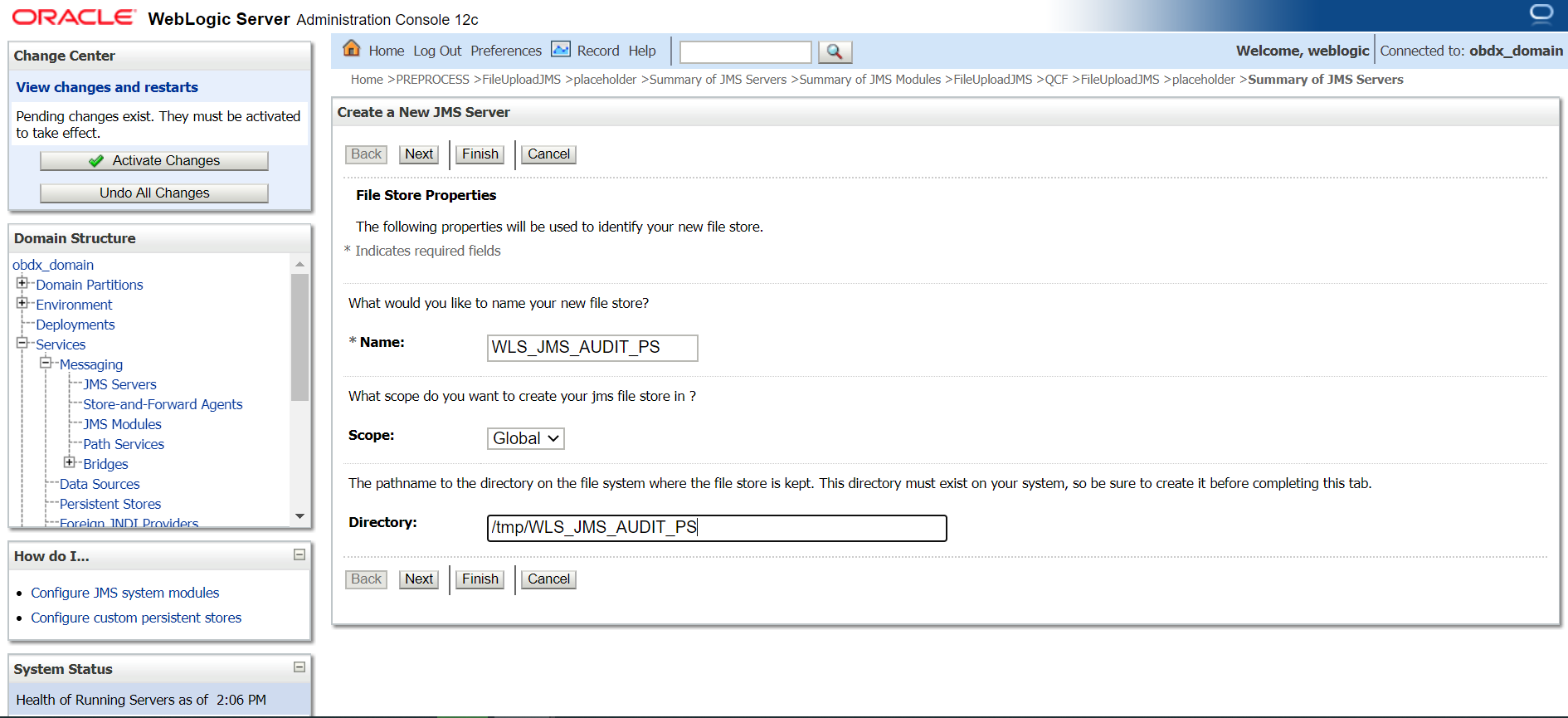

    Description of insta69.png follows
    Description of the illustration insta69.png

  6. Provide

    Name : WLS_JMS_AUDIT_PS.

    Scope : Global

    Directory : /tmp/WLS_JMS_AUDIT_PS.


    Description of insta70.png follows
    Description of the illustration insta70.png

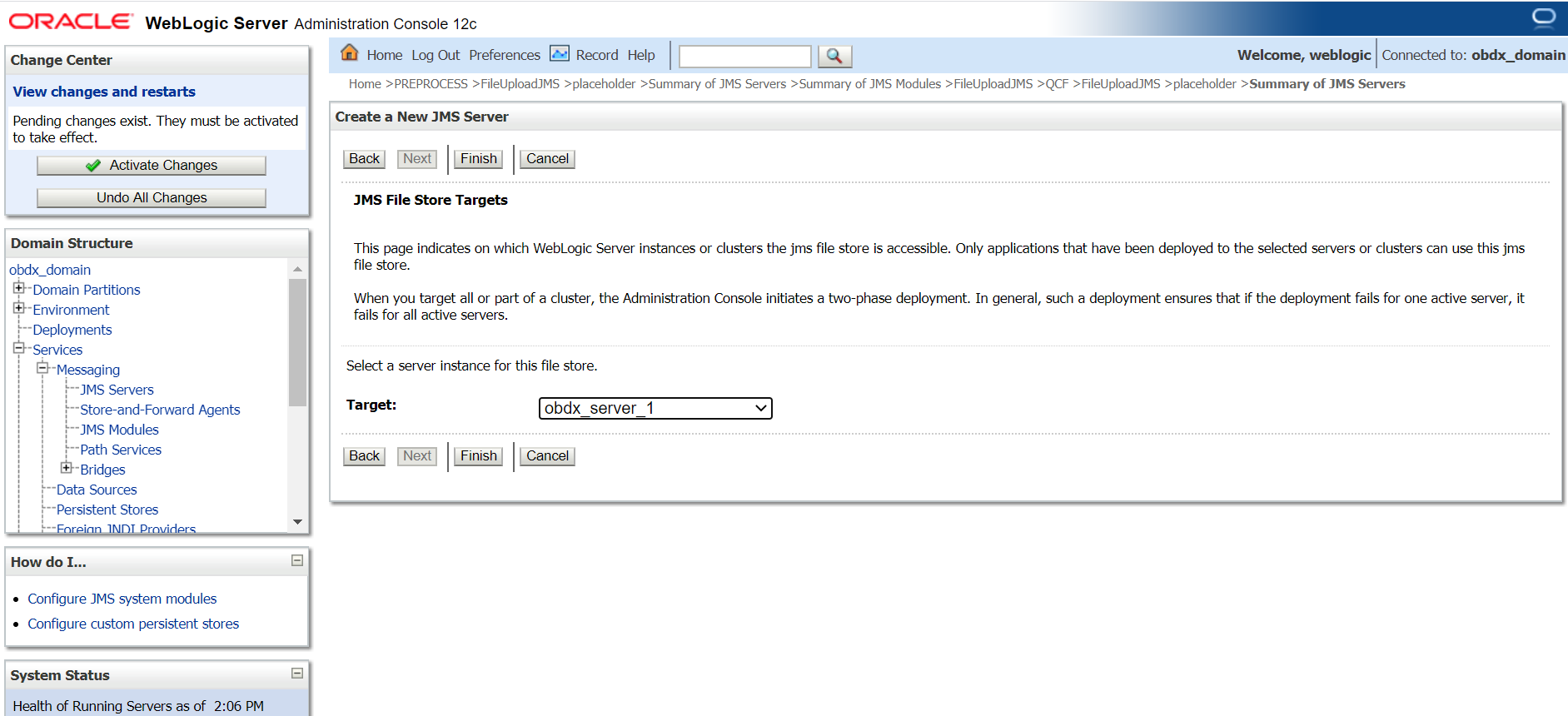

  7. Select Target as managed server and click Finish.

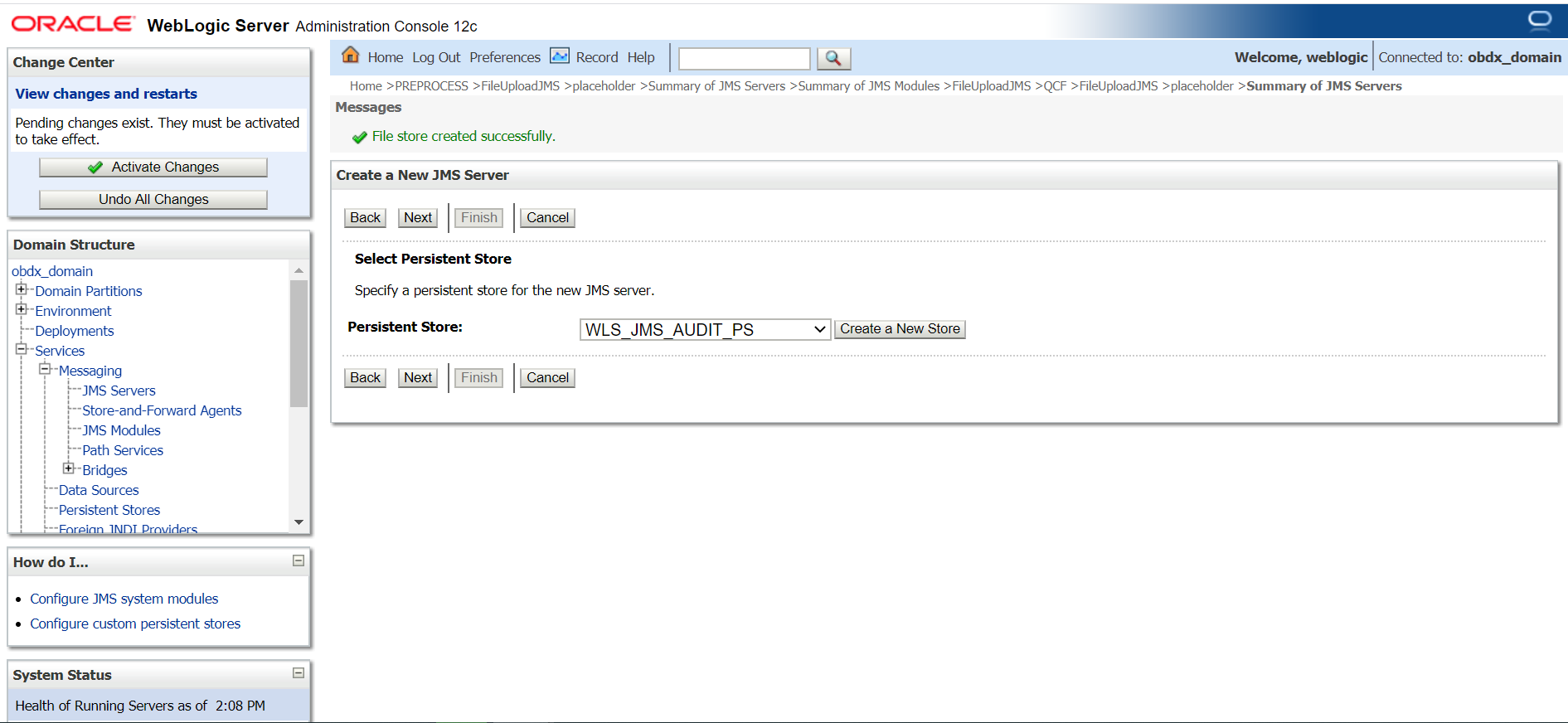

    Description of insta71.png follows
    Description of the illustration insta71.png

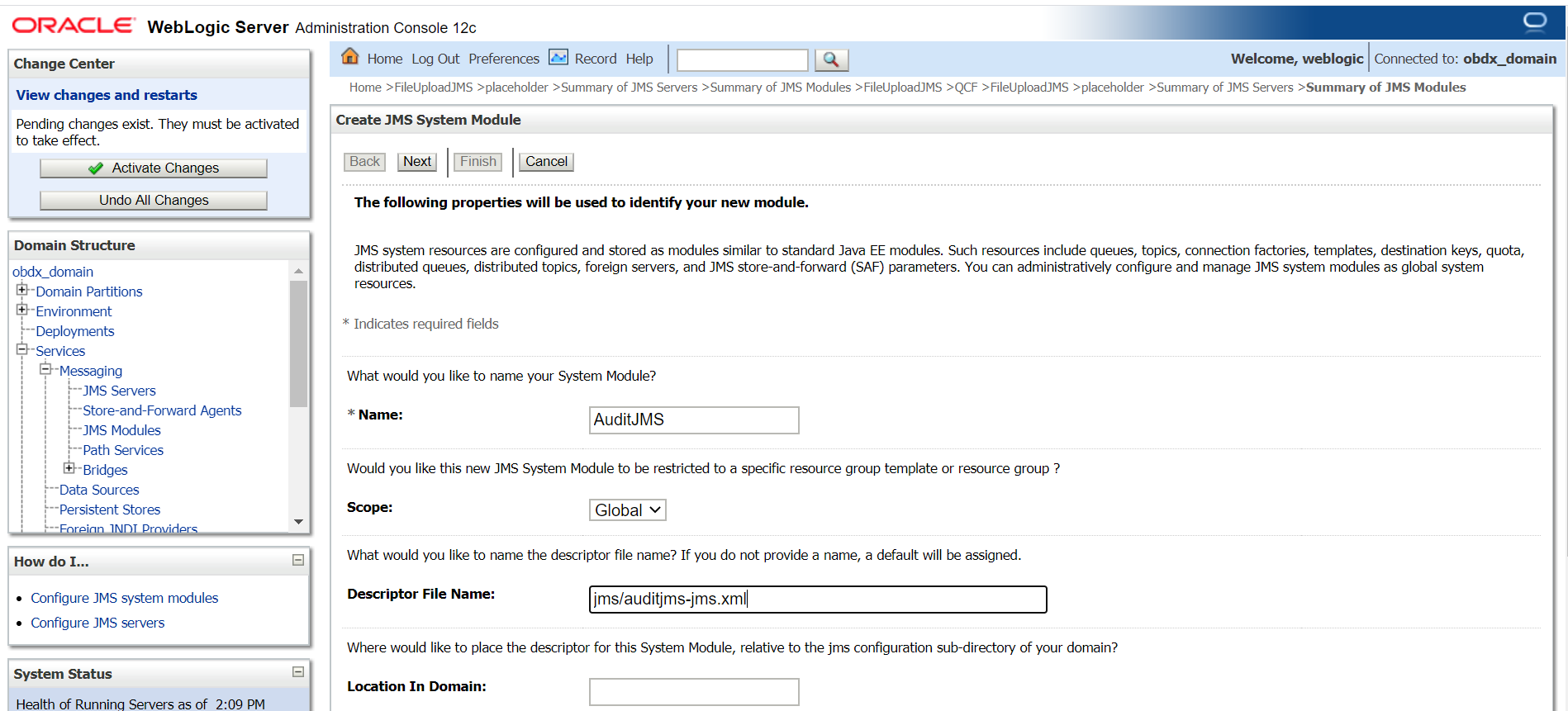

  8. Select the new store created WLS_JMS_AUDIT_PS and click Next.
    Description of insta72.png follows
    Description of the illustration insta72.png

  9. Provide

    Name : AuditJMS

    Scope : Global

    Descriptor File Name: jms/auditjms-jms.xml


    Description of insta73.png follows
    Description of the illustration insta73.png

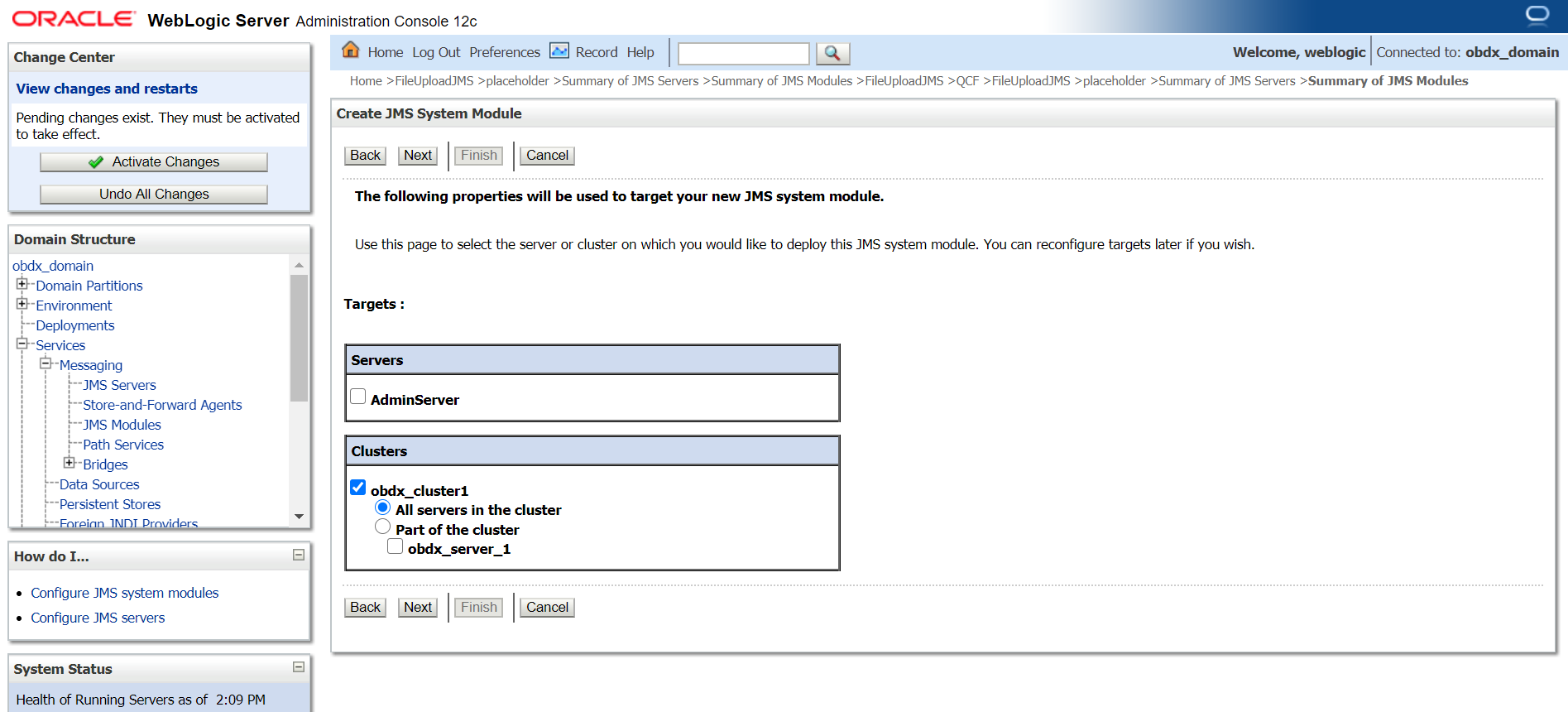

  10. Select Cluster as a target.
    Description of insta74.png follows
    Description of the illustration insta74.png

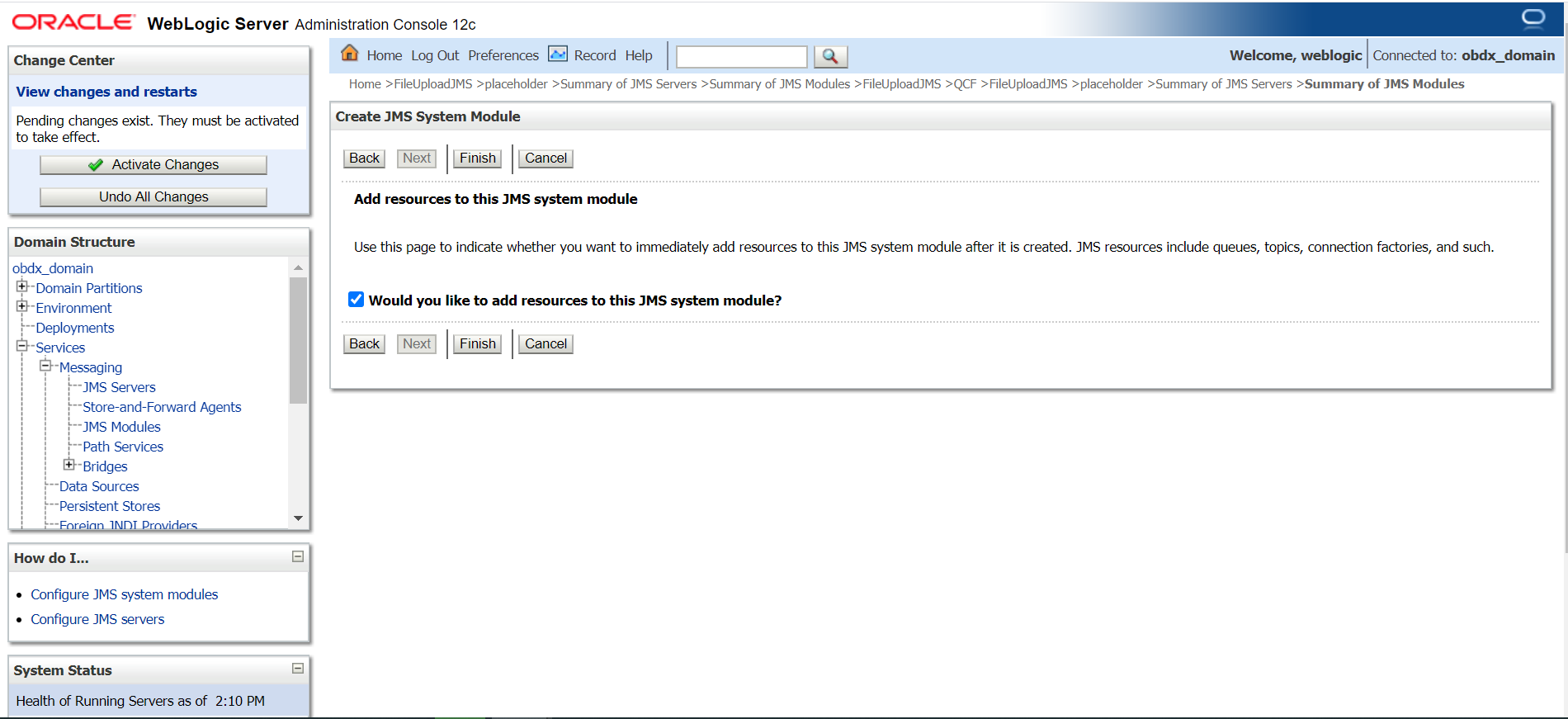

  11. Select would you like to add resource to this JMS system module?.
    Description of insta75.png follows
    Description of the illustration insta75.png

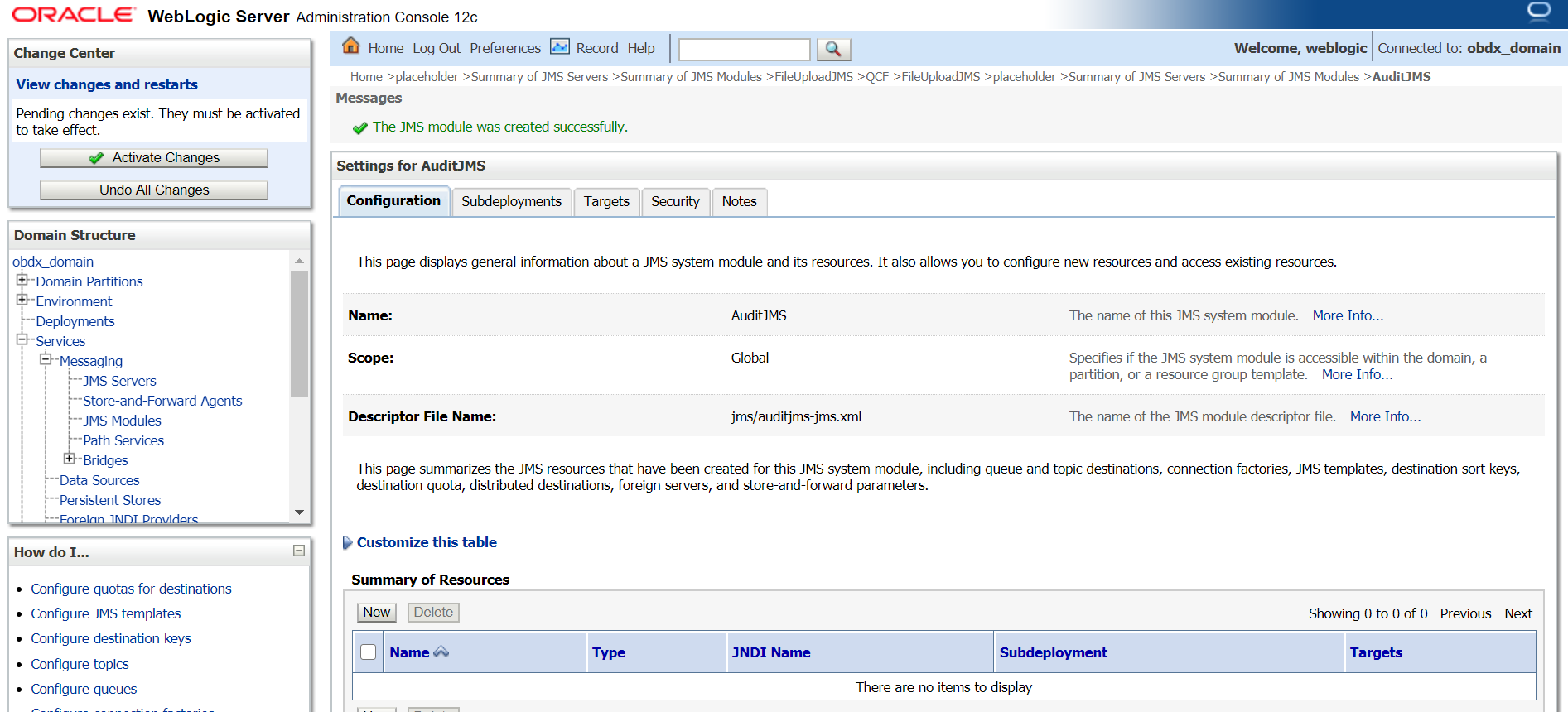

  12. Click New.

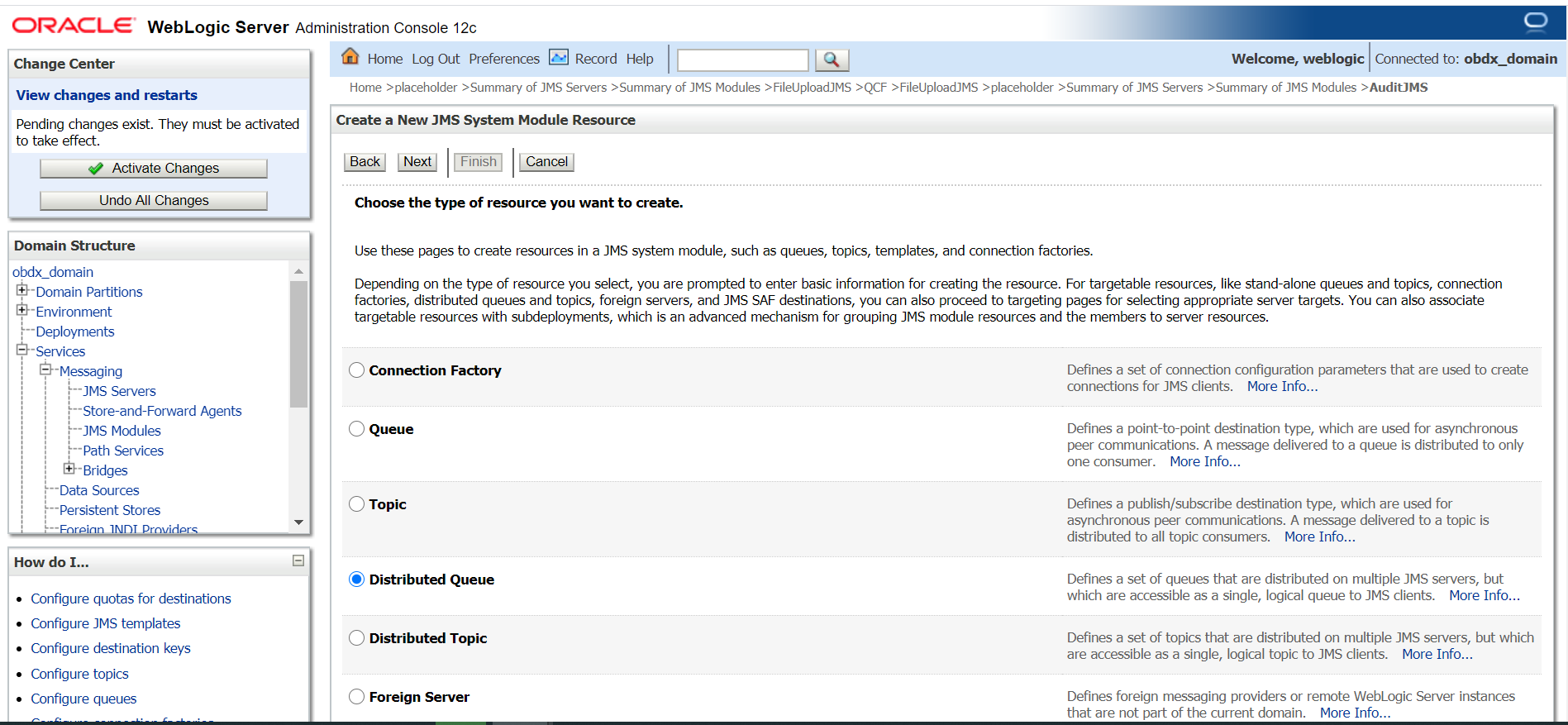

    Description of insta76.png follows
    Description of the illustration insta76.png

  13. Select Distributed Queue.
    Description of insta77.png follows
    Description of the illustration insta77.png

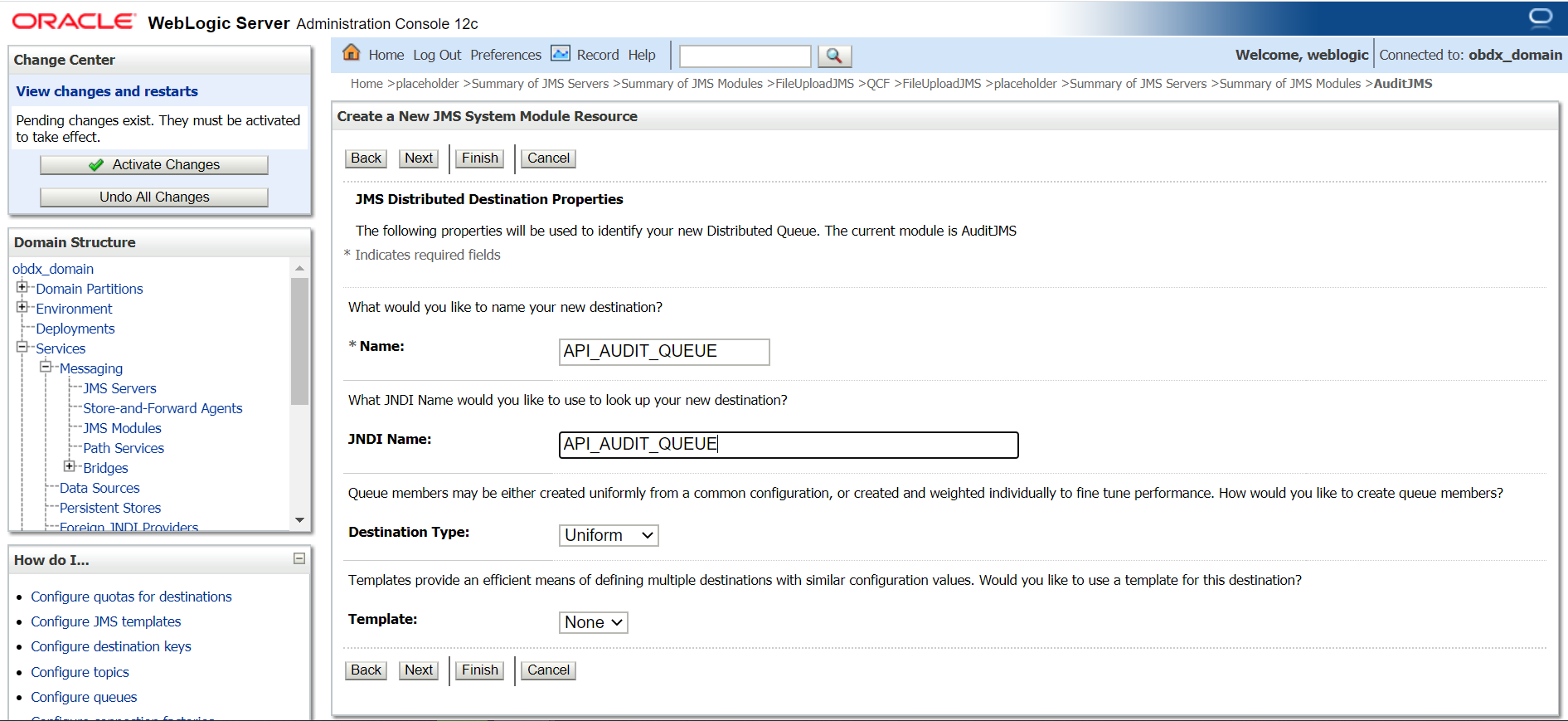

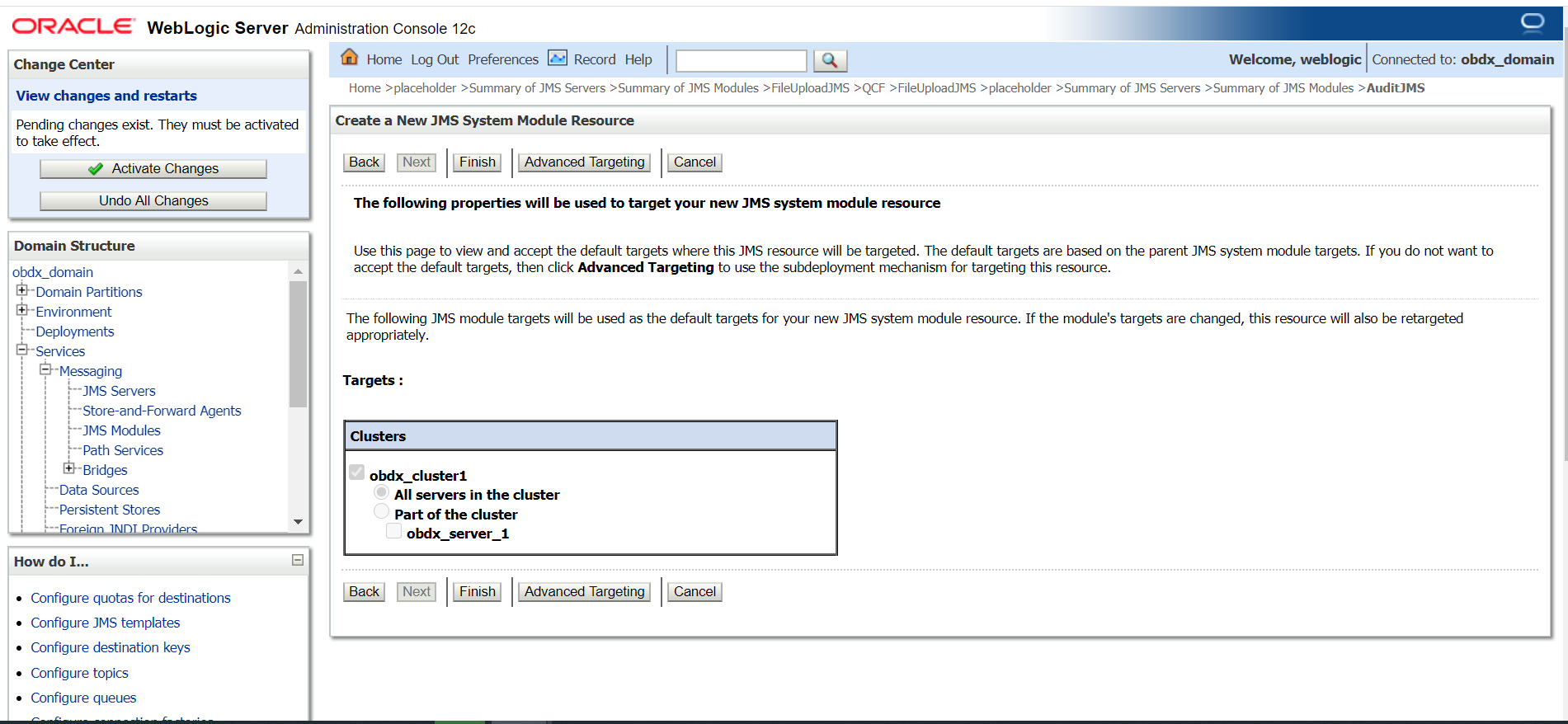

  14. Provide:

    Name: API_AUDIT_QUEUE

    JNDI Name: API_AUDIT_QUEUE

    Destination Type : Uniform

    Template:- None


    Description of insta78.png follows
    Description of the illustration insta78.png

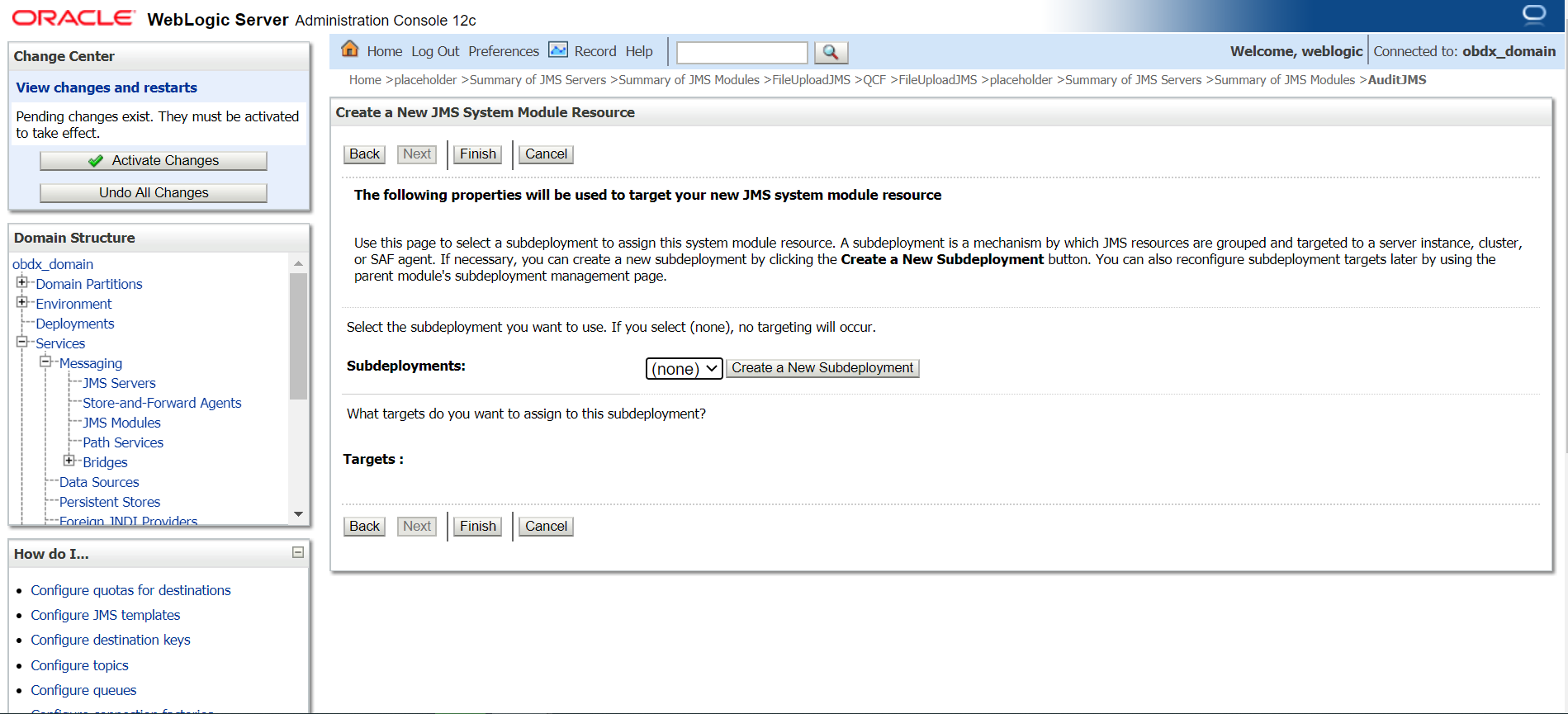

  15. Select Advance targeting.
    Description of insta79.png follows
    Description of the illustration insta79.png

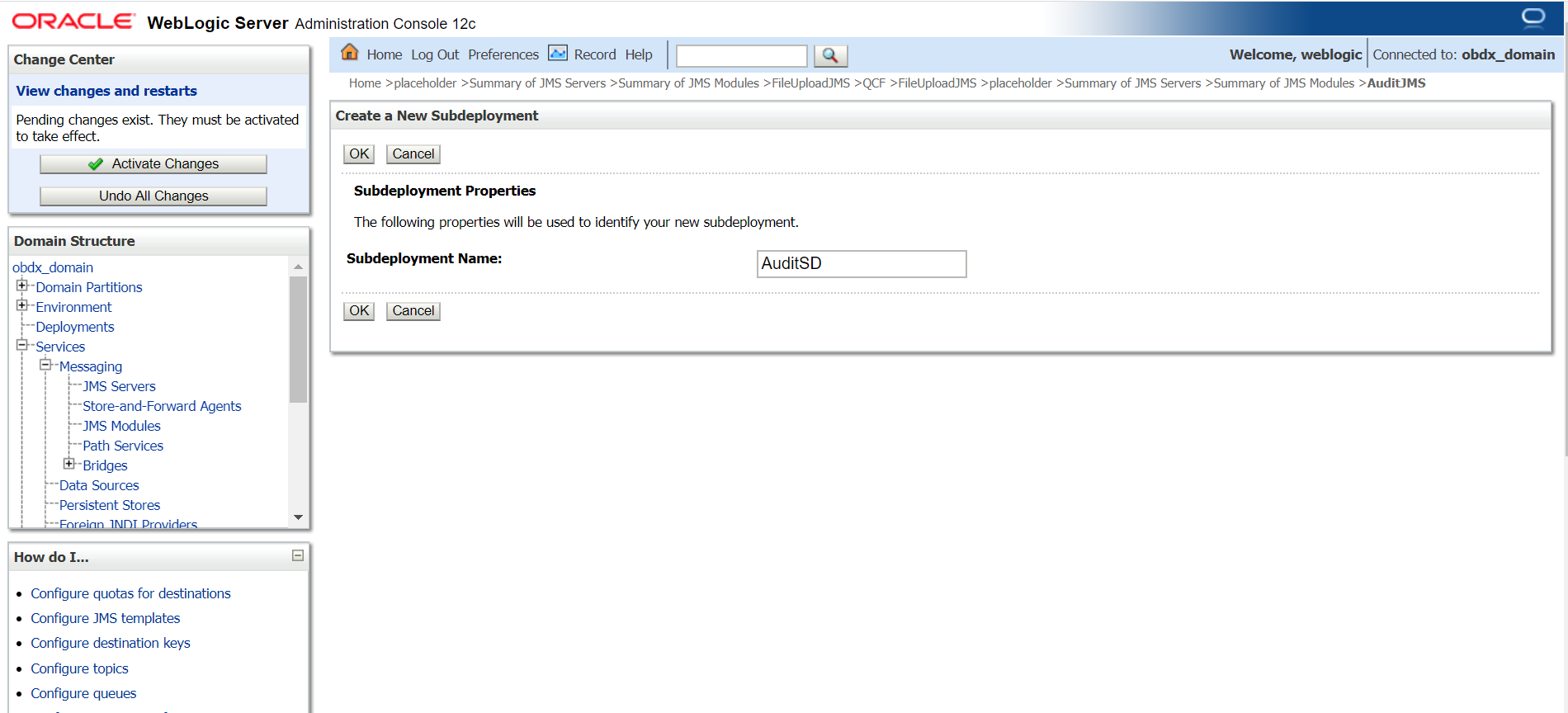

  16. Click on Create a New Subdeployment.
    Description of insta80.png follows
    Description of the illustration insta80.png

  17. Provide Subdeployment Name as AuditSD.
    Description of insta81.png follows
    Description of the illustration insta81.png

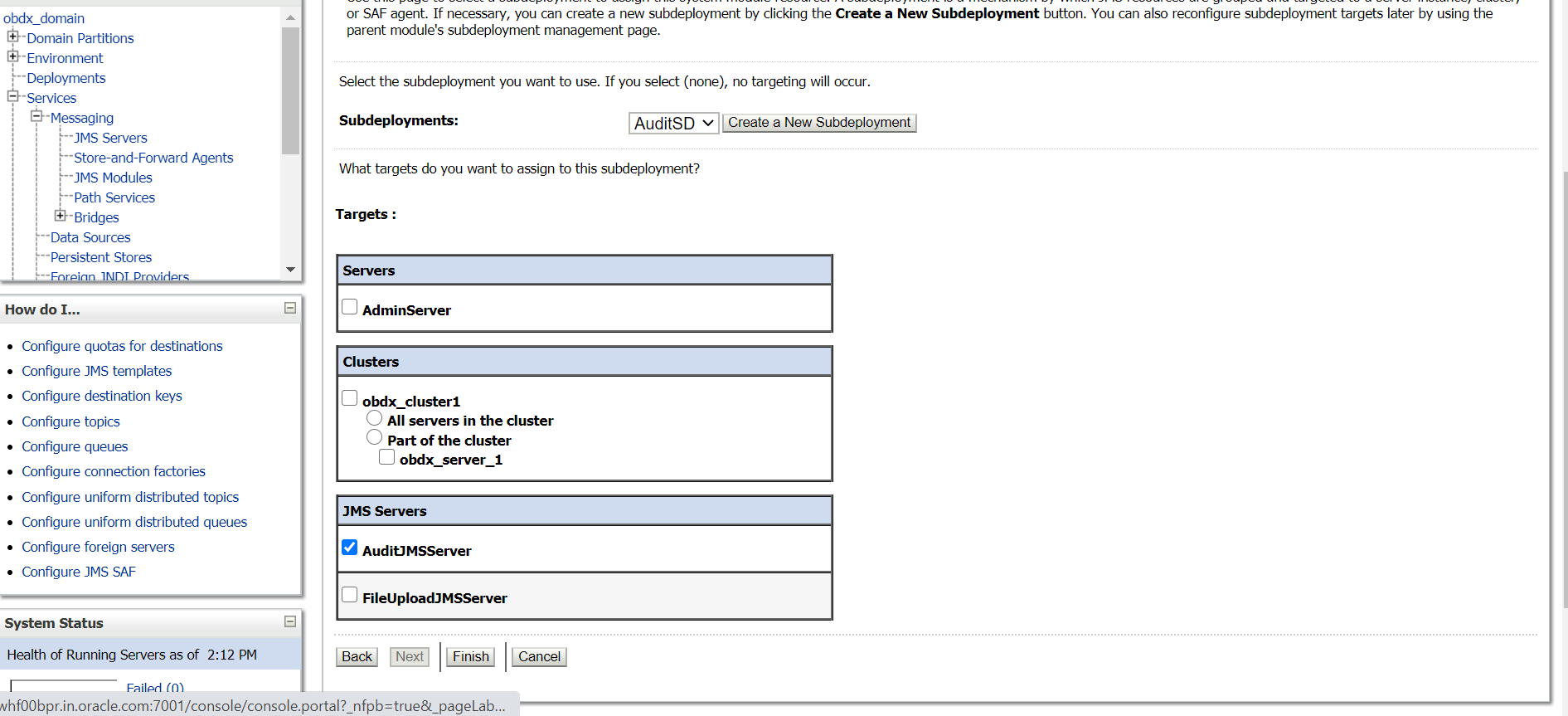

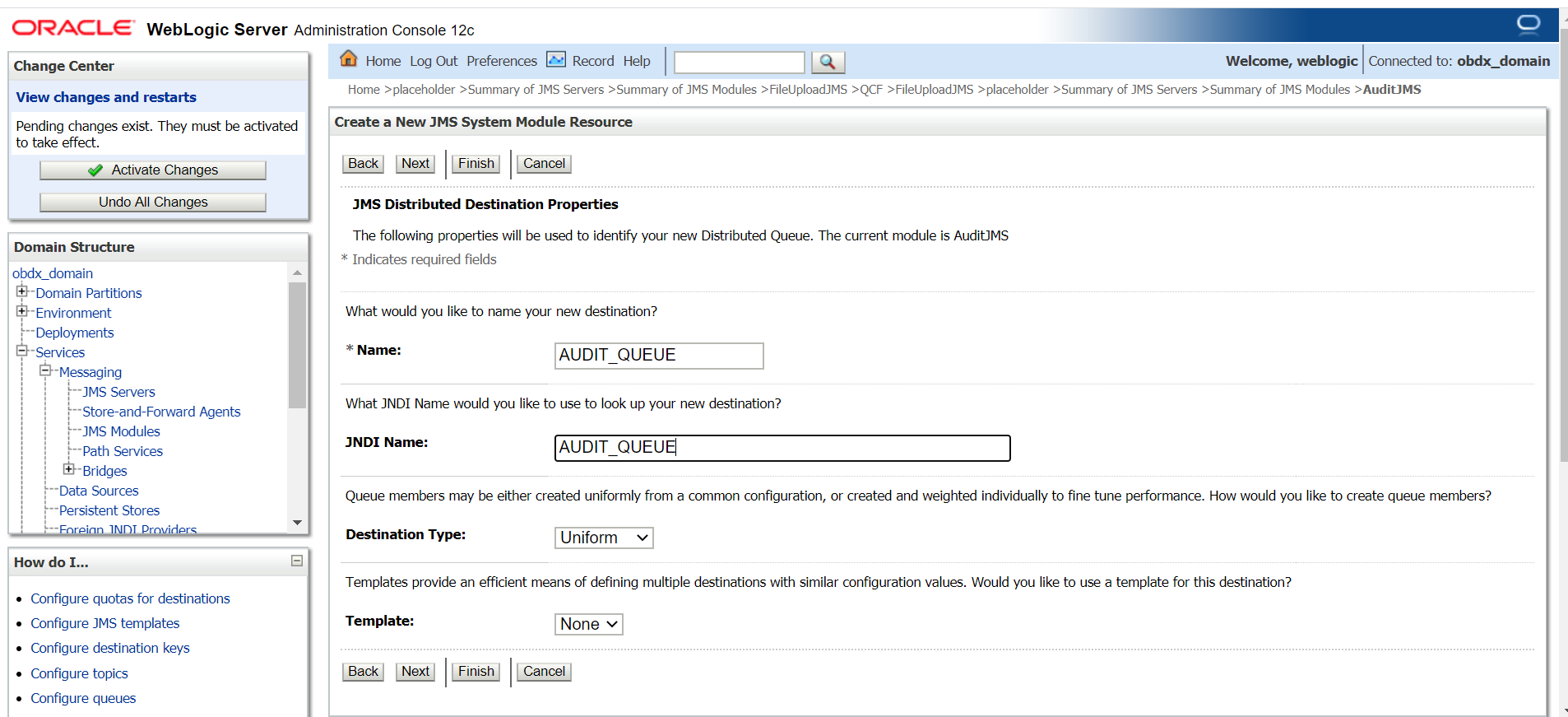

  18. Select Target as AuditJMSServer.
    Description of insta82.png follows
    Description of the illustration insta82.png


    Description of insta83.png follows
    Description of the illustration insta83.png

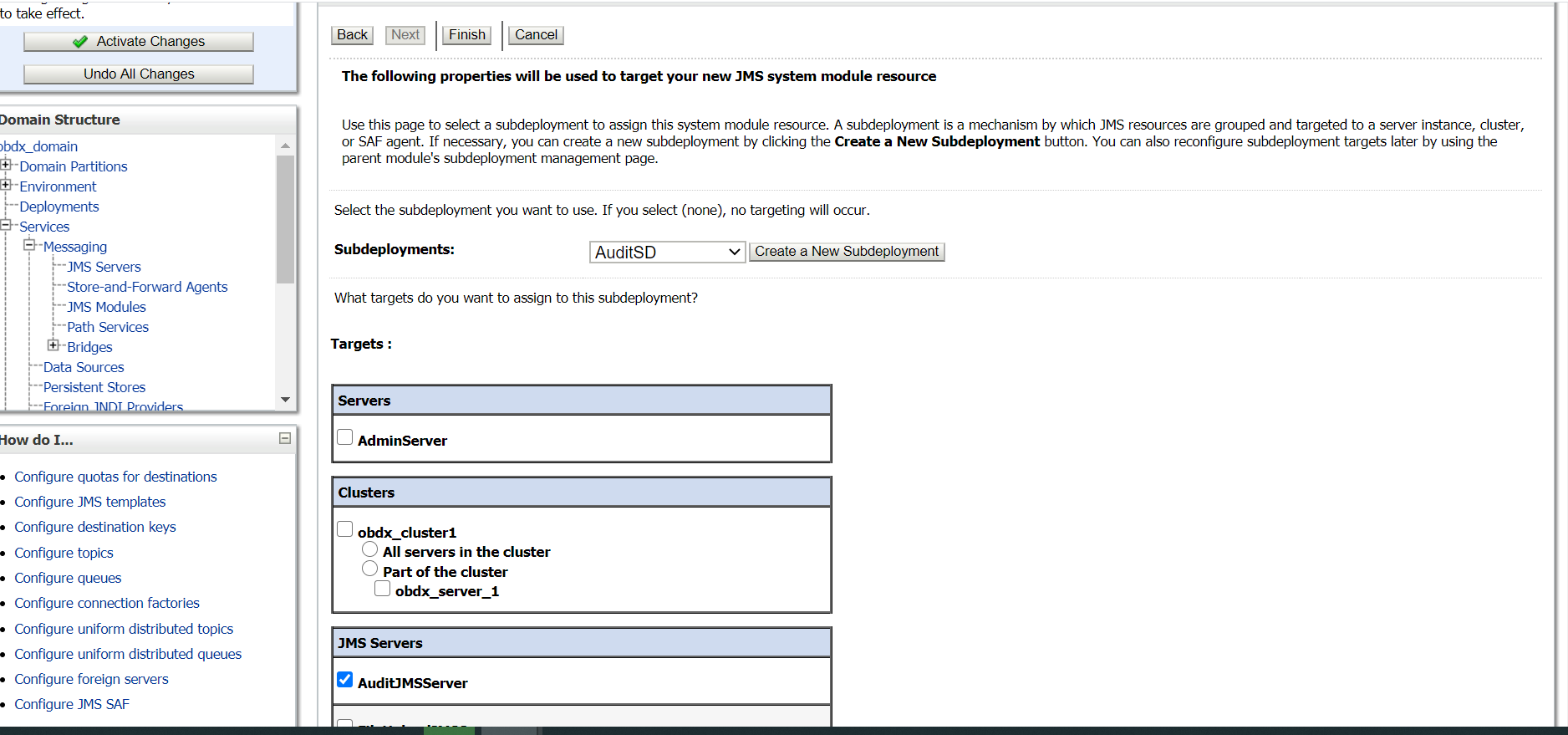

    Description of insta84.png follows
    Description of the illustration insta84.png

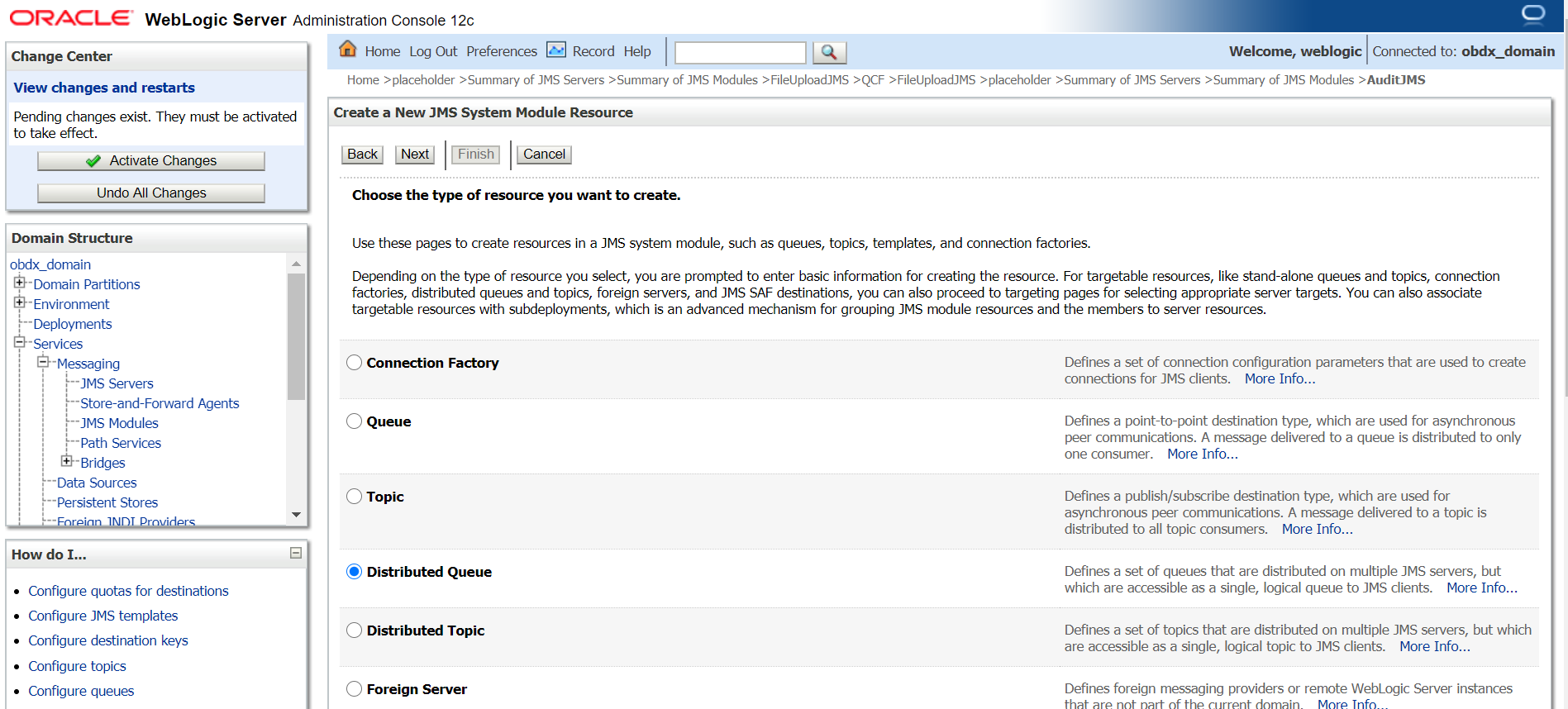

    Description of insta85.png follows
    Description of the illustration insta85.png

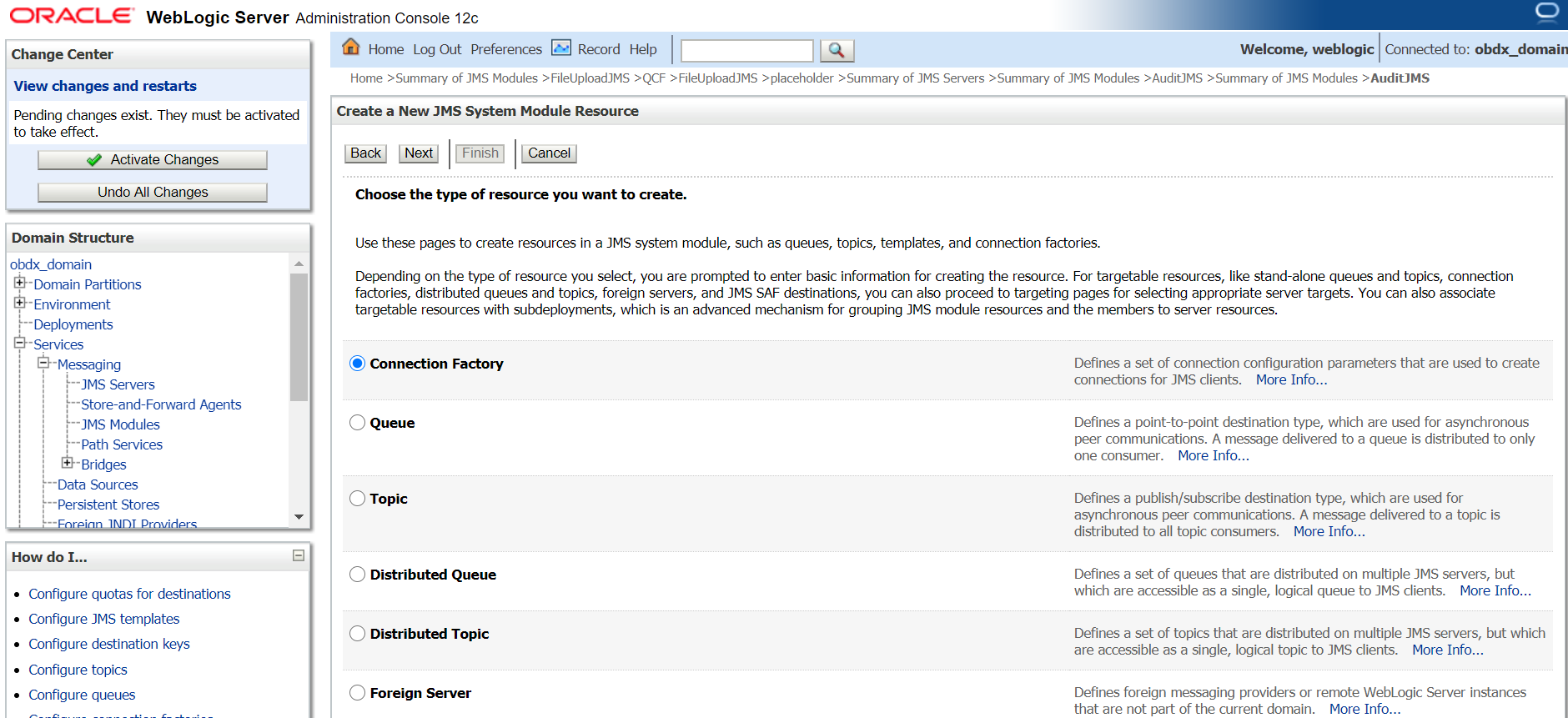

    Description of insta86.png follows
    Description of the illustration insta86.png

  19. Click on connection Factory.

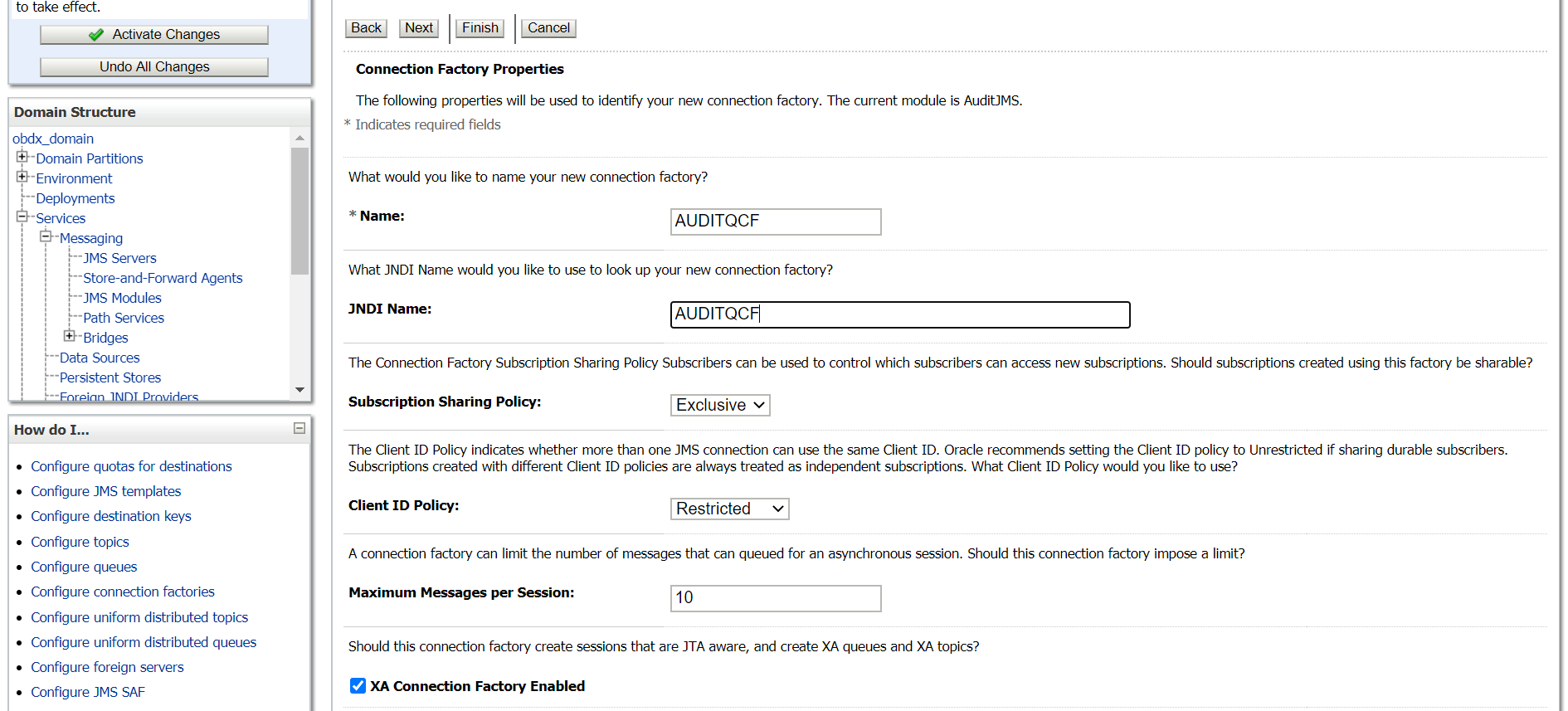

    Description of insta87.png follows
    Description of the illustration insta87.png

  20. Provide

    Name : AUDITQCF

    JNDI Name : AUDITQCF


    Description of insta88.png follows
    Description of the illustration insta88.png

  21. Click on Advanced Targeting.

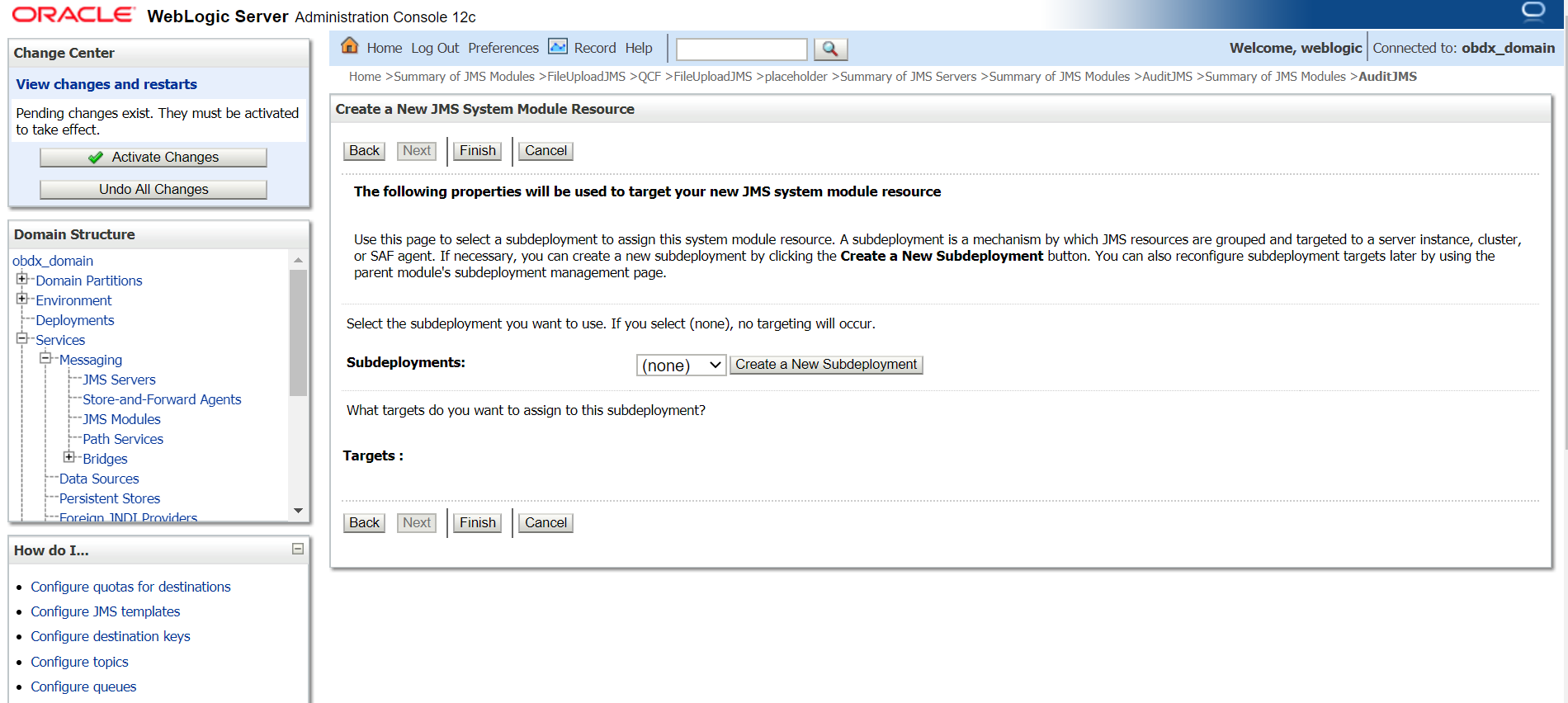

    Description of insta89.png follows
    Description of the illustration insta89.png

  22. Click on Create a New Subdeployment.
    Description of insta90.png follows
    Description of the illustration insta90.png

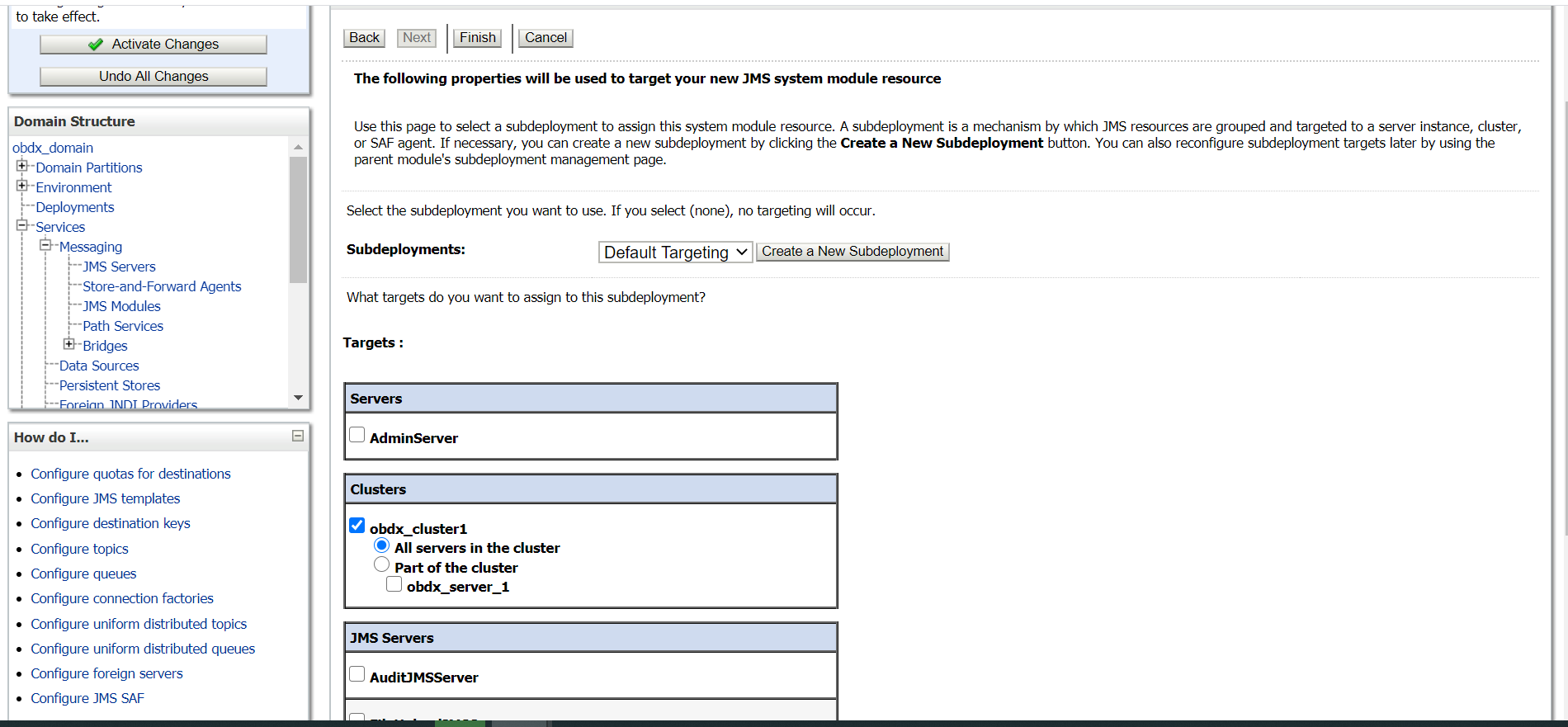

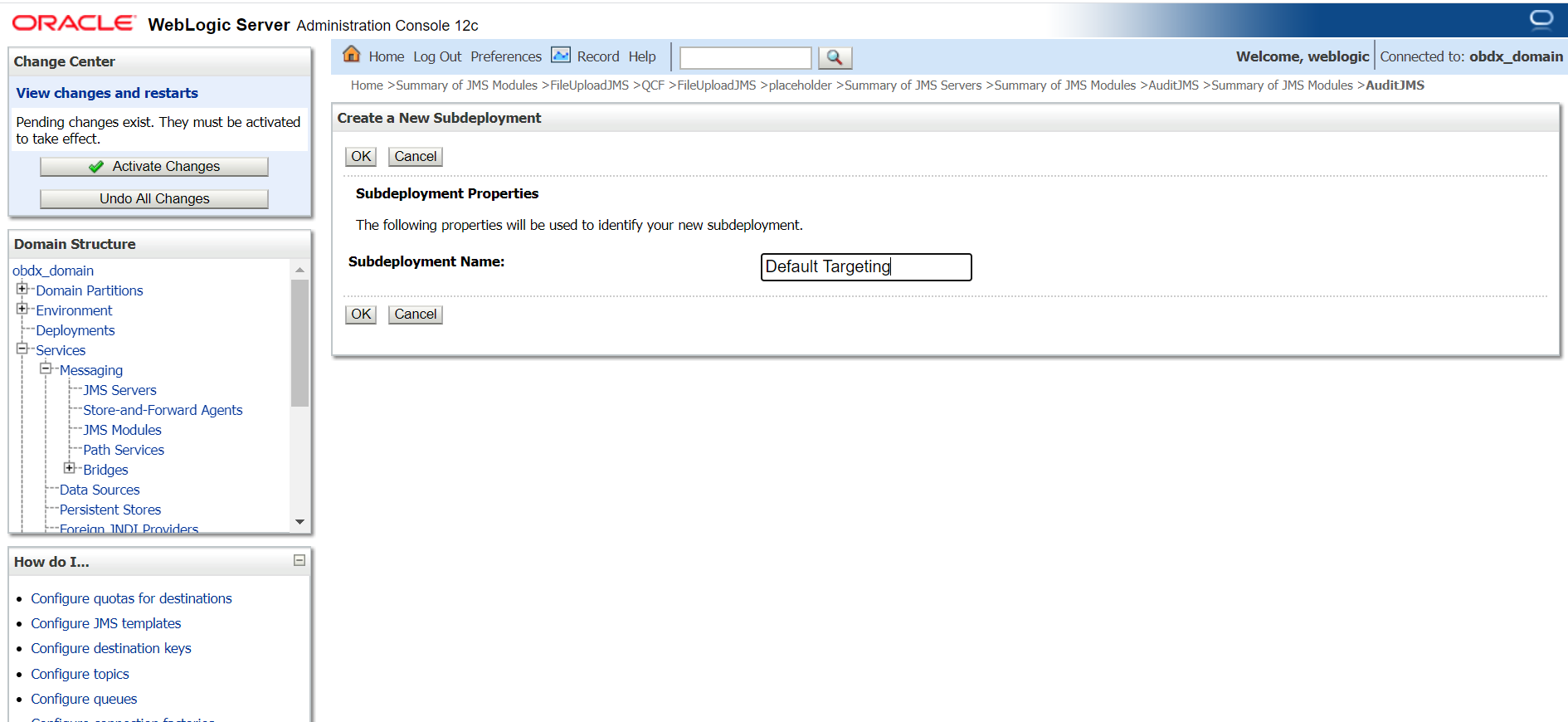

  23. Give Subdeployment Name as Default Targeting.
    Description of insta91.png follows
    Description of the illustration insta91.png

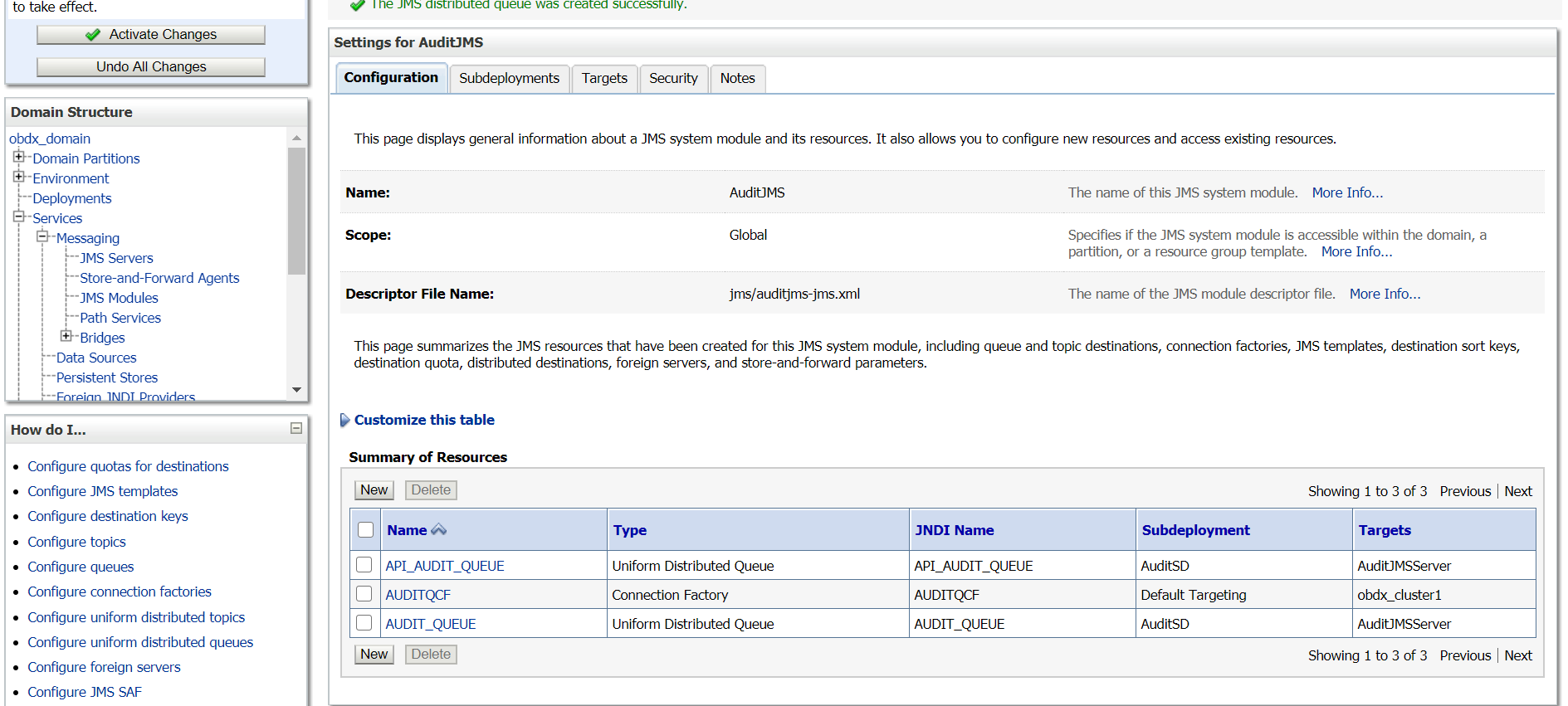

  24. Under AuditJMS module Create Uniform Distrubuted Queue and connection Factory as show below in the screen shot.
    Description of insta92.png follows
    Description of the illustration insta92.png
