The Create Business Process screen helps to configure the workflow for servicing transactions. This process will allow defining the data segments, checklists, documents, and advices for the stages defined in the process code selected for the lifecycle code and business product combination.

1. On the Homepage, from the Servicing Configurations, under Business Process, click Create Business Process. You can also open the screen by specifying Create Business Process in the search icon bar and selecting the screen.
   The Create Business Process screen is displayed.

   Figure 2-5 Create Business Process


   Description of "Figure 2-5 Create Business Process"

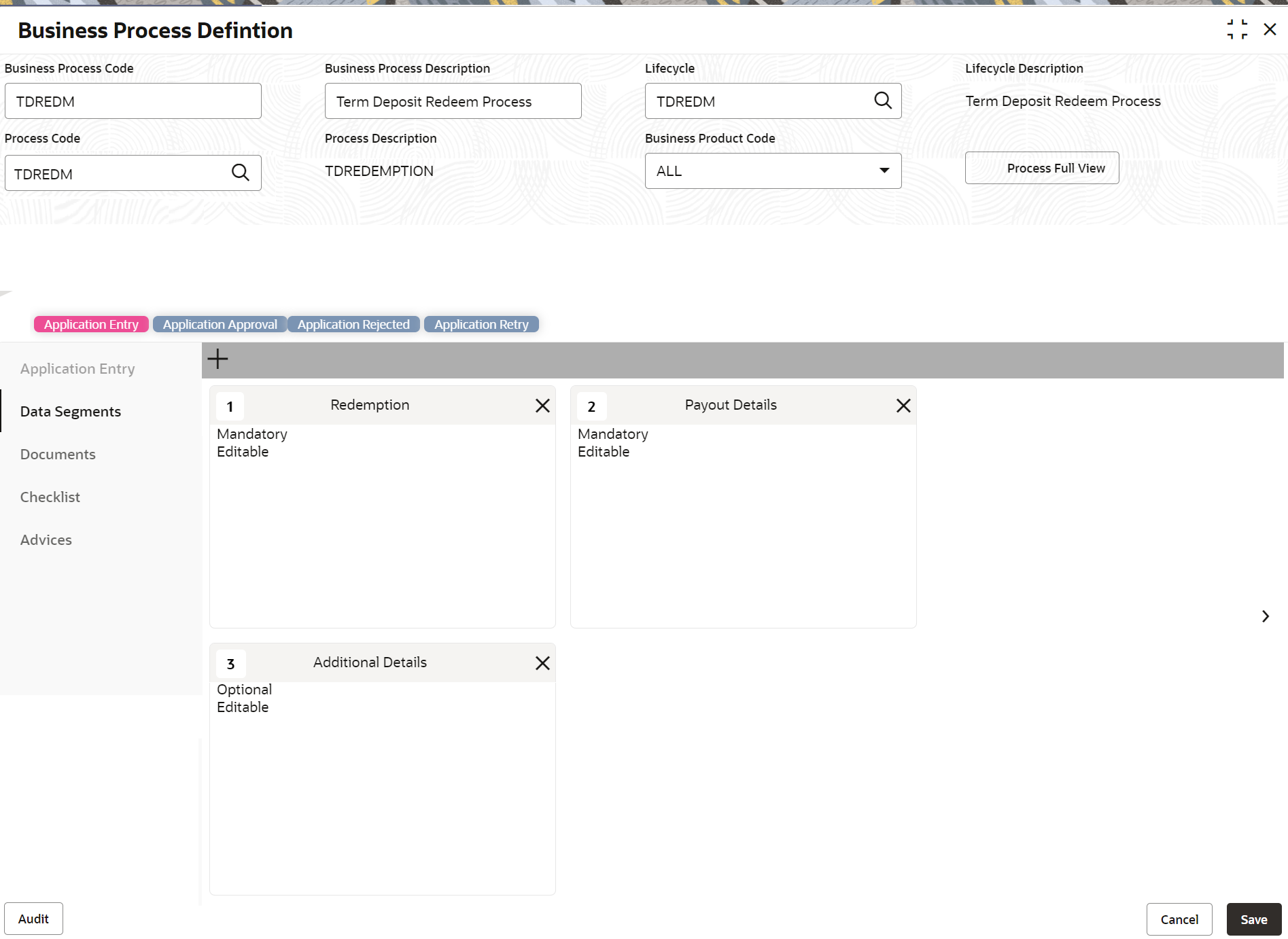

   Figure 2-6 Create Business Process - Stages


   Description of "Figure 2-6 Create Business Process - Stages"
2. On the Create Business Process screen, specify the fields. For more information on fields, refer to the field description table.

   Table 2-7 Create Business Process - Field Description

   Field	Description
   Business Process Code	Specify an alphanumeric business process code. Note: The maximum length allowed is 16.
   Business Process Description	Specify the description of the business process code. Note: The maximum length allowed is 60 alphanumeric characters.
   Lifecycle	Search and select the lifecycle code.
   Lifecycle Description	Displays the description of the lifecycle selected.
   Process Code	Search and select the process code of the business process flow that needs to be mapped for the lifecycle code and business process code combination. Note: Once you select the process code, the elements and stages are displayed on the screen.
   Process Description	Displays the description of the selected process code.
   Business Product Code	Specify the business product code for which the business process is being created. Alternatively, the system allows selecting ‘All’, in which case the business process will apply to all the business products that are associated with the lifecycle and process code.

   Note:

   The system allows you to configure only one business process for a combination of Lifecycle and Business Product Code.
3. On the Create Business Process screen, click Data Segments tab and then click Add icon on the header panel.
   The Data Segments screen is displayed.

   Figure 2-7 Data Segments


   Description of "Figure 2-7 Data Segments"
4. On the Data Segments screen, select the required data segment or data segments for the selected stage, and specify the fields. For more information on fields, refer to the field description table.

   Table 2-8 Data Segments - Field Description

   Field	Description
   Preview	Click on this tab to view the data segment.
   Settings	Specify the settings.
   Mandatory	Select if the data segment is mandatory.
   Editable	Select if the data segment is editable.
   Select Products	Select the products for which the data segment is relevant.

5. On the Data Segments screen, click Add.
   The Create Business Process screen is displayed with the data added segment.

   Figure 2-8 Create Business Process - Added Data Segments


   Description of "Figure 2-8 Create Business Process - Added Data Segments"

   Note:

   The system allows to re-sequence the data segment by dragging and dropping over the specific data segment.
6. On the Create Business Process screen, select the desired stage, and click Document tab to define the specific documentation requirement.
   The Documents segment is displayed.

   Figure 2-9 Create Business Process – Documents


   Description of "Figure 2-9 Create Business Process – Documents"
7. On the Documents segment, specify the fields. For more information on fields, refer to the field description table.

   Table 2-9 Documents - Field Description

   Field	Description
   Document Type	Search and select the document type.
   Document Description	Displays the corresponding description of the document.
   Mandatory	Select if it is mandatory to submit the document for the stage.
   Business Products	Select the required option for the document submission requirement. Available options are: Single Product List of Products All

8. On the Create Business Process screen, select the desired stage, and click Checklist tab.
   The Checklist segment is displayed.

   Figure 2-10 Create Business Process – Checklist


   Description of "Figure 2-10 Create Business Process – Checklist"
9. On the Checklist segment, specify the fields. For more information on fields, refer to the field description table.

   Table 2-10 Checklist - Field Description

   Field	Description
   Checklist Data	It is a free-text field that allows to user to enter the checklists that must be validated as part of the selected stage.
   Mandatory	Select if it is mandatory to submit the checklist for the stage.
   Business Products	Select the required option to restrict the checklist. Available options are: Single Product List of Products All

10. On the Create Business Process screen, select the desired stage, and click Advices tab.
    The Advices segment is displayed.

    Figure 2-11 Create Business Process – Advices


    Description of "Figure 2-11 Create Business Process – Advices"
11. On the Advices segment, specify the fields. For more information on fields, refer to the field description table.

    Table 2-11 Advices - Field Description

    Field	Description
    Advice Type	Search and select the required advice type from the displayed list of all the valid advices maintained, and that must be mapped to this stage.
    Advice Description	Displays the corresponding description of the advice.
    Business Products	Select the required option to restrict the advices. Available options are: Single Product List of Products All

12. Click Save to create the business process.

    At this point, the status of the business process is unauthorized. A user with supervisor access has to approve the business process. Once approved, the status of the business process changes from unauthorized to authorized, and is activated for usage in the servicing transactions.
