Manage Route Sets

Manage Route Sets enables you to perform management activities with Route Sets such as Edit, Copy, Delete and so on.

  1. Expand the Route Manager slider.
  2. In the Route sets page, select the route set and click Lock.
    The lock state toggles from unlocked, indicated by Unlocked lock, to locked, indicated by Locked lock. The name of the user who locked the route set is listed.
  3. With the locked route set selected, click Manage Routes. Routes in the Route Set are displayed.
  4. In the Route Set Edit dialog box:
    • If the pub-id type of the selected route set is E164/String, this will display columns - pub-id, SED and Advanced options accordingly.
    • If the pub-id type of the selected route set is Range, this will display columns - Range start, Range end, SED and Advanced options accordingly

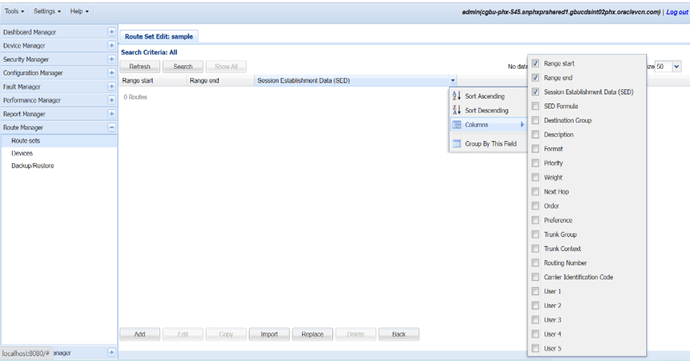

    Figure 4-1 Manage Route Set


    Manage Route Set
