Registrations Panel in User Tracking

The Registrations Panel can be activated by selecting a set of two checkboxes - Current Registrations and History Registrations which you can toggle to view or hide the current registered contacts and history of the registration events for the tracked user.

Note:

By default, the Current Registrations and User Calls check boxes are enabled.

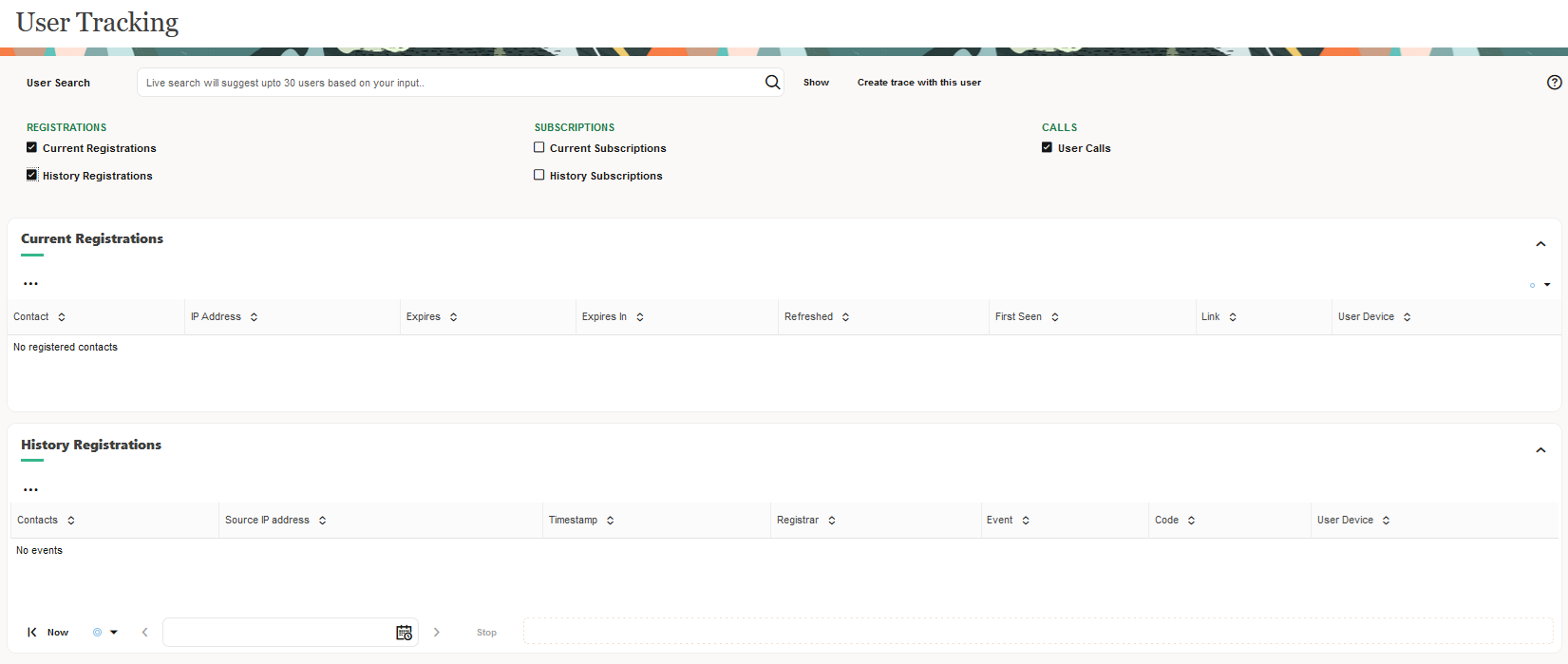

Figure 5-2 Registrations Panel

Table 5-1 Current Registered Contacts Table

Column Name	Description
Contact	The Contact header of the REGISTER request.
IP address	The IP address the REGISTER request originates from.
Expires	The expiration interval set by the server.
Expires In	The remaining time until expiration.
Refreshed	The last time the registration was refreshed.
First Seen	The first time the tracked user registered successfully.
Link	An indicator for the link quality to the tracked user which is displays in the Link Quality section. This column remains blank unless the particular users registered source IP address is set to be tracked for the Link Quality. The indicator is of LED diode icon with coloring based on the quality measured.
User Device	The User-Agent header of the REGISTER request.
Suggested Expires	It contains the value of the Expires header sent with the REGISTER request.
VLAN	VLAN of the device.

The lower table contains the history of registration events for the tracked user.
