Install Mounting Bracket Extenders (Optional)

If you want to install the 19" Acme Packet 6400 into a 23" rack, use the 19"-to-23" adaptor mounting brackets.

Caution:

Extension and mid-mount brackets shall not be used for NEBS installations.

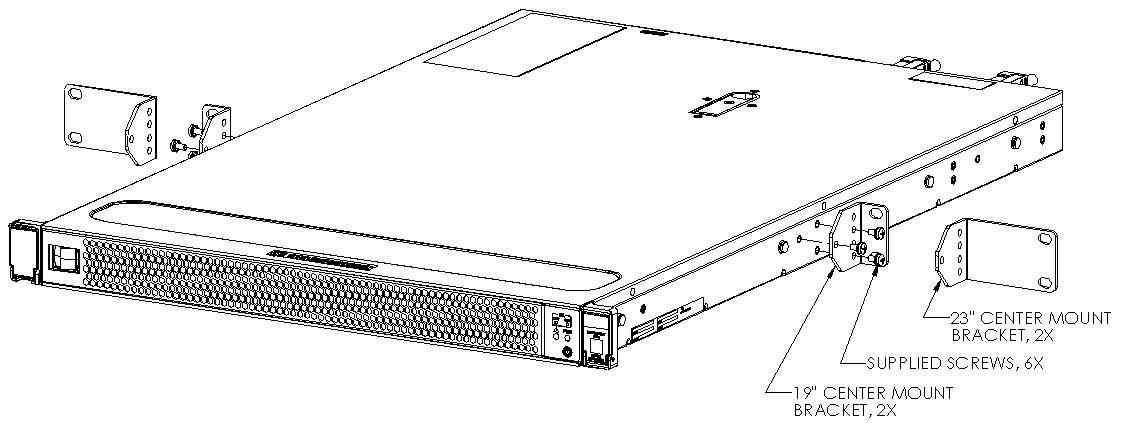

19" Center Mount Brackets and 23" Center Mount Brackets

To install the adaptors:

  1. Attach the 19" to 23" adapters to the rack.

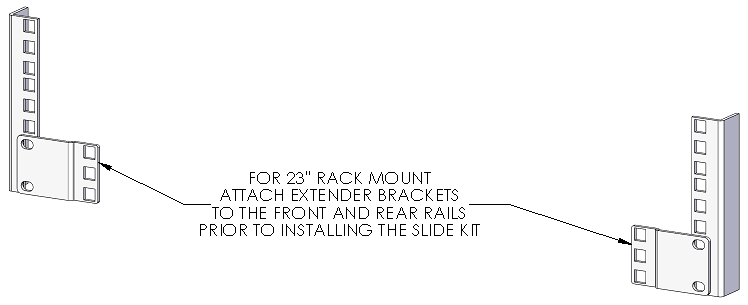

    19" to 23" Cabinet Adapters

  2. Attach the 23" Center Mount Brackets to the Acme Packet 6400.
  3. Attach the slides, the Acme Packet 6400, and the cable management as previously shown.

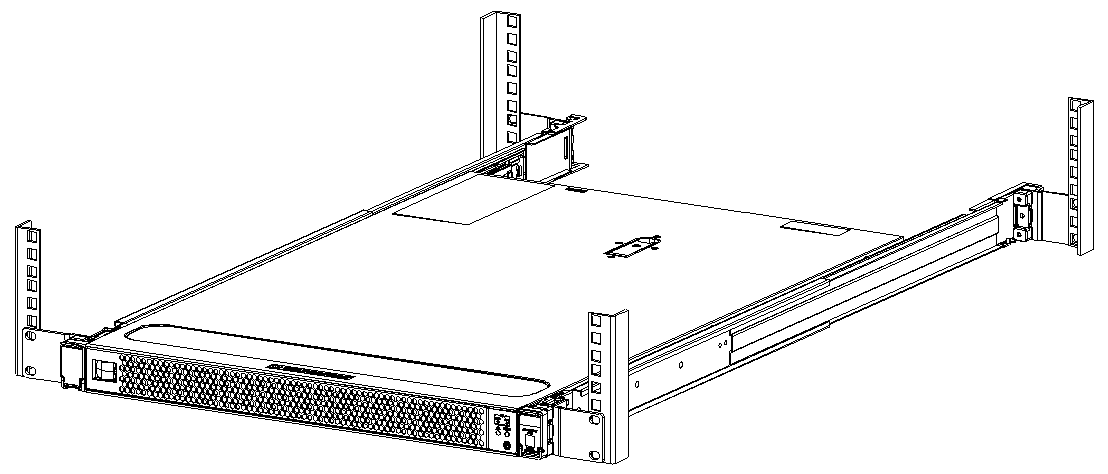

    Installed with brackets
