Changing PDU Monitoring Credentials

In case the HTTP and SNMP PDU credentials are changed on the PDU, you can change the credentials in the Enterprise Manager using the PDU's Management Interface.

Change the HTTP Credentials

Perform the following steps to change the http credentials:

  1. Under Setup, click Security, then click Monitoring Credentials.
  2. In the Target Type column, select Systems Infrastructure PDU, then click Manage Monitoring Credentials.

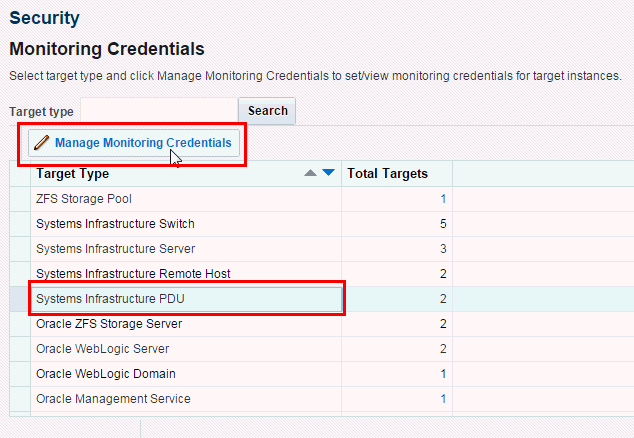

    Figure 23-4 Select Target Type

    Description of Figure 23-4 follows
    Description of "Figure 23-4 Select Target Type"
  3. In the Systems Infrastructure PDU Monitoring Credentials screen, select the HTTP Monitoring Credentials (in the Credential Set column), then click Set Credentials.

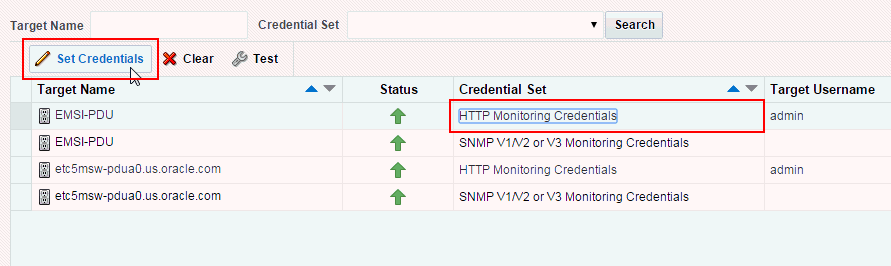

    Figure 23-5 Set HTTP Credentials

    Description of Figure 23-5 follows
    Description of "Figure 23-5 Set HTTP Credentials"
  4. In the Enter Monitoring Credentials screen, enter new credentials for the PDU HTTP, then click Test and Save.

Changing the SNMP Credentials

Perform the following steps to change the SNMP credentials:

  1. Under Setup, click Security, then click Monitoring Credentials.
  2. In the Target Type column, select Systems Infrastructure PDU, then click Manage Monitoring Credentials.

    Figure 23-6 Select Target Type

    Description of Figure 23-6 follows
    Description of "Figure 23-6 Select Target Type"
  3. In the Systems Infrastructure PDU Monitoring Credentials screen, select the SNMP Monitoring Credentials (in the Credential Set column), then click Set Credentials.

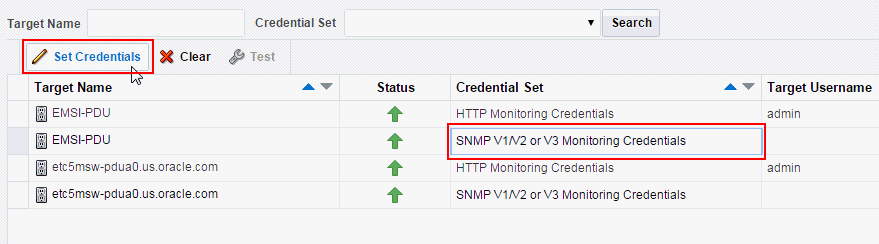

    Figure 23-7 Set SNMP Credentials

    Set SNMP Credentials
  4. In the Enter Monitoring Credentials screen, enter new credentials for the PDU SNMP, then click Save.
