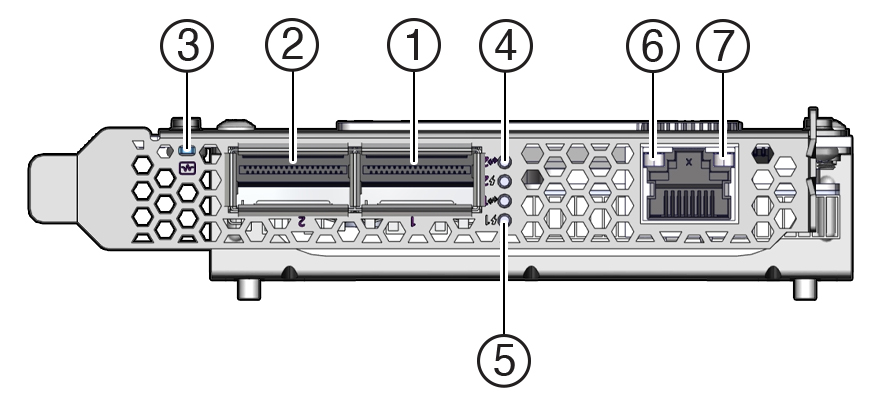

1

Port 1

2

Port 2

3

Card status indicator:

• Off = System is not powered on.

• Solid amber = Powered on, software booting

• Solid green = Normal operation

4

Port 2 activity/link indicators:

• Port 2 activity indicator (top most as shown in illustration):

  • Off = No activity

  • Blinking = Link activity

• Port 2 link indicator (second down as shown in illustration):

  • Off = Link has not been established

  • Solid green = Valid link has been established

5

Port 1 activity/link indicators:

• Port 1 activity indicator (third down as shown in illustration):

  • Off = No activity

  • Blinking = Link activity

• Port 1 link indicator (bottom most as shown in illustration):

  • Off = Link has not been established

  • Solid green = Valid link has been established

6

Management port activity indicator:

• Off = No activity

• Blinking green = Link activity

7

Management port link indicator:

• Off = 100BASE-T link

• Solid green = 1000BASE-T link
