2.19.16 Sun Server X2-8 Oracle Database Server Images

The following image shows the front view of Sun Server X2-8 Oracle Database Server.

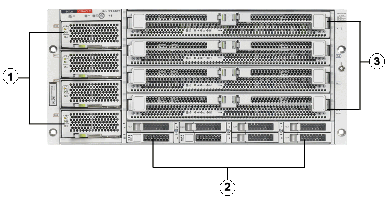

Figure 2-33 Front View of Sun Server X2-8 Oracle Database Server

Description of Figure 2-33 follows
Description of "Figure 2-33 Front View of Sun Server X2-8 Oracle Database Server"

  1. Power supplies.

  2. Hard disk drives. The top drives are, from left to right, XL4, XL5, XL6, and XL7. The lower drives are, from left to right, XL0, XL1, XL2, and XL3.

  3. CPU modules. The modules are, from bottom to top, BL0, BL1, BL2, and BL3.

The following image shows the rear view of Sun Fire X4800 Oracle Database Server.

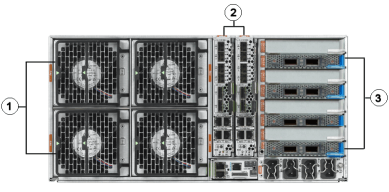

Figure 2-34 Rear View of Sun Server X2-8 Oracle Database Server

Description of Figure 2-34 follows
Description of "Figure 2-34 Rear View of Sun Server X2-8 Oracle Database Server"

  1. Fan modules.

  2. Network Express Module.

  3. InfiniBand EM (CX2) dual port PCI Express modules.
