2.19.3 Oracle Server X9-2 Database Server Images

Oracle Server X9-2 is used as the database server in Oracle Exadata X9M-2.

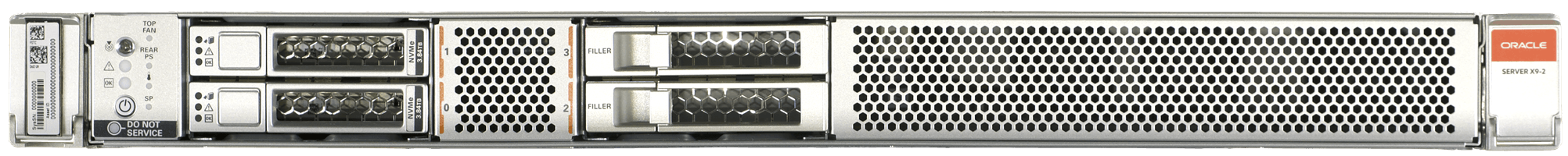

The following image shows the front view of Oracle Server X9-2 Database Servers.

Figure 2-7 Front View of Oracle Server X9-2 Database Servers

Description of Figure 2-7 follows
Description of "Figure 2-7 Front View of Oracle Server X9-2 Database Servers"

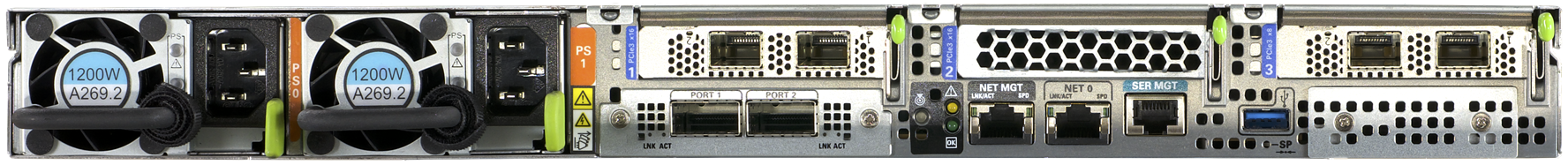

The following image shows a rear view of Oracle Server X9-2. This image shows a server with two dual-port 25 Gb/s network interface cards (in PCI slot 1 and slot3).

Figure 2-8 Rear View of Oracle Server X9-2 Database Servers

Description of Figure 2-8 follows
Description of "Figure 2-8 Rear View of Oracle Server X9-2 Database Servers"
