3.12.12 Oracle Exadata Storage Server X7-2 High Capacity Server Images

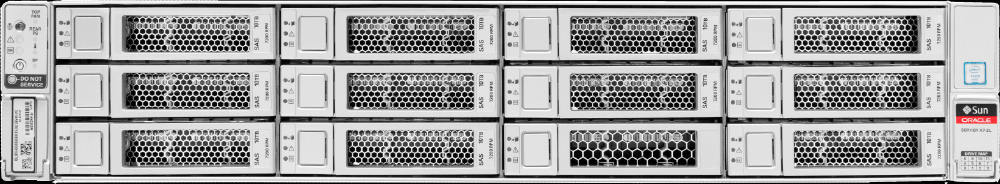

The following figure shows the front view of the Oracle Exadata Storage Server X7-2 High Capacity Server.

Figure 3-23 Front View of Oracle Exadata Storage Server X7-2 High Capacity Server

Description of Figure 3-23 follows
Description of "Figure 3-23 Front View of Oracle Exadata Storage Server X7-2 High Capacity Server "

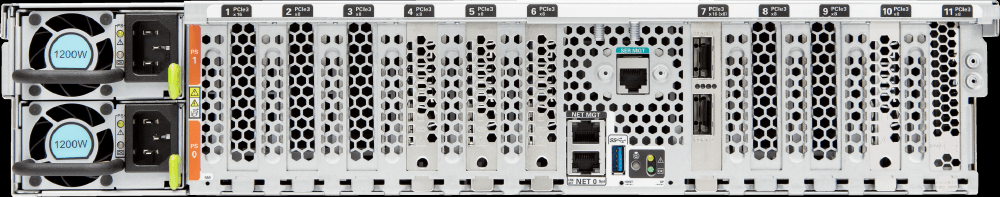

The following figure shows the rear view of the Oracle Exadata Storage Server X7-2 High Capacity Server.

Figure 3-24 Rear View of Oracle Exadata Storage Server X7-2 High Capacity Server

Description of Figure 3-24 follows
Description of "Figure 3-24 Rear View of Oracle Exadata Storage Server X7-2 High Capacity Server"
