3.12.7 Oracle Exadata Storage Server X9M-2 Extreme Flash Server Images

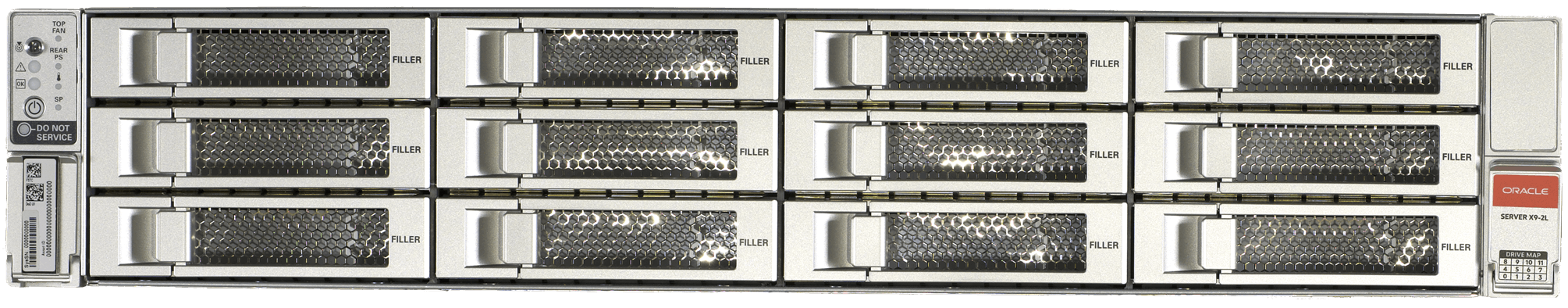

The following figure shows the front view of the Oracle Exadata Storage Server X9M-2 Extreme Flash (EF) servers.

Figure 3-13 Front View of Oracle Exadata Storage Server X9M-2 Extreme Flash Server

Description of Figure 3-13 follows
Description of "Figure 3-13 Front View of Oracle Exadata Storage Server X9M-2 Extreme Flash Server"

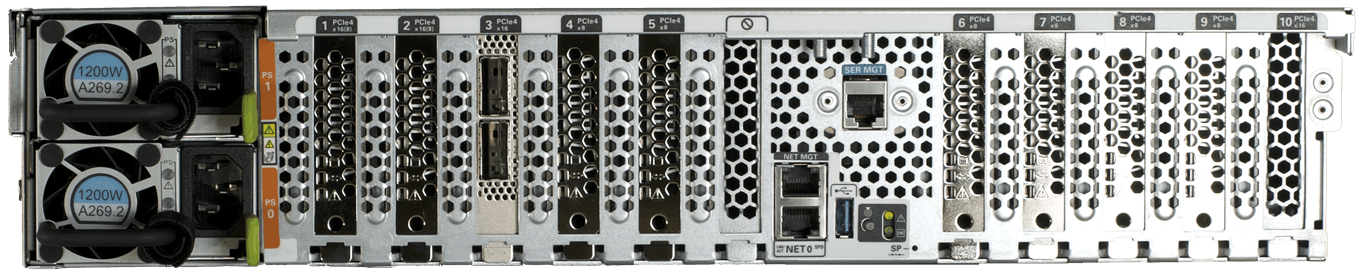

The following figure shows the rear view of the Oracle Exadata Storage Server X9M-2 Extreme Flash servers.

Figure 3-14 Rear View of Oracle Exadata Storage Server X9M-2 Extreme Flash Server

Description of Figure 3-14 follows
Description of "Figure 3-14 Rear View of Oracle Exadata Storage Server X9M-2 Extreme Flash Server"

Parent topic: Exadata Storage Server Images
