Compare Outlines

You can compare two outlines in the Essbase web interface. The outlines must be of the same type, both aggregate storage, or both block storage. They can be on the same Essbase server, or on different Essbase servers.

To demonstrate outline comparison, we'll import two sample applications.
  1. In the Essbase web interface, click Import.
  2. In the Import dialog box, click Catalog.
  3. Go to gallery > Applications > Demo Samples > Block Storage, select Sample_Basic.xlsx and click Select.
  4. Click OK to build the cube.
  5. Repeat steps 1 through 4, this time building Demo_Basic.xlsx.

To open two outlines side-by-side,

  1. On the Applications page, open the Sample application, and then open the Basic database (cube).
  2. Click Launch Outline.
  3. On the outline toolbar, click the To compare outlines icon.
    Image of the Redwood outline toolbar, with "To compare outlines" highlighted.

  4. In the Compare dialog box, keep the (Current) connection and select the Demo application and the Basic database (cube).

    Alternatively, you can select a connection to another server in the Connection drop down menu, and compare two outlines on different servers.

  5. Click Open, and Demo.Basic is opened to the right of Sample.Basic. Demo.Basic is read only. The read only outline is the source outline. The writeable outline is the target outline.

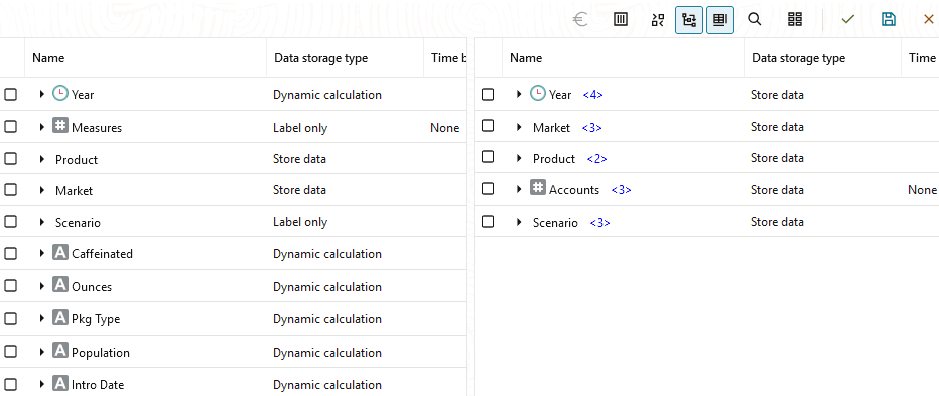

    Image of the Sample Basic and Demo Basic outlines side-by-side using the outline compare feature.

  1. On the Applications page, expand the Sample application, and from the Actions menu to the right of the cube name, choose Outline.
  2. On the outline toolbar, click the To compare outlines icon.
    Image of the outline toolbar, with the compare outlines icon highlighted.

  3. In the Compare outline dialog box, keep the (Current) connection and select the Demo application and the Basic database.

    Alternatively, you can select a connection to another server in the Connection drop down menu, and compare two outlines on different servers.

  4. Click Open, and Demo.Basic is opened to the right of Sample.Basic. Notice that Demo.Basic is read only. The read only outline is the source outline. The writeable outline is the target outline.

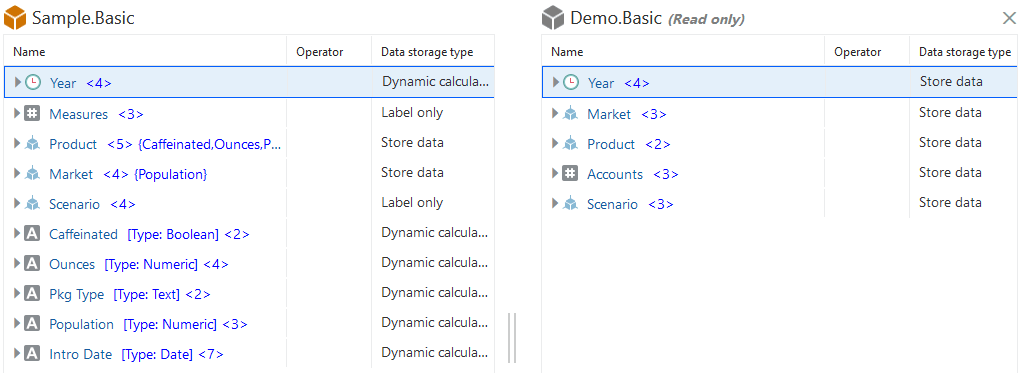

    Image of the Sample.Basic and Demo.Basic outlines shown side by side in the outline editor.

To synchronize expanding and collapsing hierarchies,

  1. Expand the Year dimension in Sample.Basic and notice that the Year dimension in Demo.Basic is expanded as well.
  2. In the outline toolbar, next to Compare, click Auto expand/collapse target membersImage of the auto expand collapse target members outline icon for Redwood. to deselect it (it is selected by default) .
  3. Collapse the Year dimension in Demo.Basic and notice that the Year dimension in Sample.Basic is still expanded. Collapse the Year dimension in Sample.Basic.
  1. Expand the Year dimension in Sample.Basic and notice that the Year dimension in Demo.Basic is expanded as well.
  2. In the outline toolbar, under Compare, click the Auto expand/collapse target members icon to deselect it (it is selected by default) Image of the auto expand icon in the Compare group in the outline toolbar..
  3. Collapse the Year dimension in Demo.Basic and notice that the Year dimension in Sample.Basic is still expanded. Collapse the Year dimension in Sample.Basic.

To synchronize scrolling,

  1. Click Auto expand/collapse target members Image of the auto expand collapse target members outline icon for Redwood. and expand several dimensions so that you need to scroll in order to see the entire outline.
  2. Confirm that in the outline toolbar Enable/disable synchronize scroll Image of the enable/disable synchronize outline scroll icon for Redwood. is selected.
  3. Scroll the Sample.Basic outline and observe that the Demo.Basic outline scrolls in sync with it.
  1. Click the Auto expand/collapse target members icon Image of the auto-expand icon in the Compare group in the outline toolbar.and expand several dimensions so that you need to scroll in order to see the entire outline.
  2. Confirm that in the outline toolbar, under Compare, the Enable/disable synchronize scroll icon is selected Image of the synchronize scroll icon in the Compare group in the outline toolbar..
  3. Scroll the Sample.Basic outline and observe that the Demo.Basic outline scrolls in sync with it.

To synchronize showing and hiding columns,

  1. In the outline toolbar, click Display selected columns in the table.
    Image of the outline toolbar with the display in columns icon highlighted.

  2. In the Selected Columns column, select operator and data storage type and click the left arrow. Notice that the displayed columns in both Sample.Basic and Demo.Basic change accordingly.
  1. In the outline toolbar, under Inspect, click Display selected columns in the table.
    Image of the Display selected columns in the table icon in the Inspect group in the outline toolbar.

  2. In the Select member properties to display dialog box, clear the selections for operator and data storage type and click Apply and Close. Notice that the displayed columns in both Sample.Basic and Demo.Basic change accordingly.
To copy members from the source (compared) outline to the target (writeable) outline,
  1. In the upper right-hand corner of the outline editor, click Edit outline Image of the Redwood edit outline icon. .
  2. In the Demo.Basic outline, expand the Product dimension.
  3. Right click Audio and select Copy.
  4. In the Sample.Basic outline, expand the Product dimension.
  5. Right click Product, and select Paste, and then As child.

    Audio and its children are added as children of Product.

To search either the source (compared) or the target (writeable) outline,
  1. In the outline toolbar, click Search members in the outline Image of the Redwood search members in the outline icon..
  2. Notice that search bars open for both Sample.Basic and Demo.Basic, allowing you to search either one.

    Note:

    The search bar does not open for the target outline when it is from an Essbase version prior to 21c.
