1.3 Interdomain Interoperability
Message exchange and protocol compatibility exist in each of the following interdomain scenarios as shown in the following figure.

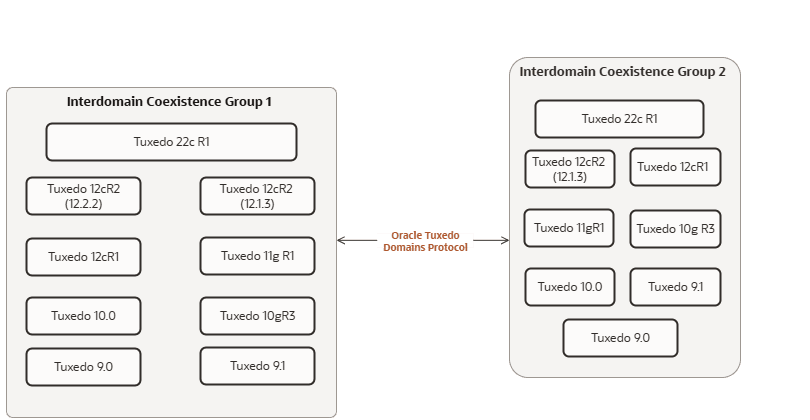

Figure 1-2 Interdomain Scenario 1
In this scenario, an Oracle Tuxedo domain (TDomain) gateway process running on a machine in one domain communicates over a network connection with a TDomain gateway process running on a machine in another domain. The following table lists the supported TDomain gateway processes.
Note:
The LLE is disabled by default and TLSv1.2 by default if SSL is enabled. Refer to What's New and Improved in 22cR1 Release Notes.Table 1-1 Communicating TDomain Gateway Processes
| A TDomain process in any of these releases . . . | Can communicate with a TDomain process in any of these releases . . . | |
|---|---|---|
| Oracle Tuxedo 22c Release 1 | Oracle Tuxedo 22c Release 1 | |
| Oracle Tuxedo 12c Release 2 (12.2.2) | Oracle Tuxedo 12c Release 2 (12.2.2) | |
| Oracle Tuxedo 12c Release 2 (12.1.3) | Oracle Tuxedo 12c Release 2 (12.1.3) | |
| Oracle Tuxedo 12c Release 1 | Oracle Tuxedo 12c Release 1 | |
| Oracle Tuxedo 11gR1 Release 1 | Connection Matrix | Oracle Tuxedo 11g Release 1 (11.1.1.3.0) |
| Oracle Tuxedo 10g Release 3 (10.3) | Oracle Tuxedo 10g Release 3 (10.3) | |
| Oracle Tuxedo 10. 0 | Oracle Tuxedo 10.0 | |
| Oracle Tuxedo 9.1 | Oracle Tuxedo 9.1 | |
| Oracle Tuxedo 9.0 | Oracle Tuxedo 9.0 |
Interdomain capabilities available through a pair of communicating TDomain processes are limited to the capabilities available to the TDomain process running in the earlier Oracle release.
In all of these scenarios, administration, transaction context propagation, and security context propagation between domains is fully supported.
Oracle Tuxedo 22c Release 1 supports interdomain interoperability with Tuxedo 12c Release 2 (12.2.2), Tuxedo 12c Release 2 (12.1.3), 12cR1, 11gR1, 10gR3, 10.0, 9.1, 9.0 CORBA domains. This capability includes the ability to advertise CORBA C++ factories across domain boundaries.
Parent topic: Interoperability and Coexistence
