Oracle Database Project Add Database Reference Dialog

If you right-click on the Database References node in the Oracle Database Project, and select New Database Reference, then the Add Database Reference dialog box launches.

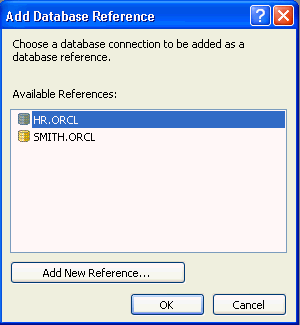

Description of odbproject_add_db_ref.gif follows

Description of the illustration odbproject_add_db_ref.gif

The controls in Oracle Database Project Add Database Reference dialog are as follows:

Control	Description
Available References	Lists connections from Server Explorer which are not included in the Database References node.
Add New Reference	Displays the Add Connection Dialog box so that you can create a new database connection. The newly added connection is listed as the last item in the Available References.
OK	Adds the selected connection and connection information to the Database References node and updates the project file.
Cancel	Closes the dialog.
