Using Oracle Key Vault Trail File Encryption in Oracle GoldenGate

Learn about the benefits of using Oracle Key Vault (OKV) with Oracle GoldenGate Microservices Architecture. Determine the system requirements, processes and parameters available with Oracle GoldenGate for configuring OKV with Oracle GoldenGate.

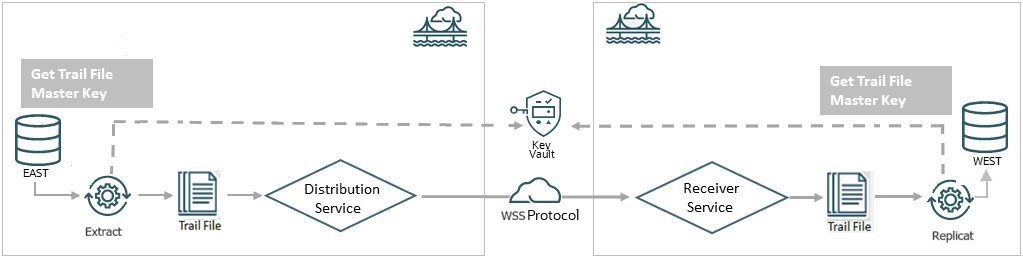

The following diagram explains the Oracle Key Vault set up and workflow in the Oracle GoldenGate environment.
Diagram shows the lifecycle of master encryption keys managed in KMS. Trail file encryption master key is not stored on the disk by Oracle GoldenGate. Distribution Service and Receiver Service connect over secure TLS network using Web Secure Socket (wss) protocol.

As shown in the diagram, you can select the Key Vault (OKV) as the Key Management System while configuring the encryption profile for the deployment in Oracle GoldenGate. This encryption profile is used by the Extract, Replicat processes to store and apply the master keys before transferring trail files using the distribution path and receiving the files on the other end with the RECVPATH process. The Web Secure Socket (wss) protocol is used to validate the connection between the DISTPATH and RECVPATH to eatablish a secure communication channel.

Oracle Key Vault Capabilities

Oracle GoldenGate 26ai and higher releases support Oracle Key Vault 21.8 for trail file encryption. The following table provides the behavior and capabilities of Oracle Key Vault (OKV).

For more information about configuring OKV, see Installing and Configuring Oracle Key Vault .

The following list describes the Oracle Key Vault capabilities:

KMS Type: Keyname and custom attributes for versioning.
Support Tags: Yes
Support Importing of Keys: Yes

Prerequisites for Configuring GoldenGate Encryption Profile Using Oracle Key Vault

Learn the prerequisites for setting up OKV with Oracle GoldenGate.

In this section, the steps to generate the master key have been performed using the command line. Alternatively, you can use the OKV web interface to create the master key for Oracle GoldenGate. If you want to generate the master key from the OKV web interface, follow the steps provided in Create GoldenGate Master Key in the Oracle Key Vault Administrator's Guide.

The following steps are performed on the OKV configuration on the machine where the Oracle GoldenGate instance is running:

Download the okvrestclipackage.zip from the OKV server, where Oracle GoldenGate is deployed as the same system user as the deployment.
Enable the RESTFUL Services using the steps provided in Enabling RESTful Services in Oracle Key Vault Administrator's Guide.
Set the OKV_HOME environment variable.
```
OS> setenv OKV_HOME /u01/app/oracle/OKV
```
The sub-directory structure contains the necessary libraries, binaries, and configuration files for the OKV environment. See Oracle Key Vault Installation and Configuration in the Oracle Key Vault Installation and Upgrade Guide for details about the configuration within the OKV server.
Download and install the endpoint file, okvclient.jar from the OKV server, where Oracle GoldenGate is deployed as the same system user as the deployment. For example,
```
OS> java -jar okvclient.jar -d /u01/app/oracle/OKV
```

Create the key. The name of the wallet is provided by the OKV administrator. The following example show how the key is created:

OS> okv managed-object key create
 [--activation-date activation date]
 [--algorithm algorithm]
 [--custom-attribute custom attribute]
 [--deactivation-date deactivation date]
 [-- extractable extractable]
 [--length length]
 [--mask mask]
 [--name name]
 [--wallet wallet]

ex - okv managed-object key create --algorithm AES --length 256 --mask "ENCRYPT,DECRYPT,TRANSLATE_ENCRYPT,TRANSLATE_DECRYPT,TRANSLATE_WRAP,TRANSLATE_UNWRAP" --wallet wallet1

Alternatively, you can register your own key, as shown in the following example:

OKV> okv managed-object key register
  [--activation-date activation date]
  [--algorithm algorithm]
  [--custom-attribute custom attribute]
  [--deactivation-date deactivation date]
  [--extractable extractable]
  [--length length]
  [--mask mask]
  [--name name]
  --object object
  [--wallet wallet]

ex -  bin/okv managed-object key register --length 256 --activation-date "NOW" --object symkey.txt --algorithm AES --mask "ENCRYPT,DECRYPT,TRANSLATE_ENCRYPT,TRANSLATE_DECRYPT,TRANSLATE_WRAP,TRANSLATE_UNWRAP"
   --wallet wallet1

Activate the key as shown in the following example:
```
OS> okv managed-object object activate --uuid UUID
```
Add the Oracle GoldenGate related key attributes (KeyName, KeyVersion) to the configuration. The key name must match the master keyname in the KMS encryption profile created within Oracle GoldenGate. The key value must match the version number of the masterkey.
```
OS> okv managed-object custom-attribute add --custom-attribute custom attribute --uuid uuid

ex - okv managed-object custom-attribute add --custom-attribute '[ { "name": "x-OGG-KeyName", "value" : "OGG_Masterkey", "type" : "text" },{ "name": "x-OGG-KeyVersion", "value" : "1", "type" : "text"} ] '
```

Use okvutil to list the configuration setting and check the endpoint status. As shown in the following example:

OS>okvutil list -v 4

The output of this command shows the configuration settings and endpoint status:

okvutil version 21.12.0.0.0
Endpoint type: Oracle Database
Configuration file: u01/app/oracle/OKV/conf/okvclient.ora
Server: 100.70.1.1:5696
Standby Servers:
Auto-login wallet found, no password needed
Trying to connect to 100.70.1.1:5696 ...
Connected to 100.70.1.1:5696.
Unique ID                               Type            Identifier
8BC11E57-5269-403D-9B69-A66641ADAFC7   Symmetric          Key	-

The next steps are managed within Oracle GoldenGate and are shown as an implementation from the Admin Client.

Client Behavior Against Different Key States for Oracle Key Vault

Following table describes the relative behavior of the of the writer (Extract) or reader (Replicat) client processes depending on the different trail encryption key states.

If the master key is non-extractable, then it implies that OKV cryptographic operations are using remote encryption. This means that the master key cannot leave or be retrieved from OKV. Commands to encrypt and decrypt in Oracle GoldenGate on the basis of once per trail file, are performed inside OKV.

A key can be in the following states:

Key State	Trail Writer (encryption)	Trail Reader (decryption)
Active	Trail writer chooses the highest version number with Active state for encryption.	Trail reader can use this key and version number to decrypt the trail.
Preactive	Trail writer ignores and does not consider the key version number with these states.	Not Applicable
Deactivated	None	Trail file reader retrieves and decrypts the trail if the key and version number is deactivated or compromised.
Compromised	None	Trail file reader retrieves and decrypts the trail if the key and version number is deactivated or compromised.
Destroyed	Non	Trail file reader generates an error and abends if the key and version number required to decrypt is in the destroyed or destroyed-compromised state.
Destroyed-Compromised	None	Trail file reader raises an error and abends if the key and version number required to decrypt is in the destroyed or destroyed-compromised state.

Apply the OKV Encryption Profile

Oracle GoldenGate Administration Service provides options to set up encryption profiles for Extract and Replicat processes.

Use the following steps to create an encryption profile using Oracle Key Vault (OKV):

Before you set up OKV, you need to perform a client installation. See Step 1: Configure the Oracle Key Vault Server Environment in the Oracle Key Vault Administrator's Guide.
From the Administration Service left-navigation pane, click Encryption. The Encryption Profiles page is dispalyed.

Click the plus sign + next to OKV and specify the following details for the OKV configuration:

Option	Description
Profile Name	Name of the encryption profile
Description	Describe the encryption profile.
Default Profile	If you want to make this profile the default, then enable this option.
Encryption Profile Type	Select Oracle Key Vault (OKV).
KMS Library Path	Specify the directory location where Oracle Key Vault is installed. In the web interface, this is called the KMS Library path but in Admin Client, this is the Oracle Key Vault path.
Oracle Key Vault Version
Masterkey Name	Specify the name of the master key.
Time-to-Live	Time to live (TTL) for the key retrieved by Extract from Oracle Key Vault. When encrypting the next trail, Extract checks if TTL has expired. In case the key has expired, it retrieves the latest version of the master key. The default is 24 hours.

Also see the following tutorial for reference: Manage Encryption in Oracle GoldenGate Microservices with Oracle Key Vault
