Using the Plugin Service for Trail File Encryption

Learn about the prerequisites, requirements, and steps to configure a third-party plugin service for encryption and create an encryption profile in Oracle GoldenGate to allow trail file encryption using the configured plugin.

Note:

The Plugin Service is only available on the Linux platform.

Setup Plugin Service and Build the Plugin

To set up and build the encryption profile plugin service, perform the following steps on the cURL prompt:
  1. Enable the Plugin Service in the Service Manager:
    OGG_ADMIN_PASSWORD="oggadmin-A1"
curl -svu "oggadmin:${OGG_ADMIN_PASSWORD}" http://127.0.0.1:9011/services/v2/deployments/ServiceManager/services/pluginsrvr \-XPOST --data '{"$schema":"ogg:service", "config":"external", "enabled":true, "critical":true, "status":"running"}'
  2. Build an encryption plugin using the Encryption-Minimal plugin:
    cd $OGG_HOME/src/PluginExamples/Encryption-Minimal
  3. Add variable names in Encryption-Minimal.c. Replace getManifest() function as shown in the following syntax:
    const char *  getManifest()
{  return "{ \"$schema\": \"ogg:plugin\", \"version\": \"23.7\", \"variables\": [ \"GOOGLE_APPLICATION_CREDENTIALS\", \"KMS_KEY_ID\", \"SECRET_MANAGER_SECRET_NAME\", \"CRYPTOGRAPHIC_ENDPOINT\", \"ENCRYPTION_KEY\" ] }"; }

    The variables being added in this step store the necessary information on how to access third-party tools. They will show up in the later steps, when the template for this plugin needs to be created.

    It is mandatory to configure the encrypt and decrypt functions, for your chosen third-party encryption/decryption endpoint to invoke any third-party encryption/decryption tools.

  4. Build Encryption-Minimal plugin:
    make && cp libEncryption-Minimal.so <OGG_deployment_home>/ServiceManager/var/lib/plugins/libEncryption-OCIVault.so

    Note:

    The name of the Plugin library file that was copied to the Service Manager's var/lib/plugins directory, shows up in the Service Manager web interface as the Plugin Name for the template creation.

Create Plugin Template in the Service Manager

Log in to the Service Manager and perform the following steps to create the plugin template for encryption profile:

  1. Go to Deployments, select the deployment name, and click Plugins.

    If the plugin name is not visible under the Plugin Profiles table, click the Refresh button. The Service Manager scans all the library files under SM_HOME/var/lib/plugins and refreshes the list.

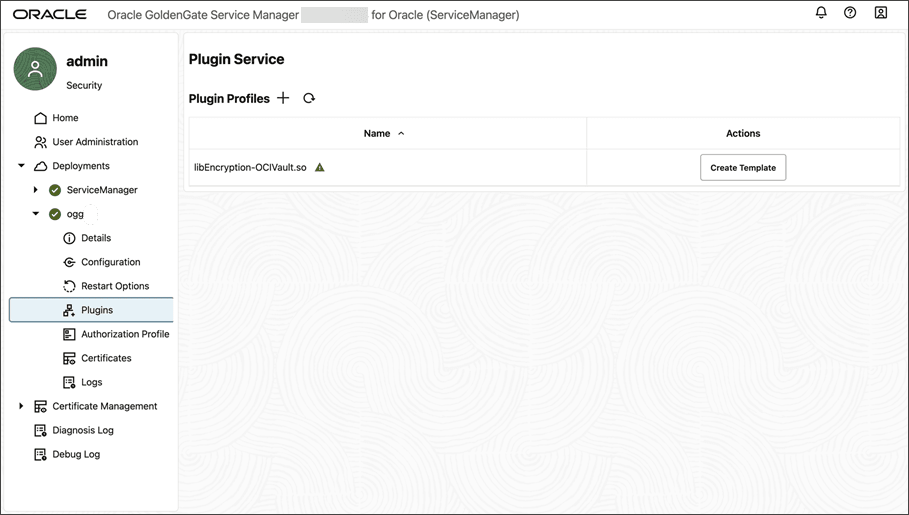

    Service Manager plugin profile for encryption profile is disabled.

  2. Create a template for any available Plugin (if template is not created):

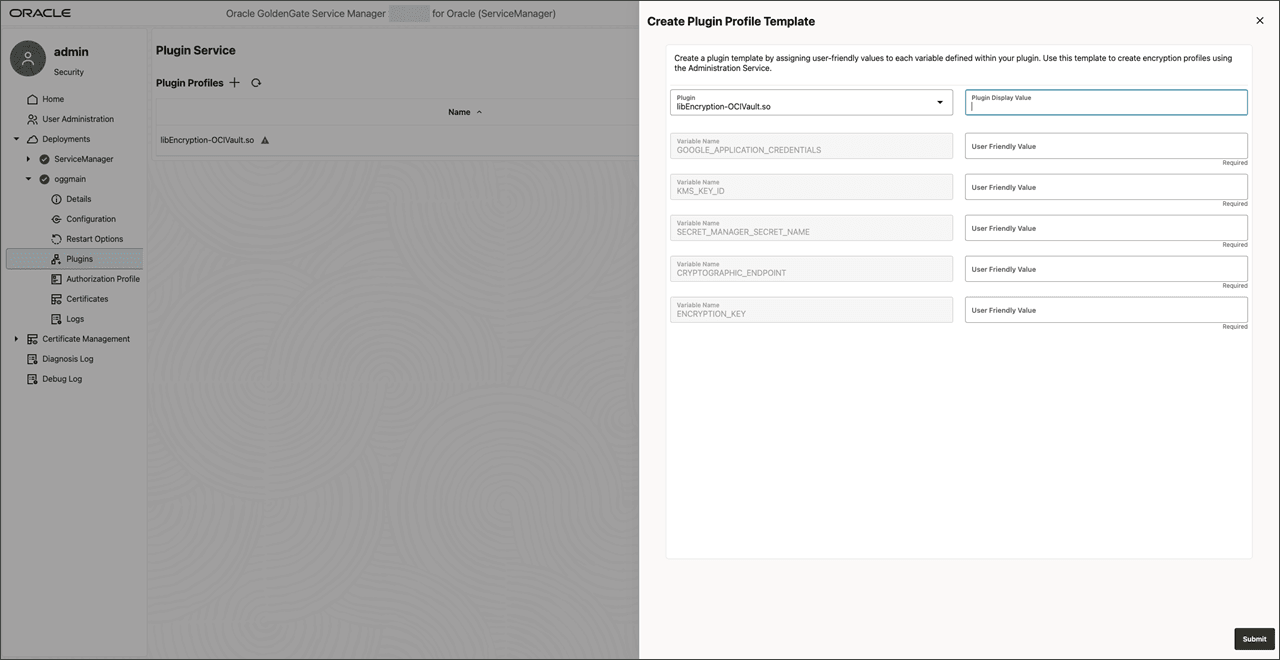

    Enter appropriate values for each variable and submit.

After the plugin template is created, it's displayed on the Plugin Service page with a green check mark.

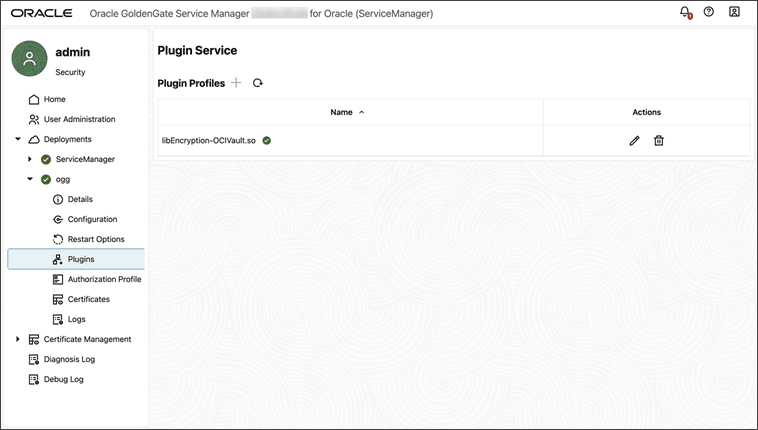

Plugin template created with green check mark.

Create the Plugin Encryption Profile from the Administration Service

Go to the Administration Service page to create the encryption profile and apply it to the specific Extract, Replicat, or Distribution Path process:

  1. Go to the Encryption, Profiles page. A new table for the Plugin Template is available, with column names matching the names defined for each variable in the Service Manager.

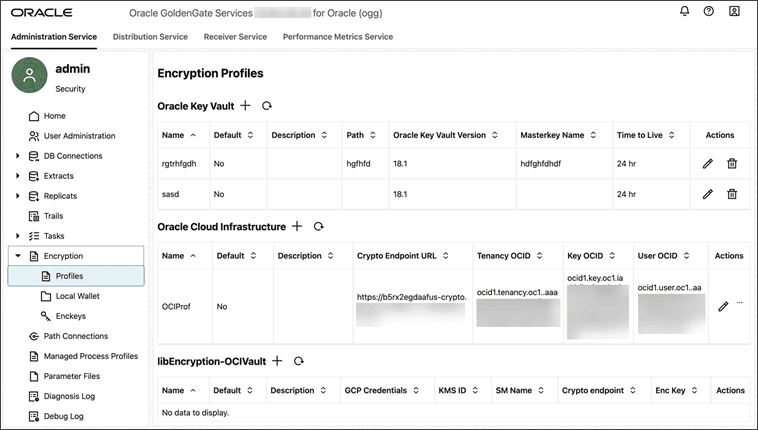

    Encryption profile Plugin template displayed on the Encryption Profiles page.

  2. Add an encryption profile, enter values, and click Submit.

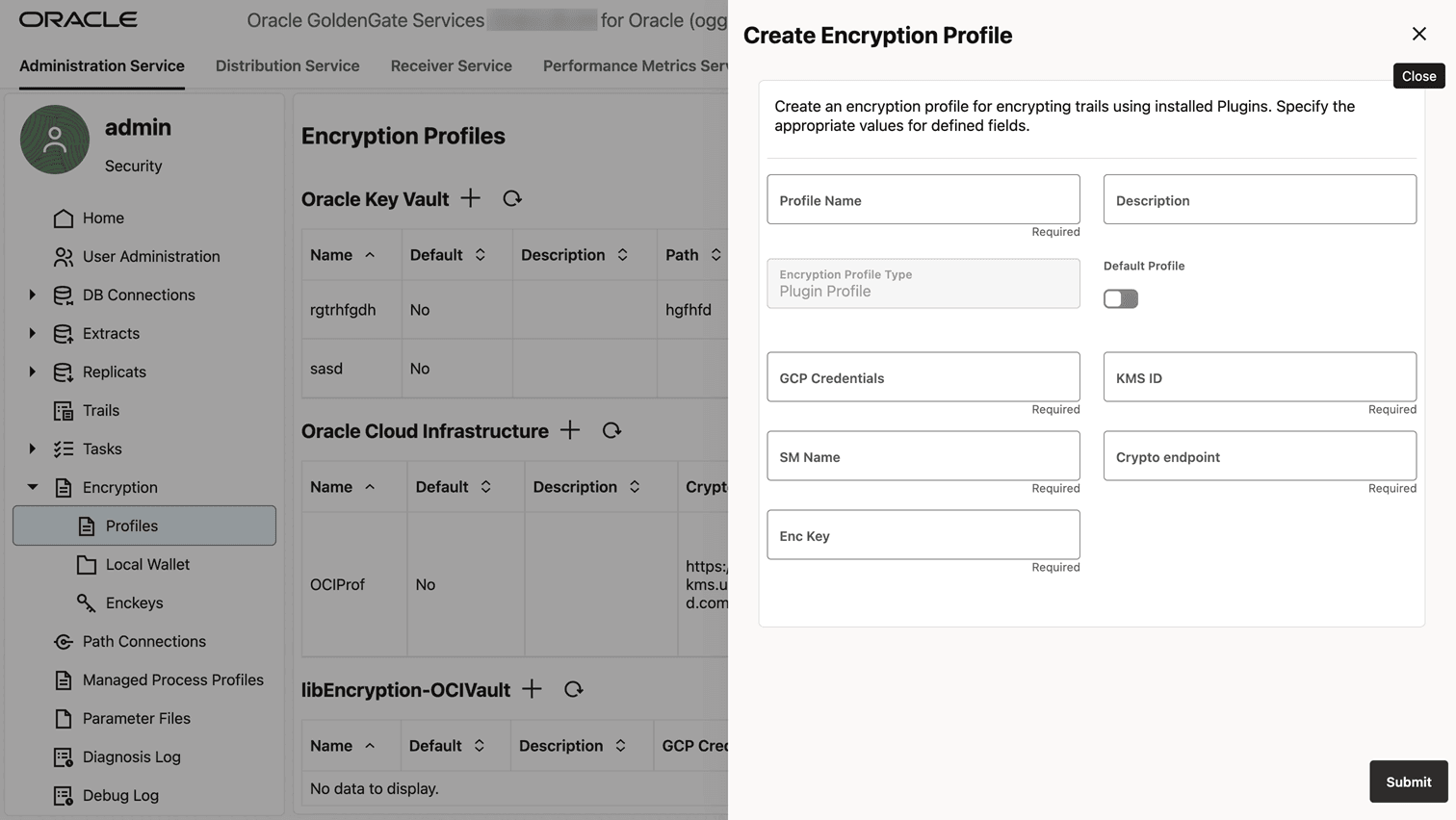

    Creating encryption profile with the encryption profile plugin in the Administration Service.

  3. Create Extract, Replicat, Distribution Path and select the encryption profile plugin service as your encryption profile.

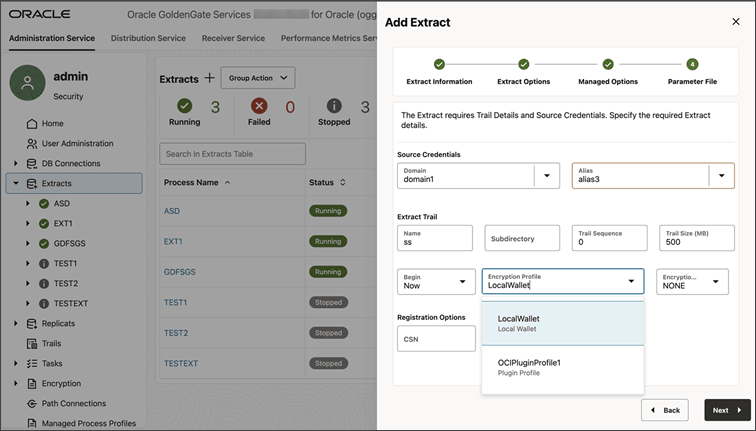

    Adding Extract with encryption profile plugin
