10.1 Introduction to Workflows

A workflow is made up of multiple steps organized in a sequence in which they must be executed. You can add data flows, workflows, SQL queries, data loads, as well as variables as steps within a workflow.

When you execute a workflow, a step either succeeds or fails. Depending on whether the a step succeeds or fails, you can choose the next step that must be executed. To run your transformations, you can create non-dependency-based workflows in sequential mode and dependency-based workflows in parallel mode. The following table shows the differences between both workflow types:

Sequential Workflows Parallel Workflows

Non-dependency-based workflow.

Dependency-based workflow.

You must define a node as the first step.

All nodes that have no dependencies will start executing in parallel.

Nodes are processed in serial order. For example,

Node 1 → Node 2 → Node 3 → Node 4

Nodes can execute in parallel. For example,


Node 1
         \
Node 2  -- Node 4
         /
Node 3

Only single outgoing ok, nok, ok/nok edge is allowed.

A node can have multiple outgoing and multiple incoming ok or nok or ok/nok edges.

ok/nok in combination with either ok or nok edges is not allowed.

A node cannot simultaneously have multiple converging ok, nok edges.

You can have closed loops.

Node A → Node B → Node C → Node A

You cannot have closed loops.

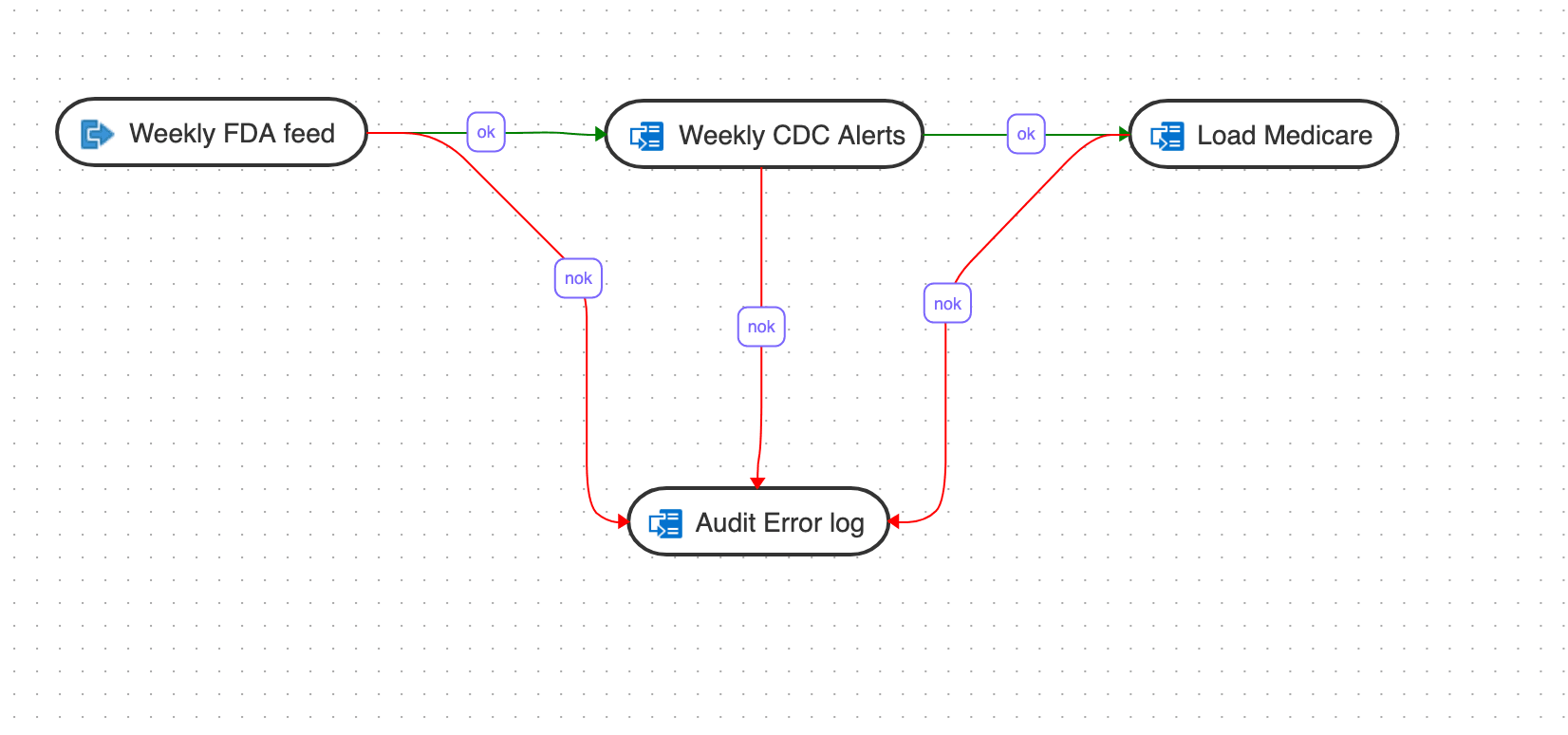

Here is an example of a sequential workflow:

Description of introduction-workflows.png follows
Description of the illustration introduction-workflows.png

In this example, the workflow performs the following actions:

  1. Execute the "Weekly FDA feed" data flow.
  2. If the "Weekly FDA feed" data flow execution is successful, execute the "Weekly CDC alerts" data flow.
  3. If the "Weekly CDC alerts" data flow execution is successful, execute the "Load Medicare" data flow.
  4. If any of the above data flow fails, then execute the "Audit_error_log" data flow.
