Use Multifactor Authentication with Autonomous AI Database

Multifactor Authentication (MFA) is a method of authentication that requires the use of more than one factor to verify a user’s identity to gain access to a resource.

About Multifactor Authentication

Autonomous AI Database supports Multifactor Authentication (MFA) to enhance access security by requiring an additional verification step beyond the user password. You can enable MFA for database logins, for executing protected SQL statements, or for both.

With MFA enabled, when you connect to your database, you provide your username and password, which is the first factor - something that you know or can memorize. You are then required to provide a second verification code from a registered MFA device, which is the second factor - something that you have. The two factors work together to add an additional layer of security by using either additional information or a second device to verify your identity and complete the sign in process.

Autonomous AI Database enhances security by integrating MFA into the authentication and SQL execution lifecycle. This approach helps reduce the risk of unauthorized access and limits the impact of compromised credentials by ensuring that only authenticated, verified users can connect and execute SQL operations. By enforcing token or push notification based MFA for both sign-in and SQL workflows, Autonomous AI Database strengthens protection against credential theft, malicious activity, and potential data exposure.

MFA is enabled on your Autonomous AI Database through the DBMS_MFA_* packages, which allow layered verification methods to be used during authentication. This includes a primary credential, such as a username and password, combined with a second authentication factor, such as a one-time passcode (OTP) or verification through a mobile authenticator application. This ensures that only authorized and verified identities can access the database and perform SQL operations.

Autonomous AI Database supports two MFA enforcement options, allowing you to choose the level of protection based on your security needs:

Key benefits of using MFA with Autonomous AI Database

The following are key concepts used in MFA:

Multifactor Authentication Types in Autonomous AI Database

Describes the available MFA options in Autonomous AI Database and how each applies to database access, either during login or when running protected SQL statements.

Login-Time MFA

Login-time MFA in Autonomous AI Database can only be implemented using secure push notifications delivered to user’s registered mobile device through the Oracle Mobile Authenticator (OMA) or Cisco Duo Mobile app. Alternative methods, such as email or Slack, are not supported for this workflow. This ensures that only users possessing both valid credentials and the authorized mobile device can access the database, providing robust protection against credential theft and supporting regulatory compliance for MFA.

When you attempt to register an existing database user for login-time MFA, Oracle sends a one-time enrollment email to the user’s email address. The enrollment content depends on the selected authenticator: OMA emails include an enrollment link and QR code to enroll the user’s device in the OMA app, while DUO emails provide the enrollment link and instructions to complete device registration. The user must install the appropriate authenticator app and complete registration by either clicking the link or scanning the QR code in the app. Email is sent in a fixed format in English only, and customization to the email is not allowed.

After successful device registration, the user can log in to the database using their password as the primary authentication factor. Once the password is validated, the database server sends a push notification to the registered app. If the user accepts the push notification, the authentication process is completed and the login session is successfully established.

SQL Access Token

SQL Access Token type authentication in Autonomous AI Database is an MFA method that requires users to verify their identity using both their credentials and a second factor, either a one-time SQL Access Token or a push notification, before they can run SQL statements. After logging in with a username and password, the user must request a one-time passcode or push notification, which is delivered through an authenticator app, email, or Slack, to authenticate the session and allow the running of protected SQL statements. SQL Access Token MFA strengthens database security by ensuring that sensitive SQL statements can only be run by users who possess both the correct credentials and the verified second factor, reducing the risk of unauthorized access and supporting compliance requirements.

After you connect to Autonomous AI Database using your standard authentication method, such as a local database username/password or an external identity provider including OCI IAM, Azure Entra, or Kerberos, the following describes the SQL Access Token MFA authorization flow.

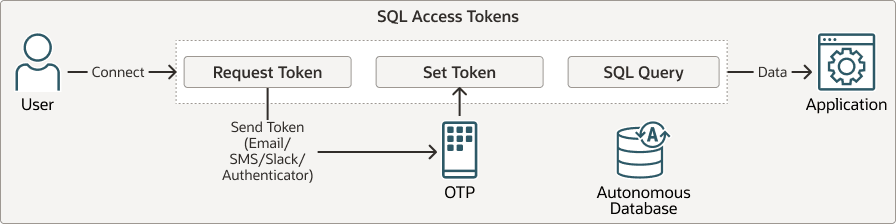

Description of autonomous-sqlaccesstoken-workflow.png follows

Description of the illustration autonomous-sqlaccesstoken-workflow.png

  1. Request a SQL Access Token

    After your session is established, request a SQL Access Token in order to enable SQL operations.

  2. Receive the OTP or Push notification

    Oracle generates an OTP only when you select an OTP-based delivery channel, email or Slack. These OTPs are time-limited and must be retrieved from the selected channel before they expire. For app-based authentication, Oracle Mobile Authenticator (OMA) and Cisco Duo are supported authenticator apps. They use push notifications as the second factor rather than generating OTPs. As a result, for SQL Access Token MFA, OTPs are delivered only through email or Slack, while OMA and Duo provide approval using push notifications.

  3. Authenticate the session

    Enter the OTP you received to verify your identity and activate the SQL session. This step is only required for email or Slack OTP authentication and is not needed when using app-based authentication, which uses a push notification instead.

  4. Run SQL statements

    After the token is verified, you can run SQL statements on the database as allowed.

Note: You can register a user for both login-time MFA and SQL Access Token MFA. With this setup, the user must complete MFA when logging in, approving a push notification on their mobile device, and also verify a SQL access token through their chosen delivery channel before running SQL statements.

Prerequisites

Lists the prerequisites for enabling MFA on your Autonomous AI Database.

Depending on the selected MFA type, perform the necessary setup steps:

Configure MFA for Autonomous AI Database

Describes how to set up MFA for your Autonomous AI Database, including setting up required credentials, configuring notification channels, registering users for LOGON MFA or SQL Access MFA, and managing SQL access tokens.

Configure Notification Channels for MFA

Describes how to configure notification channels for MFA, such as Email, Slack, and Oracle Mobile Authenticator (OMA), for delivering OTPs or push notifications.

A notification channel is the mechanism used to deliver MFA challenges to users, such as push approvals or OTPs, in both login-time (LOGON) MFA and SQL Access Token MFA flows. Supported channels include email, SMS, Slack, and authenticator applications, and each channel requires specific configuration attributes, for example, SMTP details for email delivery or a Slack workspace configuration for Slack, to ensure messages are delivered securely and reliably to the intended user.

Before configuring notification channels, ensure you have set up the required credentials for the channels you plan to use. Note that some channels apply only to LOGON MFA, for example, OMA and Duo, while others apply only to SQL Access Token MFA, for example, OMA, Duo, Slack and email, so configure only what you need for your chosen MFA flow.

The following table summarizes the available MFA notification channels and shows which MFA type each channel supports (MFA Logon and/or SQL Access Token MFA), along with the corresponding notification method (OTP delivery or push-approval).

Notification channel MFA Logon SQL Access Token MFA Notification Method
Email Yes (MFA enrollment emails only) Yes

SQL Access Token: OTP delivered by email.

Logon: not supported as a second factor, email sent only for enrollment notifications.
Slack No Yes OTP delivered through Slack.
Oracle Mobile Authenticator (OMA) Yes Yes Push notification approval. No OTP generated.
Cisco Duo Yes Yes Push notification through Duo.

Use the DBMS_MFA_ADMIN.CONFIGURE_NOTIFICATION procedure to define the notification channels used to deliver MFA messages (for example, SQL Access Token challenges). In this procedure, you specify the channel type, such as email, Slack, or an authenticator and provide the required channel-specific attributes or credential references needed for secure and reliable delivery. Because each channel has different requirements, the attribute values you supply depend on the channel you configure; see the following examples for the expected inputs per channel.

Email Notification

Configure the email credential object and SMTP notification settings so Oracle can send MFA related emails. This is required for MFA logon setup (OMA and Duo), including device registration emails; without it, users will not receive required registration notifications. Email is not a supported second factor for MFA logon-email OTP delivery is supported only for SQL Access Token MFA.

To configure a custom email provider for sending MFA Access Tokens, you need to create an email provider credential in the database using the DBMS_CLOUD.CREATE_CREDENTIAL procedure. For example:

BEGIN
   DBMS_CLOUD.CREATE_CREDENTIAL(
       credential_name => 'EMAIL_CRED_01',
       username        => '<username>',
       password        => '<password>'
   );
END;
/

This sets up the necessary credentials to enable communication between the Autonomous AI Database and your custom email provider.

Grant the database permission to connect to your SMTP host for sending emails by updating the Access Control List (ACL). For example:

BEGIN
  DBMS_NETWORK_ACL_ADMIN.APPEND_HOST_ACE(
    host        => 'smtp.email.us-ashburn-1.oci.oraclecloud.com',
    lower_port  => 587,
    upper_port  => 587,
    ace         => xs$ace_type(
                     privilege_list  => xs$name_list('SMTP'),
                     principal_name  => 'ADMIN',
                     principal_type  => xs_acl.ptype_db
                   )
  );
END;
/

This allows you to connect to the SMTP host on port 587 for sending emails.

Define the settings for the email channel to deliver MFA Access Tokens using the credentials you created. For example:

BEGIN
  DBMS_MFA_ADMIN.CONFIGURE_NOTIFICATION(
    notification_type => 'EMAIL',
    attributes       => JSON_OBJECT(
      'credential_name'                 VALUE 'EMAIL_CRED_01',
      'smtp_host'                       VALUE 'smtp.email.us-ashburn-1.oci.oraclecloud.com',
      'smtp_port'                       VALUE 465,
      'sender'                          VALUE 'mfa_alerts@example.com',
      'sender_email_display_name'       VALUE 'DB MFA ALERTS'
    )
  );
END;
/

This configures the email notification settings for MFA token delivery, linking the email channel to your custom credentials and enabling the database to send one-time passcodes via email; note that MFA token delivery by email is available only for SQL Access.

Slack Notification

Create a credential to securely store authentication details for your Slack integration. For example:

BEGIN
  DBMS_CLOUD.CREATE_CREDENTIAL(
    credential_name => 'SLACK_CRED',
    username        => '<username>',
    password        => '<password>'
  );
END;
/

This registers the credentials required to authenticate with your Slack integration.

Allow the database to connect to Slack’s API endpoint by updating the Access Control List (ACL) for outbound HTTPS calls. For example:

BEGIN
  DBMS_NETWORK_ACL_ADMIN.APPEND_HOST_ACE (
    host           => 'slack.com',
    lower_port     => 443,
    upper_port     => 443,
    ace            => xs$ace_type(
                        privilege_list  => xs$name_list('http'),
                        principal_name  => 'ADMIN',
                        principal_type  => xs_acl.ptype_db
                      )
  );
END;
/

This permits you to connect to Slack over HTTPS (port 443) for sending notifications.

Configure the Slack channel for MFA token delivery by referencing the credential you created. For example:

BEGIN
  DBMS_MFA_ADMIN.CONFIGURE_NOTIFICATION(
    notification_type => 'SLACK',
    attributes        => JSON_OBJECT(
      'credential_name' VALUE 'SLACK_CRED'
    )
  );
END;
/

This links your Slack credential to the notification channel, enabling MFA token delivery using Slack.

Oracle Mobile Authenticator (OMA) Notification

Create a credential to securely store the OMA client ID and client secret. For example:

BEGIN
  DBMS_CLOUD.CREATE_CREDENTIAL(
    credential_name => 'OMA_CRED',
    username        => '<username>',
    password        => '<password>'
  );
END;
/

This registers your OMA application’s client credentials in the database.

Define the OMA notification channel and associate it with the credential and OMA API endpoint you created. For example:

BEGIN
  DBMS_MFA_ADMIN.CONFIGURE_NOTIFICATION(
    notification_type => 'OMA',
    attributes        => JSON_OBJECT(
      'credential_name' VALUE 'OMA_CRED',
      'api_endpoint'    VALUE 'https://idcs-c*****************60.identity.oraclecloud.com'
    )
  );
END;
/

This step configures the database to deliver MFA tokens using Oracle Mobile Authenticator through your specified endpoint.

Cisco DUO Notification

Create a credential to securely store the DUO integration key and secret key. For example:

BEGIN
  DBMS_CLOUD.CREATE_CREDENTIAL(
    credential_name => 'DUO_CRED',
    username        => '<username>',
    password        => '<password>'
  );
END;
/

This registers your DUO application’s integration key and secret key as a credential in the database.

Set up the DUO notification channel by associating it with the created credential and specifying the DUO API endpoint.

BEGIN
  DBMS_MFA_ADMIN.CONFIGURE_NOTIFICATION(
    notification_type => 'DUO',
    attributes        => JSON_OBJECT(
      'credential_name' VALUE 'DUO_CRED',
      'api_endpoint'    VALUE 'api-855fd6a0.duosecurity.com'
    )
  );
END;
/

This configures the database to deliver MFA tokens via DUO using your provided application credentials and API endpoint.

See the following for more information:

Register a User

Shows the steps to register a database user for MFA.

After configuring the notification channel, the next step is to register an existing database user for MFA. When registering, set the MFA type to either Login-Time MFA or SQL Access Token MFA. You can optionally specify the notification channel; if not provided, email is used by default. However, for logon-type MFA, you must specify either OMA or Duo as the channel.

Use DBMS_MFA_ADMIN.REGISTER_USER to register an existing database user for MFA. When you register the user, set the MFA authentication type to specify which flow to enable:

See DBMS_MFA_ADMIN.REGISTER_USER for reference.

Example to register the existing database user SCOTT for log-in time MFA using OMA as the notification channel

BEGIN
  DBMS_MFA_ADMIN.REGISTER_USER(
    username   => 'SCOTT',
    type       => 'LOGON',
    email      => 'scott@example.com',
    attributes => JSON_OBJECT(
                          'auth_method' VALUE 'oma_push')
  );
END;
/

In this example, if SCOTT is already enrolled with the authenticator, no new enrollment email is sent. If SCOTT isn’t enrolled yet, this example starts MFA enrollment by sending a one-time email to scott@example.com with an enrollment link and QR code for Oracle Mobile Authenticator (OMA).

SCOTT installs the OMA app and completes device enrollment using the link or QR code. After enrollment, SCOTT logs in with a password and then approves the OMA push notification to complete the LOGON MFA authentication.

Example to register the existing database user SCOTT for log-in time MFA using Duo as the notification channel

BEGIN
  DBMS_MFA_ADMIN.REGISTER_USER(
    username   => 'SCOTT',
    type       => 'LOGON',
    email      => 'scott@example.com',
    attributes => JSON_OBJECT(
                    'auth_method' VALUE 'duo_push')
  );
END;
/

In this example, if SCOTT is already enrolled with the authenticator, no new enrollment email is sent. If SCOTT isn’t enrolled yet, this example starts MFA enrollment by sending a one-time email to the specified address with an enrollment link.

SCOTT installs the Cisco Duo app and completes device enrollment using the link. After enrollment, SCOTT logs in with a password and then approves the Duo push notification to complete the login with two-factor authentication.

Note: For log-in time MFA (LOGON), auth_method is the only supported attribute.

Example to register SCOTT for SQL Access Token MFA using Slack as the notification channel

BEGIN
  DBMS_MFA_ADMIN.REGISTER_USER(
    username   => 'SCOTT',
    type       => 'SQL ACCESS',
    email      => 'scott@example.com',
    attributes => JSON_OBJECT(
      'duration_min'   VALUE 720,
      'read_only'      VALUE TRUE,
      'roles'          VALUE JSON_ARRAY('DEVELOPER_ROLE', 'INFRA_ROLE'),
      'scope'          VALUE 'SESSION',
      'slack_member_id' VALUE '<slack_member_id>'
    )
  );
END;
/

This example registers the user SCOTT with SQL Access MFA. It sets the token duration to 720 minutes, grants read-only access, associates specific roles, defines the token scope as session-based, specifies a Slack member ID for notifications.

Note: read_only is applicable only when scope is set to SESSION. If scope is not SESSION, the read_only attribute is not supported.

Example to register SCOTT for SQL Access Token MFA using OMA as the notification channel

BEGIN
  DBMS_MFA_ADMIN.REGISTER_USER(
    username   => 'scott',
    type       => 'SQL ACCESS',
    email      => 'scott@example.com',
    attributes => JSON_OBJECT(
      'scope'            VALUE 'USER',
      'duration_min'     VALUE 5,
      'idle_timeout_min' VALUE 2,
      'auth_method'      VALUE 'OMA_PUSH')
  );
END;
/

This example registers user SCOTT for SQL Access Token MFA. It also configures the token to be short-lived which is valid for 5 minutes and expires after 2 minutes of inactivity and requires approval using an OMA push notification.

Note: You can register the same user for both Logon MFA and SQL Access Token MFA by registering them separately with same email addresses. This approach allows the user to use multiple MFA types as needed.

Validate Session for SQL Access Token Authentication

Shows the steps to validate a session for SQL Access Token authentication.

To run SQL statements in a session protected by SQL Access Token authentication, you must validate your session using a one-time passcode delivered through your configured notification channel, and the user must have the required privilege on DBMS_MFA.

To validate the session:

  1. Log in to the database with your standard credentials.

    CONNECT scott/<password>@<adbs_connect_string>;

  2. Attempt to run a SQL statement

    SELECT COUNT(*) FROM SCOTT.EMP;

    If SQL Access Token validation is pending, you will encounter an error such as, ORA-64660: Token Authorization is not complete for the user or the session.

  3. Initialize the session and request a SQL Access Token. Depending on your configured notification channel, this process will send you either a one-time passcode (OTP) or a push notification.

    BEGIN
DBMS_MFA.INITIALIZE_SESSION(
  email => 'scott_alert@example.com'
);
END;
/

    See INITIALIZE_SESSION Procedure for more information.

  4. Set the token in the session. This step is not required if the user is registered to use an authenticator app for MFA; in this case, the user receives a push notification and simply approves the authentication request.

    BEGIN
  DBMS_MFA.SET_TOKEN(
    token => '98475683'
  );
END;
/

    See SET_TOKEN Procedure.

  5. After the token is validated, you can run SQL statements as permitted.

    SELECT COUNT(*) FROM SCOTT.EMP;
    Count
_________
15

Manage MFA Users and Token Attributes

This section explains how to manage users enrolled in MFA, including how to deregister users when they no longer require MFA access, and how to configure or update Token attributes.

Set Token Attributes

This section explains how to configure MFA token behavior, such as scope, validity duration, idle timeout, delivery method, and access restrictions, using global defaults (SQL Access Tokens only) and per-user overrides (for both logon and SQL Access Tokens).

Token attributes control how SQL Access Tokens behave, including token scope, validity duration, idle timeout, delivery method, and access restrictions. These attributes can be configured at two levels: globally or per user.

Using both global and user-level token attributes helps balance centralized security enforcement with the flexibility to meet individual access needs.

Set global SQL Access Token attributes

Use the DBMS_MFA_ADMIN.SET_GLOBAL_TOKEN_ATTRIBUTES procedure to configure global default SQL Access Token attributes. This procedure sets a global set of token attribute values (provided as JSON) that the database applies automatically whenever a SQL Access Token is issued for users registered for SQL Access Token MFA. You can also set user-specific token attributes to override these global defaults when needed.

BEGIN
  DBMS_MFA_ADMIN.SET_GLOBAL_TOKEN_ATTRIBUTES(
    attributes => '{
      "duration_min": 60,
      "scope": "session",
      "idle_timeout_min": 15,
      "read_only": false
    }'
  );
END;
/

This sets global token attributes for all users registered for SQL Access Token MFA, such as token duration, scope, idle timeout, and read-only access. These global attributes serve as default settings and are automatically applied to every user enabled for SQL Access Token MFA, unless user-specific attributes are defined to override them.

See SET_GLOBAL_TOKEN_ATTRIBUTES Procedure for more information.

Set token attributes for both logon and SQL Access Token

Use the DBMS_MFA_ADMIN.SET_ATTRIBUTES and DBMS_MFA_ADMIN.SET_ATTRIBUTE procedures to set token attributes for a specific user. These user-level settings apply to the specified MFA type (for example, LOGON or SQL ACCESS TOKEN) and override any applicable defaults.

Example 5-1 Use DBMS_MFA_ADMIN.SET_ATTRIBUTES to set one or more token attributes for a specified user

Provide the user name, the MFA type, and a JSON attributes object containing the attribute names and values. The specified settings are applied for that user and override any applicable defaults.

BEGIN
  DBMS_MFA_ADMIN.SET_ATTRIBUTES (
    username   => 'SCOTT3',
    type       => 'SQL ACCESS',
    attributes => JSON_OBJECT(
      'duration_min'     VALUE 30,
      'email'            VALUE 'scott3_alerts@example.com',
      'scope'            VALUE 'session',
      'idle_timeout_min' VALUE 20
    )
  );
END;
/

This example configures user-specific SQL Access Token attributes for SCOTT3, setting a 30-minute token duration, a 20-minute idle timeout, session scope, and the email address used for token delivery, overriding any global defaults.

See SET_ATTRIBUTES Procedure for more information.

Example 5-2 Use DBMS_MFA_ADMIN.SET_ATTRIBUTE to set a single token attribute for a specified user

Provide the user name, the MFA type, email ID, attribute name, and the attribute value. The setting is applied for that user and overrides any applicable defaults.

BEGIN
  DBMS_MFA_ADMIN.SET_ATTRIBUTE(
    username        => 'SCOTT4',
    type            => 'SQL ACCESS',
    email           => 'scott4_alerts@example.com',
    attribute_name  => 'duration_min',
    attribute_value => '25'
  );
END;
/

This example sets the duration_min attribute for SCOTT4, setting the SQL Access Token validity period to 25 minutes and specifying the delivery email address. This user-level setting overrides any applicable defaults (including global SQL Access Token defaults, if configured).

See SET_ATTRIBUTE Procedure for more information.

Deregister a User

Shows how to use the DBMS_MFA_ADMIN.DEREGISTER_USER procedure to remove a database user from MFA.

Deregistering the user disables Access Tokens for the specified schema and stops MFA enforcement for the user.

For example:

BEGIN
  DBMS_MFA_ADMIN.DEREGISTER_USER(
    username => 'SCOTT',
    type     => 'SQL ACCESS',
    email    => 'scott@example.com'
  );
END;
/

This removes the user SCOTT from SQL Access MFA. MFA enforcement and access tokens are no longer required for this user. However, if SCOTT is registered for MFA with multiple emails, you will need to deregister each entry separately for complete removal.

See DEREGISTER_USER Procedure for more information.

Limitations for Multifactor Authentication on Autonomous AI Database

Lists the limitations with multifactor authentication on Autonomous AI Database.

The following limitations apply when you use multifactor authentication with Autonomous AI Database:
