About This Recipe
This recipe imports an interface file containing payment requests from an FTP server to Oracle ERP Cloud according to a schedule specified in Oracle Integration.
In Oracle ERP Cloud, a payment request is used to make a one-time payment (without creating a supplier record) to external suppliers or parties. When a payment request (transaction) is imported into Oracle ERP Cloud, the payees, parties, and bank accounts are automatically created in the application, thereby simplifying the task of making the payment. In addition, the transactions are validated automatically, eliminating the need for manual intervention.
As part of this recipe, Oracle provides an example file structure that you can use to load a payment request into Oracle ERP Cloud.
To use the recipe, you must install the recipe and configure the connections and other resources within it. Subsequently, you can activate and run the recipe manually or specify an execution schedule for it. When triggered, the recipe loads a payment request from a specified FTP server to Oracle ERP Cloud.
System and Access Requirements
-
Oracle Integration, Version 21.4.2.0.0 or higher
-
Oracle ERP Cloud, Version 21d or higher
-
Accounts on Oracle ERP Cloud with the Administrator role and the Accounts Payable Invoice Supervisor/Accounts Payable Manager/Accounts Payable Specialist role (in order to check for payment requests)
-
A secure FTP (sFTP) server or File Server
-
An FTP client to access the sFTP server.

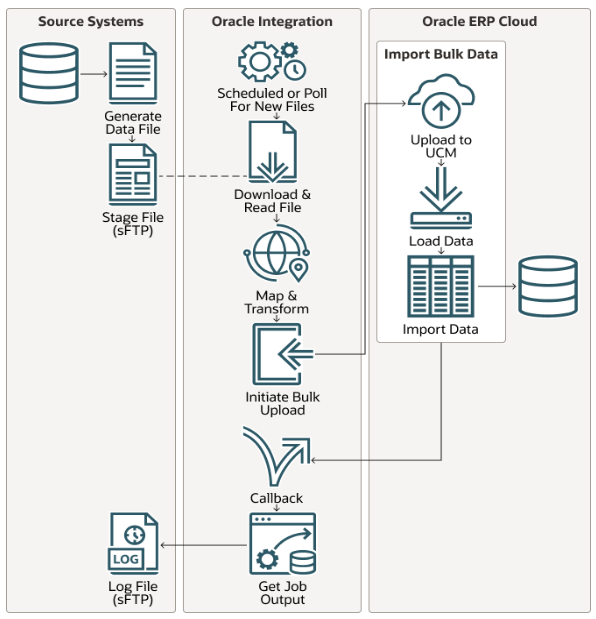

Recipe Schema
This section provides an architectural overview of the recipe.
The primary integration flow (Oracle FTP ERP Cloud Payment Request), when triggered by an execution schedule or a manual submission, queries the FTP server for a payment request file (.zip). If a file is found, the integration flow processes the file. Initially, the flow maps the file’s layout to the layout required by Oracle ERP Cloud, and then it imports the payment requests in bulk through the ERP Adapter.
After importing the payment request, Oracle ERP Cloud makes a callback to the secondary integration flow (Oracle FTP ERP Cloud Payment Request Callback), which downloads the log files from Oracle ERP Cloud and places them on the FTP server.
Payment Request File Definition
This section describes the file layout used by the primary integration flow (Oracle FTP ERP Cloud Payment Request) of the recipe. This integration flow is configured to look for a .zip file on your sFTP server. The .zip file must contain the following two files:
apPaymentRequest.propertiesapPaymentRequest.csv
Definition: apPaymentRequest.properties
This file tells Oracle ERP Cloud how to process and validate the payment requests. This file is in the .csv format.
| Parameter | Value |
|---|---|
| Program Location | oracle/ apps/ess/financials/payables/invoices/transactions/ |
| Program | APXPRIMPT |
| Interface | The file name to be loaded, this will be the the name placed within the FTPImportFileName lookup without the .zip suffix. For example: apPaymentRequest.
|
| Business Unit | Setup and Maintenance/Manage Business Unit. |
| Accounting Date | Enter an accounting date. If you don’t enter a date, the Accounting Date is based on the Accounting Date Basis option. |
| Oracle_Int1 | Hard-coded internal value set to 1000.
|
| Source | For Payment Requests, this is always ONE_TIME_PAYMENTS.
|
| Import Set | Name of an import set to limit the import. |
| Purge |
Yes, for Payables to delete records that match the Source and Group ID of this import. No, to keep all the records except the rejected records. |
| Summarise | Enter whether to summarize the audit portion of the Payables Payment Request Interface Import Report. |
| Ledger | Setup and Maintenance/Manage Primary Ledgers. |
| Invoice Group | Enter the name of an invoice group. |
| Oracle_Int2 | Hard-coded internal value set to 1. |
Example Values: apPaymentRequest.properties
The following table provides an example set of values for the parameter file. Ensure that you enter the values specific to your configuration in the Interface, Business Unit, and Ledger fields.
| Parameter | Value |
|---|---|
| Program Location | oracle/apps/ess/financials/payables/invoices/transactions/ |
| Program | APXPRIMPT |
| Interface | apPaymentRequest |
| Business Unit | 300000047498175 |
| Accounting Date | null |
| Oracle_Int1 | 1000 |
| Source | ONE_TIME_PAYMENTS |
| Import Set | null |
| Purge | N |
| Summarise | N |
| Ledger | 300000047488112 |
| Invoice Group | null |
| Oracle_Int2 | 1 |
Example File: apPaymentRequest.properties
This section provides an example parameter file, with the name: apPaymentRequest.properties.
The file name must be same as the value entered in the Interface field within the file, with .properties as suffix.
Example File:
ProgramLocation,Program,Interface,BusinessUnit,AccountingDate,Oracle_Int1,Source,ImportSet,Purge,Summarise,Ledger,InvoiceGroup,Oracle_Int2 /oracle/apps/ess/financials/payables/invoices/transactions/,APXPRIMPT,apPaymentRequest,300000047498175,null,1000,ONE_TIME_PAYMENTS,null,N,N,300000047488112,null,1
Definition: apPaymentRequest.csv
This file contains the payment requests that are paid through Oracle ERP Cloud. The file provided here is an example, containing the minimum set of data required to load a payment request.
Prepare this file in the .csv format, using the following structure:
| Parameter | Description |
|---|---|
| Transaction Identifier | Identifier that uniquely identifies a payment request line record. |
| Party Name | Name of the party to whom the payment is to be made. |
| Party Original System Reference | Party reference from the original system or external source. |
| Party Type | Type of party receiving the payment. |
| Location Original System Reference | Original system reference for the party site address. |
| Country | Location of the address by country. |
| Address Line 1 | First line of the party address. |
| Address Line 2 | Second line of the party address. |
| City | City of party to whom the payment is to be made. |
| State | State of party to whom the payment is to be made. |
| Province | Province of party to whom the payment is to be made. |
| County | County of party to whom the payment is to be made. |
| Postal Code | Postal code of party to whom the payment is to be made. |
| Postal Plus 4 code | Four-digit extension to postal code. |
| Addressee | Person or recipient located at the address. |
| Global Location Number | Number that uniquely identifies each global location in a trading-partner enterprise. |
| Language | Operating language of the party-site address. |
| Phone Country Code | Country code for the telephone number. |
| Phone Area Code | Area code for address phone number. |
| Phone | Phone number of the party receiving payment. |
| Phone Extension | Phone extension of the party receiving payment. |
| Payee E-Mail address | E-mail address of the payee to whom the payment is to be made. |
| Party Tax Registration Number | Unique identifier assigned to a party or party site by a tax authority. |
| Account Country Code | Country code of the bank account of payee. |
| Account Currency Code | Currency code of the bank account of payee. |
| Account Number | Bank account number of the payee. |
| IBAN | International Bank Account Number of payee. |
| Secondary Account Reference | Account number reference such as Building Society Roll Number. |
| Account Suffix | One to three digit number at the end of the account number that determines the kind of account. |
| Account Name | Name of the payee bank account. |
| Account Type Code | Type of bank account, such as SAVINGS and CHECKING. |
| Bank Name | Name of the payee bank to whom the payment is to be made. |
| Bank Number | Number of the payee bank to whom the payment is to be made. |
| Bank Branch Name | Name of the branch of the payee bank. |
| Bank Branch Number | Number of the bank branch. This is known as the routing transit number in US and Canada. |
| BIC | SWIFT or Bank Identification Code (BIC) of the bank branch. |
| Check Digits | One or more digits used to validate a bank account number. |
| Account Description | Description of the payee bank account. |
| Account Alternate Name | Alternate account name of the bank account of payee. |
| Business Unit | Sold-to business unit name for which the transaction is being created. |
| Source | Name of the external system from which a payment request is imported. |
| Invoice Number | Unique number for payment request. |
| Invoice Date | Date on which payment request is submitted. |
| Currency | Currency of the payment request. |
| Description | Information describing the invoice created for payment. |
| Import Set | Name or number assigned to the import set containing payment requests. |
| Legal Entity | The name of the legal entity that belongs to your own corporate structure (enterprise). |
| Payment Terms | Name of the payment terms used to create installments and to calculate due dates, discount dates, and discount amounts for each invoice. |
| Payment Method | Code identifying the payment method. |
| Pay Group | Used to group payment requests into a single pay run. |
| Liability Combination | Account to which liability is recorded in accrual basis of accounting. |
| Line Number | The number of the invoice line. |
| Amount | The invoice line amount to import for payment. |
| Line Description | Line description. |
| Distribution Combination | Account combination used for creating invoice distribution. |
Example Values: apPaymentRequest.csv
The following table provides an example set of values for the payment-request file.
| Parameter | Description |
|---|---|
| Transaction Identifier | 100109 |
| Party Name | Fred Jones |
| Party Original System Reference | OTP-PTY-100109 |
| Party Type | ORGANIZATION |
| Location Original System Reference | OTP-PTY-100109 |
| Country | GB |
| Address Line 1 | Oracle Parkway |
| Address Line 2 | Thames Valley Park |
| City | Reading |
| State | UK |
| Province | N/A |
| County | N/A |
| Postal Code | RG6 |
| Postal Plus 4 code | 1RA |
| Addressee | N/A |
| Global Location Number | N/A |
| Language | N/A |
| Phone Country Code | N/A |
| Phone Area Code | N/A |
| Phone | N/A |
| Phone Extension | N/A |
| Payee E-Mail address | fred.jones@emaildomain.com |
| Party Tax Registration Number | N/A |
| Account Country Code | GB |
| Account Currency Code | GBP |
| Account Number | 99453336 |
| IBAN | N/A |
| Secondary Account Reference | N/A |
| Account Suffix | N/A |
| Account Name | F Jones |
| Account Type Code | N/A |
| Bank Name | HSBC |
| Bank Number | N/A |
| Bank Branch Name | Reading |
| Bank Branch Number | 754322 |
| BIC | N/A |
| Check Digits | N/A |
| Account Description | N/A |
| Account Alternate Name | N/A |
| Business Unit | UK Business Unit |
| Source | ONE_TIME_PAYMENTS |
| Invoice Number | OTP-FJONES-109 |
| Invoice Date | 2021/11/09 |
| Currency | GBP |
| Description | Refund |
| Import Set | GBP,Refund,,UK Legal |
| Legal Entity | UK Legal Entity |
| Payment Terms | Immediate |
| Payment Method | N/A |
| Pay Group | N/A |
| Liability Combination | 303.30.2210.000.000.000 |
| Line Number | 1 |
| Amount | 20 |
| Line Description | One time payment lines |
| Distribution Combination | 303.30.7740.000.000.000 |
