This recipe demonstrates how to use the parking lot pattern for handling downstream throttling and errors with an example use case of importing employee bank details from an external system to a downstream payroll system. An Oracle ATP database table is used for implementing the parking lot pattern.

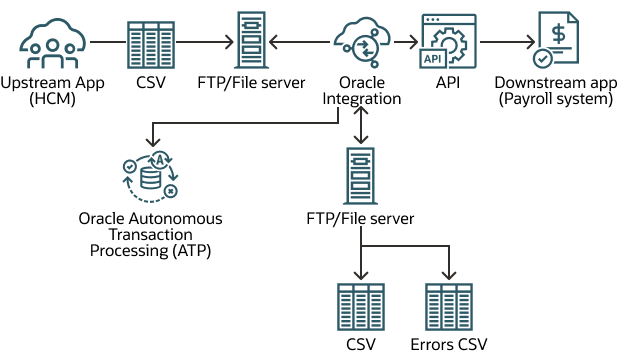

To use the recipe, you must install the recipe and configure the connections and other resources within the recipe. In this example, employee bank details are received from an external system such as Oracle HCM Cloud in a CSV file. The CSV file is then downloaded to a local directory on FTP Server or File Server. Subsequently, the employees bank details are registered in batches to an Oracle ATP database table and parked there for a specific time period before further processing. Thus, the integration flow has a chance to throttle the number of batches processed concurrently. The ready batches are picked up in a staged manner for processing and the processed data is finally updated to a downstream payroll system.

Overview of the recipe's integration flows:

• The Request Persister integration (SR_BulkDownload_RequestPersister_ATP) reads the CSV file received from external system and writes it to a local input directory in FTP. It reads the batch configurations (such as, group_id and group_type) and writes the metadata to the Oracle ATP database table. The registered batches are parked in the Parking Lot table in ATP for a specific period of time.
• The Scheduled Dispatcher integration (SR_ScheduledDispatcher_CSVBatch) is scheduled to run at required frequency. At every run, it fetches the batch requests from the Parking Lot table in ATP and dispatches them to the Async Batch Processor integration for processing. Thus, it triggers the Async Bach Processor integration to process the batches that are submitted for processing.
• The Async Processor integration (SR_OneWay_Processor_HCM_To_Payroll) processes all the submitted batch requests. Also, it updates the batch status (for example, if a batch is successfully processed, it updates the status to PROCESSED) in the Batch Statistics table in ATP. On successful processing, it invokes another integration (for example, SR_MOCK_EmpBankAccountProvider integration in this recipe ) to send the processed information to a downstream application via REST API calls. Any errors received in the response from the downstream application are written into an Error folder in FTP. These payload errors are also written to a Payload Error Record table in ATP.
• The Resubmission Processor integration (SR_ScheduledDispatcher_PayrollErrors) is used to resubmit any batch requests failures/errors that were fixed. It fetches any record from the Payload Error Record table that are in READY state and re-submits them for processing.
