Tour of the Projects Workspace

The Projects workspace contains several tabs for designing, managing, and monitoring automation solutions.

Navigation to the Projects Workspace

A Projects option is available in the navigation pane.

In the Projects workspace, you can complete all your design, management, and monitoring tasks. You don't need to navigate to the Design and Observability pages when working in a project.


The Home, Projects, Design, B2B, Observability, and Settings options are displayed.

Tip:

When you move around the project workspace performing tasks, a BackBack icon button is provided that enables you to easily return to your previous location under the Projects option.

Design Tab

Design and manage integrations on the Design tab, which appears by default when you open a project. The design tab includes a vertical navigation bar to navigate among the pages.

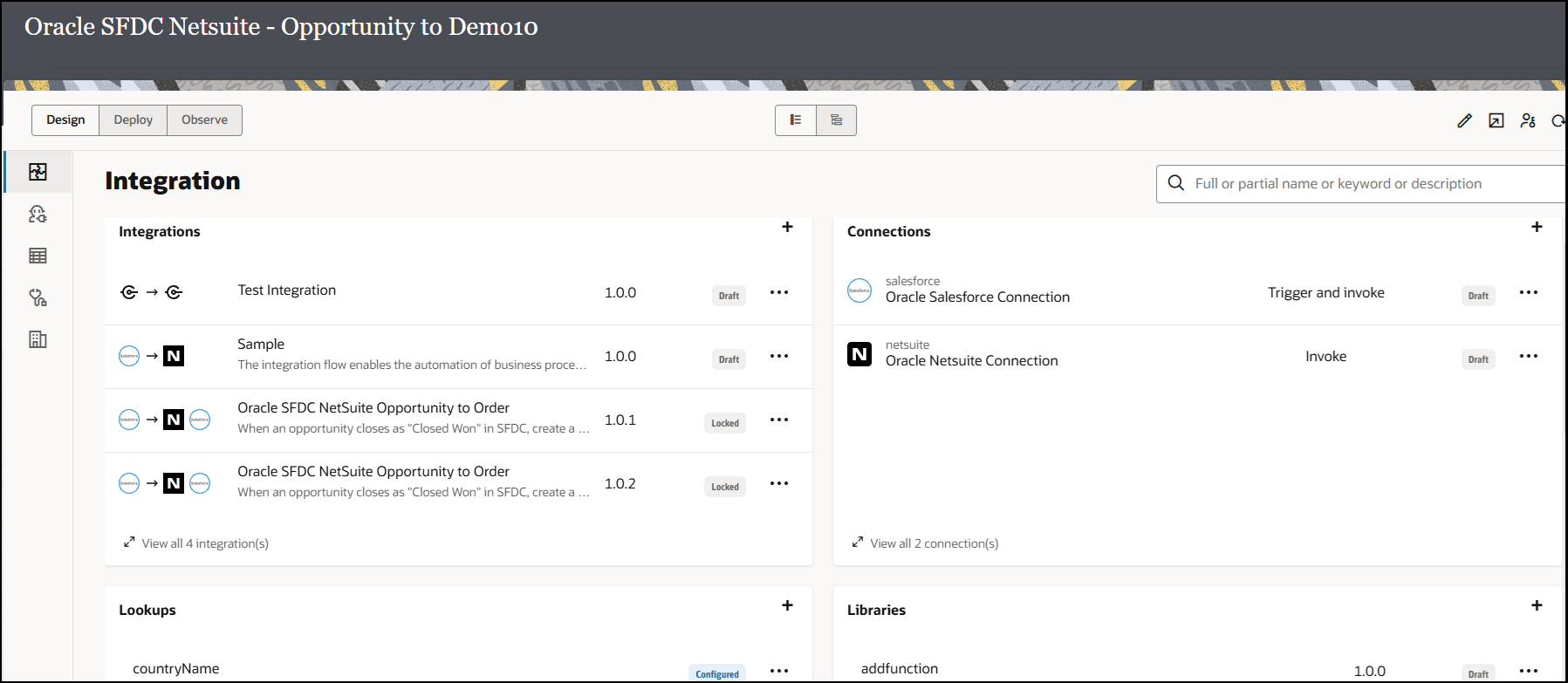

The left vertical pane shows icons for Integrations, Robotsl, Healthcare, and B2B. The page for a specific project shows the Design, Deploy, and Observe buttons. In the upper middle are the list and dependency diagram icons. In the upper right are the Edit Details, Export, View dependencies, and Refresh icons. Below is a Search field. Below are the Integrations, Connections, Lookups, and Libraries boxes. Configured resources for each type are displayed in the Integrations, Connections, Lookups boxes. The Integrations, Connections, Lookups, and Libraries boxes include a + icon and an Actions (…) list. Assets have been defined for each.

The Design tab contains the following pages.

Integration Page

The following components are available on the Integration integrations icon page on the Design tab.

Component Description

Integrations section

Create integrations in this section.

Additional tasks that you perform in this section include:
  • Viewing, editing, cloning, deleting, searching, activating, and deactivating integrations.
  • Enabling or disabling the ability for REST Adapter-triggered and AS2 Adapter-triggered integration instances to be replayable at runtime.
  • Creating a new version of an integration.
  • Setting tracing levels.
  • Refreshing endpoints.
  • Updating property values.
  • Running REST Adapter trigger-based integrations and schedule integrations.
  • Viewing run details.

Connections section

Create connections for your integrations in this section.

Additional tasks that you perform in this section include:
  • Editing, deleting, and searching for connections.
  • Refreshing metadata.

Lookups section

Create lookups for your integrations in this section.

Additional tasks that you perform in this section include editing, deleting, and searching for lookups.

Libraries section

Create JavaScript libraries for your integrations in this section.

Additional tasks that you perform in this section include deleting, updating, and searching for libraries.

Events area

Create events to publish and subscribe to in integrations.

Additional tasks that you perform in this section include cloning, editing, deleting, and viewing events.

Robot Page

The following components are available on the Robot Robot page on the Design tab.

For information about working with robots and their components, see Learn About Robots and Build a Robot in Using Robots in Oracle Integration 3.

Component Description

Robots section

Create and edit robots, create new versions of robots, associate and remove environment pools, activate and deactivate robots, delete robots, and more in this section.

Environment pools section

Create and edit environment pools, add and remove environments from the pools, and more in this section.

Robot connection types section

Create, edit, and delete robot connection types in this section.

Robot connections section

Create, edit, and delete robot connections in this section.

Healthcare Page

The following components are available on the Healthcare Healthcare icon page on the Design tab.

Component Description

HL7 messages and schemas

Create HL7 messages and schemas in this section.

See Create Oracle Integration for Healthcare Schemas and Documents in Using Oracle Integration for Healthcare in Oracle Integration 3.

Additional healthcare-related tasks that you can perform include:
  • Cloning, editing, viewing, and deleting schemas.
  • Cloning, editing, viewing, and deleting messages.
  • Exporting a project that includes healthcare resources (schemas, messages, and integrations using a healthcare action) and importing that project into another instance.
  • Cloning a project that includes healthcare resources (schemas, messages, and integrations using a healthcare action)

You can select the HL7 message when configuring the healthcare action in an integration in the Integrations section of the project. See Convert HL7 Messages with a Healthcare Action in Using Oracle Integration for Healthcare in Oracle Integration 3.

B2B Page

The following components are available on the B2B B2B icon page on the Design tab.

Component Description

Documents and schemas

Create or import documents and schemas in this section.

See B2B Schemas and B2B Documents in Using B2B for Oracle Integration 3.

Additional B2B for Oracle Integration-related tasks that you can perform include:
  • Editing, viewing, cloning, exporting, and deleting schemas, and generating an implementation guide.
  • Editing, viewing, cloning, exporting, and deleting documents.
  • Exporting a project that includes resources (schemas, documents, and integrations using a B2B action) and importing that project into another instance.
  • Cloning a project that includes B2B resources (schemas, documents, and integrations using a B2B action).

You can select the document when configuring the B2B action in an integration in the Integrations section of the project. See Use the B2B Action in Standalone Mode in Using B2B for Oracle Integration 3.

Trading partners

Create or import trading partners in this section.

You can also edit, view, export, and delete trading partners.

See Use B2B for Oracle Integration in Trading Partner Mode in Using B2B for Oracle Integration 3.

Not all B2B features are currently supported in projects. See Design B2B Integrations in Projects or in Standalone Environments.

Components on All Pages

Some components are available on all pages in the Design tab.

Component Description
View dependencies View dependencies

View the dependent relationships between all integrations, connections, lookups, JavaScript libraries, and events in a project.

Edit details Edit icon

View integration description details.
Export Export icon

Export a project.

Share Share icon

Assign a project owner and specify the people who can edit, view, and monitor resources in the project.

Refresh Refresh icon

Refresh the area you are in separately from other areas (for example, healthcare).

Deploy Tab

Deploy one or more automation solutions in a project on the Deploy tab.


The Design, Deploy, and Observe tabs appear at the top. Below is a table with columns for Name, Identifier, Flows, and Last updated.

The Deploy tab contains the following components:

Component Description

Create button

Create a project deployment.

Options that appear when you point to a project deployment

Contains options for exporting, activating, and deactivating a project deployment.

Actions Actions icon menu, which appears when you point to a project deployment

Contains options for editing, viewing, cloning, and deleting a project deployment.

Observe Tab

Monitor your automation solutions on the Observe tab.

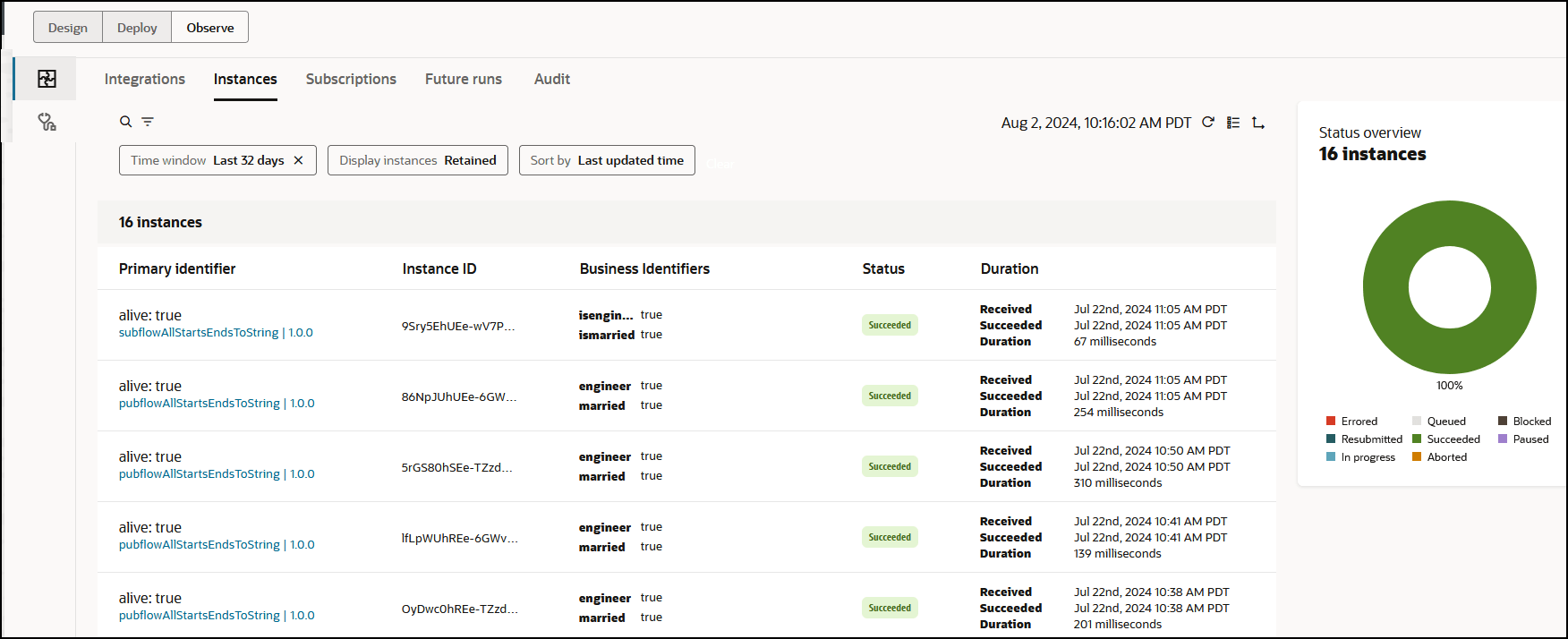

The page for a specific project shows the Design, Deploy, and Observe tabs. Below is a field that shows the latest filter settings. At the top are search and filter icons. At the far left are Integrations, Instances, Subscriptions, Future runs, and Audit tabs. At the far right is the time stamp and refresh button. Below all these buttons and icons is a table with columns for Primary Identifier, instance ID, Business Identifiers, Status, and Duration. The table is populated with instance details. At the far right is a graph that shows the state of instances: Successful, Aborted, Queued, Blocked, Errored, In progress, Paused, and Resubmitted.

The Observe tab contains the following pages.

Integration Page

The following tabs are available on the Integration integrations icon page on the Observe tab.

Tab Description

Integrations tab

See high-level information about your integrations and their messages.

Instances tab

This tab contains the following components:

  • A table for tracking the status of integration instances through business identifiers and viewing the activity stream and message payloads of an instance.

    Use a clickable graph to filter the display of the state of instances.

    You can also use the Filter Filter icon icon to perform the same task.

  • A section for viewing instance errors. You can resubmit failed instances, discard failed instances, view message recovery status, and view basic and detailed error messages.
  • An Actions Actions icon menu for each instance to perform other tasks such as viewing the integration schedule and child instances and replaying REST Adapter-triggered and AS2 Adapter-triggered integration instances that you configured as replayable during integration activation.

Subscriptions tab

Shows the currently subscribed integrations, the event, retained events, and subscriber status.

Future runs tab

View a calendar of scheduled integration runs.

Audit tab

View and download the design-time audit log of actions performed in a project.

Robot Page

The following tabs are available on the Robot Robot page on the Observe tab.

Tab Description

Robot instances tab

This tab contains a table for tracking the status of robot instances through business identifiers and viewing the activity stream and message payloads of an instance.

Use a clickable graph to filter the display of the state of instances.

You can also use the Filter Filter icon icon to perform the same task.

B2B Page

The following tabs are available on the B2B B2B icon page on the Observe tab.

Tab Description
Business messages
This tab contains the following components:
  • A filter for sorting on last message created, date range, trading partner name, message direction, message type, status, resubmit status, document status, document standard. message ID, wire message ID, transport message ID, integration instance ID, error code, document version, document type, business identifier, parent message ID, resubmitted message ID, collaboration ID, group control number, transaction control number, and interchange control number.
  • A table for viewing the document, trading partner, document status, business identifier, and creation date.
  • A View details View details icon link for accessing business message details, such as properties, message tags, payloads, and correlations.
  • An Actions Actions icon menu for viewing wire messages and functional acknowledgments.
Wire messages
This tab contains the following components:
  • A filter for sorting on last message created, date range, trading partner name, message direction, message type, status, resubmit status, transport, message ID, transport message ID, integration instance ID, error code, payload name, parent message ID, and resubmitted message ID.
  • A table for viewing the transport, trading partner, transport status, transport message ID, creation date, payload name, and payload size.
  • A View details View details icon for accessing wire message details, such as properties, message tags, payloads, and correlations.
  • An Actions Actions icon menu for viewing business messages and the message disposition notification (MDN).
